SKU #: DD-SD-HVFDK-FL MPN #: DD-SD-HVFDK-FL

Driven Diesel High Performance Fuel Delivery Kit 99-07 7.3L / 6.0L Ford Powerstroke

$1,664.95

Get 1664 points in loyalty rewards

☆☆☆☆☆ (0)

Driven Diesel High Performance Fuel Delivery Kit for 99-07 7.3L and 6.0L Ford Powerstroke

Description

Is your Powerstroke in need of SERIOUS fueling? Then look no further than this Fuel Delivery Kit from the professionals at Driven Diesel. Designed to work in conjunction with one of Driven Diesel's Fuel Bowl Delete Regulated Return Kits, this will deliver enough fueling for nearly any horsepower and fueling level. Plus, these kits have the the ability to us a FASS Electric Fuel Heater. Choose between Fuelab, Bosch 200, or Dual Bosch Pumps to make sure your Powerstroke gets the fuel it needs! All Driven Diesel's High Volume Fuel Delivery Kits are now tank connection universal. What that means is that the tank connection is NOT INCLUDED (5/8" PICKUP, SUMP, ETC) This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you may want to measure and verify that you have room before ordering. Also, this bracket can be mounted on the outside of the frame rail if needed, but care will need to be taken with regard to the parking brake cable and fuel line routing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting. * IMPORTANT NOTE : This kit was designed to work with the Driven Diesel "Fuel Bowl Delete" Regulated Return Kits. As such, it does NOT include the proper fittings to supply fuel to the factory fuel filter bowl. The kit includes standard #6AN fittings for making the connection to the fuel inlet at the engine. This will mate up perfectly with their 7.3L Fuel Bowl Delete Kits (available now) as well as the 6.0L Fuel Bowl Delete Kit. If you are not using one of Driven Diesel's Fuel Bowl Delete Regulated Return Kits, you may need to supply additional fittings to make the proper connection to your fuel system.

Choose add-ons

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Choose between Fuelab, Bosch 200, or Dual Bosch Pumps to make sure your Powerstroke gets the fuel it needs!

All Driven Diesel's High Volume Fuel Delivery Kits are now tank connection universal. What that means is that the tank connection is NOT INCLUDED (5/8" PICKUP, SUMP, ETC)

This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you may want to measure and verify that you have room before ordering. Also, this bracket can be mounted on the outside of the frame rail if needed, but care will need to be taken with regard to the parking brake cable and fuel line routing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting.

* IMPORTANT NOTE : This kit was designed to work with the Driven Diesel "Fuel Bowl Delete" Regulated Return Kits. As such, it does NOT include the proper fittings to supply fuel to the factory fuel filter bowl. The kit includes standard #6AN fittings for making the connection to the fuel inlet at the engine. This will mate up perfectly with their 7.3L Fuel Bowl Delete Kits (available now) as well as the 6.0L Fuel Bowl Delete Kit. If you are not using one of Driven Diesel's Fuel Bowl Delete Regulated Return Kits, you may need to supply additional fittings to make the proper connection to your fuel system.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

1999-2007 7.3L and 6.0L Ford Powerstroke

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

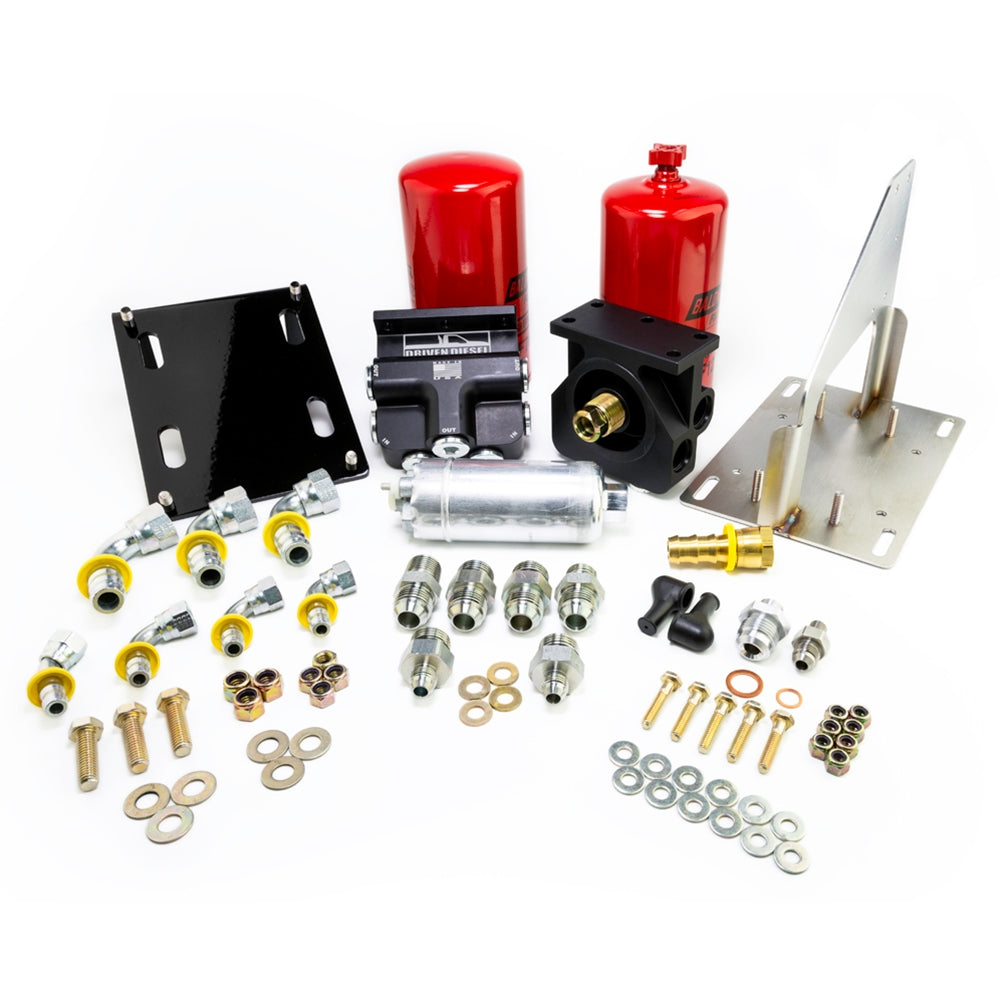

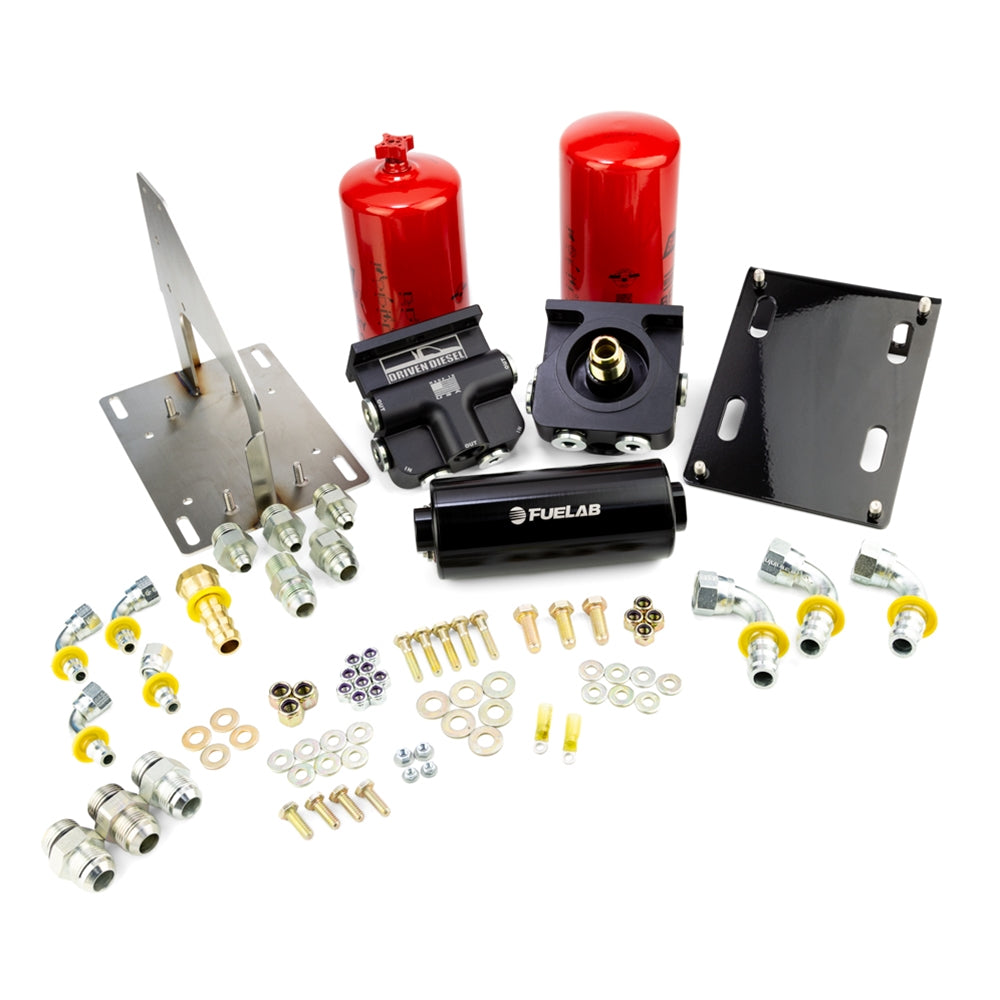

KIT FEATURES:

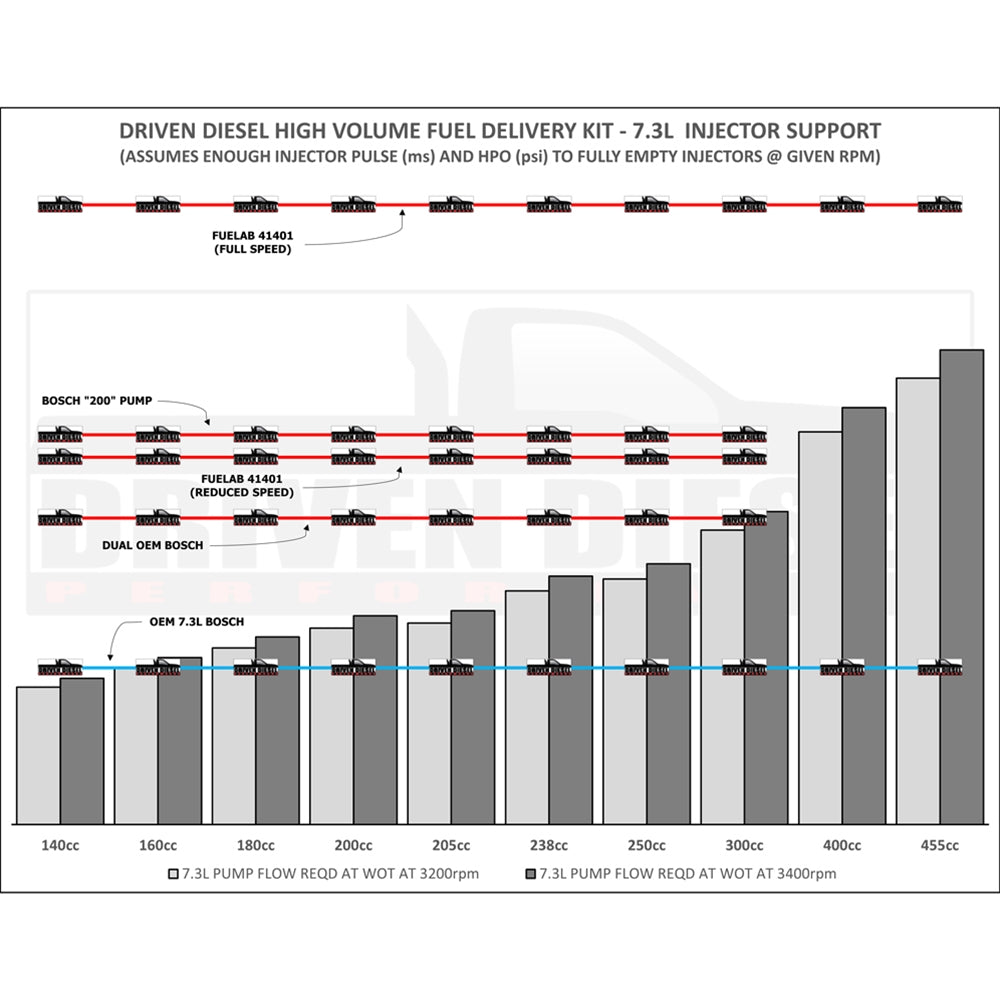

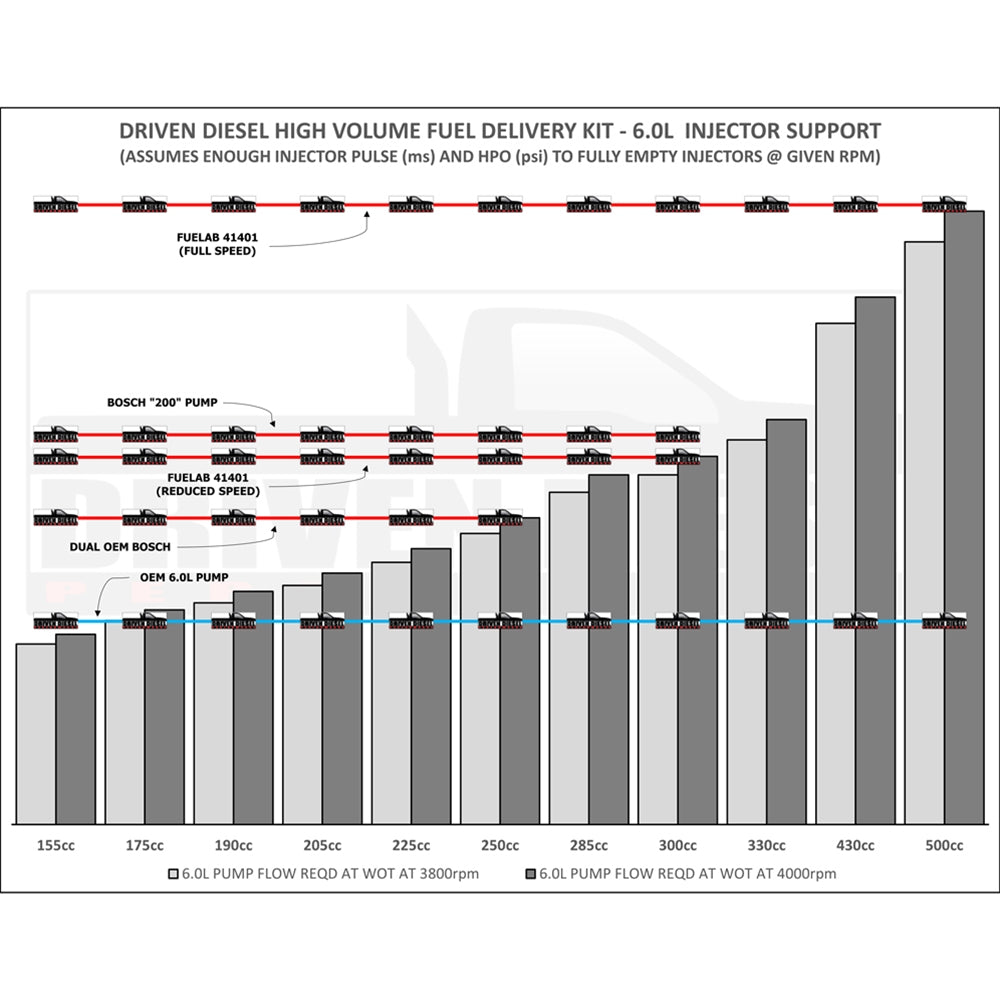

SUPPORTS THE LARGEST Injectors (1999-2007 7.3L & 6.0L)

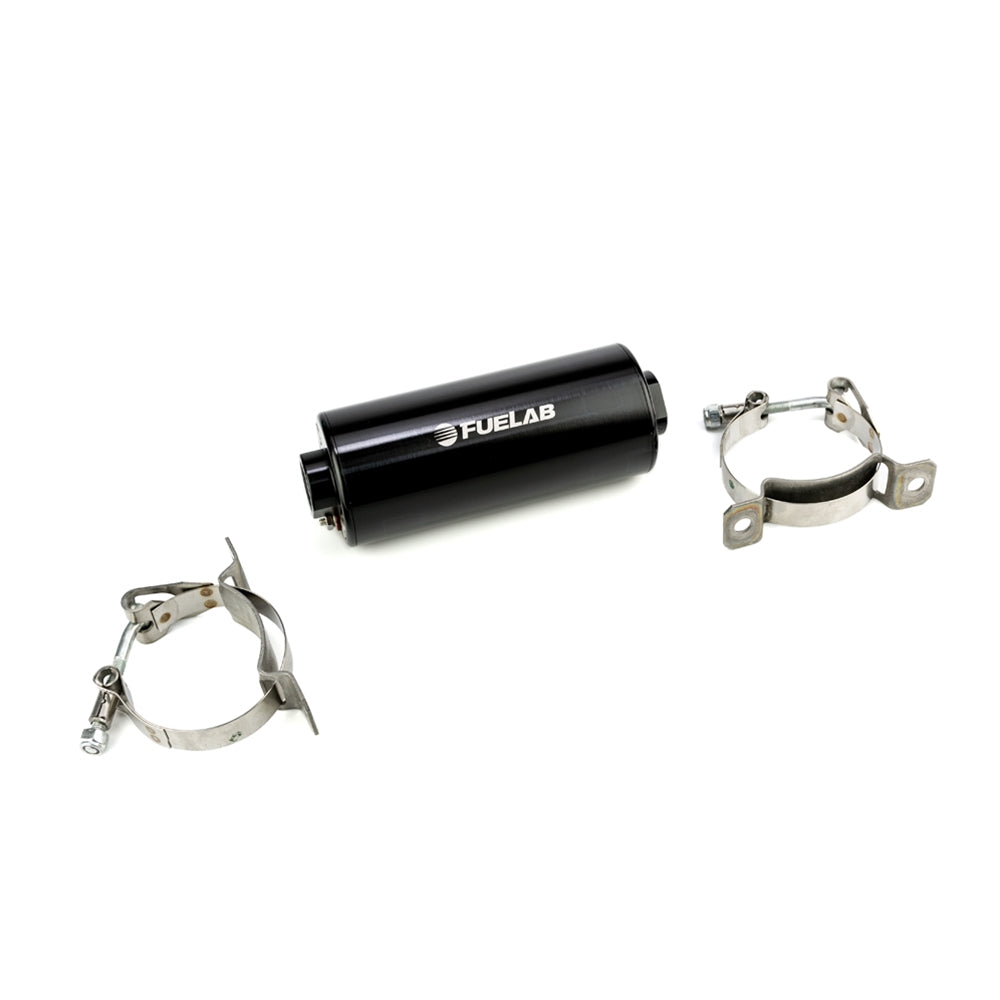

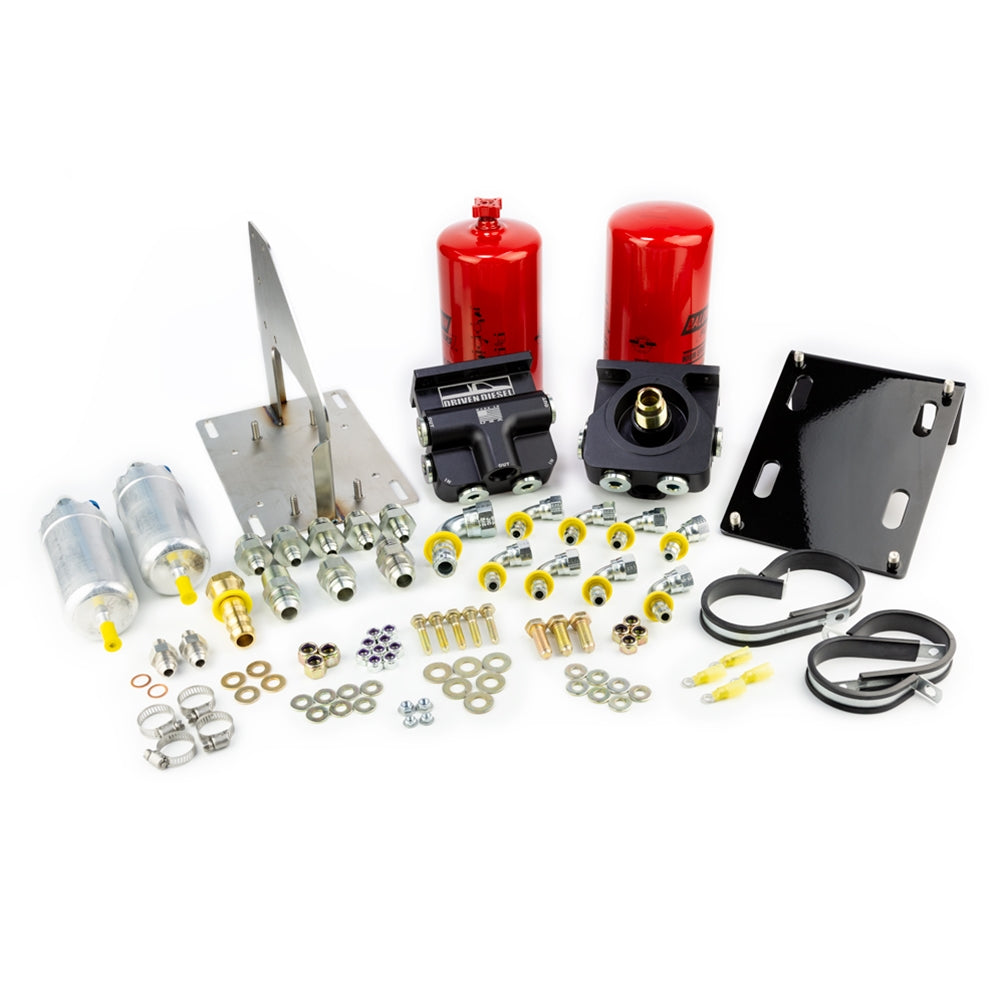

INCLUDES FUELAB Prodigy (41401-1) Brushless Fuel OR INCLUDES (2) BRAND NEW Bosch 7.3L Electric Fuel Pumps OR Bosch Motorsport "200" High Volume Fuel Pump

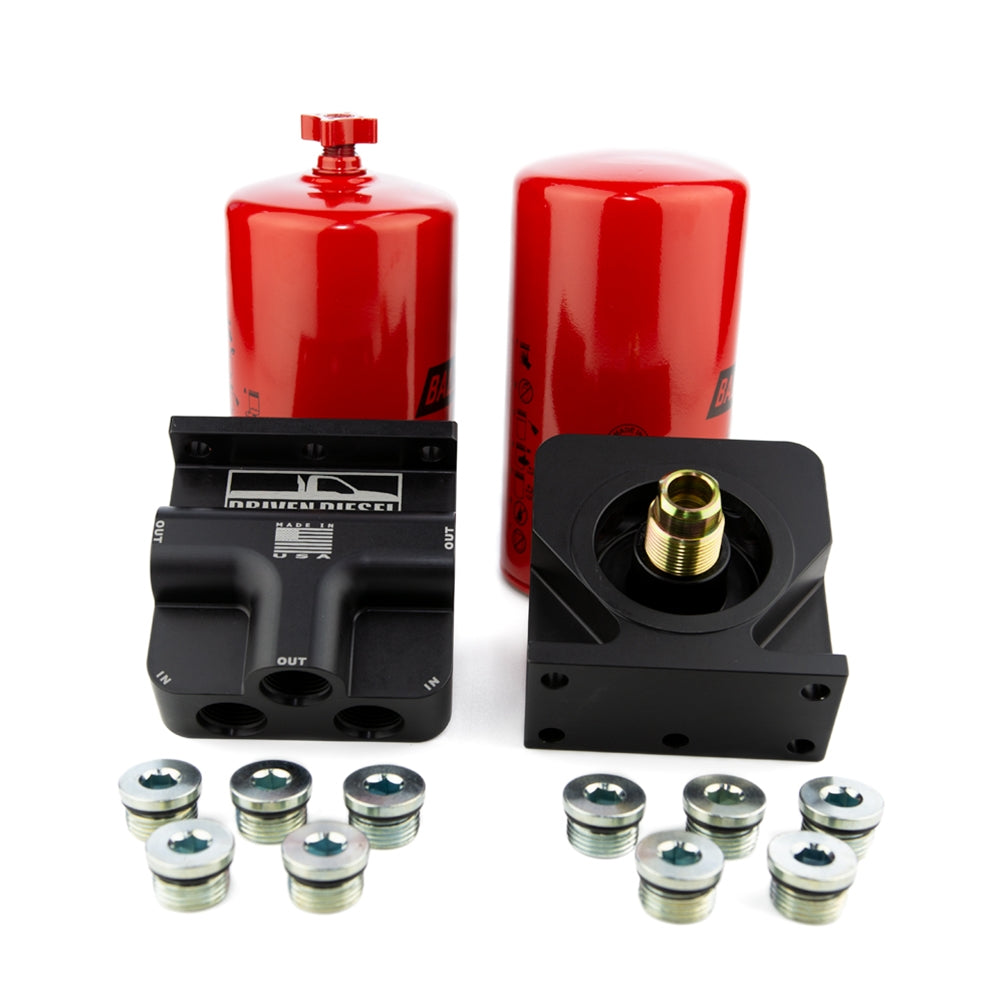

NEW DRIVEN DIESEL BILLET High Flow Pre & Post Pump Fuel Filter Heads Made in the USA!

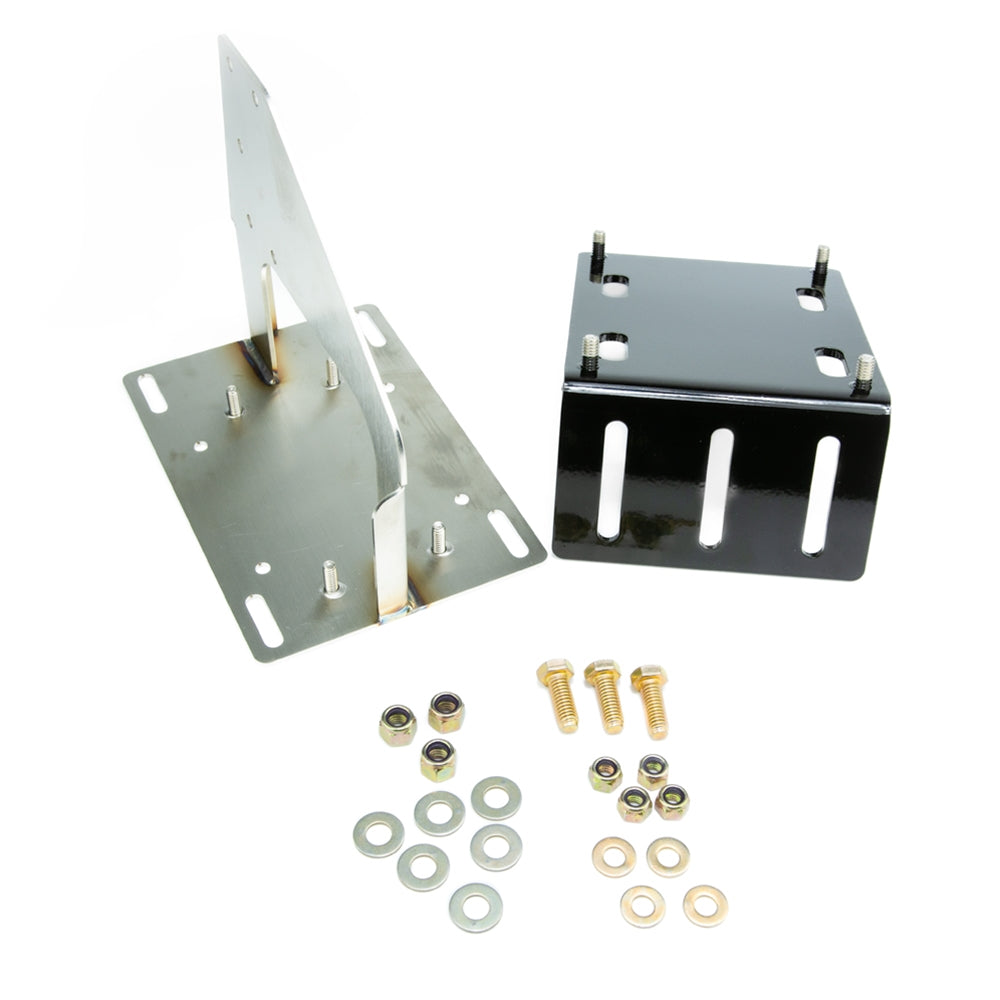

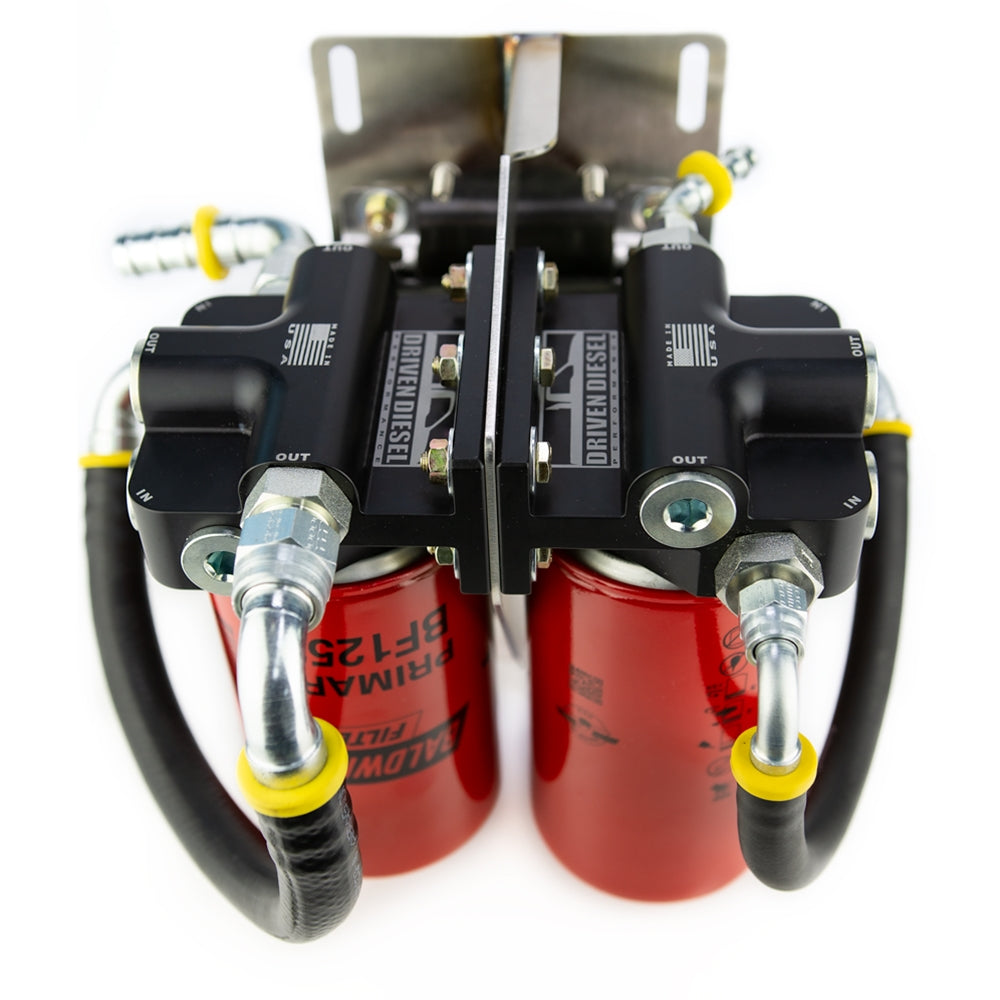

NEW DRIVEN DIESEL Mounting Bracket Assembly (Improved Fit and Flexibility) Made in the USA!
High Quality Baldwin Fuel Filters Made in the USA!

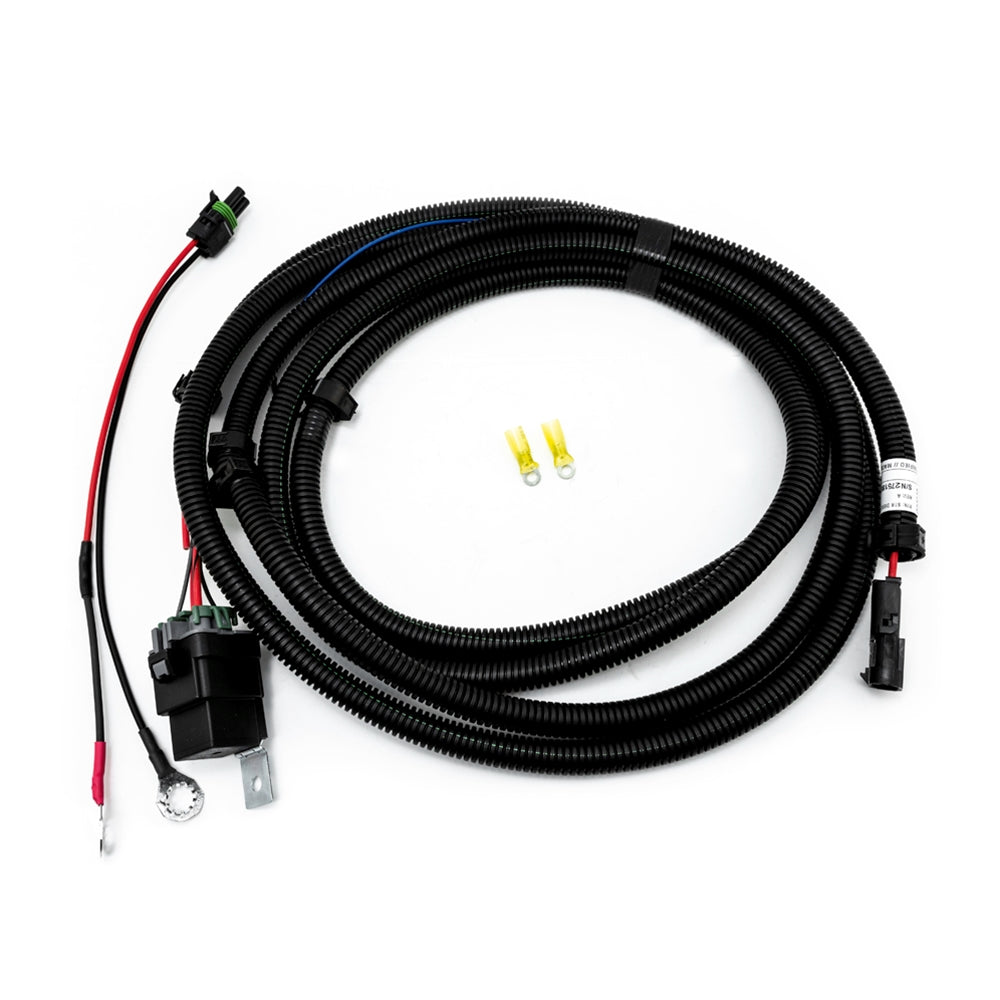

DRIVEN DIESEL 40A Fuel Pump Wiring Harness Made in the USA!

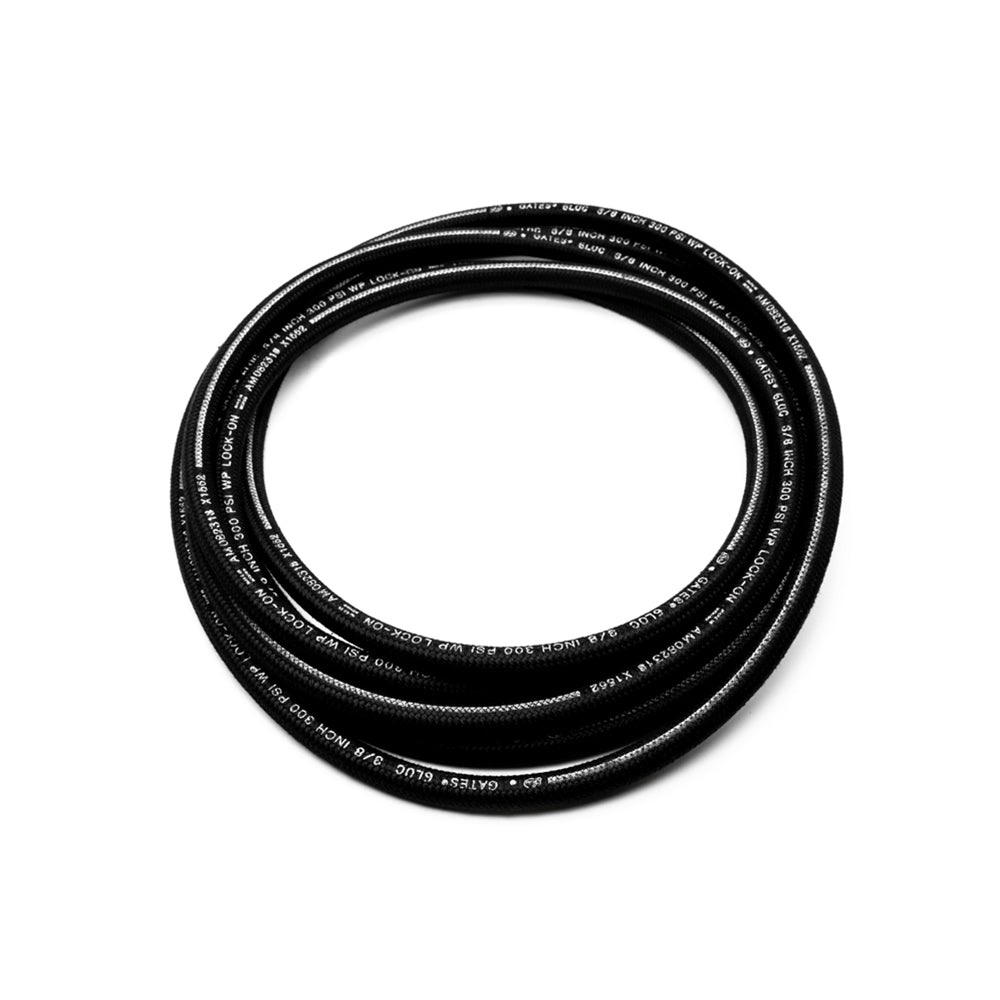

ALL Necessary Hose / Fittings / Clamps / Hardware
Adapter Fitting for FASS Electric Fuel Heater INCLUDED!
Full Color Installation Instructions
FUEL TANK CONNECTION NOT INCLUDED!

E-SERIES VAN FITMENT:

These kits are configured for a Pickup or Excursion PRIMARILY. For a standard length van, this kit will be fine. If you have a longer van with the tank behind the axle, please call to order so we can ensure you are getting the poper amount of hose for the length of your van.
