SKU #: KRY-KR11STAGE3FOX
MPN #: KR11STAGE3FOX

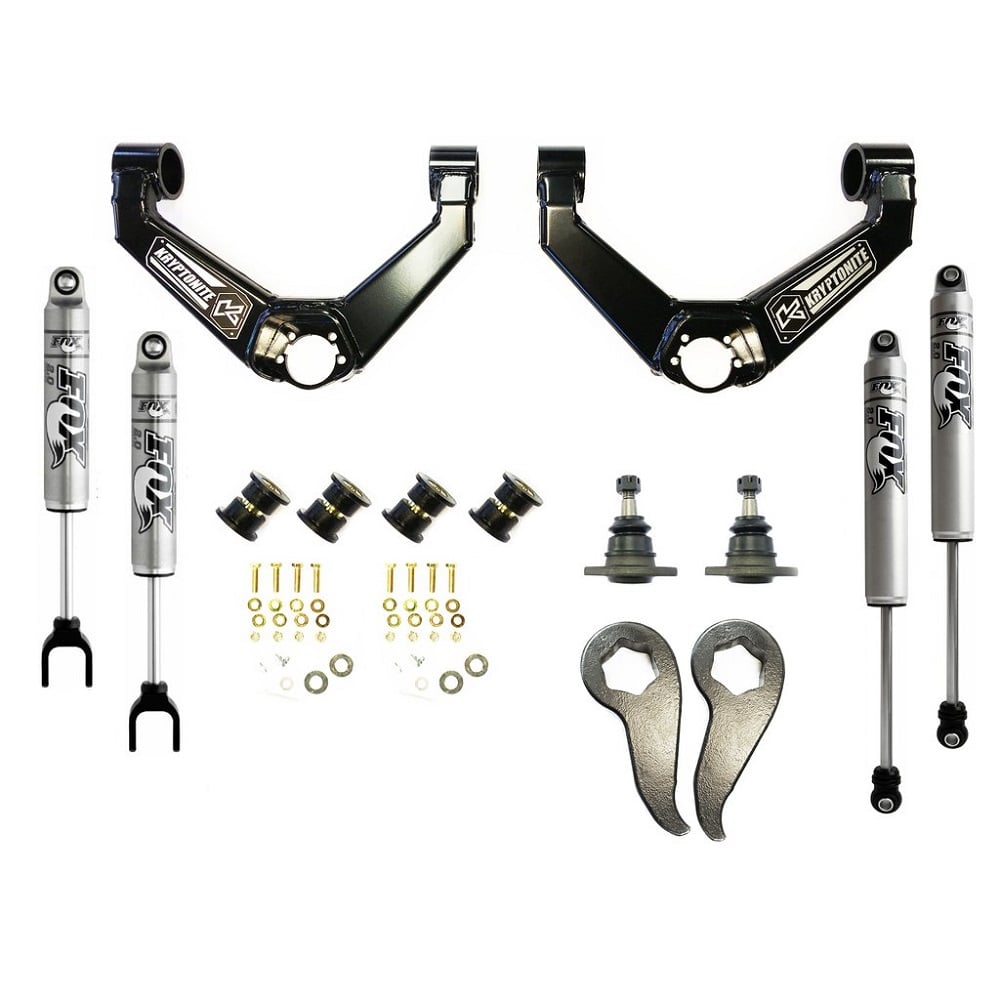

Kryptonite Stage 3 Leveling Kit With Fox 2.0 Shocks 11-19 GM 2500HD / 3500
Description
Installing a leveling kit in your 2011-2019 GM Duramax LML/L5P is an inexpensive and effective way of upgrading the look of your Duramax. Whether you are installing a leveling kit just to eliminate the nose down look, or if there are a specific size of tire and wheel you are wanting to install, Kryptonite has you covered with the Stage 3 Leveling kit complete with Fox Shocks.
KRYPTONITE TORSION KEYS:The Kryptonite torsion keys are designed to grab the hex surface of the torsion bar for a tighter, sturdier fit. Kryptonite torsion keys are forged, making them 25% stronger than OEM and are coated to prevent corrosion the life of your vehicle. The adjustable torsion key provides up to 2” of lift and gives clearance to add up to 33" Tires. Designed to keep the OEM ride and will not add more pressure on the stock suspension components. Through Kryptonite's innovative engineering, these kits cost thousands less than a traditional lift kit.
KRYPTONITE UPPER CONTROL ARMS:Kryptonite Upper Control arms are laser cut and welded into an extremely strong boxed design. Made with pride here in small town USA and backed with a lifetime warranty. Kryptonite UCA kits will improve the ride of any Stock, leveled, or lifted GM 2500-3500 HD truck but are also a great upgrade for your stock height truck. Kryptonite UCA's are compatible with any stock or leveled 2500-3500 HD and most suspension lift kits.
FOX 2.0 IFP SHOCKS:The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions. The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
OPTIONAL CAM BOLT KIT:The Kryptonite cam bolt kit is recommended to be replaced on and trucks located in a harsh climate or on any truck with high miles. Cam Bolt Kit will Not Work with an Upper Control arm drop lift kit. They will only fit if your Upper Control arms remain in the stock location.
OPTIONAL ALIGNMENT PIN KIT:These pins replace the alignment pins in the GM trucks. The pins make it easier to align the vehicle and often become bent or crushed and need to be replaced. This kit includes 8 pins..
Choose add-ons
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
KIT CONTENTS:
- 1 x Kryptonite Upper Control Arm Pair
- 4 x Control arm sleeves
- 8 x Control arm Bushings
- 2 x Kryptonite Bolt on Upper Ball Joints
- 1 x Hardware package
- 2 x Leveling Keys
- 2 x Fox 2.0 Performance Series Front Shocks, Part# KRS189
- 2 x Fox 2.0 Performance Series Rear Shocks, Part# KRS664
IMPORTANT NOTE:
- This Package is designed to level the front of LML trucks a maximum of 2 inches! Any adjustment beyond 2 inches over stock height will most likely result in complete front shock failure!
- Some trucks come pre-adjusted over stock height from factory IE: AT4, Z71, High country. The same measurements of increased ride height will not apply.
- Access to grease fittings on your upper control arms can often be a pain. We have eliminated this problem by changing the locations on our newest version of the upper control arms from Kryptonite. The hardware kits with your arms include multiple grease fittings as well as grease port plugs. This allows you to have great service ability no matter how your upper control arms sit.
About Kryptonite Products
Are you interested in replacing and upgrading your steering and suspension for the absolute last time with a product that will not only last as long as the rest of your truck, but also improve the suspension and steering feel? Kryptonite products are over-engineered, made in the USA products and most are even backed by a lifetime warranty. The Kryptonite No Fine Print Lifetime Warranty specifically states "Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, lower it, sled pull it, I think you get it? We dont care. If you can break it we will replace it." That's a pretty bold statement and would require a company that builds a solid product to offer it and still be in business.
Maybe youve heard of Kryptonite, maybe not. For those that have not heard of Kryptonite, they are a steering and suspension manufacturer on a mission to offer the absolute best in steering and suspension options for trucks and even side by sides. Theyve spent years developing and perfecting these components, and all of them are proudly Made in the USA.
KRYPTONITE STEERINGMany would argue that Kryptonite got its foot in the door with their massive steering tie rods for Chevy 2500HD and 3500s, or maybe it was their upper control arms for this application. Maybe so, and wed have to agree they did a fantastic job in creating a bulletproof solution. From these initial proving grounds, Kryptonite has vastly expanded their portfolio in providing steering linkages for Ram and Fords, Lifetime Warranty Wheel Bearings, ball joints, centerlinks, pitman and idler arms, and even complete suspension systems!
Overall, if youre interested in upgrading your steering or suspension, dont think twice about upgrading with Kryptonite. As always, if you have any questions about what kit or component may be right for you and your truck, dont hesitate to contact us.
Blog
April 15, 2025
When you drive a Dodge Ram 1500 4x4 diesel, your suspension works harder than your average half-ton...
Read MoreBest Shocks for Dodge Ram 1500 4x4: Top Picks for Your Diesel Truck
January 21, 2022
Are you on the fence about improving the performance of your diesel truck? Check out our article...
Read MoreMyths And Misconceptions About Adding Horsepower to A Diesel Pickup
August 30, 2021
So you picked up a new truck and itching to start modifying, but with trucks teetering on...
Read MoreWarranty Friendly Upgrades For Your New Truck
July 27, 2026
The 2006-2007 LBZ Duramax comes up in almost every conversation about the best Duramax trucks. GM built...
Read MoreLBZ Duramax: Why It's One of the Best Diesel Engines Ever Built
Overall rating: 4.5 / 5 from 8 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
"It took 29 days to finaly arive"
Do it yourself leveling kit - this is the one
"Being a new to diesel ownership, I've been wanting to add quality products without spending a ton of money for someone else to do the work. I found this kit and while a basic understanding is needed, this was detailed in all the steps. I was able to get it all completed within a day. I'm sure more experienced people could do it in half a day but I took my time to ensure I was doing it right. I love Kyptonite products so far and plan to purchase much more!"
Excellent
"All the parts are superior to my stock parts. Very satisfied. You get what you pay for. Thanks"
Kryptonite kit
"Installed on 2016 Silverado 2500. Kit fit perfectly. I am not a pro mechanic but I'm not dumb. Installed easily in couple hours. Bought torsion tool and right tools make it easy for sure and safe. Truck had ready lift keys on from previous owner but control arms were bottomed out and ranchos were worthless. This kit did what it was supposed to truck stayed same height basically but control arms are now not touching bumps and fox's make it ride better. I also bought the cam bolt kit just in case and used them so it was worth it. A worthy investment. Will continue to upgrade the front end with kryptonite."
Great Product! Quality material and packaging.
"As an amateur mechanic, it was fairly easy except. . . Instruction tools required need more tools listed and further step-by-step instructions for first-timers would be helpful. Youtube helped me through it."
Great kit
"This Kryptonite leveling kit is top-notch. Went together nicely, and the fitment was perfect. Highly recommend !"
Kryptonite Arms w/ fox shock package
"Haven't installed yet but opened the box and they look sweet. Good packaging and more importantly quality parts. Waiting on my airlift bags and new tires to install this leveling kit all at once. dont want to have to relevel it cuz i added something later."
Q&A
- I have a stock 2019 GMC Sierra 3500HD SRW. It’s due for shocks and tires. I’m curious if I went with this leveling kit if I could go up to 285/75R18 without rubbing. I don’t want a lifted look, but I do want it leveled with a proportionately symmetrical tire. Stock tire size is 265/70R18
- Absolutely, with this leveling kit, that size of tire would fit without trimming.
- Is there any way this kit could fit 35in tires? I see in the description it says it will fit up to 33in, but Is there a possibility it could fit 35in?
- It can fit 35" tires if you delete your front bumper and take a grinder to whatever your wheel hits at full lock.
- Will this be fine when pulling a fifth 40ft wheel camper?
- The Fox systems typically ride a little rougher on these platforms but with the truck being loaded down you should be happy with the overall ride quality. -Mark
- I’m trying to fit 20x10 -18 offset with 305/55 tires on my 2018 duramax will my tires be able to fit with this leveling kit?
- I believe that would be right at the limit. It should clear just fine, but some certain situations you might rub and have to trim the bumper valence. Such as, pulling into a parking lot. -Sands
- Was wondering if your kits work on the gas motor trucks too. I would think the suspension is the same but just making sure. Thanks
- On the GM trucks yes they would work just fine. -Sands
