SKU #: F55-00090-06 MPN #: 00090-06

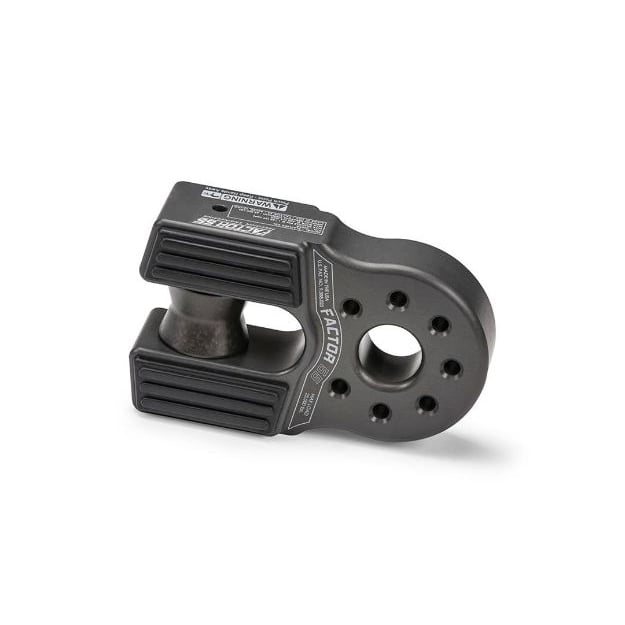

Factor 55 Flatlink XXL

Name: Factor 55 Flatlink XXL
Brand: Factor 55
Price: 229.0 USD
Availability: InStock

$229.00

Get 229 points in loyalty rewards

Description

FlatLink is the original folding winch shackle bracket from Factor 55, featuring a precision shackle mounting hole and a folding design that provides a lower profile for an improved approach angle compared to the ProLink.This Flatlink eliminates the need for splicing and is compatible with both steel and synthetic ropes. The attachment is secured with a super-strong aerospace-grade double-shear titanium pin and snap ring, ensuring a heavy-duty connection that can be easily installed in minutes.EPDM rubber guards, with four barbed tips, are incorporated to protect alloy fairleads, prevent rattling, and securely fasten to the FlatLink XXL.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

FlatLink is the original folding winch shackle bracket from Factor 55, featuring a precision shackle mounting hole and a folding design that provides a lower profile for an improved approach angle compared to the ProLink.

This Flatlink eliminates the need for splicing and is compatible with both steel and synthetic ropes. The attachment is secured with a super-strong aerospace-grade double-shear titanium pin and snap ring, ensuring a heavy-duty connection that can be easily installed in minutes.

EPDM rubber guards, with four barbed tips, are incorporated to protect alloy fairleads, prevent rattling, and securely fasten to the FlatLink XXL.

Vehicle Fitment

Universal Fitment

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

The world's first foldable winch shackle mount with self-centering load spool
Double-shear pin and internal snap ring for an ultra-secure connection
EPDM rubber guards are attached with four barbed tips and protect fairleads, cushions, and line stowage, and prevent rattling
Equipped with a shear pin load centering spool to accommodate wire rope applications
Lightweight - Precision CNC machined 6000 series Military Grade Aluminum
Compatible with wire rope diameters of up to 5/8" and synthetic rope tube thimbles up to 1" diameter
Fits common 7/8 and 1" screw pin shackle sizes (1.0 and 1.125 pin diameters)
7/8" diameter titanium double shear pin
3" thick when folded flat
Maximum Load: 26,000 lbs, Ultimate Strength: 68,000 pounds
Weight: 51 oz
Engineered, Tested, and Made in USA. Patent pending

SPECIFICATIONS:

Shackle Type: 7/8 and 1 Inch Screw Pin Shackles
Cable Type: 5/8 Inche Steel Cable / Synthetic Winch Rope
Load Capacity (lb): 24000 Pounds
Shear Pin Size (IN): 7/8 Inche
Finish: Anodized
Color: Gray
Material: Aluminum
With Guard: Yes

About Factor 55

Most often, weve found that companies birthed from passion develop the best products. Thus, it comes as no surprise that Factor 55 a line of products equaled by no other. Based in Boise ID, Factor 55 continues to fill a hole in the Recovery market. The first production of products created an entirely new market by completely negating the need for a traditional winch hook. Factor 55 has created a new standard in the recovery industry. Abandon your loud, floppy winch hook, the ProLink is calling. Dont leave your $80,000 truck, $2000 bumper, and $1500 winch hanging; upgrade your gear with Factor 55 and youll be wondering why you had not thought to do so sooner.

Factor 55 designs, tests, and creates each product in house. All product designs are created using CAD and then optimized with Comsos FEA (Finite Element Analysis). Next each product is subjected to a destructive test with the assistance of a test facility equipped with test measurement and data recording equipment. And finally all of Factor 55s products are produced right here in the good ol United States of America!
