SKU #: DD-OBS-HVFDK-2P MPN #: DD-OBS-HVFDK-2P

Driven Diesel OBS High Performance Fuel Delivery Kit 94-97 Ford 7.3L Powerstroke

$1,399.95

Get 1399 points in loyalty rewards

Driven Diesel OBS High Performance Fuel Delivery Kit for 94-97 Ford 7.3L Powerstroke

Description

Is your OBS Powerstroke in need of SERIOUS fueling? Then look no further than this Fuel Delivery Kit with a Fuel Lab Prodigy Fuel Pump from the professionals at Driven Diesel. Designed to work in conjunction with one of Driven Diesel's Fuel Bowl Delete Regulated Return Kits, this will deliver enough fueling for nearly any horsepower and fueling level. Choose between Fuelab, Bosch 200, or Dual Bosch Pumps to make sure your Powerstroke gets the fuel it needs! MUST BE USED IN CONJUNCTION WITH DRIVEN DIESEL FUEL BOWL DELETE REGULATED RETURN SYSTEM This kit was designed to work with Driven Diesel's very popular "7.3L OBS Fuel Bowl Delete" Regulated Return Kit. They supply standard #6AN fittings for making the connection to the fuel inlet at the engine which will mate up perfectly with our 7.3L Fuel Bowl Delete Regulated Return Kit. If you are using this kit with another brand of engine fuel system, make sure that system includes a Fuel Pressure Regulator, you may need additional parts to complete the connection. THIS KIT ELIMINATES THE FUEL TANK SELECTOR VALVE OBS FUEL TANK NOTICE : High Volume Fuel Pumps CAN NOT be used with the OEM Fuel Tank Selector Valve! Use of this kit REQUIRES that the truck pickup and return all fuel to ONLY ONE TANK, bypassing the fuel tank selector valve completely. Attempting to use the fuel tank selector valve with this kit WILL damage the pump(s) and void the warranty! Additional options for maintaining fuel tank capacity are discussed in the installation instructions. CHECK FOR CLEARANCE This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you will need to plan on installing the kit on the OUTSIDE of the frame rail. In these cases, care will need to be taken with regard to the parking brake cable and fuel line routing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting, but we have tested and confirmed that it will fit outside the frame as well.

Choose add-ons

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Is your OBS Powerstroke in need of SERIOUS fueling? Then look no further than this Fuel Delivery Kit with a Fuel Lab Prodigy Fuel Pump from the professionals at Driven Diesel. Designed to work in conjunction with one of Driven Diesel's Fuel Bowl Delete Regulated Return Kits, this will deliver enough fueling for nearly any horsepower and fueling level.

Choose between Fuelab, Bosch 200, or Dual Bosch Pumps to make sure your Powerstroke gets the fuel it needs!

MUST BE USED IN CONJUNCTION WITH DRIVEN DIESEL FUEL BOWL DELETE REGULATED RETURN SYSTEM

This kit was designed to work with Driven Diesel's very popular "7.3L OBS Fuel Bowl Delete" Regulated Return Kit. They supply standard #6AN fittings for making the connection to the fuel inlet at the engine which will mate up perfectly with our 7.3L Fuel Bowl Delete Regulated Return Kit. If you are using this kit with another brand of engine fuel system, make sure that system includes a Fuel Pressure Regulator, you may need additional parts to complete the connection.

THIS KIT ELIMINATES THE FUEL TANK SELECTOR VALVE

OBS FUEL TANK NOTICE : High Volume Fuel Pumps CAN NOT be used with the OEM Fuel Tank Selector Valve! Use of this kit REQUIRES that the truck pickup and return all fuel to ONLY ONE TANK, bypassing the fuel tank selector valve completely. Attempting to use the fuel tank selector valve with this kit WILL damage the pump(s) and void the warranty! Additional options for maintaining fuel tank capacity are discussed in the installation instructions.

CHECK FOR CLEARANCE

This kit was designed to mount INSIDE the frame rail, forward of the stock fuel tank. The fully assembled pump bracket requires about 13-15" of straight frame space to allow for the inlet and outlet hoses to route cleanly. If you have a short wheelbase truck or you have other equipment already mounted in the area forward of the fuel tank, you will need to plan on installing the kit on the OUTSIDE of the frame rail. In these cases, care will need to be taken with regard to the parking brake cable and fuel line routing. All of the pictures in the instructions show a system plumbed for INSIDE the frame mounting, but we have tested and confirmed that it will fit outside the frame as well.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

1994-1997 7.3L Ford Powerstroke

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

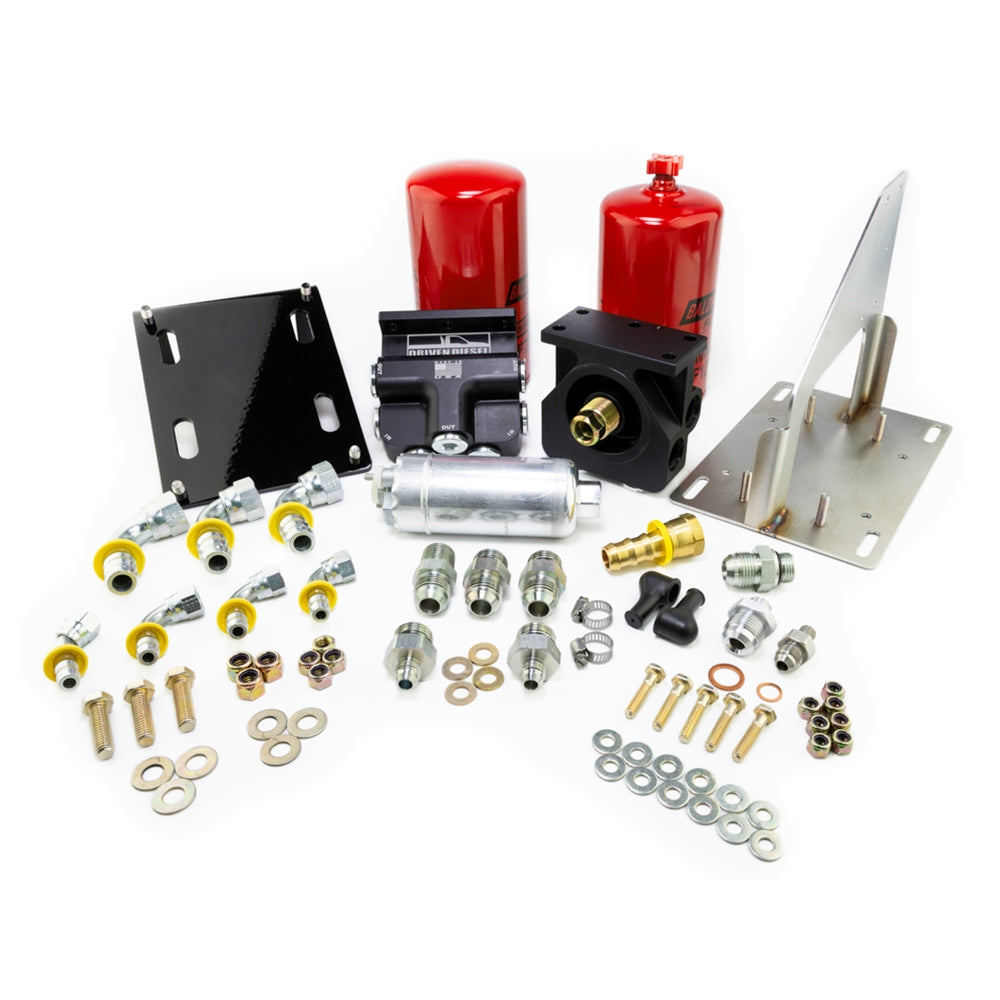

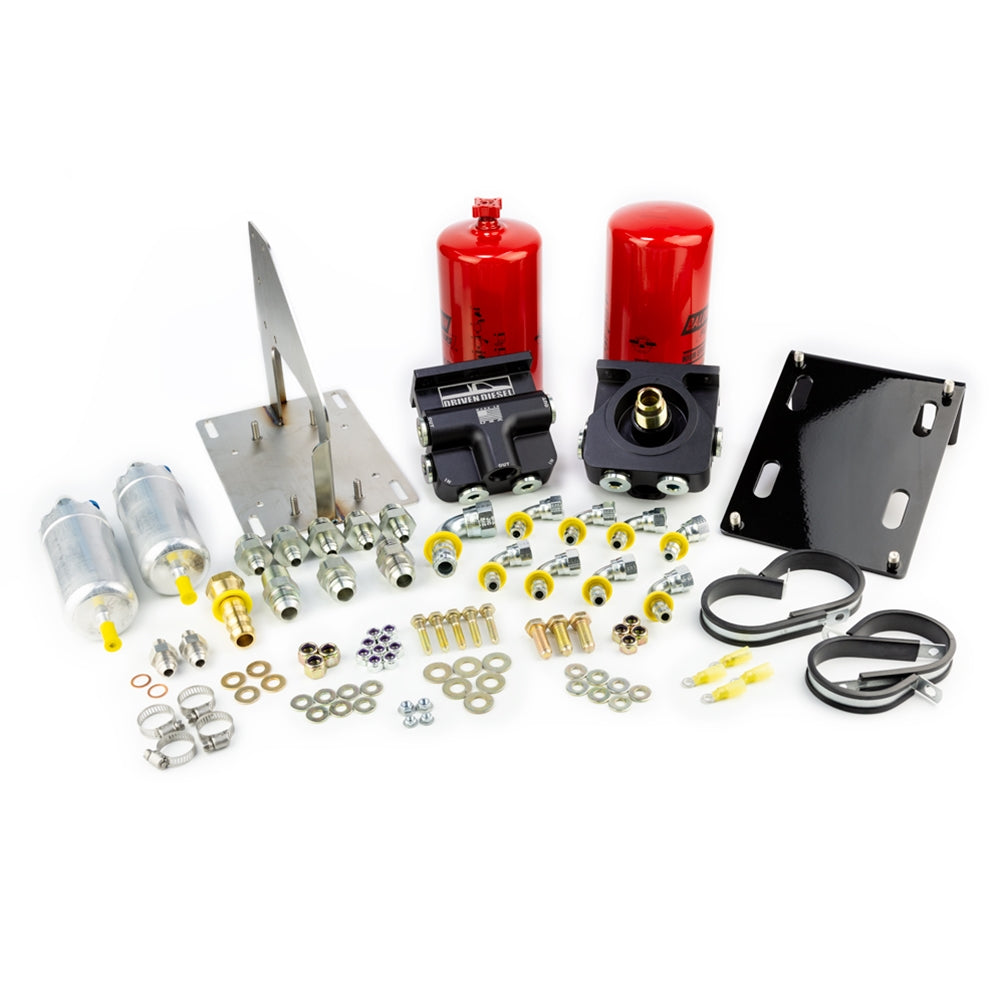

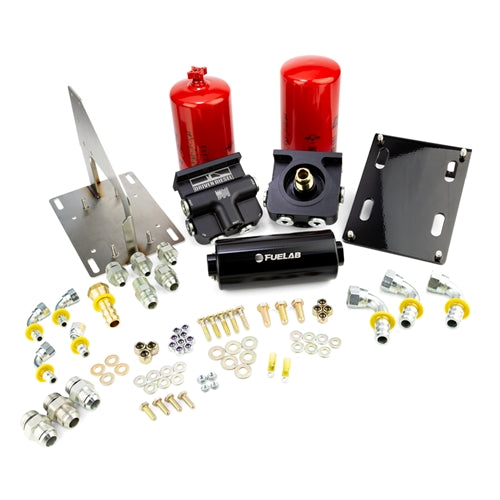

KIT FEATURES:

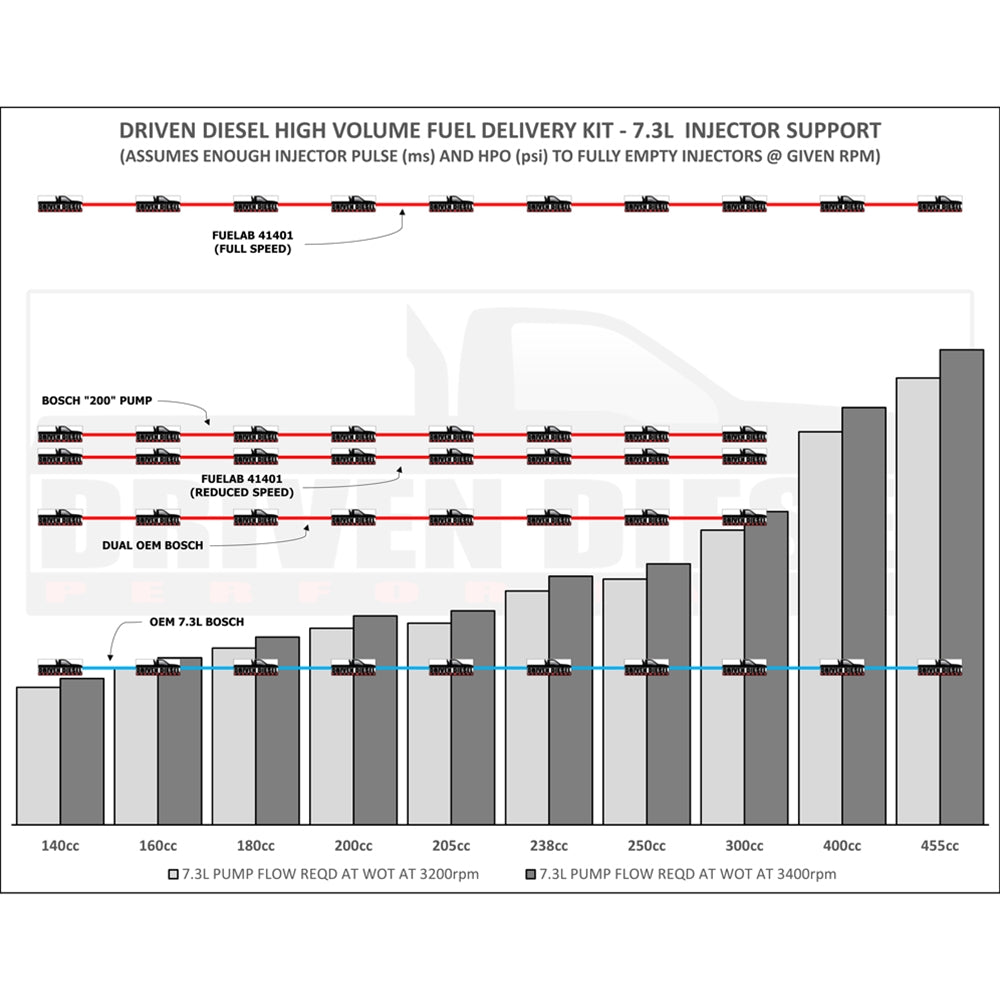

SUPPORTS THE LARGEST Injectors (1999-2007 7.3L & 6.0L)

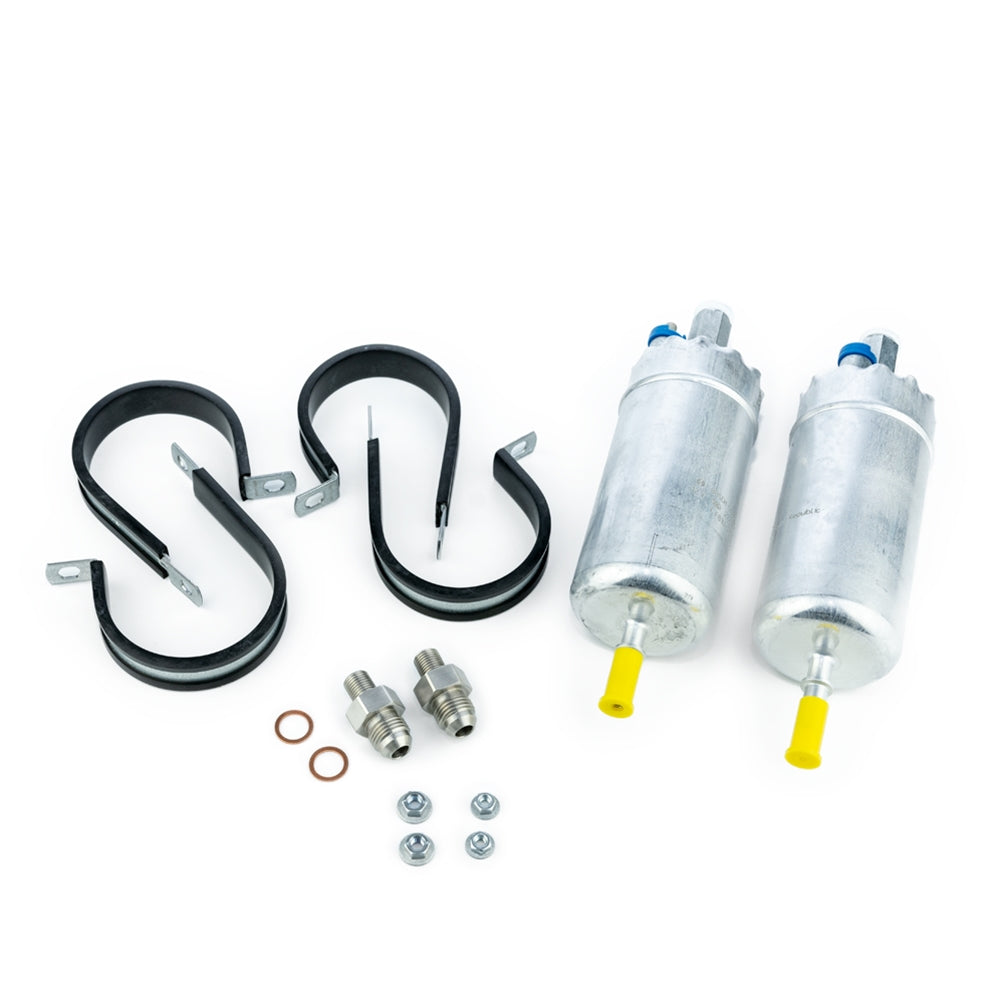

INCLUDES (2) BRAND NEW Bosch 7.3L Electric Fuel Pumps OR FUELAB Prodigy (41401-1) Brushless Fuel Pump OR Bosch Motorsport "200" High Volume Fuel Pump ALL Made in the USA!

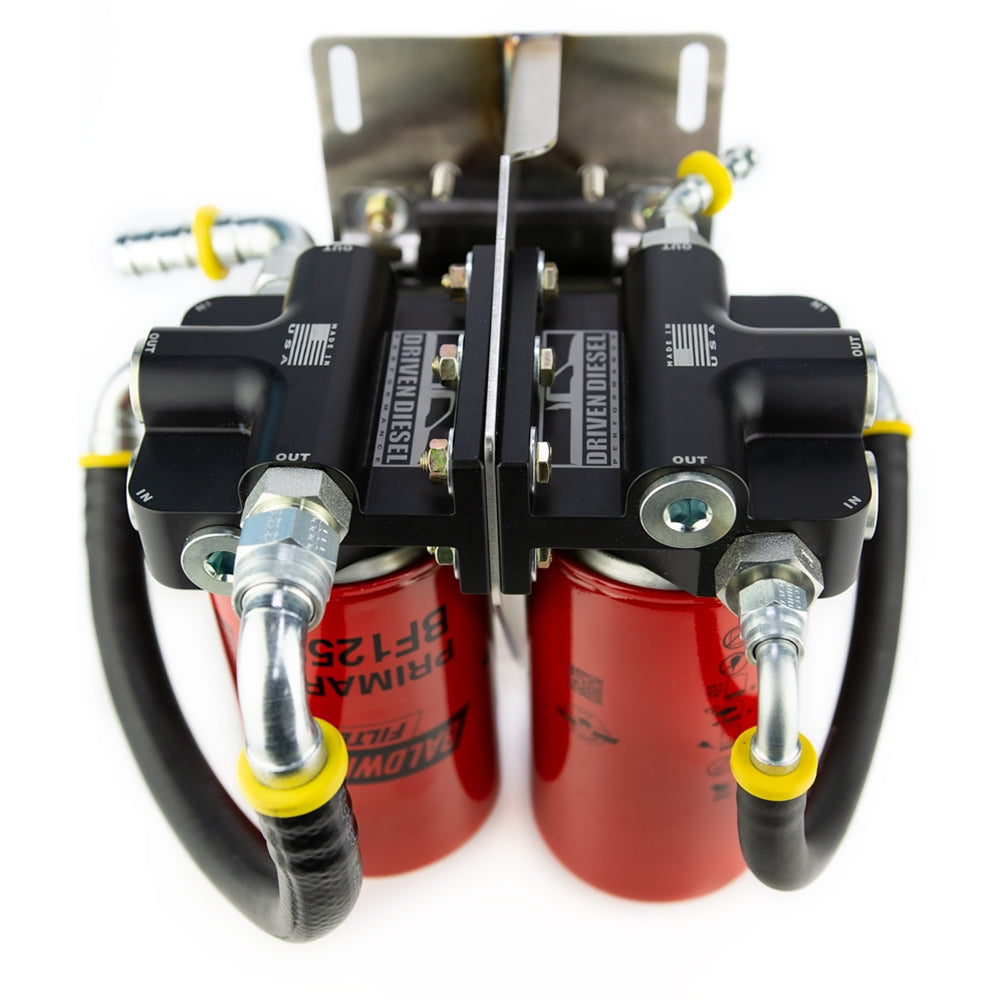

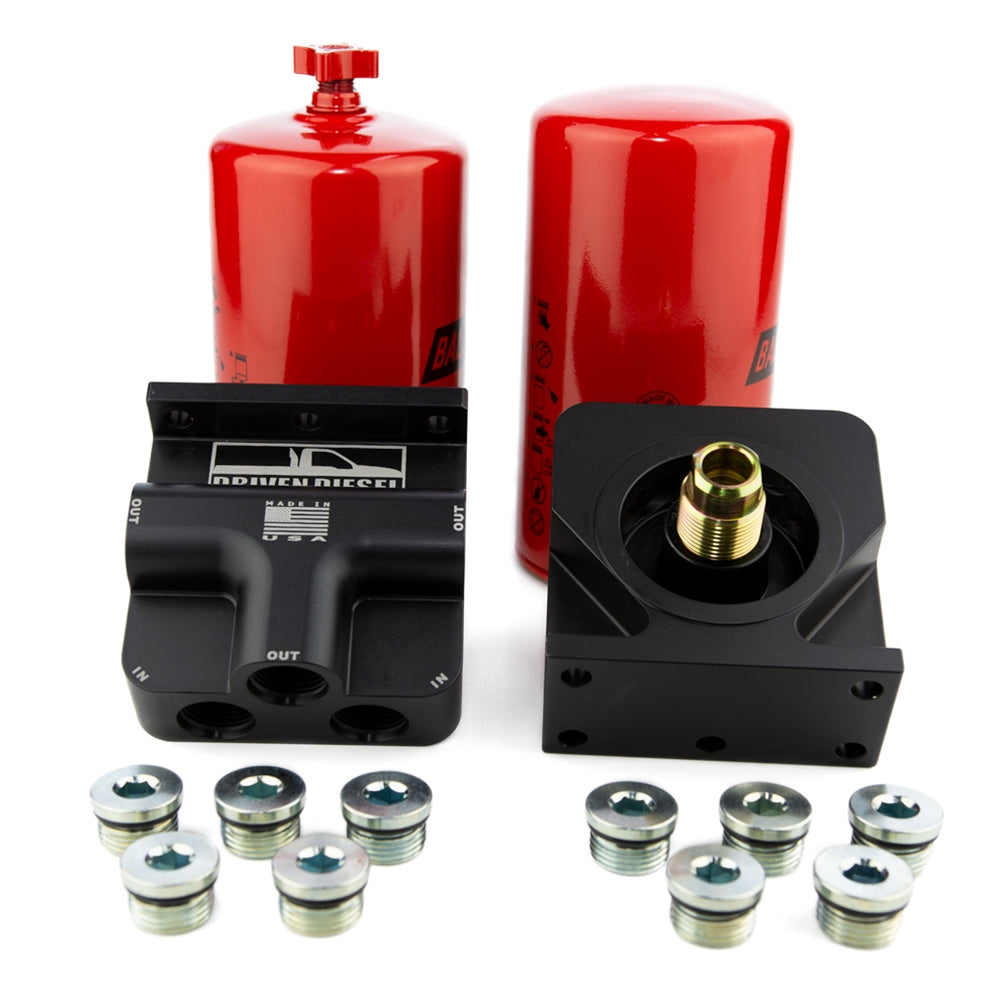

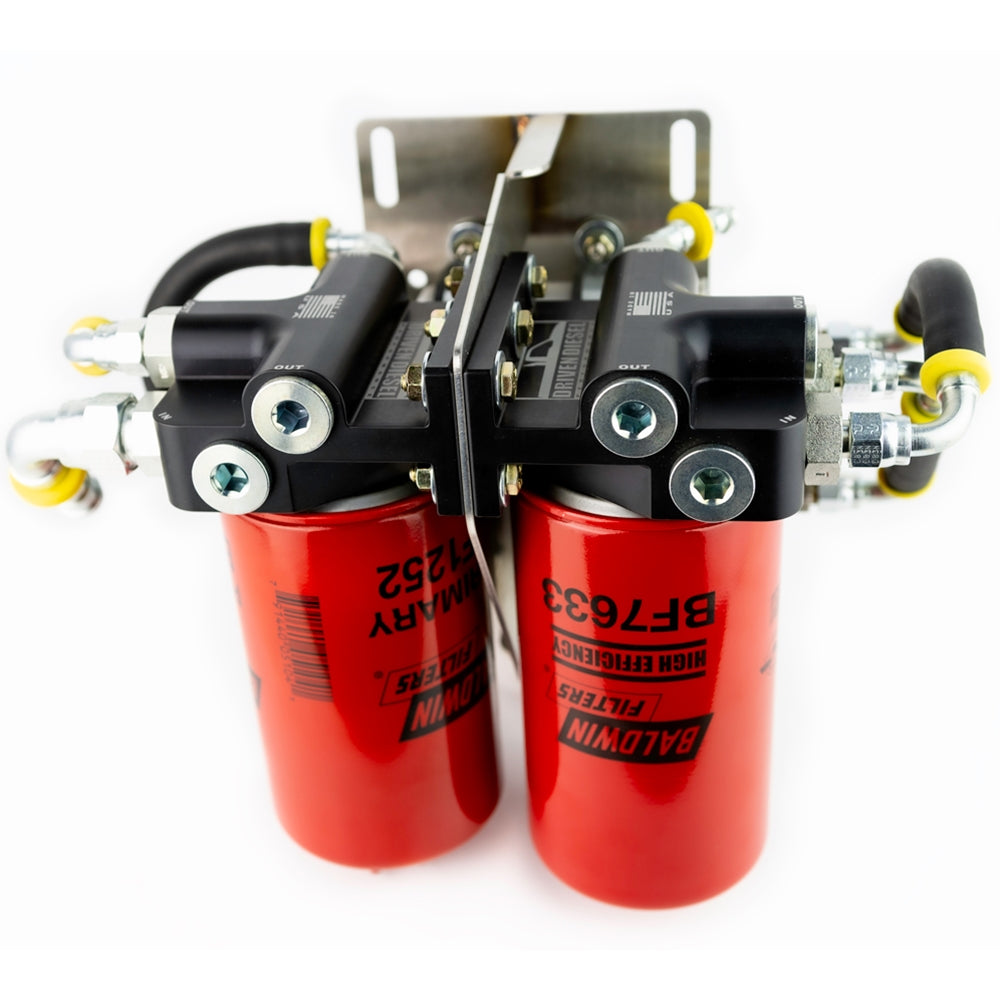

NEW DRIVEN DIESEL BILLET High Flow Pre & Post Pump Fuel Filter Heads Made in the USA!

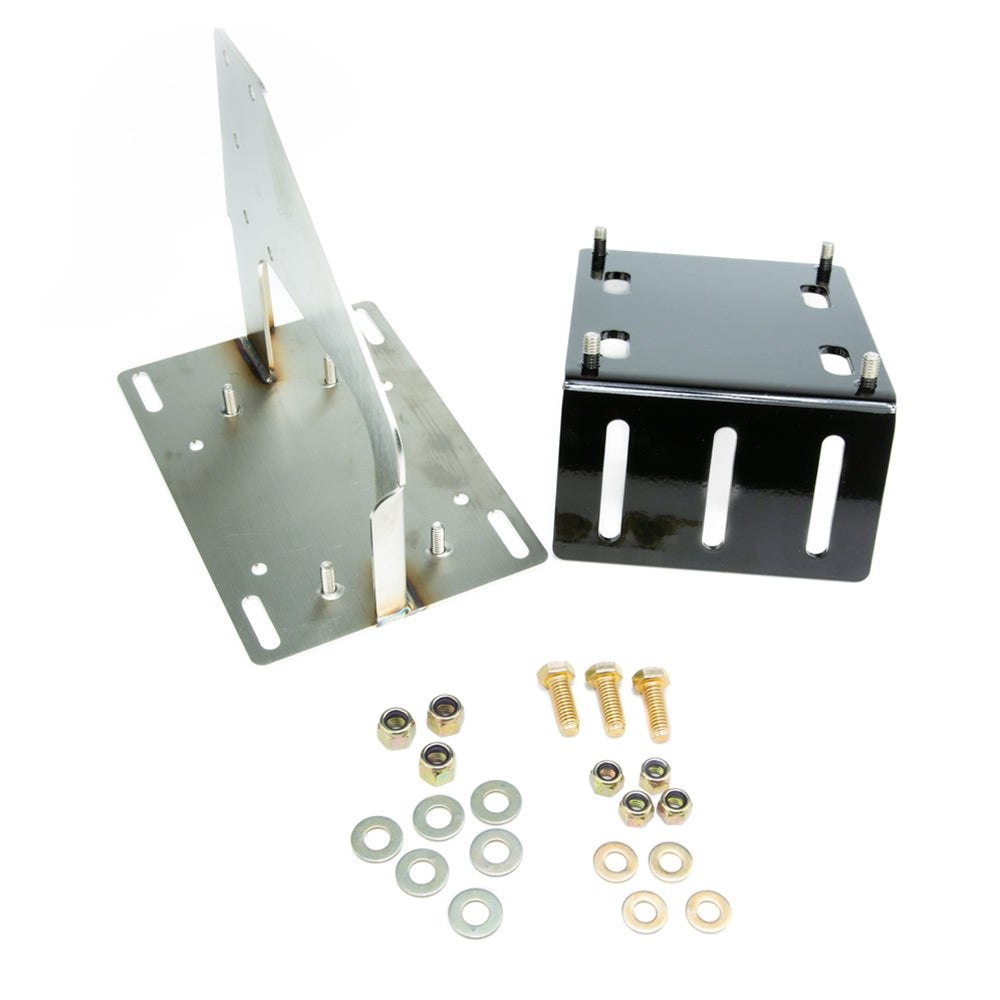

NEW DRIVEN DIESEL Mounting Bracket Assembly (Improved Fit and Flexibility) Made in the USA!
Rubber Insulated Clamps to Reduce Pump Noise / Vibration
High Quality Baldwin Fuel Filters Made in the USA!

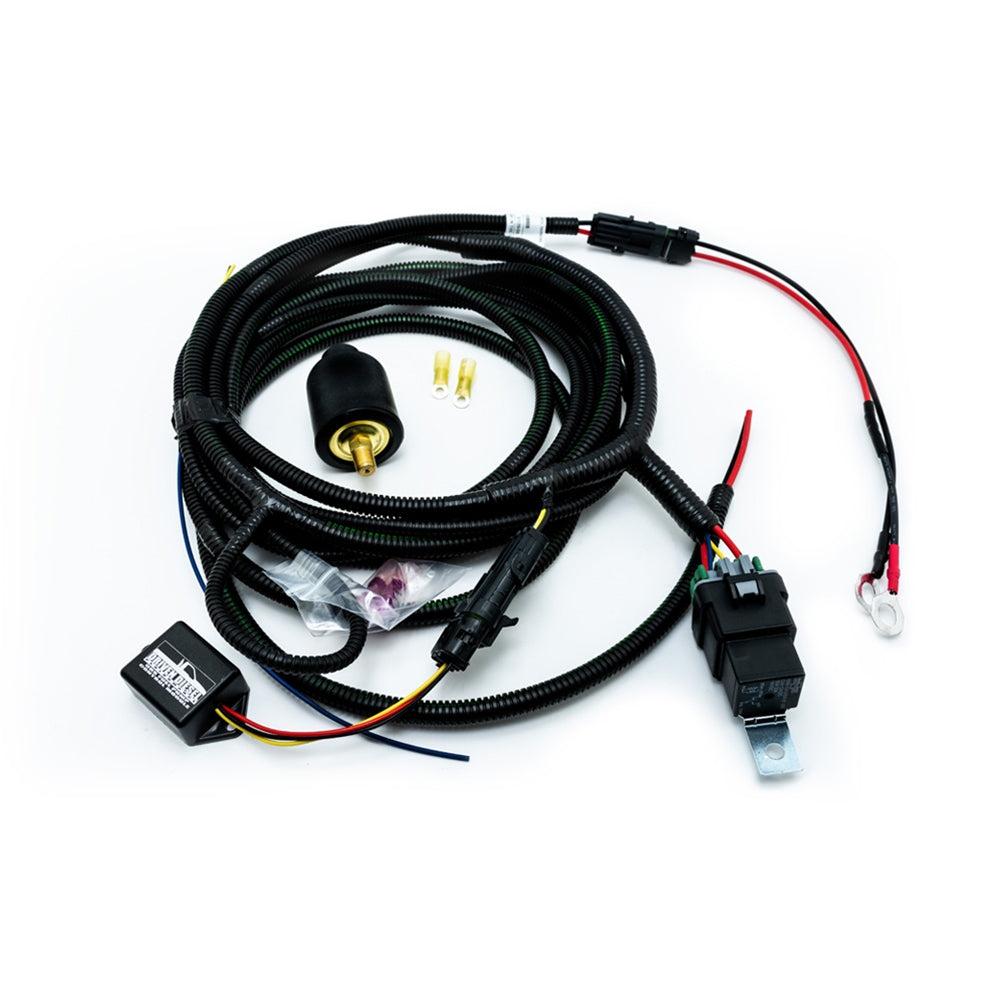

DRIVEN DIESEL 40A OBS Fuel Pump Wiring Harness w/Pump Control Module Made in the USA!

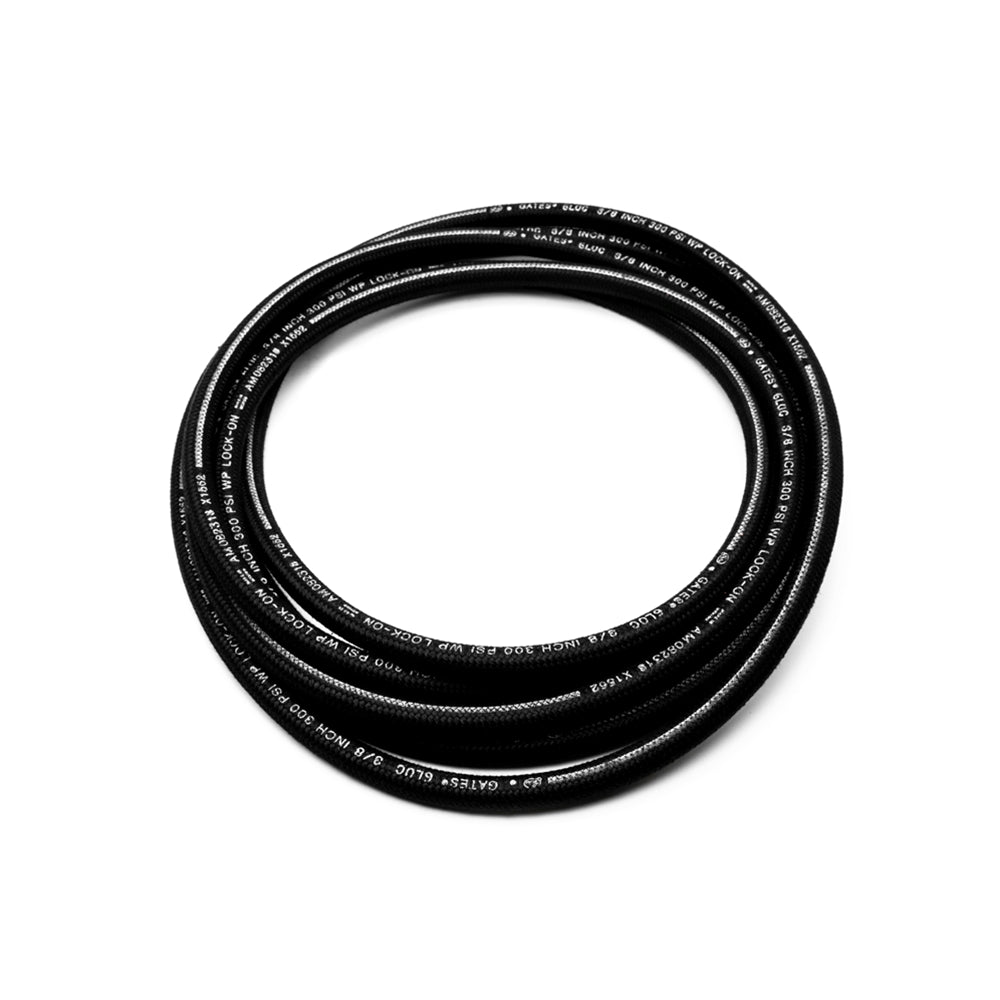

ALL Necessary Hose / Fittings / Clamps / Hardware
Adapter Fitting for FASS Electric Fuel Heater INCLUDED!
Full Color Installation Instructions
FUEL TANK CONNECTION NOT INCLUDED!
