SKU #: CR2-34300
MPN #: 34300
CR2 Performance & Fab Standard Transmission Line Kit 03-06 Ram 5.9L Cummins
Description
Keeping your transmission in good working condition is basic knowledge to running and maintaining your Ram pickup. Excess heat from heavy loads can build up in your transmission fluid causing it to be less effective and in turn more wear and tear on your whole transmission. This heat also takes a toll on your hoses as well causing cracks and damage to your fittings which in turn can start to leak fluid.

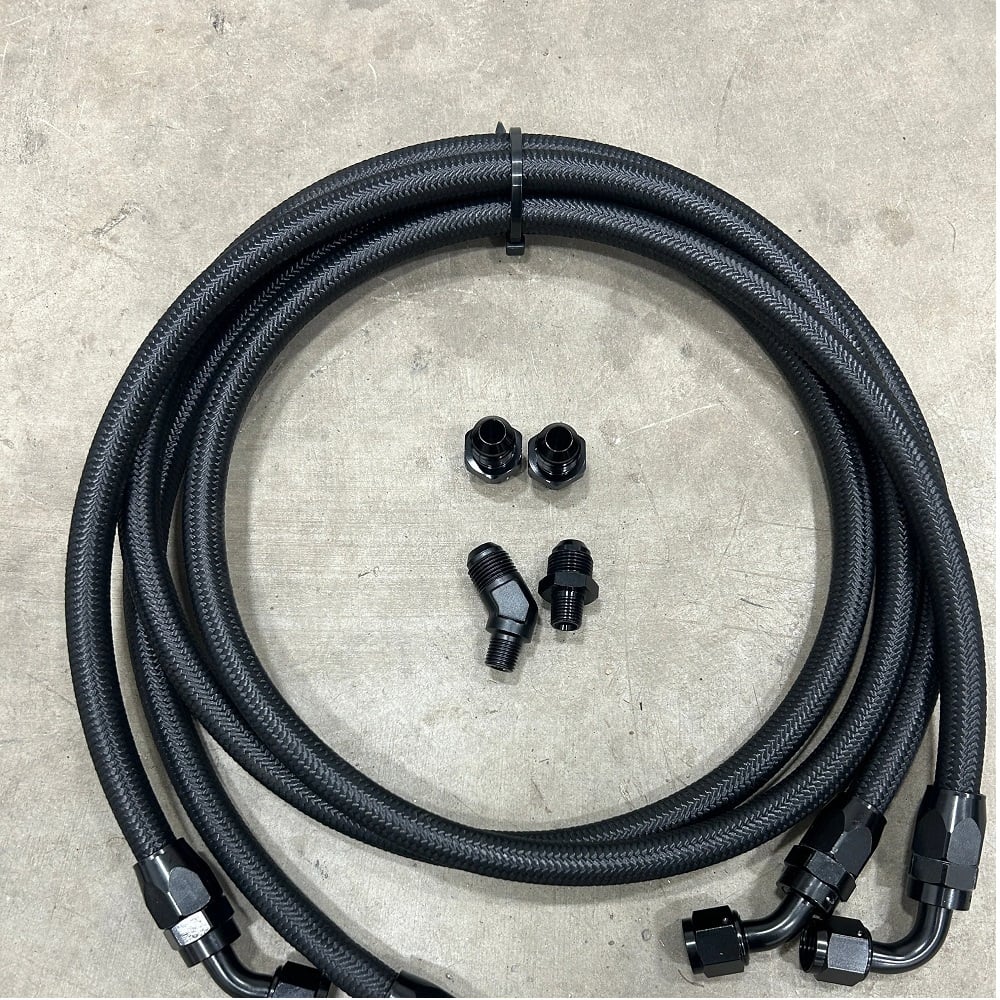

Replace your factory transmission hoses with CR2 Performance & Fab Standard Transmission Line Kit. This kit includes 8AN nylon braided hose, anodized billet aluminum ends and fittings, and a stainless braided inner wire for support. This design is tough but made to be flexible and easy to route through those spots that you always seem to bust your knuckles on. Do you have a Mishimoto aftermarket transmission cooler? Then you are in luck as the heat exchange bypass version is made to work exclusively with it bypassing the factory heat exchanger on the engine block.
Heat Exchanger optionChoose between whether you want to retain factory heat exchanger or bypass it. More specifically, the Bypass Heat Exchange version was designed to be used exclusively with a Mishimoto transmission cooler. If you don't have an alternate method of keeping your transmission fluid cool then you should keep with the factory heat exchanger.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
About CR2 Performance & Fabrication
Based out of North Idaho, founder Chris Rosscup has a long history of custom fabrication and competition with high-performance trucks. His time in drag racing and sled pulling has given him the experience to know what it takes to get the most out of a diesel pickup. Chris uses that experience to make sure whatever parts you get with CR2 are the ones that will not fail you when you need them the most. If you are looking for the right parts to get your truck beyond the norm, you can trust CR2 Performance & Fabrication.
Blog
June 12, 2026
The diesel particulate filter (DPF) on your Cummins engine traps soot before it leaves the tailpipe. Over...
Read MoreCummins DPF Cleaning: Signs, Methods & Tips
June 12, 2026
P2509 flags when your Cummins ECM isn't seeing stable voltage coming from the battery and charging system....
Read MoreP2509 Cummins Code: Causes, Symptoms & Fixes
June 10, 2026
It starts small. Maybe the truck is a little slower to spool than usual. Maybe it sounds...
Read MoreHow to Find a Boost Leak Without Special Tools
June 05, 2026
Your exhaust system moves spent gases out of the engine and away from the cab. The muffler...
Read MoreResonator vs Muffler: Key Differences Explained
Overall rating: 0.0 / 5 from 0 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Q&A
- Is there any install instructions?
- This kit does not include installation instructions currently. For reference, the AN fittings will be torqued to roughly 25-30 foot pounds and the swage fittings on the transmission cooler will be tightened until the assembly no longer rotates in the tube and then tighten roughly 1.2-1.5 full turns to swage the fitting to the tube, per CR2.
