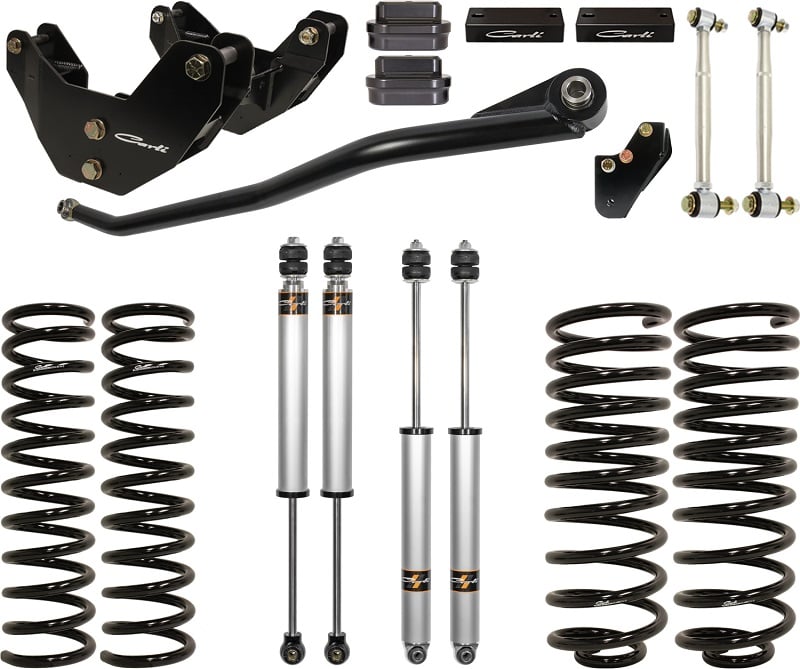

Name: Carli 2.5" and 3.25" Build Your Own Suspension Kit - 14-25 RAM 2500 4WD
Brand: Carli Suspension
Availability: InStock

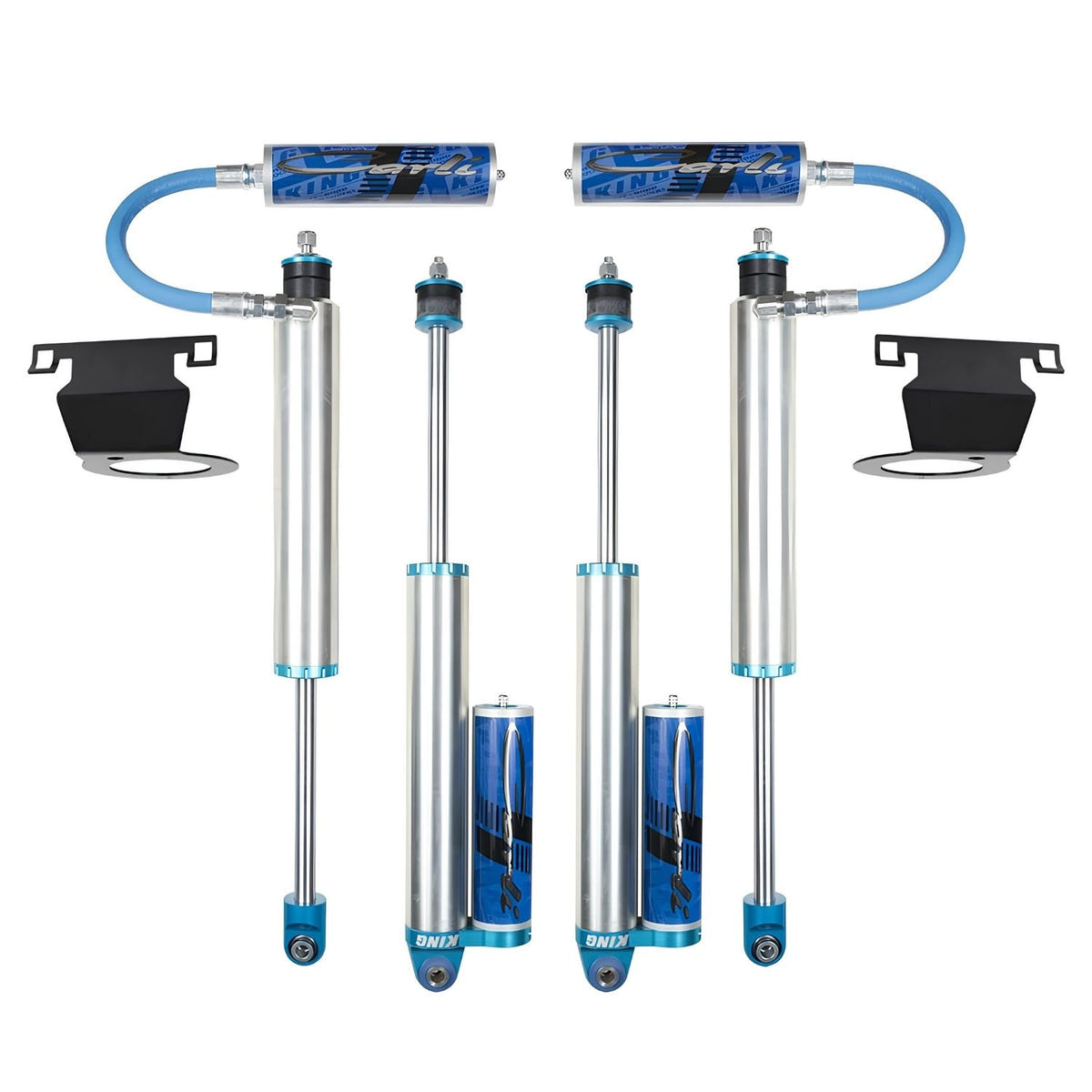

Do you want your own custom suspension kit? Do you like the Backcounty 2.0 kit, but want to upgrade to a full progressive spring pack? Or do you like the Commuter 2.0 kit, but want to upgrade to the Pintop shocks? This is why we designed a build your own kit package. Simply go through the options and choose what you want on your dream Dodge Ram suspension system. For more in-depth product information, please see each individual product listing on our website, or give us a call with any questions.

Front Coils

We highly recommend running Carli's Coils with other Carli components. Coils fot the Ram will deliver an additional 2.5" or 3.25" of front end height. If going with the 3.25" coils, this will make the truck a little nose high so you'll also want to check out the rear suspension options to ensure you get that level or raked stance you're looking for. However, if you already have Carli coils, no sense in purchasing them again!

Rear Coils

Carli now offers 2 options of rear coils for the 2500's. For years, the R1 coil was the only coil available. It is still a great coil but with more and more people adding static weight to their beds, a beefier coil was needed. Insert R2 coil. Designed to still have great movement and flexibility but aimed towards folks that have more gear bolted to the truck or who are towing heavy regularly. Mix and match your coils to your liking, that's the fun of Build Your Own!

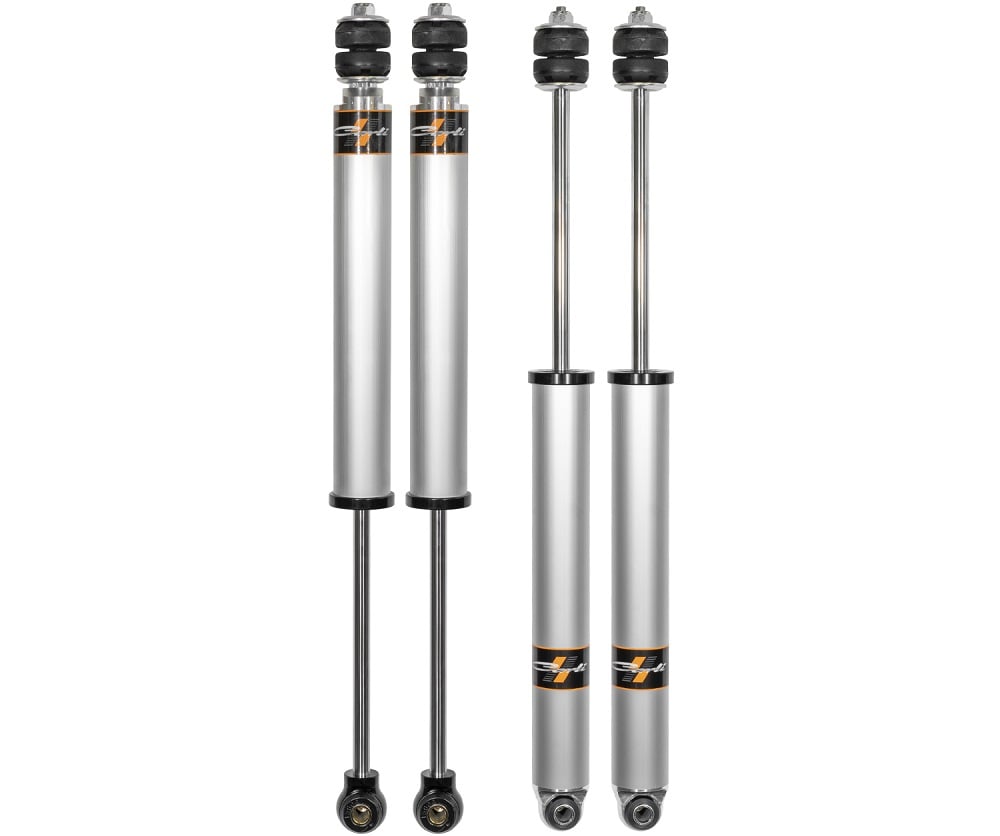

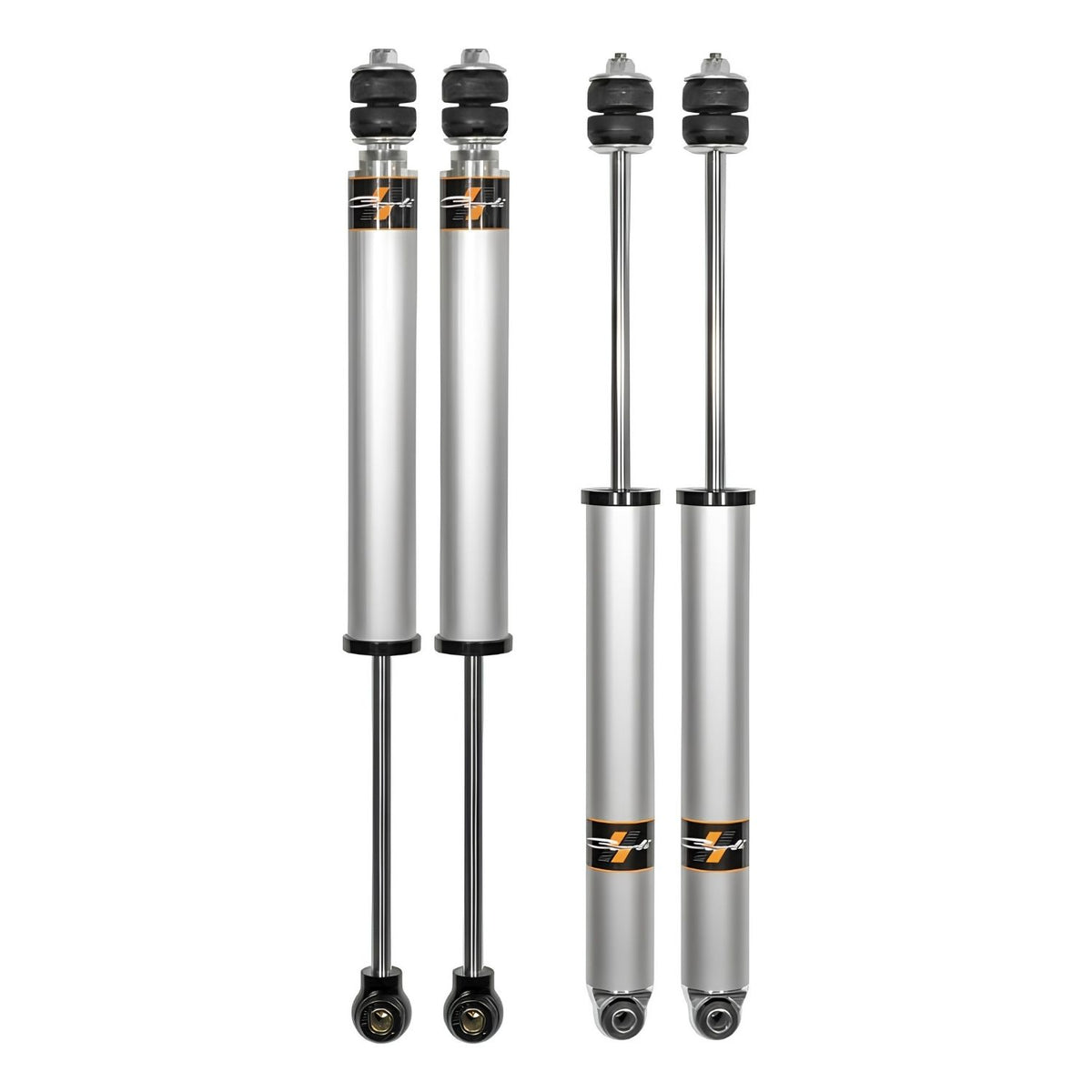

Shock Options

Carli offers many shock options, depending on the use of the vehicle. There are two different kinds of rear suspension on the 3500's. That in mind, that means there are different shock packages for those setups so be sure you are selecting the appropriate shock package that coincides with your rear suspension.

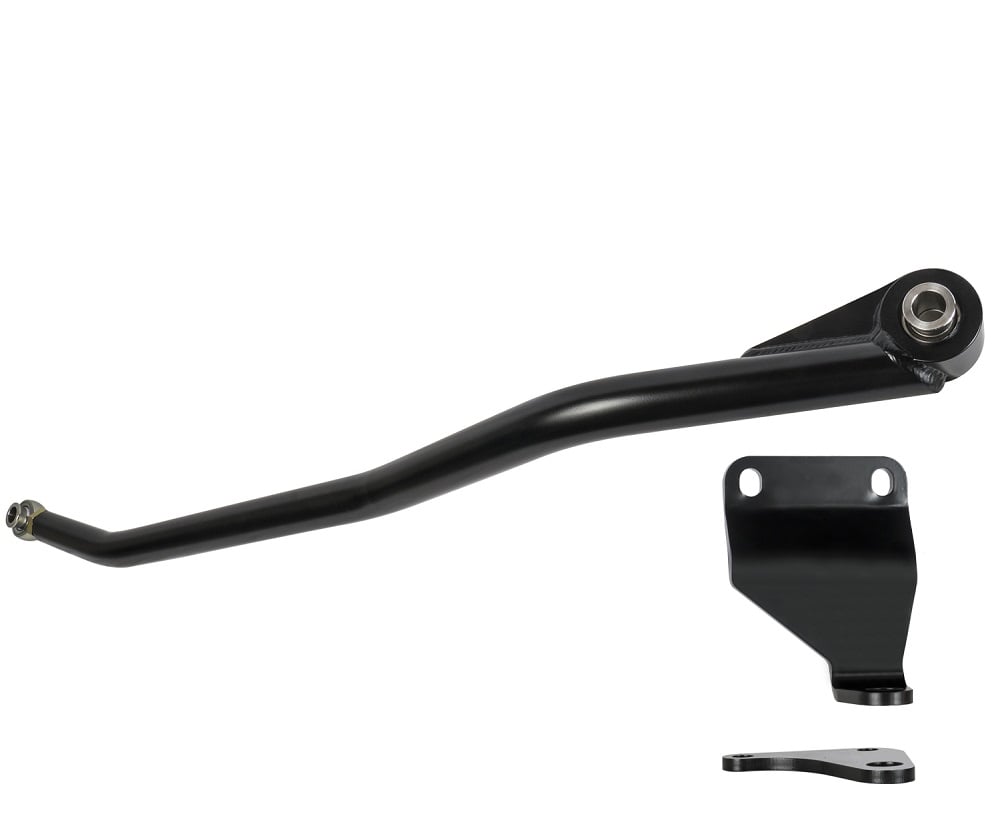

Adjustable Track Bar

When lifting your truck, it is necessary to install an adjustable track bar. The Carli Adjustable Track Bar is built out of chromoly and features an adjustable rod end to precisely center your axle.

Radius Arm Drops

Part of having a finally tuned suspension is having proper geometry. This where the Radius Arm Drops shine as they get the orientation of the radius arms in check so that you have the proper caster and driveline angles along with making sure the front axle is cycling in the correct position. Wthiout this correction, the front axle is canted forward and will cause coil bow along with having very little caster in the alignment, giving the truck a very floaty feeling in the front end.

Radius Arms

Carli produces heavy duty radius arms for those looking to get the most strength and smoothest operation out of their suspension. Fabricated, boxed, internally reinforced, these arms are extremely stout! Johnny joint style joints allow for smoother operation of the suspension and takes out the bind of the massive factory rubber bushings. A must have for anyone serioues about getting the most performance out of their truck.

Low-Mount Stabilizer

You can add a considerable stability to the front of your truck by adding a high quality stabilizer. Carli offers the Carli Stainless Steel Nitrogen Charged stabilizer. The axle side mount is a direct bolt in to the factory mount. On the steering link side, an include bracket is used to bolt into the factory location. A great solution for those to correct left hand pull on your truck.

High-Mount Stabilizer

Carli offers their high-mount stabilizer which mounts to the passenger side sway bar bracket and to the drag link, directly below the pitman arm. This is a great upgrade for those concerned with clearance of the traditional low mount, or for those who want to run TWO (upper and lower) stabilizers. You will need to choose the correct year as setups are slightly different between the 13-18 and 19+ model. This model of stabilizer is perfect for those looking to combat right hand pull.

Front Differential Skid Plate

Keep your differential protected from rocks while adding some style to the front axle. Carli offers their complete bolt-on front differential skid plate. This is made to go overtop of your factory differential cover, not replace it. It will not work with aftermarket covers.

Torsion Sway Bar

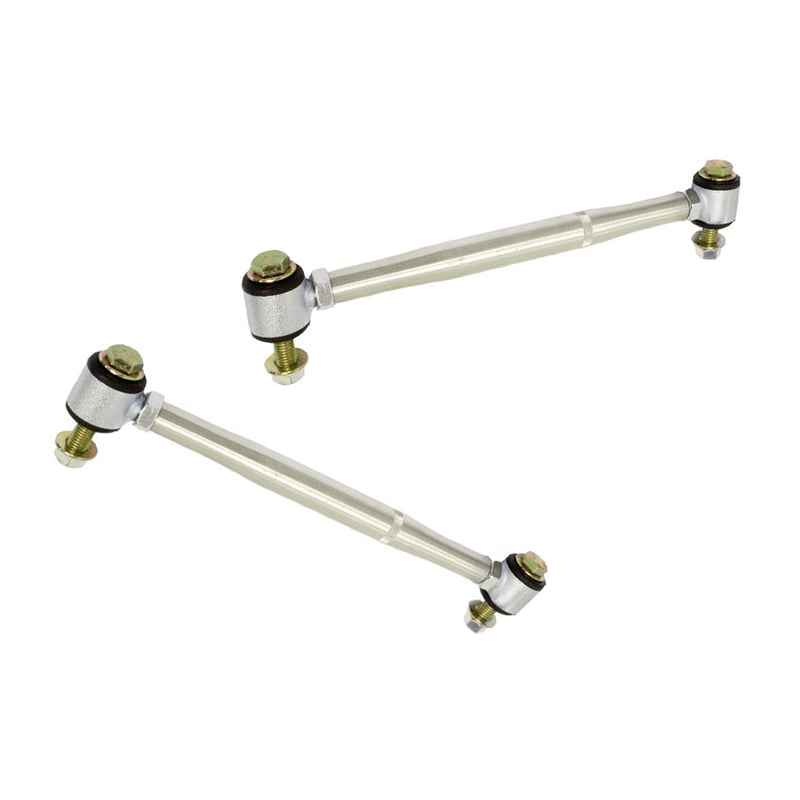

What the heck is a Torsion Sway Bar? Basically, it gives you all of the benefits of having a sway bar (sway control) without the negative effect of loss of articulation. The Torsion Sway Bar includes Carli Adjustable End Links.

Vehicle Fitment

2014-2024 RAM 2500 4WD

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

About Carli Suspension

CARLI SUSPENSION KITS, SYSTEMS, AND COMPONENTS

Yeah, we know Sage Carli can launch a full sized truck over nearly any obstacle. If you are into Baja racing, everyone knows by now that Carli Suspension is the name to go with. What you may not realize is that Carli has a suspension kit for your needs too. You probably don't care anything about having your expensive truck go air born, but you do want the best performance out of your suspension for your application. Carli Starter and Commuter 2.0 systems are designed to give you the best possible street manners compared to any other system on the market while providing ample room for the larger tires you want. Potholes disappear, you find yourself building speed on corners and washboard, and that's just when you are on the way to work. Now imagine heading out to feed the cows WITHOUT hitting your head on the headliner. Imagine coming back from your hunting trip WITHOUT needing a trip to the chiropractor. Take another look at Carli Suspension. It's not all about Baja. It's about YOUR truck and what you do with it. Stop by, we'll give you a ride and show you what you're missing. Just bring the checkbook and permission from the boss! One ride and you'll be hooked!

CARLI KITS

The entire engineering philosophy behind Carli aims to offer the real world Dodge Ram and Ford SuperDuty a suspension system that drastically increases the street drive of the vehicle while offering incredible off-road characteristics. So far, Sage Carli's suspension systems are the only option available where you don't have to compromise.

Carli products are designed to meet the expectations of both the daily street driver and the most extreme avid off road enthusiast. From the urban streets to the most remote places, Carli products will far exceed all your expectations. The easiest way to put this into perspective is that Carli truly builds suspension systems for the enthusiast....the person who truly LOVES their truck and wants to upgrade it with the most thought out, tasteful upgrades on the market. No, this type of individual isn't going to head to Napa to pickup a new track bar. They're going to research the best possible track bar on the market and go that route. Carli Suspension is truly a brand for enthusiasts, featuring products that are built by enthusiasts. Just watch any of Carli Suspension's videos and you'll understand why they have such a passion for their products.

Stock production trucks are built mainly to keep costs down. From a truck enthusiast's point of view these standards simply are not acceptable. From people looking to get a better ride with a more aggressive stance to people looking to get some serious off road performance, Carli understands the needs of these enthusiasts. This is epitomized by the ever growing list of satisfied customers. Carli Suspensions relentless pursuit of producing the best performing suspension systems is something that can be felt every time a customer drives their truck. Carli wouldnt have it any other way.

CARLI COMPONENTS

You know, its not always about a complete suspension. In fact, some of our best selling Carli products are things like a track bar, Carli ball joints, shocks, coil springs, and more. Maybe you've got a clunk in your front end that has been nailed down to being from a worn out track bar bushing and you did your research (mentioned above) and found out that the best track bar for your Ram or Ford is from Carli, so you buy that one. Or maybe you want a better ride, but only want to replace the coil springs for now. No problem. Sure, Carli is centered around their entire systems, but nearly all of their components can be used interchangeably on a stock height truck or one with an existing leveling or lift kit. We do our best to make note of any fitment requirements on each product page, but if you have any questions, please feel free to reach out and ask, we're happy to help.

Here at Diesel Power Products we only want to sell the best and lets face it, the stock Ram and Ford suspension needs help. Your stock suspension system is designed to be adequate and nothing more. Carli not only makes the ride of your truck better, it makes it safer. Whether you are towing a trailer on the interstate or doing a little off-road adventure, we will attest that you'll be more than satisfied by upgrading to Carli.

Video

Diesel Talk | Carli Suspension Kits Explained

Tyler from Carli Suspension sits down with Tyler from Diesel Power Products to explain the differences between Carli’s various suspension kits. From the entry-level Commuter system to the mid-tier Backcountry, and all the way to the high-performance Dominator kit, youll get a detailed look at what each option offers. Whether youre after improved street comfort, off-road capability, or a suspension that can handle it all, this breakdown will help you choose the right kit for your build.
