Driven Diesel Fuel Tank / Pre-Pump Kit (Hutch Mod) 99-03 7.3L Ford Powerstroke

Name: Driven Diesel Fuel Tank / Pre-Pump Kit (Hutch Mod) 99-03 7.3L Ford Powerstroke
Brand: Driven Diesel
SKU: DD-73FS-TKF-V4
Price: 319.95 USD
Availability: InStock
Rating: 0.0 (0.0 reviews)

$319.95

Get 319 points in loyalty rewards

☆☆☆☆☆ (0)

Driven Diesel Fuel Tank and Pre-Pump Kit Hutch Mod for 99-03 7.3L Ford Powerstroke

Description

The Driven Diesel Fuel Tank / Pre-Pump Kit (commonly referred to as the Hutch Mod) is the first step in the fuel system upgrade process. This kit includes all of the parts necessary to eliminate in the fuel circuit before the electric fuel pump (suction side) and add additional fuel filtration. Air in diesel fuel causes noisy operation and can damage the fuel injectors. This kit fits both the Super Duty Trucks and Excursions. IMPORTANT NOTES: Some CAB AND CHASSIS trucks may require more than the standard 15' of hose. If you are using this kit on a CC truck with a "behind the axle" fuel tank, please take a measurement from the fuel tank to the fuel pump (along the frame, the way the hose would route) and confirm whether the standard 15' hose length will work for you, or if you need the longer 25' length. This kit is only rated for B20 Bio-Diesel. This is primarily due to the B20 rating Baldwin places on their filters and not the provided hose. We are not aware of any appropriate pre-pump style filters that will work with higher concentrations of Bio-Diesel. If you are running Bio-Diesel, please be mindful of your filter service intervals and periodically check your hoses for signs of damage from the fuel. This kit is NOT required with installations utilizing an AirDog or FASS. E-SERIES VAN: This kit does NOT fit the E-Series Van due to the different configuration of the fuel tank. The van fuel tank has a baffled pan around the pickup assembly that interferes with the extended return, and the installation instructions were written for a Pickup/Excursion. If you wish to use this kit in your van, you will NOT be able to use the extended return tube, and your installation may differ somewhat from the instructions due to the location of the van fuel tank and differences in the van frame (the kit does fit).

Select Your Fuel Hose Length

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

The Driven Diesel Fuel Tank / Pre-Pump Kit (commonly referred to as the Hutch Mod) is the first step in the fuel system upgrade process. This kit includes all of the parts necessary to eliminate in the fuel circuit before the electric fuel pump (suction side) and add additional fuel filtration. Air in diesel fuel causes noisy operation and can damage the fuel injectors. This kit fits both the Super Duty Trucks and Excursions.

IMPORTANT NOTES:

Some CAB AND CHASSIS trucks may require more than the standard 15' of hose. If you are using this kit on a CC truck with a "behind the axle" fuel tank, please take a measurement from the fuel tank to the fuel pump (along the frame, the way the hose would route) and confirm whether the standard 15' hose length will work for you, or if you need the longer 25' length.
This kit is only rated for B20 Bio-Diesel. This is primarily due to the B20 rating Baldwin places on their filters and not the provided hose. We are not aware of any appropriate pre-pump style filters that will work with higher concentrations of Bio-Diesel. If you are running Bio-Diesel, please be mindful of your filter service intervals and periodically check your hoses for signs of damage from the fuel.
This kit is NOT required with installations utilizing an AirDog or FASS.
E-SERIES VAN: This kit does NOT fit the E-Series Van due to the different configuration of the fuel tank. The van fuel tank has a baffled pan around the pickup assembly that interferes with the extended return, and the installation instructions were written for a Pickup/Excursion. If you wish to use this kit in your van, you will NOT be able to use the extended return tube, and your installation may differ somewhat from the instructions due to the location of the van fuel tank and differences in the van frame (the kit does fit).

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

1999-2003 7.3L Ford Powerstroke

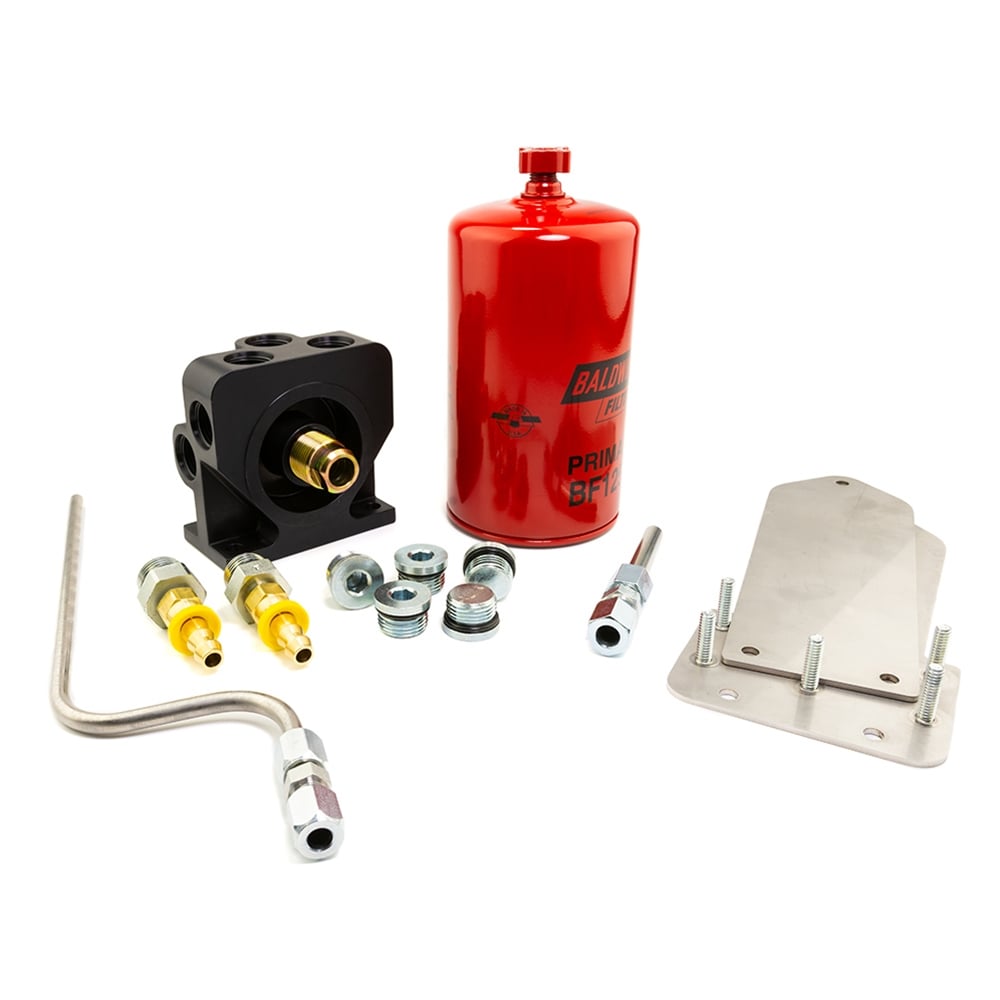

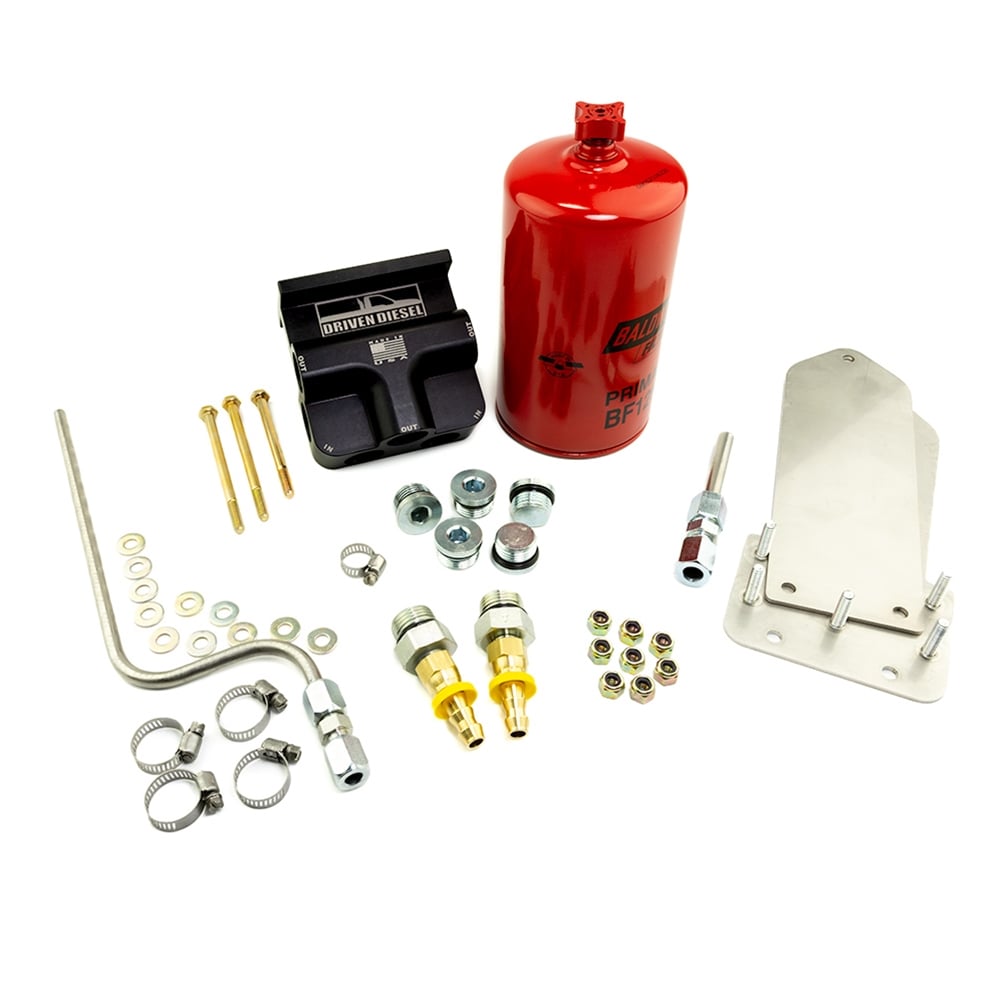

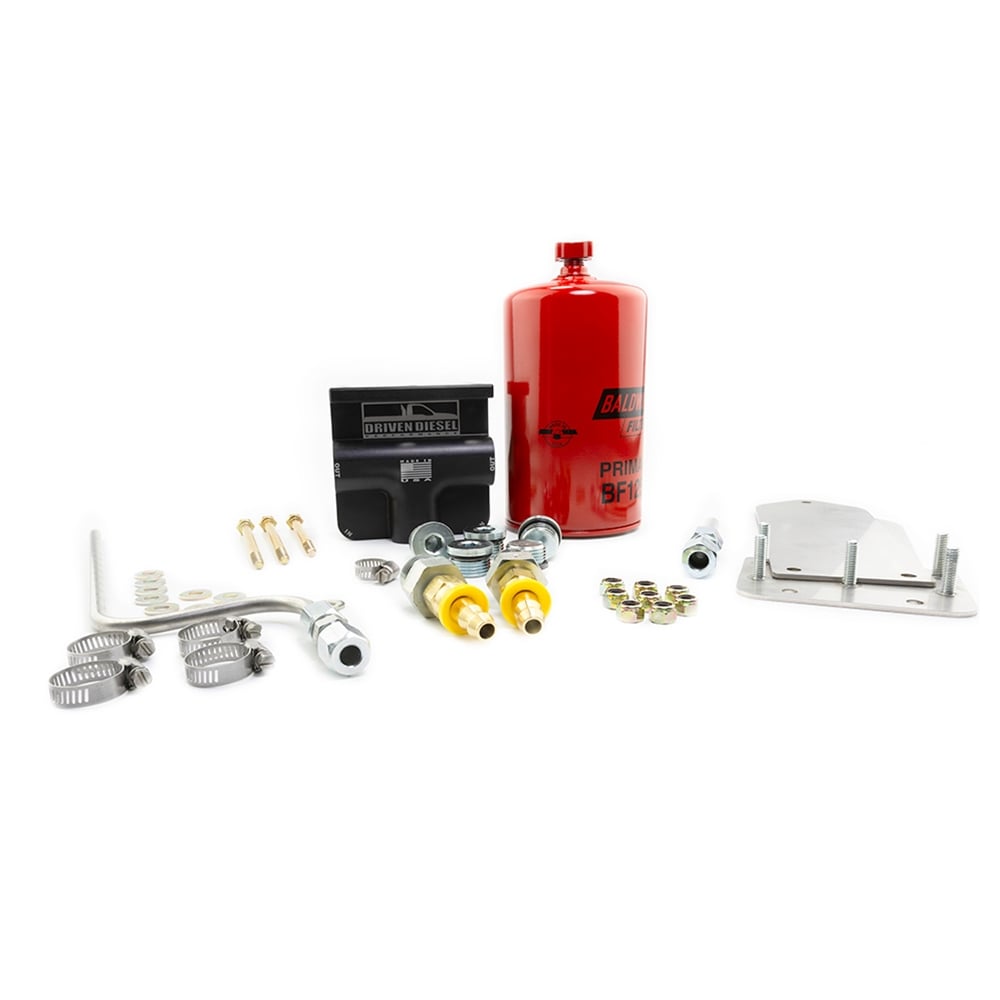

KIT CONTENTS:

Extended Fuel Tank Pickup Tube
Made in the USA!
Extended Fuel Tank Return Tube

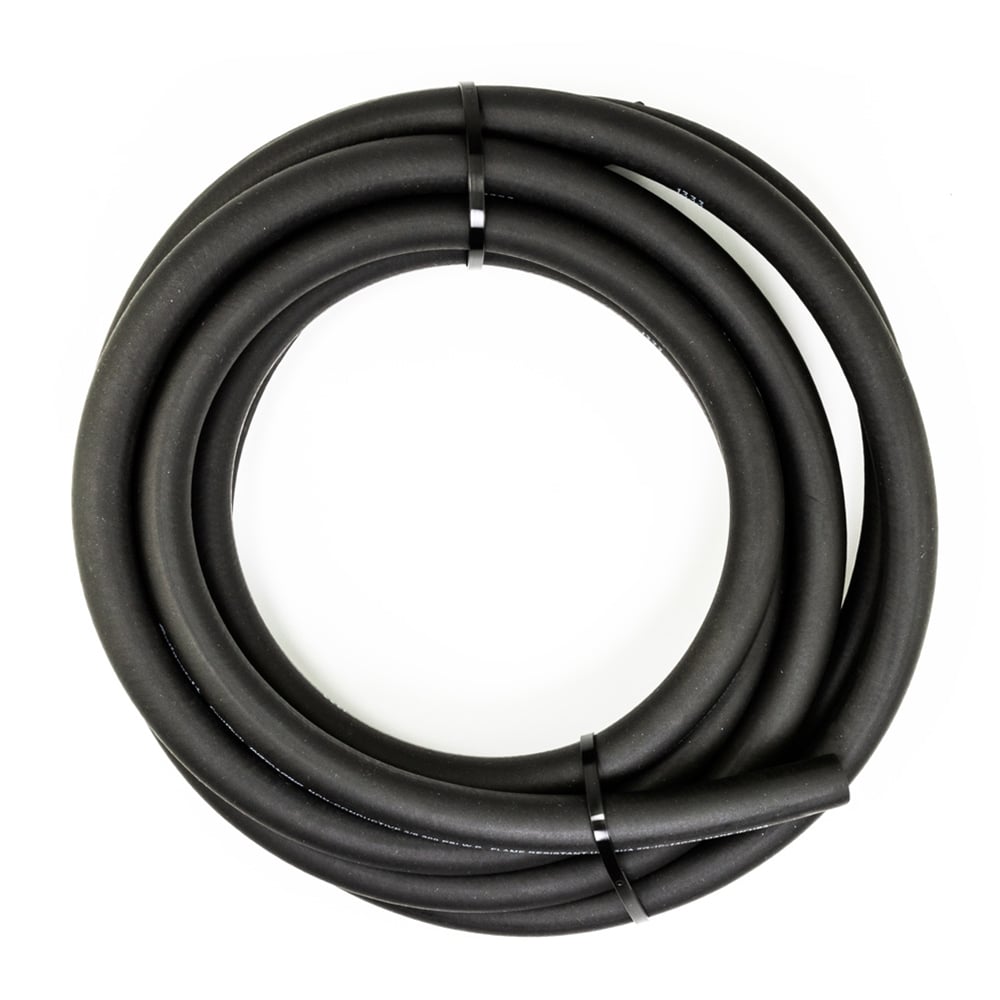

15' New 3/8" Fuel Line From Tank to Pump
Optional 25' of Hose Total
Driven Diesel Billet Fuel Filter Head - Made in the USA!
Baldwin Fuel Filter / Water Separator - Made in the USA!
Driven Diesel Heavy Duty S.S. Custom Filter Mount - Made in the USA!

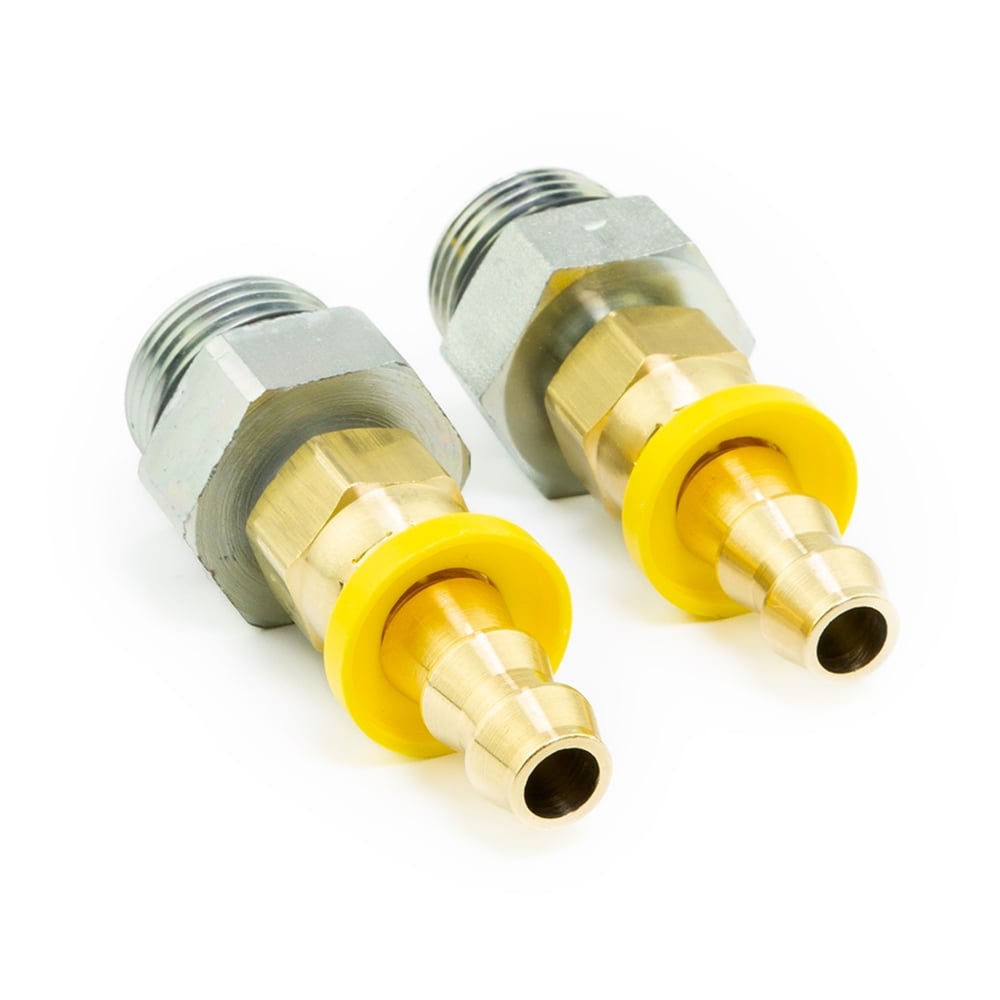

Complete Hardware Package including All Fittings, Nuts, Bolts and Washers
Installation Instructions
