SKU #: CS-DLVL-PF-19-D-2500 MPN #: CS-DLVL-PF-19-D-2500

Carli Suspension 2.5" Pathfinder Leveling System 14-25 Ram 2500 6.7L Cummins

$3,557.00
Get 3557 points in loyalty rewards
Description
Want to get more out of your truck without spending more than you are ready for? The Carli Pathfinder system was designed to act as a medium performance upgrade that covers a variety of driving conditions. So, what does this mean? The Pathfinder is ideal for those that use their truck for a daily drive and want to keep the comfort you already have while upgrading it to the ability for some medium off-roading. The base kit comes with the fantastic Carli Front Leveling Coils, an Adjustable Track Bar with Stabilizer Bracket, and Carli-SPEC 2.5" Remote Reservoir Shocks with mounts and brake line tabs. Giving you some of the highest performing suspension parts where you can utilize them the best. CARLI PATHFINDER SUSPENSION SYSTEM COMPONENTS FRONT COILS SPECIFICATIONS These RAM Front Coils were designed to address a multitude of issues seen with factory and aftermarket coil springs. A dedicated spring rate and heavy-duty wire diameter were chosen to give our Coils a softer spring rate than stock but still have the strength and resilience for a lifetime of work and play. Matched as a driver and passenger side-specific set, we spent the extra engineering hours to provide you coils that will provide the soft ride, fitment quality, and wheel travel you desire. CARLI-SPEC 2.5" REMOTE RESERVOIR SHOCKS The perfect mix of off-road performance and on-road drivability, these shocks are tuned to give you a controlled and predictable ride rolling over small to medium road imperfections like they aren't there. These shocks are perfect if you want to get some medium off-roading done while also keeping a comfortable ride everywhere else. SWAY BAR OPTION This Leveling System will ride best with a Torsion Sway Bar. This upgraded sway bar lightens the spring rate of the front sway bar providing an independent suspension-like feel. Maintaining the factory sway bar is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck. TORSION SWAY BAR OPTION Easily the best "bang for the buck" upgrade for ride quality Allows front suspension to move freely without giving up control Fitment: 2014+ 2500 4x4 Fitment: 2013+ 3500 4x4 Compatible with 0"-4" Front Lift Torsion Bar may be Black or Silver Zinc; depends on supply-chain availability. NOT requestable. STEERING STABILIZER OPTION Low-Mount Steering Stabilizer: Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable. High-Mount Steering Stabilizer: Bolt in compliment to the Carli Low-Mount Steering Stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. This is NOT a primary stabilizer and MUST be run with either a Carli or OEM lower stabilizer in the factory location. IMPORTANT NOTES Not compatible with Auto-Leveling Air Suspension This system will NOT be upgradeable to any other Carli Suspension Systems.
Select Model Year

Enter your zip and we'll see if installation is available.

  • Request quotes from local installers at checkout
  • Compare options and choose the best fit for your install

Want to get more out of your truck without spending more than you are ready for? The Carli Pathfinder system was designed to act as a medium performance upgrade that covers a variety of driving conditions. So, what does this mean? The Pathfinder is ideal for those that use their truck for a daily drive and want to keep the comfort you already have while upgrading it to the ability for some medium off-roading.

The base kit comes with the fantastic Carli Front Leveling Coils, an Adjustable Track Bar with Stabilizer Bracket, and Carli-SPEC 2.5" Remote Reservoir Shocks with mounts and brake line tabs. Giving you some of the highest performing suspension parts where you can utilize them the best.

CARLI PATHFINDER SUSPENSION SYSTEM COMPONENTS

FRONT COILS SPECIFICATIONS

These RAM Front Coils were designed to address a multitude of issues seen with factory and aftermarket coil springs. A dedicated spring rate and heavy-duty wire diameter were chosen to give our Coils a softer spring rate than stock but still have the strength and resilience for a lifetime of work and play. Matched as a driver and passenger side-specific set, we spent the extra engineering hours to provide you coils that will provide the soft ride, fitment quality, and wheel travel you desire.

CARLI-SPEC 2.5" REMOTE RESERVOIR SHOCKS

The perfect mix of off-road performance and on-road drivability, these shocks are tuned to give you a controlled and predictable ride rolling over small to medium road imperfections like they aren't there.

These shocks are perfect if you want to get some medium off-roading done while also keeping a comfortable ride everywhere else.

SWAY BAR OPTION

This Leveling System will ride best with a Torsion Sway Bar. This upgraded sway bar lightens the spring rate of the front sway bar providing an independent suspension-like feel. Maintaining the factory sway bar is only recommended for customers with snow-plows, in-bed campers or who are constantly hauling to the capacity of the truck.

TORSION SWAY BAR OPTION

  • Easily the best "bang for the buck" upgrade for ride quality
  • Allows front suspension to move freely without giving up control
  • Fitment: 2014+ 2500 4x4
  • Fitment: 2013+ 3500 4x4
  • Compatible with 0"-4" Front Lift
  • Torsion Bar may be Black or Silver Zinc; depends on supply-chain availability. NOT requestable.

STEERING STABILIZER OPTION

Low-Mount Steering Stabilizer: Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High-Mount Steering Stabilizer: Bolt in compliment to the Carli Low-Mount Steering Stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. This is NOT a primary stabilizer and MUST be run with either a Carli or OEM lower stabilizer in the factory location.

IMPORTANT NOTES

  • Not compatible with Auto-Leveling Air Suspension
  • This system will NOT be upgradeable to any other Carli Suspension Systems.
Vehicle Fitment
2014-2025 Ram 2500 6.7L Cummins 4x4
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

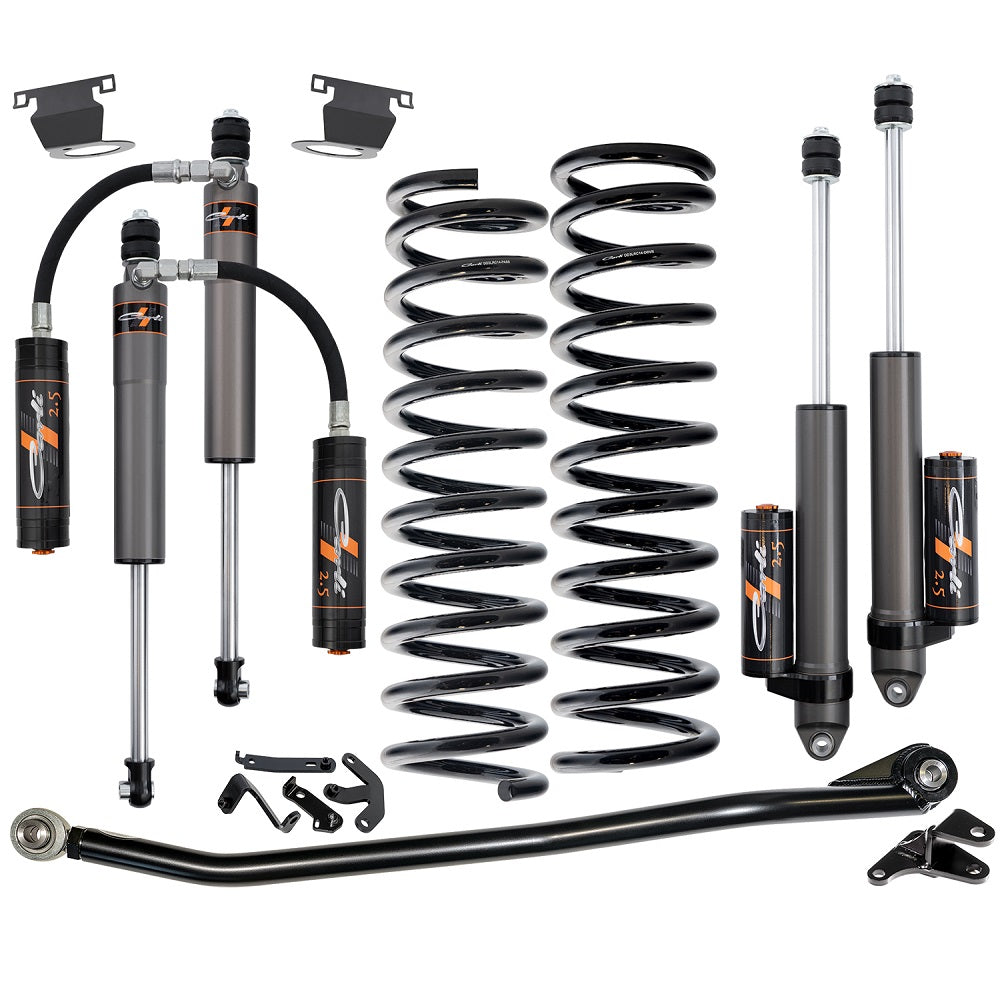

COMPONENTS:
  • Leveling Front Coil Springs
  • Carli SPEC 2.5" Remote Reservoir Shocks (Front and Rear)
  • Shock Reservoir Mounts
  • Adjustable Track Bar
  • Stabilizer Bracket
QUICK SPECS:
  • Front Lift Height 2.5"
  • Rear Lift Height 0"
  • Tire Fitment 35" x 12.5"
About Carli Suspension
CARLI SUSPENSION KITS, SYSTEMS, AND COMPONENTS

Yeah, we know Sage Carli can launch a full sized truck over nearly any obstacle. If you are into Baja racing, everyone knows by now that Carli Suspension is the name to go with. What you may not realize is that Carli has a suspension kit for your needs too. You probably don't care anything about having your expensive truck go air born, but you do want the best performance out of your suspension for your application. Carli Starter and Commuter 2.0 systems are designed to give you the best possible street manners compared to any other system on the market while providing ample room for the larger tires you want. Potholes disappear, you find yourself building speed on corners and washboard, and that's just when you are on the way to work. Now imagine heading out to feed the cows WITHOUT hitting your head on the headliner. Imagine coming back from your hunting trip WITHOUT needing a trip to the chiropractor. Take another look at Carli Suspension. It's not all about Baja. It's about YOUR truck and what you do with it. Stop by, we'll give you a ride and show you what you're missing. Just bring the checkbook and permission from the boss! One ride and you'll be hooked!

CARLI KITS

The entire engineering philosophy behind Carli aims to offer the real world Dodge Ram and Ford SuperDuty a suspension system that drastically increases the street drive of the vehicle while offering incredible off-road characteristics. So far, Sage Carli's suspension systems are the only option available where you don't have to compromise.

Carli products are designed to meet the expectations of both the daily street driver and the most extreme avid off road enthusiast. From the urban streets to the most remote places, Carli products will far exceed all your expectations. The easiest way to put this into perspective is that Carli truly builds suspension systems for the enthusiast....the person who truly LOVES their truck and wants to upgrade it with the most thought out, tasteful upgrades on the market. No, this type of individual isn't going to head to Napa to pickup a new track bar. They're going to research the best possible track bar on the market and go that route. Carli Suspension is truly a brand for enthusiasts, featuring products that are built by enthusiasts. Just watch any of Carli Suspension's videos and you'll understand why they have such a passion for their products.

Stock production trucks are built mainly to keep costs down. From a truck enthusiast's point of view these standards simply are not acceptable. From people looking to get a better ride with a more aggressive stance to people looking to get some serious off road performance, Carli understands the needs of these enthusiasts. This is epitomized by the ever growing list of satisfied customers. Carli Suspensions relentless pursuit of producing the best performing suspension systems is something that can be felt every time a customer drives their truck. Carli wouldnt have it any other way.

CARLI COMPONENTS

You know, its not always about a complete suspension. In fact, some of our best selling Carli products are things like a track bar, Carli ball joints, shocks, coil springs, and more. Maybe you've got a clunk in your front end that has been nailed down to being from a worn out track bar bushing and you did your research (mentioned above) and found out that the best track bar for your Ram or Ford is from Carli, so you buy that one. Or maybe you want a better ride, but only want to replace the coil springs for now. No problem. Sure, Carli is centered around their entire systems, but nearly all of their components can be used interchangeably on a stock height truck or one with an existing leveling or lift kit. We do our best to make note of any fitment requirements on each product page, but if you have any questions, please feel free to reach out and ask, we're happy to help.

Here at Diesel Power Products we only want to sell the best and lets face it, the stock Ram and Ford suspension needs help. Your stock suspension system is designed to be adequate and nothing more. Carli not only makes the ride of your truck better, it makes it safer. Whether you are towing a trailer on the interstate or doing a little off-road adventure, we will attest that you'll be more than satisfied by upgrading to Carli.

Video
Carli Suspension Backcountry
Find out about the Pathfinder Leveling System from Carli Suspension! Sitting right between the Backcountry and Pintop, the Pathfinder is a perfect mesh between on-road comfort and off-road performance. Each kit starts with Leveling Front Coils, an Adjustable Track Bar with Stabilizer Bracket, and Carli-SPEC 2.5" Remote Reservoir Shock Package with Reservoir Mounts & Brake Line Tabs
