BDS Suspension 5" Radius Arm System 20-22 Ford 6.7L Powerstroke F250/350 4WD
Choose add-ons
Description
Unlock true capability from your Ford Super Duty with the BDS 5" Radius Arm Lift Kit. Engineered to improve stance, stability, and performance, this premium system delivers the strength your diesel-powered truck needs while maintaining smooth road manners and off-road control. With room for up to 37" tires, this kit transforms your Super Duty into a taller, tougher, more capable machine.
This complete, bolt-on kit includes everything required for proper suspension geometry, steering correction, and ride quality, all backed by BDS’s uncompromising standards.
Unmatched Front-End Strength & Ride Quality

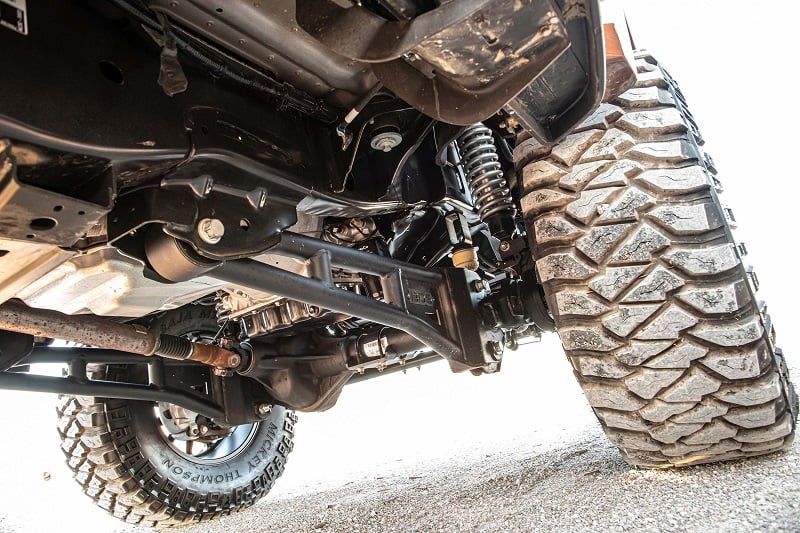

HD Radius Arms
Replace your weak factory stamped arms with high-strength tubular radius arms built for durability and proper caster alignment. OE-style rubber bushings ensure quiet, maintenance-free operation.
Diesel-Specific Pro-Ride Coil Springs
Full-length, dual-rate coils provide precise 5" lift height with a smooth, predictable ride on and off-road.
Corrected Steering Geometry
A forged drop pitman arm and heavy-duty track bar relocation bracket keep steering angles in phase, maintain proper axle centering, and restore factory-like handling after lifting.
Rear Lift & Support
The rear is elevated with a heavy-duty fabricated lift block, extended u-bolts, brake line brackets, and a matched set of your selected performance shocks.
Shock Options

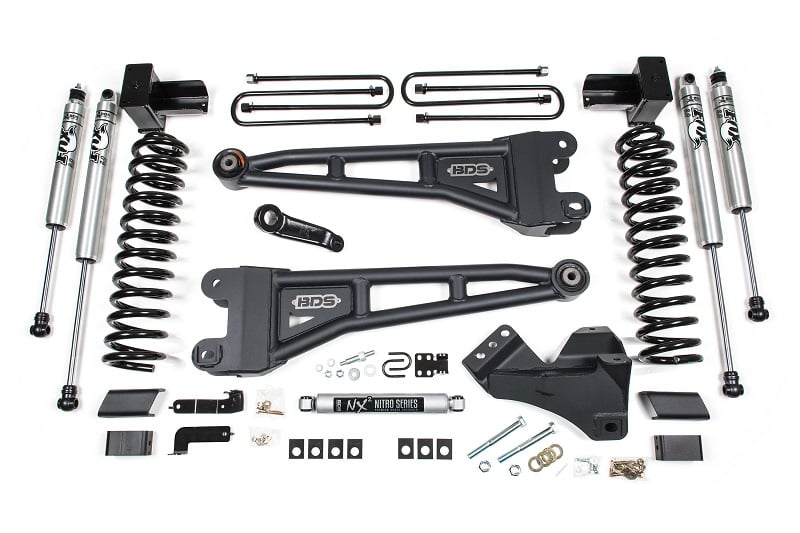

NX2 Nitro Series (Standard)
The perfect blend of performance and value.
Nitrogen-charged twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for durability
1-3/8" high-flow piston
Self-lubricating seals
Silver powder coat finish
FOX 2.0 Performance Series (Upgrade)
For drivers who want sharper control and elevated performance.
2" impact-extruded aluminum body
Monotube IFP (Internal Floating Piston)
CNC-machined 6061-T6 aluminum ends
5/8" hardened alloy steel shaft
Race-inspired high-flow piston
Clear anodized finish
Tuned specifically for Super Duty applications

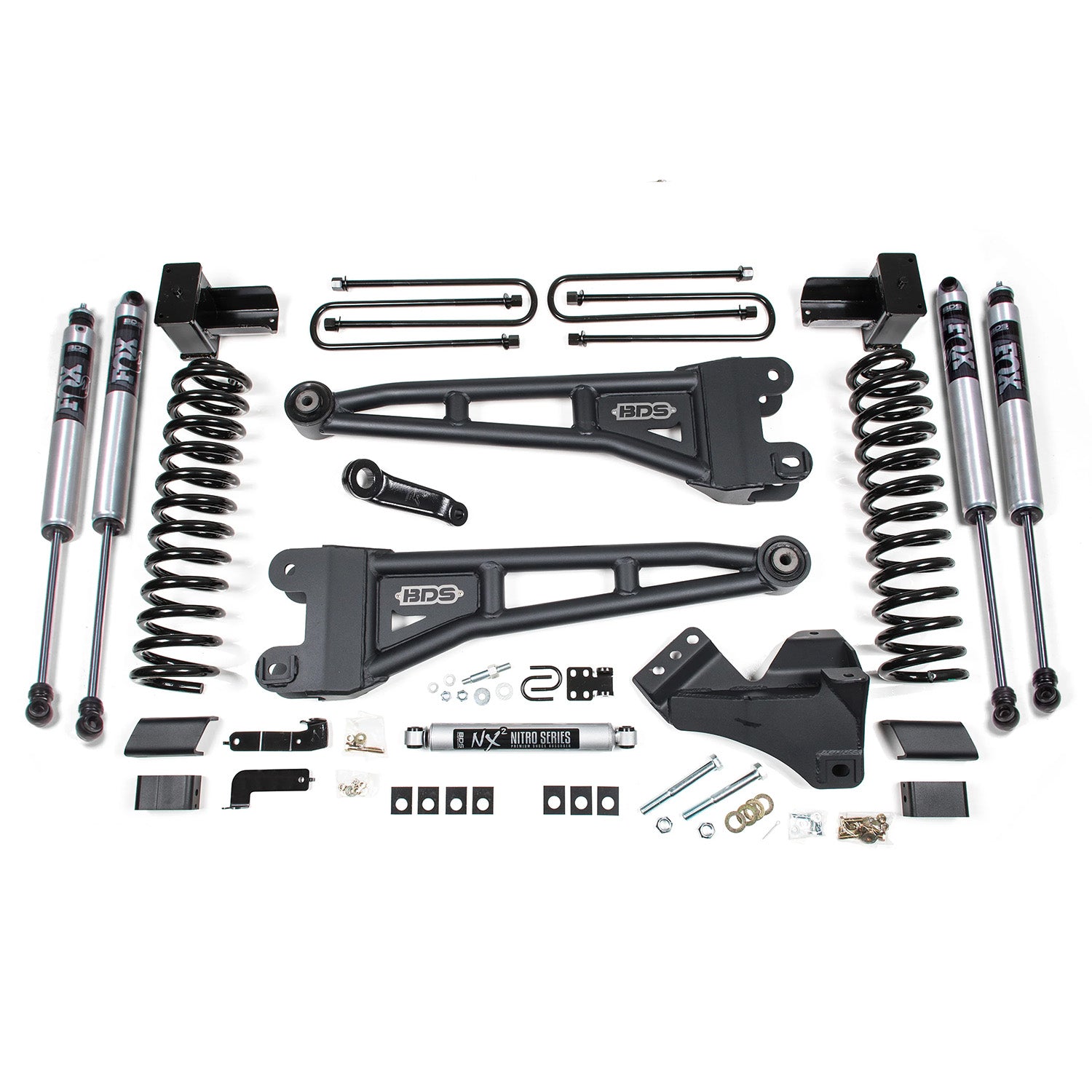

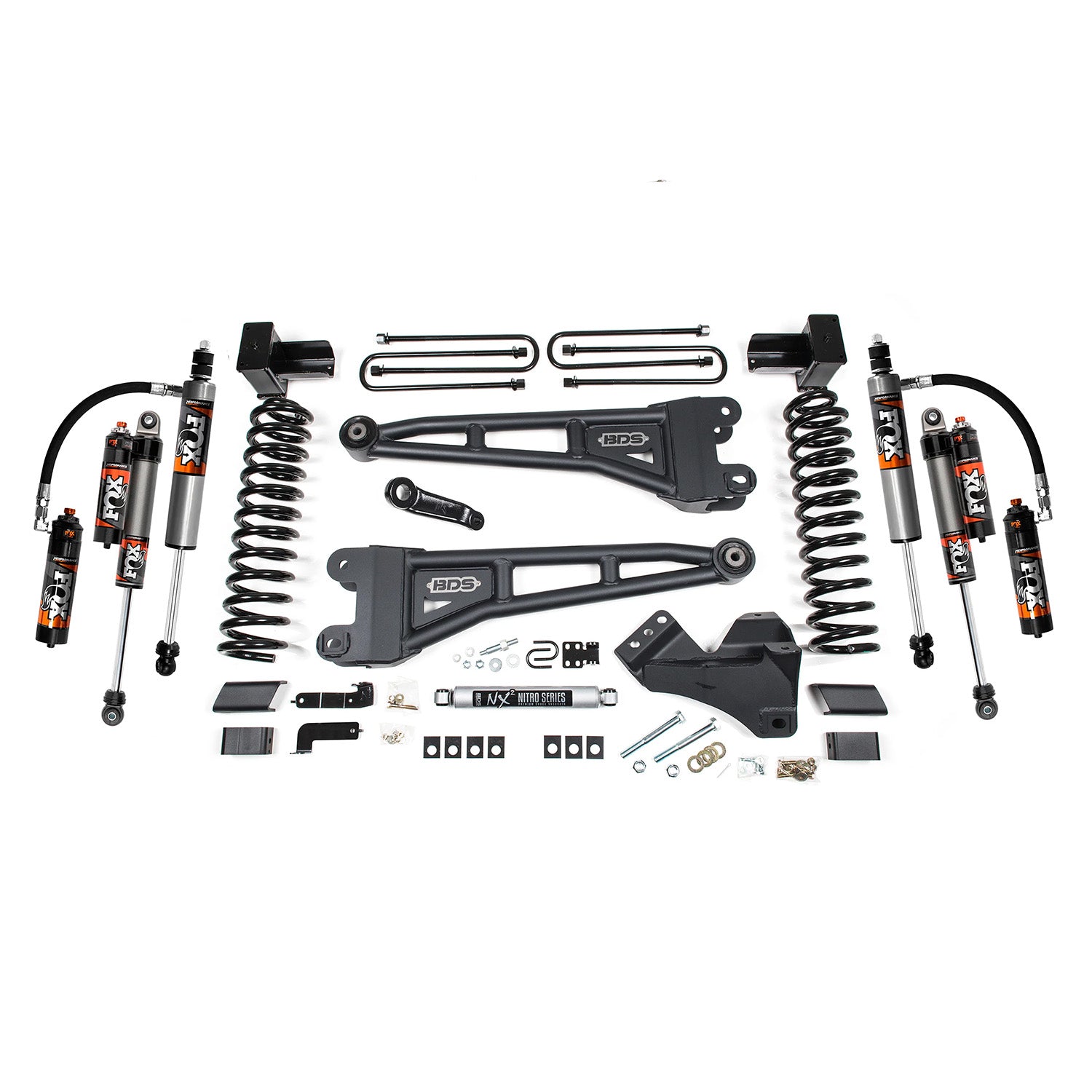

FOX 2.5 Performance Elite Series (Premium Upgrade)
Maximum performance and adjustability for heavy-duty work or extreme off-road use.
Large-bore 2.5" aluminum body
7/8" heat-treated chrome-plated alloy shaft
External reservoir for reduced heat & shock fade
DSC (Dual-Speed Compression) Adjusters for on-the-fly tuning
Fully serviceable and rebuildable
1-year manufacturer’s warranty
Features & Benefits
100% Bolt-On Installation
Improved ride quality with dual-rate coil springs
Heavy-duty tubular radius arms increase strength & caster correction
Pitman arm + track bar bracket work together for perfect steering geometry
Fabricated rear blocks maintain a level stance
Compatible with 37" tires (may require trimming)
