SKU #: BDS-123203
MPN #: 123203

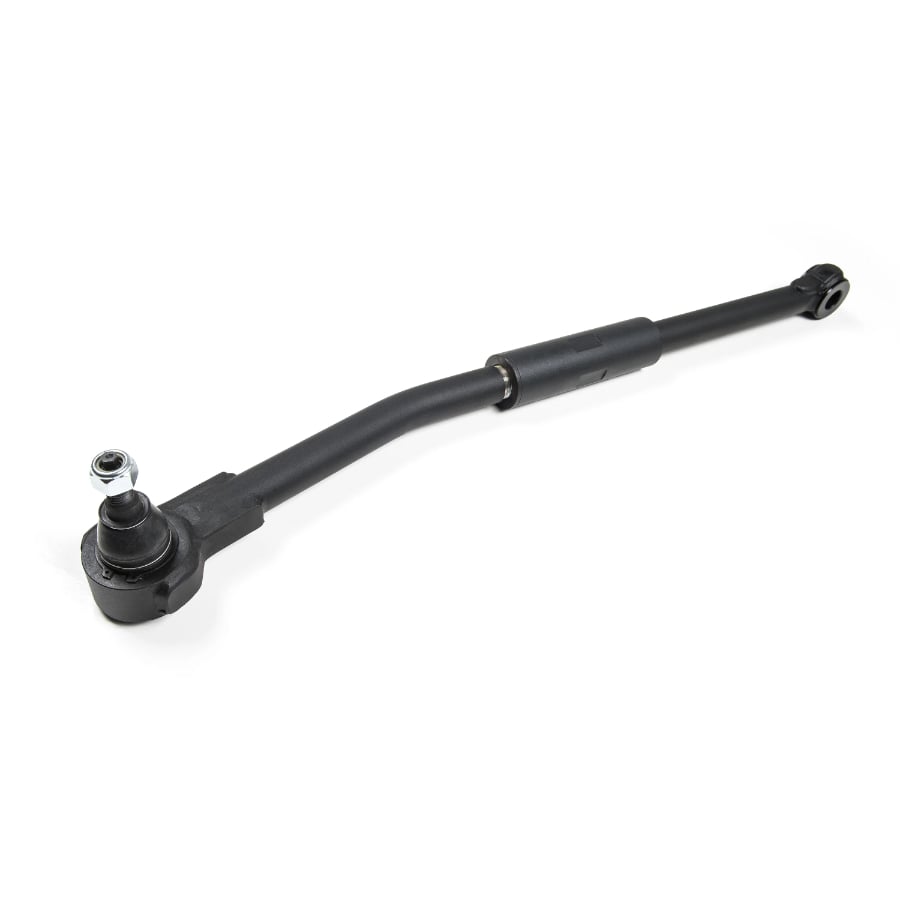

BDS Suspension Heavy Duty Adjustable Track Bar 17-26 Ford SuperDuty
Description
If you've leveled or lifted your SuperDuty and haven't upgraded the track bar, your truck is not properly aligned. This misalignment is caused from the triangulation of the front end, meaning your axle is shifted to one side more than the other, so it can't track straight. This direct replacement from BDS is not only adjustable, allowing you to properly recenter your axle, but built substantially stronger than the stock unit, eliminating any flex that would otherwise occur.
BDS doesn't waste their time building inferior products. If you use, maybe even abuse, your Ford, this track bar will take it, and its backed by BDS's no fine print warranty. Constructed from 1-3/8" solid steel stock, the track bar features fine threads and a pinch bolt style center turnbuckle to allow superior clamping and easy adjustment with the track bar installed on the vehicle.
The track bar is formed to mimic the OE shape for proper clearance and will fit both stock and lifted vehicles that use the original track bar mounts and/or drop brackets. The ends come machined, fully welded and gusseted for added strength. At the frame end, the bar uses greaseable, high-durometer polyurethane bushings for quiet operation. On the axle side you'll find a heavy duty ball joint pre-installed for quick easy installation.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Built from 1-3/8" solid steel stock

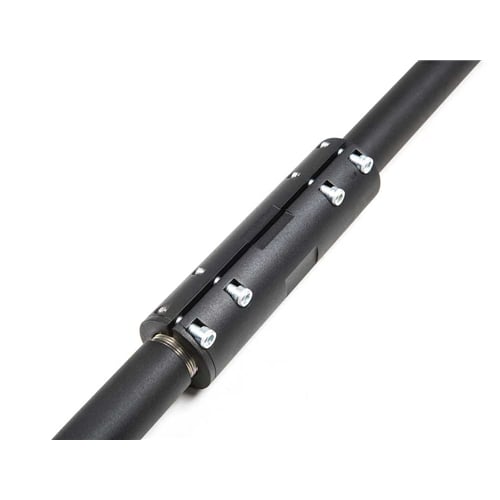

- Center turnbuckle adjustment w/ pinch bolt locking
- Greasable, high-durometer poly bushing (frame end)

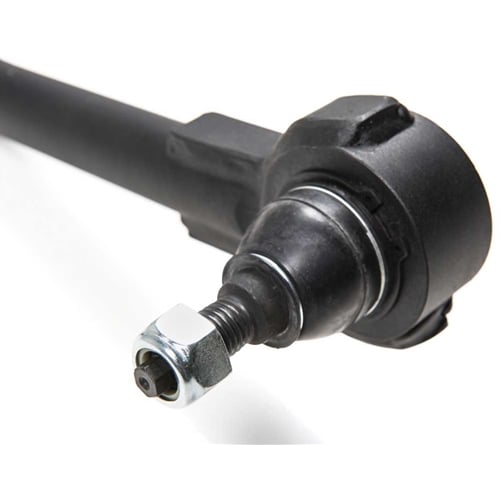

- Heavy duty ball joint pre-installed (axle end)
- Can be used with a wide range of lift heights
- Compatible with stock and track bar drop brackets
- Will work with most other lift kits on the market besides BDS
- Designed to be adjustable between 0-4" of lift, or used in combination with a track bar bracket for larger lift kits
About BDS Suspension
BDS Suspension was started in 1996 by a business group who felt it was past time to create a suspension company that truly had the best interest of the off road consumer as its' foundation. With over 45 combined years experience with other major suspension companies, both buying and selling, the individuals that would make up the BDS name were frustrated by the lack of quality and the unwillingness to make things right by these 4x4 companies. So, they set out to create a suspension company that would be the best and made a list of the things they felt were not right and made it their mission to correct them.
One of the most important of these wrongs they were looking to right were that of other companies warranties. Too often, the standard protocol was that a broken or damaged part from another manufacturer was denied warranty because of abuse or neglect. For BDS, its simple, if it breaks, they'll replace it, and that is the motto in which they have based their entire warranty off of. So, they welcome you, try and break it, if you do, they'll replace it and probably try to determine a way to increase the rigidity of the product to ensure it never happens again.
BDS LIFT KITSWhile most people whom have heard of BDS Suspension automatically think of "lift kits," that ony touches on the wide variety of suspension and steering related products that BDS offers. BDS understands that not everyone is after a complete lift kit, but still after the quality BDS products bring to the table. Some of our most popular products from BDS are replacement adjustable track bars and dual steering stabilizer kits that in many instances can be installed on a completely stock truck, or one that's leveled or lifted. Other popular "non lift kit" parts are leveling kits that include upgraded shocks, progressive rate coil springs, heavy duty control or radius arms, and even leaf springs.
When shopping for various BDS Suspension parts, we understand that all of the choices can be overwhelming! Shock options, dual steering stabilizers, replacement coil springs or spacers.....and the list goes on! As you're considering the right suspension upgrades for you and your truck, never hesitate to reach out to us for an honest opinion of what we'd recommend for your particular build and budget. Not everyone "needs" every option and we can help you weigh the benefits of each.
Blog
June 12, 2026
The diesel particulate filter (DPF) on your Cummins engine traps soot before it leaves the tailpipe. Over...
Read MoreCummins DPF Cleaning: Signs, Methods & Tips
June 12, 2026
P2509 flags when your Cummins ECM isn't seeing stable voltage coming from the battery and charging system....
Read MoreP2509 Cummins Code: Causes, Symptoms & Fixes
June 10, 2026
It starts small. Maybe the truck is a little slower to spool than usual. Maybe it sounds...
Read MoreHow to Find a Boost Leak Without Special Tools
June 05, 2026
Your exhaust system moves spent gases out of the engine and away from the cab. The muffler...
Read MoreResonator vs Muffler: Key Differences Explained
Overall rating: 3.1666667 / 5 from 6 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
BDS track bar
"I should have bought one for the last 4 SuperDuty trucks I lifted. You can adjust the front axle with your hands before tightening the allen screws. Feels much more stout than the factory track bar."
Adjustable Track Bar
"Purchased a new BDS 8 in lift 6 years ago for my 2011 ford f250truck has never been taken off road or abused in any way hit a pot hole and the BDS adj track bar snapped into and I had no control of my steering after examining the breakage it was a faulty track bar from the factory poor casting after contacting BDS and showing pics of the breakage they refused to do anything about it I hope no one else has one of these faulty track bars under their vehicle because this could have killed somebody if I had been on the highway"
I received the bds track
"I received the bds track bar about a month ago. When I got home, the track bar was hanging completely out of the box. When I open the box the track bar was all scraped up And missing the bushings. They did send me a new set of bushings, but couldn’t do anything about the scraped up track bar"
Great trackbar GREAT customer service
"It will really tighten your front end up and will keep it from wondering on road"
I would order again
"It was what we wanted and got it fast"
Q&A
- Hello. I have a 2017 F 350 with the BDS 4in lift. The bushing where the adjustable track bar bolts to the frame is worn out and making noise. How do i go about getting a new bushing? Tks
- We should be able to get one ordered for you if you call in or you could reach out to BDS directly.
- I ordered a 2� leveling kit a while back it was a bds came with caster shims track bar relocation bracket the two 2� blocks and all 4 fox shocks i noticed that in certain road dips and bumps my front end would bottom out specially driver side thinking it was the shocks i swapped them out with ranchos the problem continues the next thing i can think of is the bracket that was provided with leveling kit is the problem and my axle is still off just a little bit im thinking of putting oem bracket back on but ordering this trackbar to see if it solves the bottoming out issue what do yall suggest?
- I would look and see if you can see any witness marks from things hitting. But I would recommend removing the brackets and getting an upgraded track bar for sure. -Sands
- Can your adjustable track bar be used with stock height 2018 F350? Can it be adjusted to equal the length of the OEM unit? Others are approx. 3/4"" too long.
- These as noted are designed to be adjustable between 0-4"" of lift, or used in combination with a track bar bracket for larger lift kits. -AW
