SKU #: ZON-C31N
MPN #: C31N

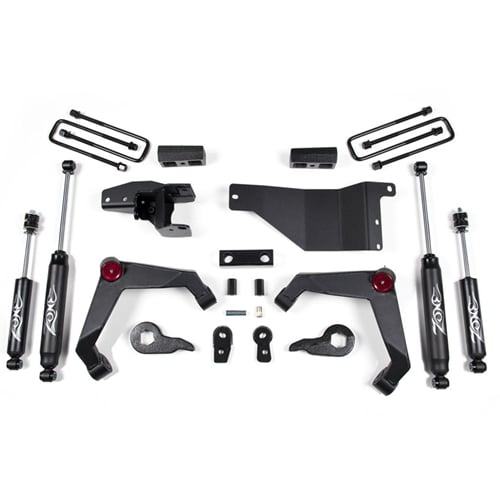

Zone Offroad 3" Adventure Series (UCA) Lift System 01-10 GM 2500HD / 3500
Description
Take your GM to new heights with this complete suspension system from Zone!
This Adventure Series lift systems is built around the Zone Offroad heavy-duty replacement upper control arms for the 01-10 HD trucks. The arms are made from 3/16" steel that is precision laser cut, formed and fully welded. Preinstalled Raybestos brand ball joints and rubber bushings provide an easy installation and long service life. The ball joint is repositioned to compensate for the added lift and maintain a neutral position at ride height. To complement the improved upper ball joint angles, the kit address the other area often ignored at this lift height - the CV shafts.
The Adventure Series kit for the 01-10 HDs includes a full differential drop system that relocates the differential down 2" for near stock angles at the 3" lift height. This is accomplished with a drop spacer on the passenger's side, two drop brackets for the front driver's mount and a integrated "half crossmember" for the driver's rear mount. A new different skid plate is included to protect the differential in its new position. The rear is lifted via a 2" block and u-bolts.
Important Notes

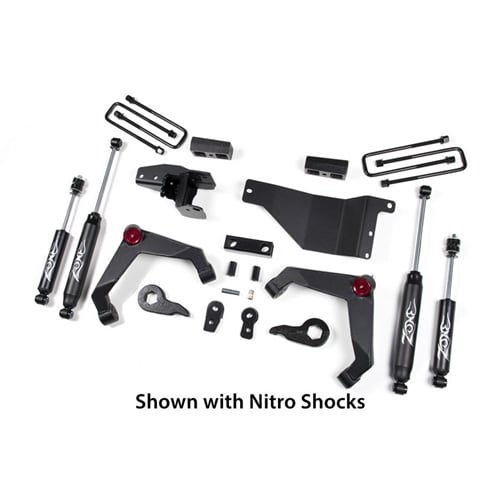

Kit images show Nitro (black) shocks
Frame bracket mount modification required
Torsion bar unloading/loading tool required
Will not fit dually models

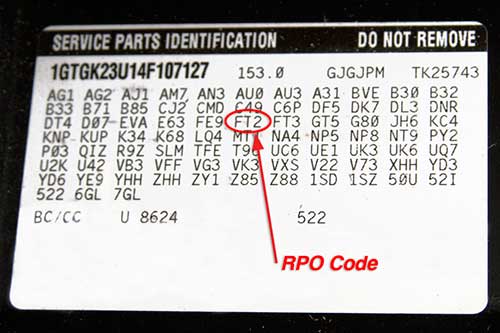

To determine which kit # is required, verify which RPO codes are shown in the glovebox to determine the factory installed torsion keys.
Any of the following RPO codes require the C31 kits: FT2 - FT3 - FT4 - FT5 - FT6 - FT7.
Any of the following RPO codes require the C32 kits: FK2 - FK3 - FF6 - FF7 - FF8 - FF9.
Not recommended for 2500 non-HD models (Suburban/Silverado/Sierra)
Replacement UCA Ball Joint #: 500-1104B (Raybestos)
Replacement UCA Bushing #: SBO2A241190 (Clevite)
*Available through most local auto parts stores*
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
Featured Technology Benefits
- Fully welded, heavy duty upper control arms that dwarf the factory arms.
- Preinstalled replaceable Raybestos brand ball joints and rubber bushings.
- Reposititioned ball joints to maintain a nuetral angle with added lift.
- Full differential drop system included to maintain proper CV shaft angles.
- Differential skid plate included.
- Rear height is adjusted with 2" blocks
Quick Specs:
- Front Lift Height: 3
- Front Lift Method: Upper Control Arms
- Rear Lift Height: 2
- Rear Lift Method: Block
- Install Time Hrs: 3-4
- Difficulty Level 1-5: 3
- Wheel Size: 17"
- Back Spacing: 5"
- Max Tire Size: 33 x 12.50
About Zone Offroad Suspension
Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.
Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.
Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
Blog
July 02, 2026
A check engine light paired with a hard start or a stall out of nowhere usually points...
Read MoreP0336 Code Explained: Causes, Symptoms & Fixes
June 12, 2026
The diesel particulate filter (DPF) on your Cummins engine traps soot before it leaves the tailpipe. Over...
Read MoreCummins DPF Cleaning: Signs, Methods & Tips
June 12, 2026
P2509 flags when your Cummins ECM isn't seeing stable voltage coming from the battery and charging system....
Read MoreP2509 Cummins Code: Causes, Symptoms & Fixes
June 10, 2026
It starts small. Maybe the truck is a little slower to spool than usual. Maybe it sounds...
Read MoreHow to Find a Boost Leak Without Special Tools
Overall rating: 5.0 / 5 from 2 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Very unsatisfactory
"I have had the 3� zone off-road lift kit on my duramax for a year and a half and the red cap on my upper control arm is gone. This thing just popped off and has been collecting mud and sut. I'm very satisfied with the weld quality on the upper control arm just apparently needed a screw on design instead of some glued or pressed on red cap."
Q&A
- What’s the difference between c31 & c32 ?
- Thanks for asking. To determine which kit # is required, verify which RPO codes are shown in the glovebox to determine the factory installed torsion keys. Any of the following RPO codes require the C31 kits: FT2 - FT3 - FT4 - FT5 - FT6 - FT7. Any of the following RPO codes require the C32 kits: FK2 - FK3 - FF6 - FF7 - FF8 - FF9.
- It says the recommended wheel size is 17 will I be able to fit 20x12 with -44 offset with 305x55r20 tires without any or much rubbing? It is on my 01 gmc 2500hd duramax
- You are definitely going to run into rubbing issues with that wheel and tire package. You would at least have to clearance bumper valance and probably rear inner fender well. DppSands
- I have a 2500hd gmc with Kryptonite control arms and a leveling key. From Center of Hub to bottom of Fender I have 25 1/4 inches will a 3in Zone lift me up any higher.
- Depending on your adjustment on the keys I would estimate the Zone kit is going to add .5-.75 inches to the front and 2 to the rear. DppSands
- I would like to get this Zone Offroad lift, however I just purchased factory height Bilsteins and do not need the shocks included. Is there any way to get the lift without the shocks at a discounted rate? Possible with shock extenders? Thank you
- We can order it without shocks like that for sure. It doesn't take off as much as people think. Shoot us a call to order. SA
- Can this fit a 03 chevy 2500hd 2wd
- No it would only fit 2wd drive applications. I don't have any lift for 2wd. SNA
