SKU #: ZON-D109 MPN #: ZOND109

Zone Offroad 6.5" Radius Bracket Lift Kits 19-24 Ram 3500 6.7L Cummins

$1,179.75

Get 1179 points in loyalty rewards

☆☆☆☆☆ (0)

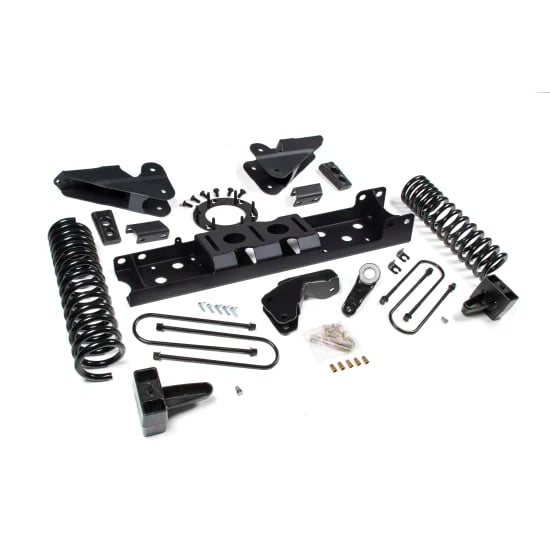

Zone Offroad 6.5" Suspension Lift Kit 19 22 Ram 3500 6.7L Cummins

Description

Take your RAM 3500 to new heights with this 6.5" radius arm suspension lift kit from Zone Offroad. Engineered for strength, proper suspension geometry, and reliable performance, this system includes everything needed to lift and level your truck—minus shocks—while maintaining ride quality and drivability. This kit features high-strength progressive-rate front coil springs combined with heavy-duty 1/4" steel, laser-cut, internally gusseted radius arm drop brackets to correct caster and improve ground clearance. Steering geometry is addressed with a forged drop pitman arm and a heavy-duty track bar relocation bracket, while front sway bar correction maintains stable handling characteristics. A heavy-duty transmission crossmember and transfer case indexing ring (variant dependent) help correct front driveline angles after lifting. With no change to factory track width, this system provides clearance for up to 37" tires, delivering an aggressive stance without sacrificing control. Note: Shocks are not included. Aftermarket shocks are required for proper installation and performance. Vehicle Fitment 2019–2024 Ram 3500 4WD Diesel Available for trucks with or without rear overload springs (variant dependent) Available with 6-bolt or 8-bolt transfer case indexing ring options (variant dependent) Important Notes Shocks not included Diesel models only Will not fit rear air-ride equipped models Does not fit Chassis Cab models Does not fit vehicles with a manual shift transfer case Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included) Some 8-bolt Mega Cab models may require an aftermarket front driveshaft and may not use indexing

Vehicle Fitment

2019–2024 Ram 3500 4WD Diesel
Available for trucks with or without rear overload springs (variant dependent)
Available with 6-bolt or 8-bolt transfer case indexing ring options (variant dependent)

Important Notes

Shocks not included
Diesel models only
Will not fit rear air-ride equipped models
Does not fit Chassis Cab models
Does not fit vehicles with a manual shift transfer case
Trucks equipped with a 2-piece rear driveshaft require carrier bearing shim kit D5406 (not included)
Some 8-bolt Mega Cab models may require an aftermarket front driveshaft and may not use indexing

Vehicle Fitment

2019-2024 Ram 3500 6.7L Cummins

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

High strength progressive rate front coil springs for a great ride on any terrain
Heavy duty 1/4" steel, laser cut, internally gusseted radius arms improve strength, offer more ground clearance and correct caster
HD track bar relocation bracket to correctly position front axle under the truck
Forged drop pitman arm to correct steering angles
Front sway bar correction to maintain handling performance
HD transmission crossmember and t-case indexing ring to correct front driveline angles
Nitro series gas or FOX adventure series IFP gas shocks to improved ride and offroad performance
Allows clearance for up to 37” tires

QUICK SPECS:

Front lift height 6.5"
Rear lift height 5"
Front lift springs
Rear lift blocks
Wheel size 20x9
Backspacing 4.5"-5.5"
Max tire size 37x12.5
Wheel size(2) 18x9
Backspacking(2) 4.5"-5.5"
Max tire size(2) 37x12.5
Install time 6 hours
Difficulty 4 out of 5

IMPORTANT NOTES:

Does not fit Dually Models with 8-bolt transmissions (Aisin)
Will not fit rear air-ride equipped models
Kit designed for diesel models only
Does not fit Chassis Cabs
8-bolt, Mega Cab may require an aftermarket driveshaft and no indexing
Does not fit vehicles with a Manual Shift Transfer Case
Trucks equipped with a 2-piece rear driveshaft require carrier bearing drop kit

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
