SKU #: ZON-7717 MPN #: ZON7717

Zone Nitro Shock 99-23 Ford SuperDuty | EB1 / EB2

$54.95

Get 54 points in loyalty rewards

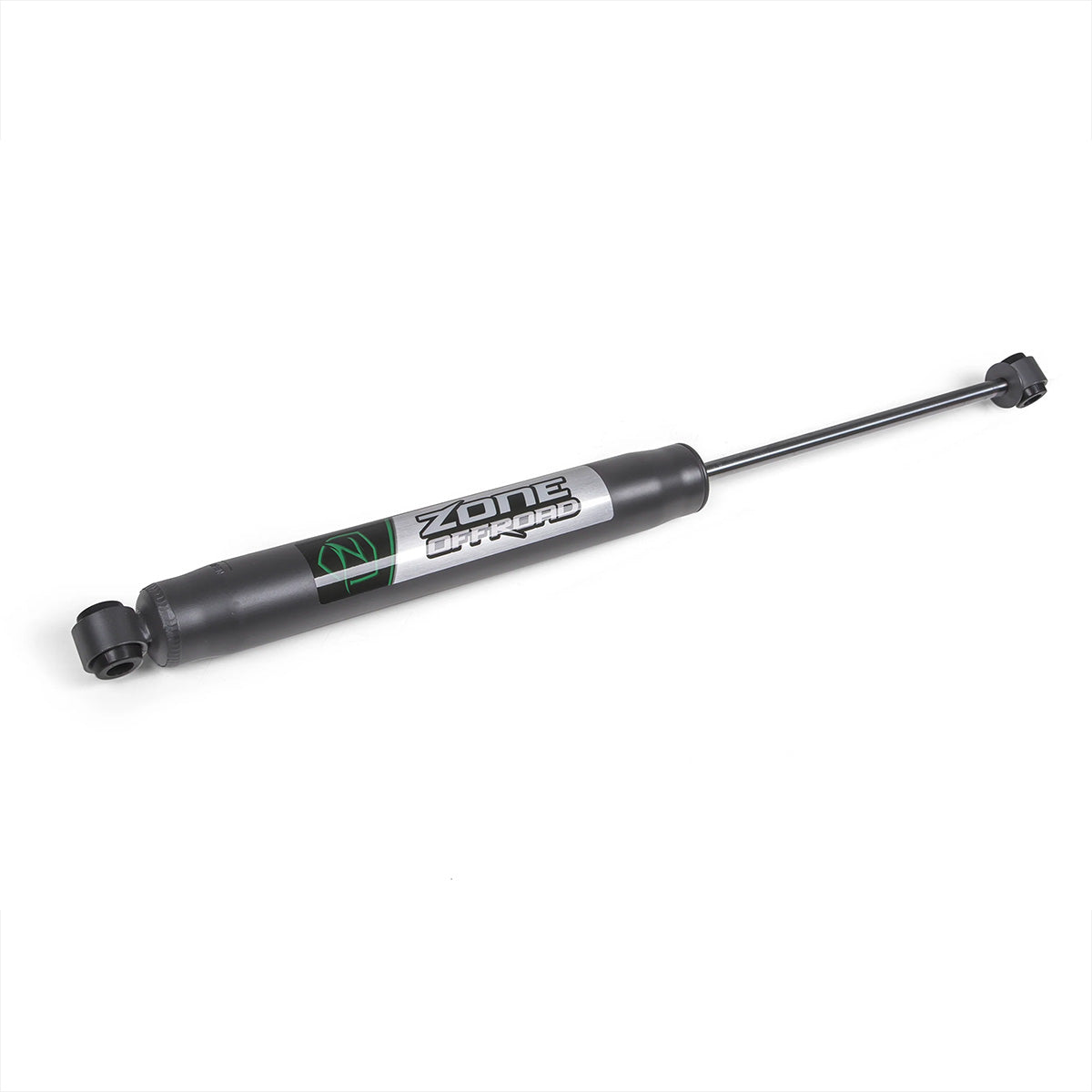

Zone Nitro Shock for 99-23 Ford SuperDuty EB1 and EB2

Description

Zone Nitro Series shock absorbers deliver stock-like ride quality with improved control using fully displaced, vehicle-specific valving for consistent compression and rebound performance. Each shock is nitrogen-charged at 50 PSI to ensure fast response and reduced aeration, and features a Fluon-banded piston for smooth operation and long service life. Shocks are sold individually and include required bushings and sleeves. Shock Size & Mounting Breakdown 29.80" Extended / 17.60" Collapsed — EB1 / EB1• 2017-2023 Ford F-250 / F-350 4WD• Long-travel Nitro shock• Upper Mount Type: Eyelet• Lower Mount Type: Eyelet• 2-3/8" shock body diameter• Lift Height 0" 23.20" Extended / 14.15" Collapsed — EB1 / EB1 (Front 2.5")• 1999-2004 Ford F-250 / F-350 4WD• Shorter front shock configuration• Upper Mount Type: Eyelet• Lower Mount Type: Eyelet• 2-3/8" shock body diameter• Lift Height 2.5" 24.50" Extended / 14.50" Collapsed — S50 / EB2• 2005-2016 Ford F-250 / F-350 4WD• Mid-travel Nitro shock• Upper Mount Type: Stem• Lower Mount Type: Eyelet• 2-3/8" shock body diameter• Lift Height 4" 22.50" Extended / 13.50" Collapsed — S50 / EB2• 2005-2023 Ford F-250 / F-350 4WD• Compact shock configuration• Upper Mount Type: Stem• Lower Mount Type: Eyelet• 2-3/8" shock body diameter• Lift Height 2"

Shock Size & Mounting Breakdown

29.80" Extended / 17.60" Collapsed — EB1 / EB1
• 2017-2023 Ford F-250 / F-350 4WD
• Long-travel Nitro shock
• Upper Mount Type: Eyelet
• Lower Mount Type: Eyelet
• 2-3/8" shock body diameter
• Lift Height 0"

23.20" Extended / 14.15" Collapsed — EB1 / EB1 (Front 2.5")
• 1999-2004 Ford F-250 / F-350 4WD
• Shorter front shock configuration
• Upper Mount Type: Eyelet
• Lower Mount Type: Eyelet
• 2-3/8" shock body diameter
• Lift Height 2.5"

24.50" Extended / 14.50" Collapsed — S50 / EB2
• 2005-2016 Ford F-250 / F-350 4WD
• Mid-travel Nitro shock
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet
• 2-3/8" shock body diameter
• Lift Height 4"

22.50" Extended / 13.50" Collapsed — S50 / EB2
• 2005-2023 Ford F-250 / F-350 4WD
• Compact shock configuration
• Upper Mount Type: Stem
• Lower Mount Type: Eyelet
• 2-3/8" shock body diameter
• Lift Height 2"

Manuals and Guides

INSTALL INSTRUCTIONS

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

About Zone Offroad Suspension

Zone Offroad Products was developed to bring you quality offroad products at the BEST VALUE in the industry.

Zone is an engineering & manufacturing division of Sport Truck USA, the same parent company that has brought you BDS and JKS, with over 20 years of experience serving offroad enthusiasts. And we will be the first to tell you that Zone's first intention when designing and building a suspension system is not to be the lowest price, thus cutting corners wherever possible, rather about building a complete system that will perform superbly, but at a price point nearly anyone can afford.

Zone offers numerous systems for nearly every application to perfectly suit the stance you're after whether it be a simple 2" leveling kit or a complete 8" suspension system. Browse through our selection of Zone Offroad, and as always, if you don't see what you're looking for or having trouble determining which kit is right for you, do not hesitate to give us a call and we would be happy to assist.
