XDP Stock Plus New Steering Gear Box 11-19 Ford 6.7L Powerstroke

Name: XDP Stock Plus New Steering Gear Box 11-19 Ford 6.7L Powerstroke
Brand: XDP
Price: 959.95 USD
Availability: InStock

$959.95

Get 959 points in loyalty rewards

XDP Stock Plus steering gear box installed on 2011-2019 Ford 6.7L Powerstroke truck front view

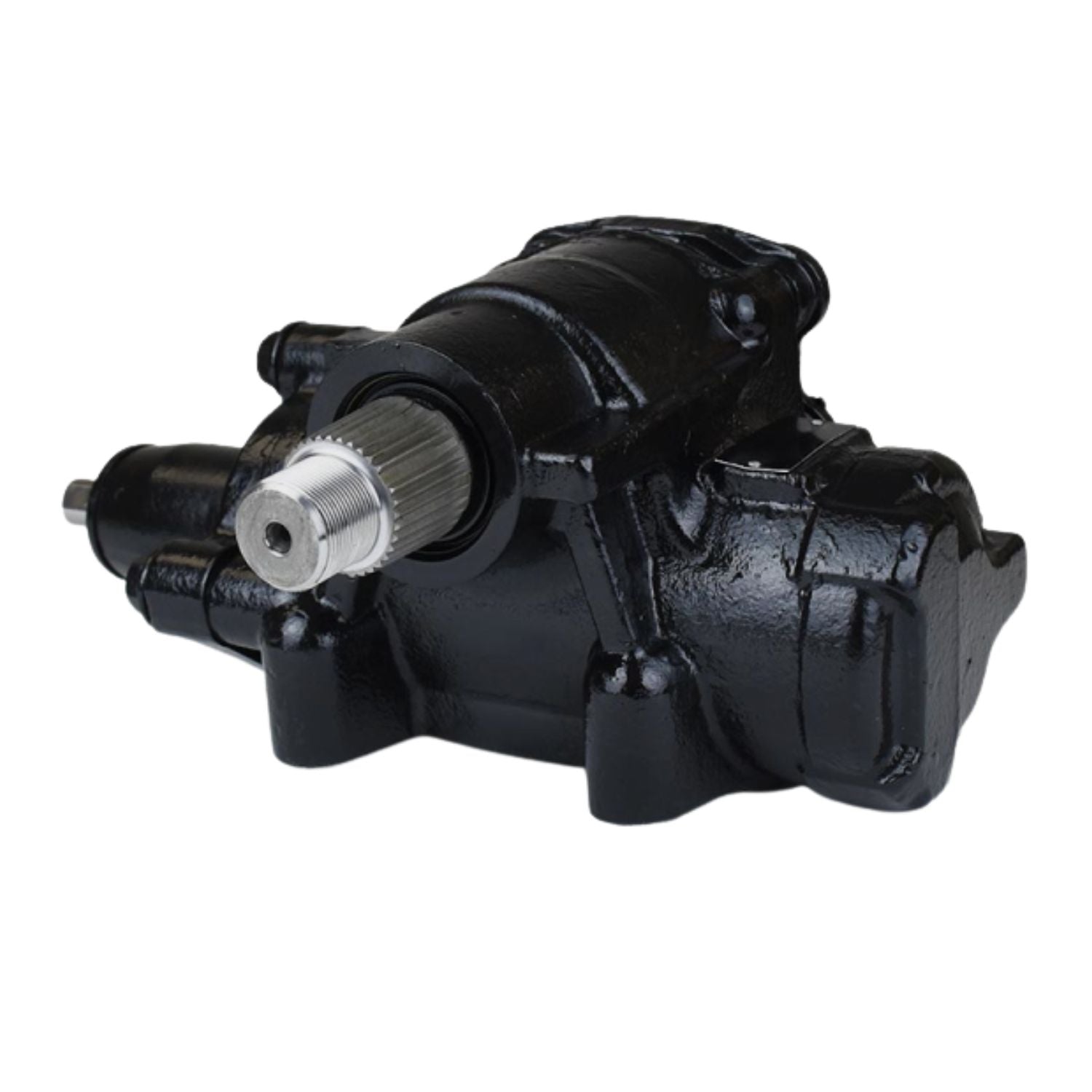

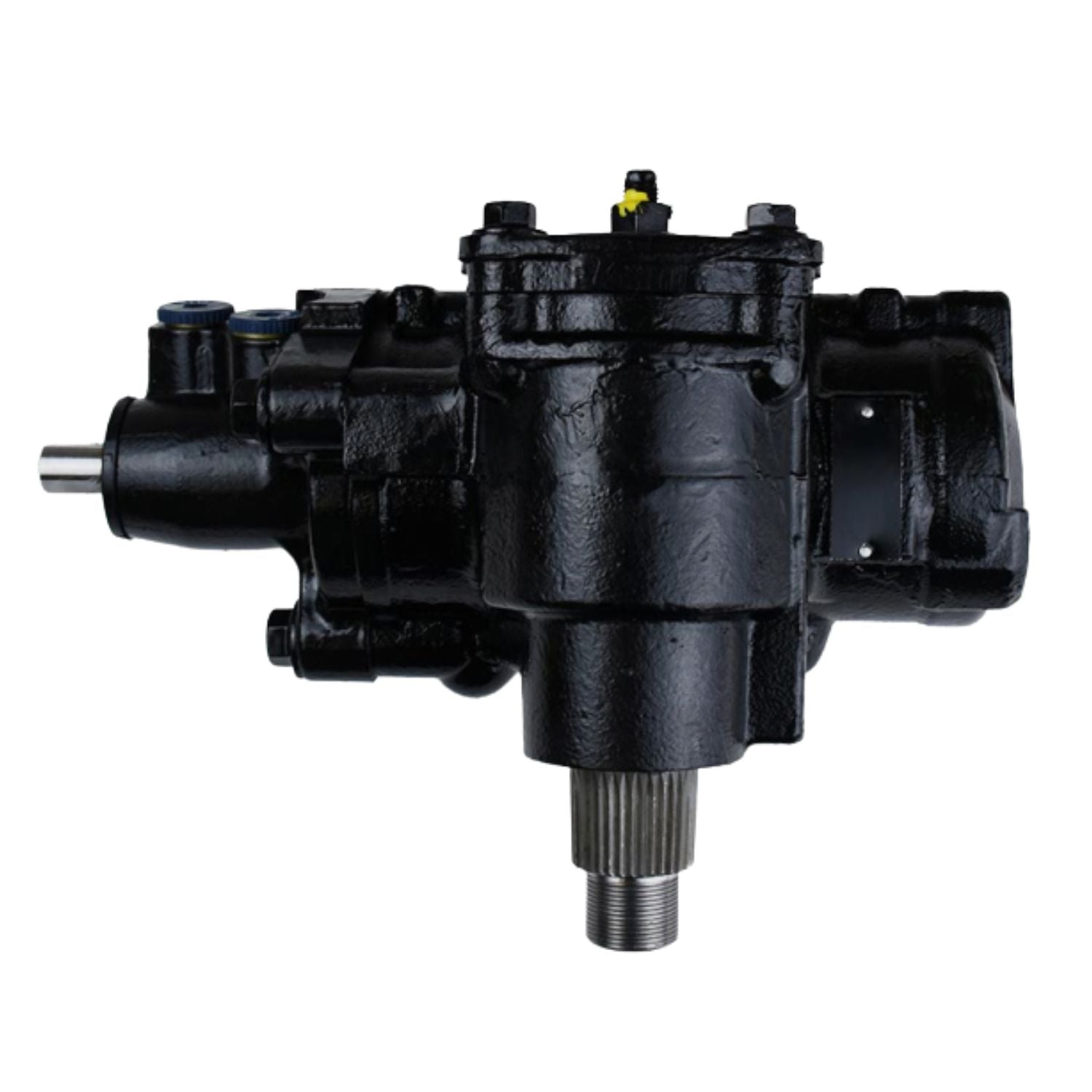

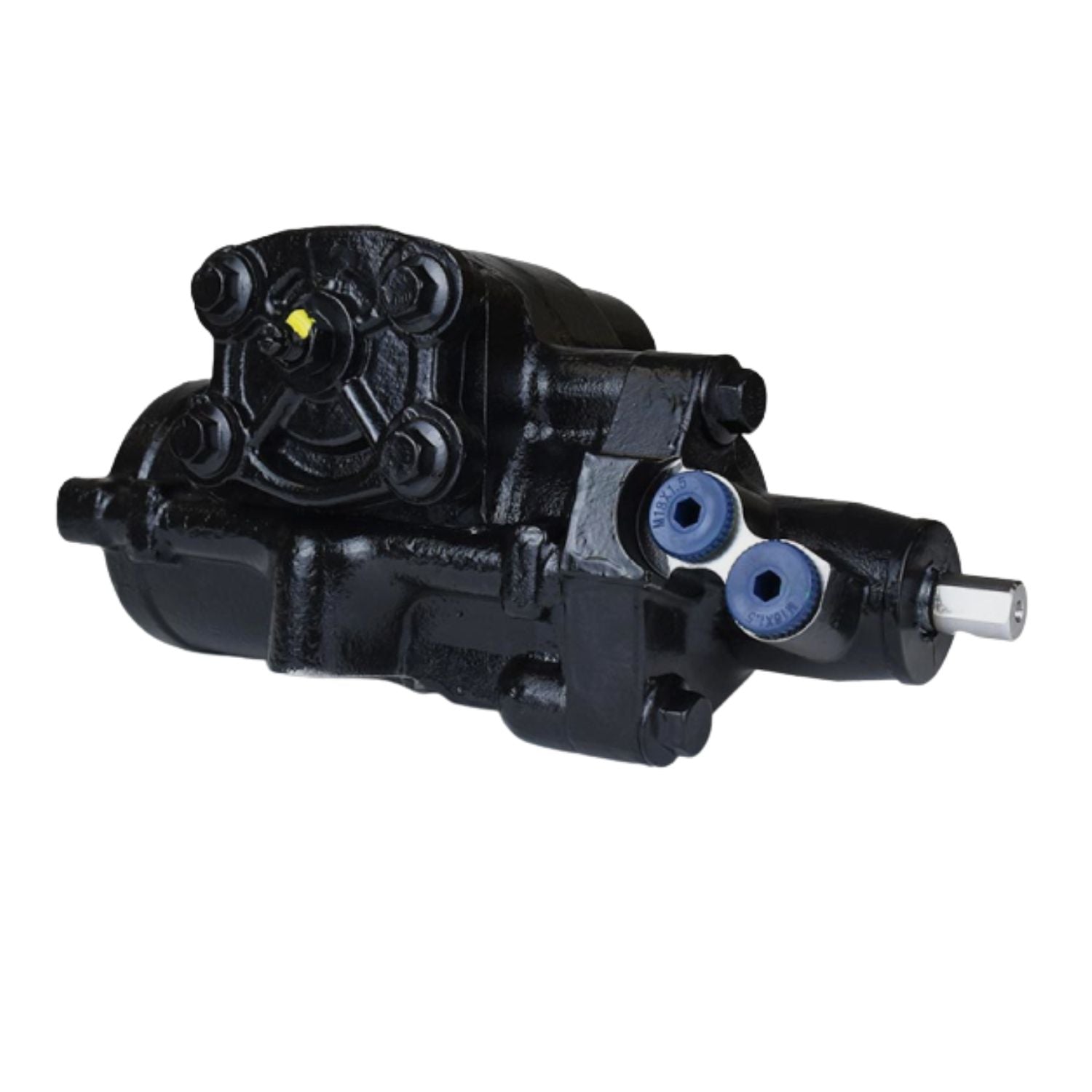

Close up view of new steering gearbox for Ford Super Duty 6.7L Powerstroke showing construction

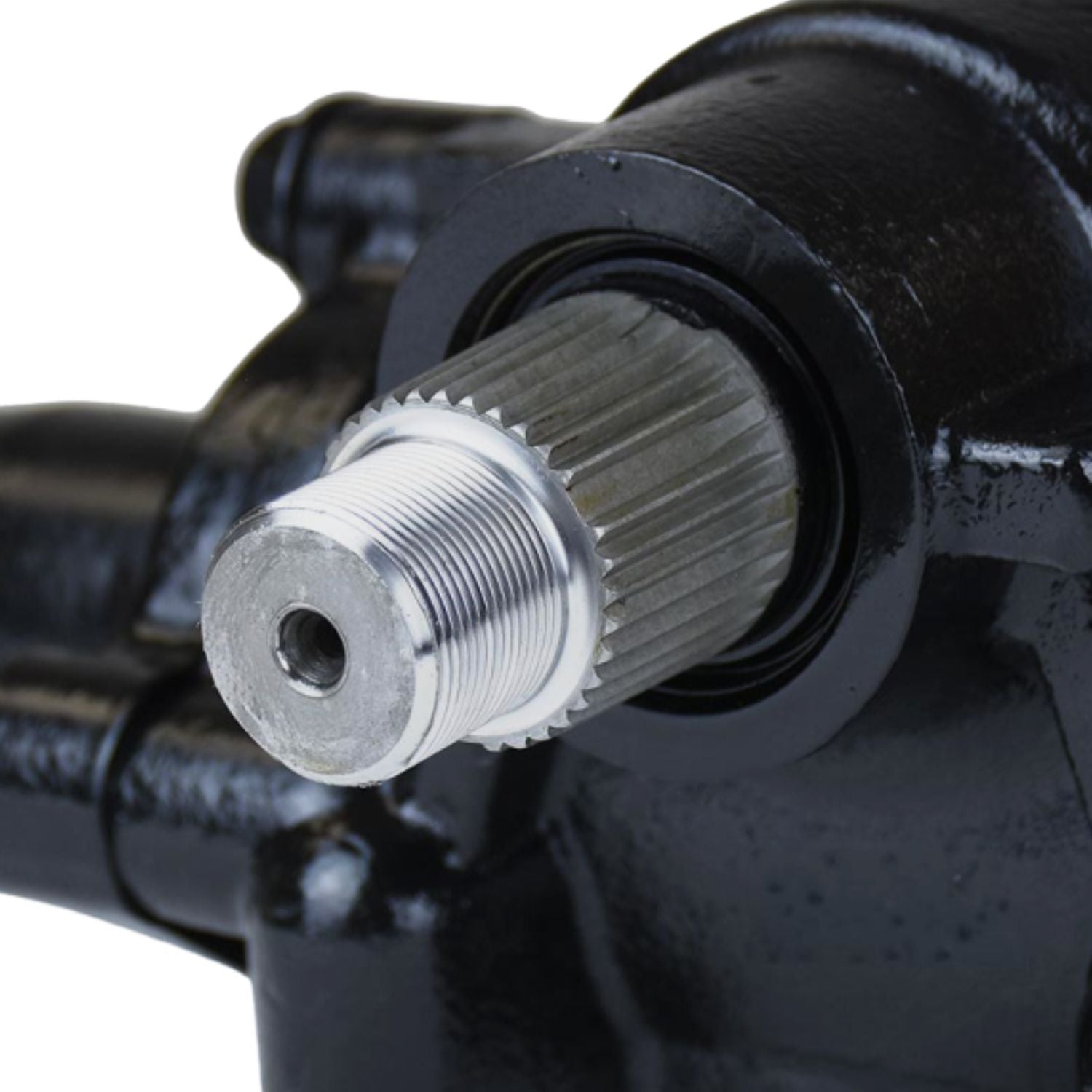

Direct bolt-on steering gear box replacement installation using factory pitman arm and shaft

Comparison showing worn steering symptoms versus restored tight steering feel after replacement

Under hood view of Ford 6.7L Powerstroke steering system with new gear box installed

Description

If your truck’s steering has started to feel loose, vague, or just not as confident as it used to, you’re not alone. This is one of the most common issues on higher-mileage Super Duty trucks. The XDP Stock Plus New Steering Gear Box is designed to bring that tight, factory-fresh steering feel back to your Ford F-250, F-350, or F-450 6.7L Powerstroke. It replaces your worn-out steering gear and helps restore the control, stability, and confidence you expect every time you get behind the wheel. Inside your factory steering gearbox, components like the worm gear, sector gear, and bearings naturally wear down over time. Add in rough roads, potholes, and possible fluid leaks, and the result is often steering play, wandering on the highway, stiff turning at low speeds, or even clunking and grinding noises. This unit is built as a 100% new, not remanufactured replacement, so you’re getting all-new internal components designed to handle long-term daily driving and demanding conditions. With a direct bolt-on design, installation is straightforward and works with your factory pitman arm and steering shaft. The result is smoother steering response, improved drivability, and a more controlled feel on the road, especially when towing, hauling, or navigating tight spaces. It’s a simple upgrade that makes a big difference in how your truck drives every day.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

If your truck’s steering has started to feel loose, vague, or just not as confident as it used to, you’re not alone. This is one of the most common issues on higher-mileage Super Duty trucks. The XDP Stock Plus New Steering Gear Box is designed to bring that tight, factory-fresh steering feel back to your Ford F-250, F-350, or F-450 6.7L Powerstroke. It replaces your worn-out steering gear and helps restore the control, stability, and confidence you expect every time you get behind the wheel.

Inside your factory steering gearbox, components like the worm gear, sector gear, and bearings naturally wear down over time. Add in rough roads, potholes, and possible fluid leaks, and the result is often steering play, wandering on the highway, stiff turning at low speeds, or even clunking and grinding noises. This unit is built as a 100% new, not remanufactured replacement, so you’re getting all-new internal components designed to handle long-term daily driving and demanding conditions.

With a direct bolt-on design, installation is straightforward and works with your factory pitman arm and steering shaft. The result is smoother steering response, improved drivability, and a more controlled feel on the road, especially when towing, hauling, or navigating tight spaces. It’s a simple upgrade that makes a big difference in how your truck drives every day.

Vehicle Fitment

2011-2016 Ford F-350 DRW 2WD/4WD (Wide Track)
2011-2016 Ford F-450 2WD/4WD
2018-2019 Ford F-250/F-350 2WD/4WD (with Adaptive Steering)

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

SPECIFICATIONS:

Input Shaft Diameter: 0.750 in
Output Shaft Diameter: 1.181 in
Power Assisted: Yes

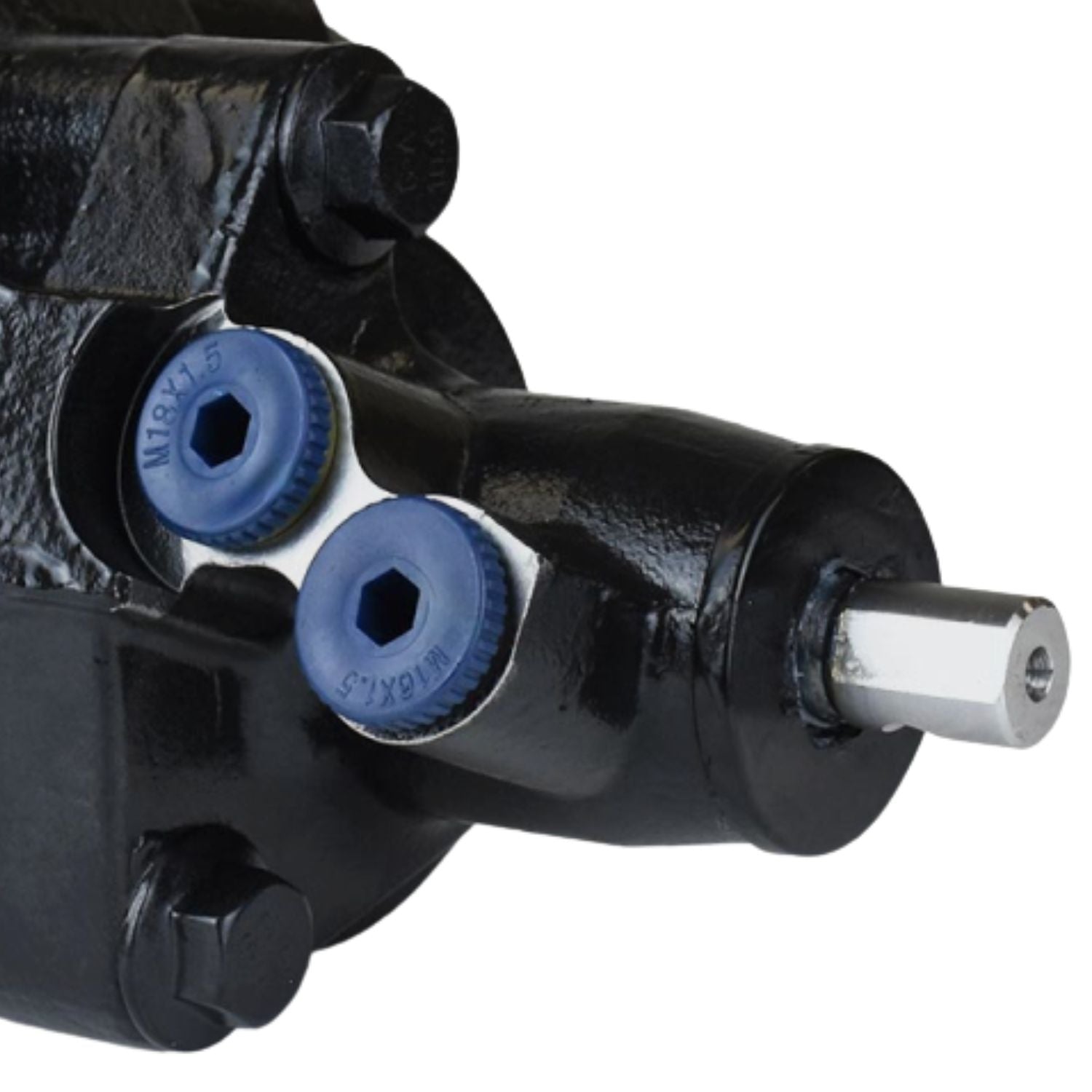

Pressure Port Thread Size: 18-1.5 mm
Return Port Thread Size: 16-1.5 mm
Total Turns Lock-to-Lock: 5.00

FEATURES & BENEFITS:

Brand new unit built with 100% completely new components—never remanufactured
Direct bolt-on replacement for easy installation and factory-style fitment
No core charge required, saving you time and eliminating return hassle
Designed to work seamlessly with your factory pitman arm and steering shaft
Helps restore tight, responsive steering feel for improved daily drivability
Built to replace worn or failing steering gearboxes caused by normal wear, rough roads, and fluid leaks
Improves steering control and confidence by reducing excessive play and wandering
Supports long-term reliability with durable all-new internal components
