XDP Single Hole Design with Return Fuel Tank Sump Kit

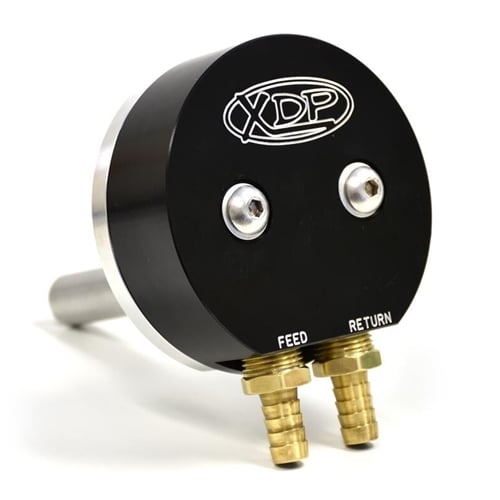

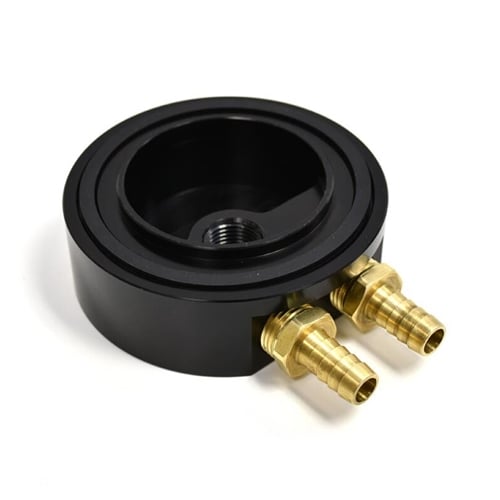

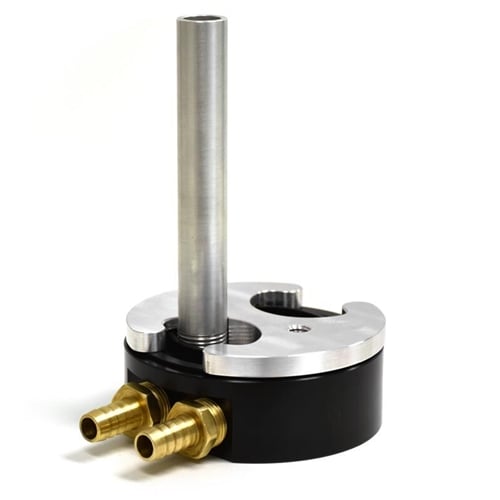

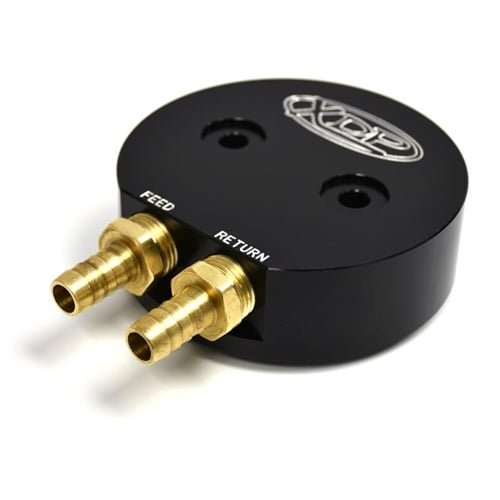

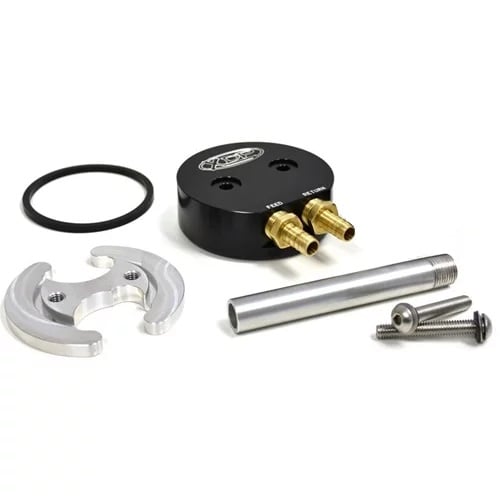

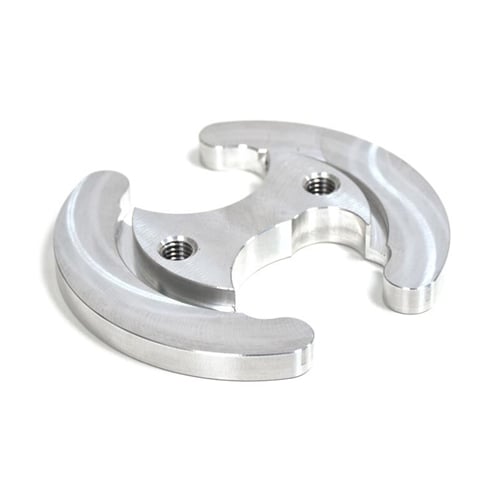

Okay, so first questions first, why do you want a sump in the first place? Simple, the best method for ensuring you avoid the typical 1/4 tank issues stereotypical of aftermarket fuel systems is to let gravity do the work and pull fuel from the bottom of the tank. Next question, what makes this sump unique? The built-in return means you're not having to splice a into your fuel filler neck, reducing the likelihood of a leak. A superior sump? Maybe. The XDP Fuel Tank Sump with Built-In Fuel Return provides you with a perfect option to maximize fuel delivery and customization when installing your aftermarket fuel system. Avoid the common 1/4 tank issues associated with in-tank draw straws used with aftermarket fuel systems. This particular sump features a one-hole design that only requires drilling a single 3" hole for installation. A machined groove for the o-ring gasket ensures a leak-free seal, and the inner-ring is designed to fit into the bottom of the tank without requiring you to remove it from the truck. What really sets this sump apart from others is the built-in return. Installation of most aftermarket fuel systems require you to cut and "tee" into your factory fuel filler neck. In some cases, modifications to the filler neck can cause leaks, and also cause fuel pumps to "click off" when refueling. Using the built-in return port, you can easily route return fuel back to the tank without having to modify any other components for a clean and easy installation. For optimal fuel quality, the XDP Sump features a stand pipe that places the returned fuel above the fuel feed. This design eliminates the possibility of feeding your engine the aerated return fuel coming back to your fuel tank. Includes barbed fittings for 1/2" hose.
