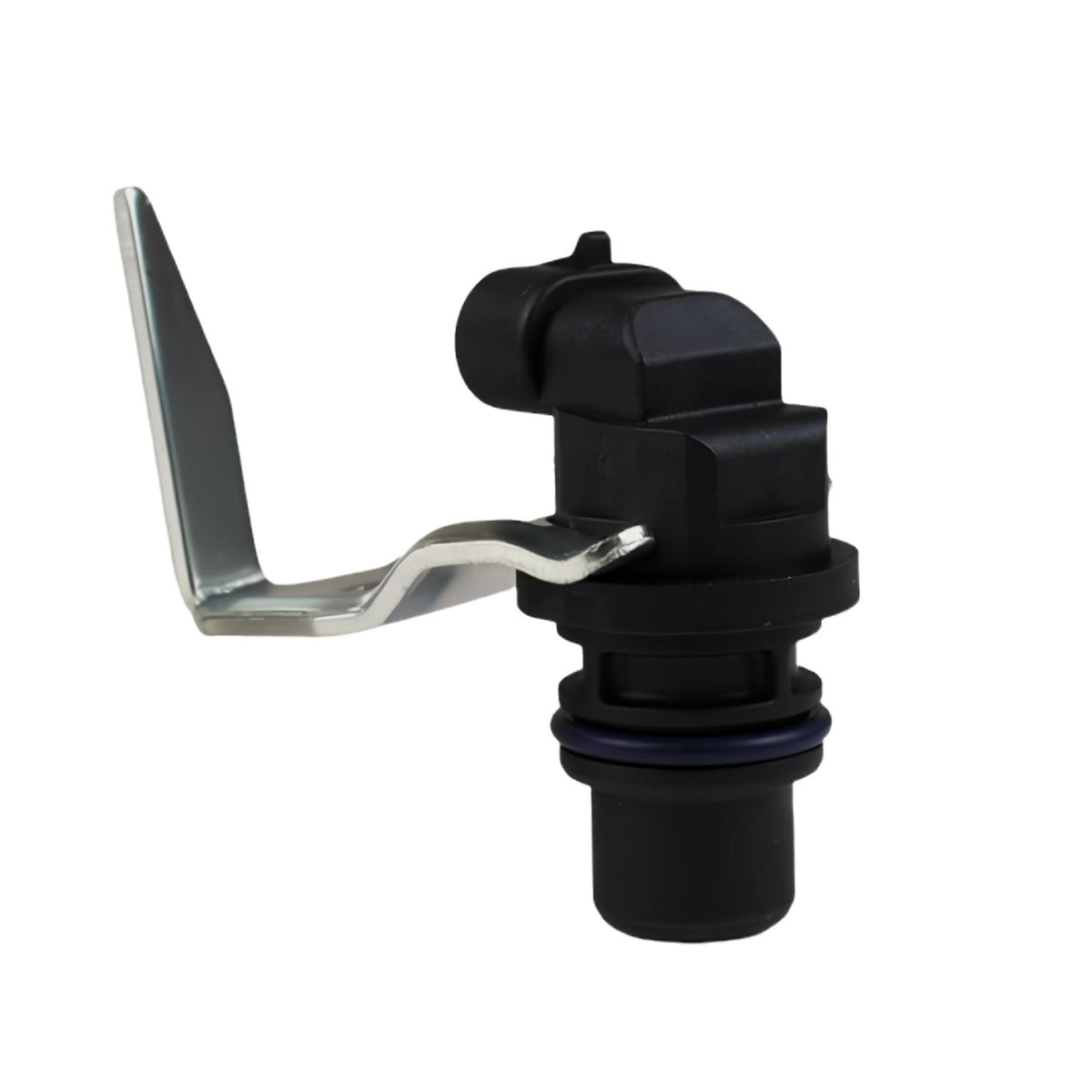

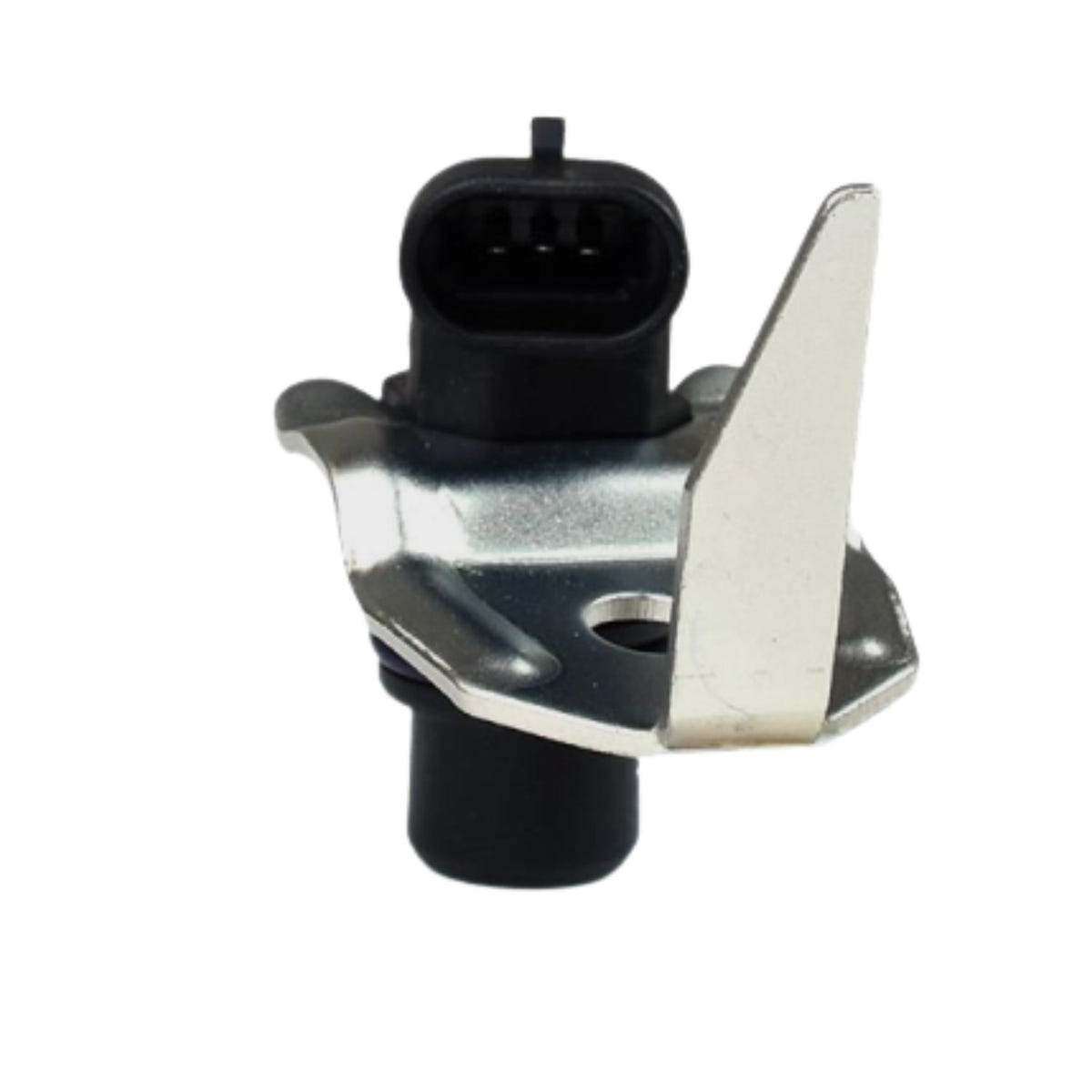

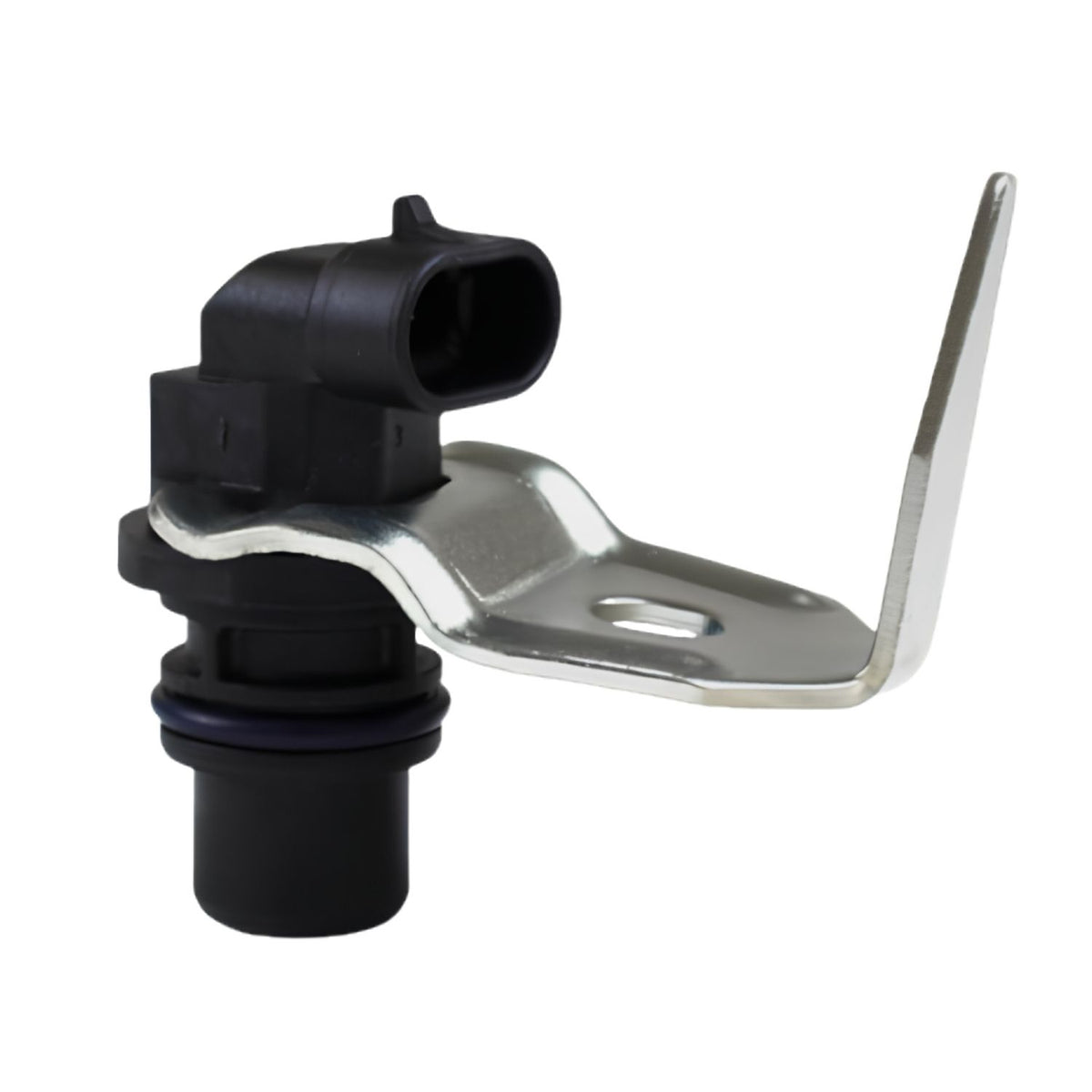

XDP Camshaft Position (CMP) Sensor 97-03 Ford 7.3L Powerstroke
Description
Having trouble starting your Ford 7.3L Powerstroke, or dealing with an engine that stalls unexpectedly? A failing camshaft position (CMP) sensor could be contributing to the problem. XDP Camshaft Position Sensors replace the factory sensor, which monitors camshaft speed and position and sends that information to the engine's computer (ECM). When the sensor fails, it can cause hard starts, stalling, diagnostic trouble codes, or even a no-start condition.
Manufactured to match original equipment specifications, these sensors are designed to fit directly into the factory sensor location. They're built with materials designed to withstand engine heat and vibration. Available with or without a wiring pigtail, these replacement options allow you to choose the configuration that matches the condition of your existing sensor and electrical connector.
Sensor Only (XD1037): Includes the replacement camshaft position sensor. Ideal when the existing wiring and electrical connector are in good condition.
Sensor With Pigtail (XD1049): Includes the replacement camshaft position sensor and a wiring pigtail for replacing a damaged, corroded, or broken factory connector. The pigtail must be connected to the vehicle's existing wiring during installation.
IMPORTANT SENSOR NOTE: The camshaft position sensor is located at the lower front of the engine, above the harmonic balancer. Check the condition of your existing wiring and connector before selecting a configuration, and verify vehicle compatibility before ordering.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Direct-fit replacement camshaft position (CMP) sensor
- Designed to match original equipment sensor specifications
- Provides camshaft position signals used by the engine's computer
- May help address hard starts, engine stalling, diagnostic trouble codes, or no-start conditions caused by a faulty CMP sensor
- Built with quality materials to withstand under-hood heat, vibration, and contaminants
- Installs in the factory sensor location
- Located at the lower front of the engine, above the harmonic balancer
- XD1049 sensor with replacement pigtail available separately for damaged wiring or connectors
- Backed by a 2-year, unlimited-mileage manufacturer warranty
