SKU #: DS-WW0360 MPN #: WW0360

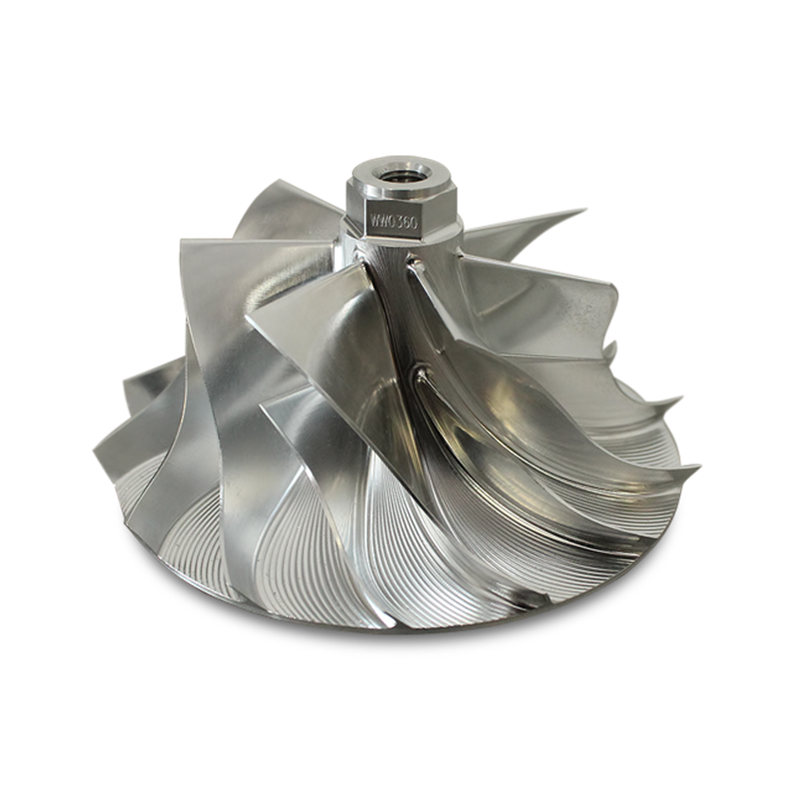

Wicked Wheel2 | Turbo Compressor Wheel Upgrade 03-04 6.0L Powerstroke

$229.00
Get 229 points in loyalty rewards
Description
Increase the performance and overall drivability of your factory GT37 turbo with this simple, effective upgrade....the Wicked Wheel2! While the 6.0L Powerstrokes are known for having quick turbo response due to their Variable Vane design, the overall responsiveness and drivability can be drastically increased with this simple billet compressor wheel upgrade. IMPORTANT NOTES: This turbo has a standard right hand thread - meaning you turn the compressor wheel to the left to loosen. No need to torque the Wicked Wheel on. Simply snug the Wicked Wheel until it fully seats. It will self-tighten to full torque. The Wicked Wheel is balanced at the factory. Turbo balancing after installation is not necessary. Before Ordering Since 2005-2007 turbos can be installed in 2003 trucks if the pedestals are used, you need to be sure what wheel/ turbo you actually have. When turbo re manufacturing facilities rebuild the 05-07 turbos, they almost always cut the compressor cover to clean up damages and scratches and then install 03 compressor wheels. This is a VERY common practice. Even turbos bought from Ford for an 05-07 truck will most likely have an 03 wheel installed. If your turbo has ever been out of the truck for repair, or you bought your truck used and don't know the history, you must measure the inducer of the compressor wheel before ordering. The 03 style wheel measures about 59mm and the 05 style measures about 56mm.

Enter your zip and we'll see if installation is available.

  • Request quotes from local installers at checkout
  • Compare options and choose the best fit for your install
Increase the performance and overall drivability of your factory GT37 turbo with this simple, effective upgrade....the Wicked Wheel2! While the 6.0L Powerstrokes are known for having quick turbo response due to their Variable Vane design, the overall responsiveness and drivability can be drastically increased with this simple billet compressor wheel upgrade.

IMPORTANT NOTES:
  • This turbo has a standard right hand thread - meaning you turn the compressor wheel to the left to loosen. No need to torque the Wicked Wheel on. Simply snug the Wicked Wheel until it fully seats. It will self-tighten to full torque. The Wicked Wheel is balanced at the factory. Turbo balancing after installation is not necessary.
  • Before Ordering Since 2005-2007 turbos can be installed in 2003 trucks if the pedestals are used, you need to be sure what wheel/ turbo you actually have. When turbo re manufacturing facilities rebuild the 05-07 turbos, they almost always cut the compressor cover to clean up damages and scratches and then install 03 compressor wheels. This is a VERY common practice. Even turbos bought from Ford for an 05-07 truck will most likely have an 03 wheel installed. If your turbo has ever been out of the truck for repair, or you bought your truck used and don't know the history, you must measure the inducer of the compressor wheel before ordering. The 03 style wheel measures about 59mm and the 05 style measures about 56mm.
NOT LEGAL FOR SALE OR USE IN CALIFORNIA
Vehicle Fitment
2003-2004 6.0L Ford Powerstroke|Build Date Pre 11/04
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
About DieselSite
DieselSite is a company dedicated towards building exacting components to improve the overall performance and reliability of your diesel. They are probably best known for their series of Wicked Wheel compressor wheel upgrades. Because of the original success of the Wicked Wheels for 7.3L Powerstrokes, they have built a multitude of new and ever-growing applications, as well as improving upon original designs.

Overall rating: 4.5 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Doesn't increase sound but does increase power

"Stock 2004 6. 0 with cat and muffler cut off 6 speed manual with 410s. Between 1,100 and 1,900 rpms I had serious boost/power lag. Now my truck feels peppy. Fairly easy install, done within a day."

Carson (5/5)

Where my turbo with factory wheel would start. . .

"Where my turbo with factory wheel would start spooling up at 1700 rpm now it is starting to spool at 1200 rpm with the wicked wheel 2."

Paulette W. (4/5)

Q&A

What is the difference between w.w. 1 and 2? I have a new Garret 03 turbo. My truck is a 2005 f-250. Is the early build turbo a better turbo performance wise? Would I notice a power increase if I installed a pedestal, 03 turbo with wicked wheel2? I read mixed reviews. Besides the 10 vrs. 13 tooth count and diameter, and louder whistle. I noticed the actual shape of the vanes differ. Early build vanes are longer in design with less ramp or curvature. plus they're physically larger. Early build vanes are 1/16' to 1/8"" taller. so, will that hurt or help performance? Typically you don't want heavier components (parasitic drag, rotational mass) in rotating components if you're trying to achieve HP or spool up times? What's your opinion?
The performance gain if any will be negligible vs the 2005 turbo with a Wicked Wheel2. The 03 turbo will have better top end but suffer a little low end.
