SKU #: DS-WW3595
MPN #: WW3595

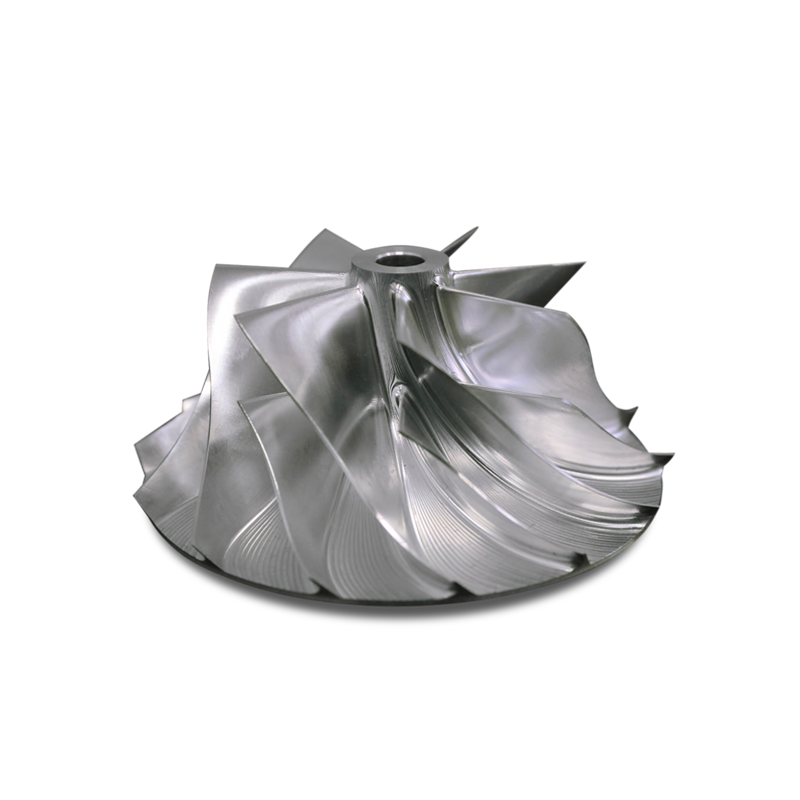

Wicked Wheel2 Turbo Compressor Wheel Upgrade 95-98 Dodge Ram 5.9L Cummins
Description
Increase the performance and overall drivability of your factory turbo with this simple, effective upgrade....the Wicked Wheel2!
IMPORTANT NOTES:
Holset turbos use two different style nuts holding the wheel on.
If it is a 6 point nut, tighten to 133 in/lbs.
If it is a 12 point nut, tighten to 124 in/lbs.
It is a left hand thread (reverse thread), meaning you turn the nut to the right to loosen.
CALIFORNIA EMISSION TURBOS ARE DIFFERENT - TURBO NUMBER 3538416 - PLEASE MAKE SURE BEFORE YOU ORDER.WILL NOT WORK ON 1994 12v AUTOMATIC TRANSMISSION TURBO - TURBO NUMBER 3533320
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Greatly improves throttle response
- Increased horsepower
- Lower EGT's
- Easy installation - no modifications needed
- Increased boost
About DieselSite
DieselSite is a company dedicated towards building exacting components to improve the overall performance and reliability of your diesel. They are probably best known for their series of Wicked Wheel compressor wheel upgrades. Because of the original success of the Wicked Wheels for 7.3L Powerstrokes, they have built a multitude of new and ever-growing applications, as well as improving upon original designs.
Blog
June 12, 2026
The diesel particulate filter (DPF) on your Cummins engine traps soot before it leaves the tailpipe. Over...
Read MoreCummins DPF Cleaning: Signs, Methods & Tips
June 12, 2026
P2509 flags when your Cummins ECM isn't seeing stable voltage coming from the battery and charging system....
Read MoreP2509 Cummins Code: Causes, Symptoms & Fixes
June 10, 2026
It starts small. Maybe the truck is a little slower to spool than usual. Maybe it sounds...
Read MoreHow to Find a Boost Leak Without Special Tools
June 05, 2026
Your exhaust system moves spent gases out of the engine and away from the cab. The muffler...
Read MoreResonator vs Muffler: Key Differences Explained
Overall rating: 5.0 / 5 from 1 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Q&A
- Will this work for a 1994 automatic truck? Looking around the web it looks like no, but I can’t find another part number or listing for one. I believe the turbo to be original, and it is an HX35W. 1994 12 valve, automatic trans. Did they use a smaller turbo on the automatics?
- The 1994 automatic transmission trucks have the H1C turbo. Which there are no wicked wheels for unfortunately. -Mark.
- Is this one correct for the HX35W??
- Only a HX35W from 95-98. It is always best to measure twice on cut once with those and either get a assembly number from the turbo or measure the diameter of the stock compressor wheel first. Once you open that Wicked wheel and break the seal. It can't be returned. -Sands
