Shopping for
2005 Chevrolet 6.6L Duramax LLY
SKU #: WARN-103252 MPN #: 103252

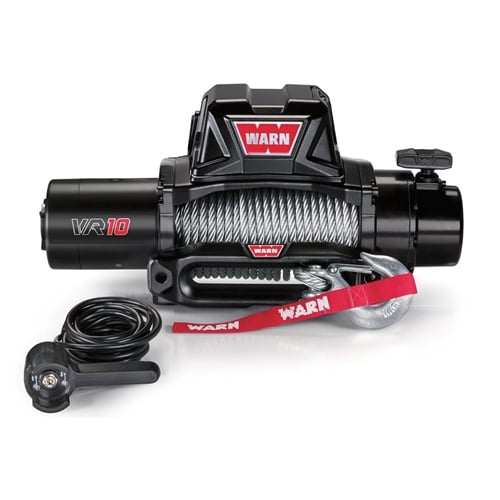

WARN VR EVO 10 10,000 Lbs. Capacity Winch

$649.99
Get 649 points in loyalty rewards
★★★★★ (1)
rope option
Description
WARN is truly a household name in the off-road industry. Whether we're talking about their roots of being the first to manufacture and market locking hubs or the first to offer a recreational use winch, no one can deny that WARN has been doing it the longest, and arguably the best. The WARN VR10 has the practicality of being mounted on a full-sized truck with a 10,000 lbs. capacity, fast line speed, and even comes available in a synthetic rope option, all priced for those wanting to stay on a budget. The WARN VR EVO 10 offers enhanced styling, upgraded performance, and legendary WARN reliability that you can trust. The convertible control pack looks great and allows upright or low-profile mounting configurations. A waterproof Albright contactor provides the most reliable winch control available. The one-piece tie plate replaces multiple tie bars for increased strength, and a best-in-class cone brake holds the full-rated load.
WARN is truly a household name in the off-road industry. Whether we're talking about their roots of being the first to manufacture and market locking hubs or the first to offer a recreational use winch, no one can deny that WARN has been doing it the longest, and arguably the best. The WARN VR10 has the practicality of being mounted on a full-sized truck with a 10,000 lbs. capacity, fast line speed, and even comes available in a synthetic rope option, all priced for those wanting to stay on a budget.

The WARN VR EVO 10 offers enhanced styling, upgraded performance, and legendary WARN reliability that you can trust. The convertible control pack looks great and allows upright or low-profile mounting configurations. A waterproof Albright contactor provides the most reliable winch control available. The one-piece tie plate replaces multiple tie bars for increased strength, and a best-in-class cone brake holds the full-rated load.
FEATURES & BENEFITS:
  • A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
  • IP68-rated waterproof winch construction keeps the elements out
  • High-performance Albright contactor delivers maximum reliability
  • Control packs can be relocated for low-profile installations
  • Durable, one-piece cast-aluminum tie-plate for added strength and durability
  • Two-in-one remote with wired AND wireless options for ease of use and versatility
  • Limited lifetime warranty for mechanical parts and 7 years on the electrical
SPECIFICATIONS:
  • Winch model: VR EVO 10
  • Rated line pull: 10,000 lbs.
  • Motor: 12V DC, Series Wound
  • Electrical controls: Albright Contactor
  • Remote Control: 2 in 1 plug in remote with wireless capability
  • Geartrain: 3-Stage Planetary
  • Gear ratio: 218:1
  • Clutch (free spooling): Sliding Ring Gear
  • Brake: Spring

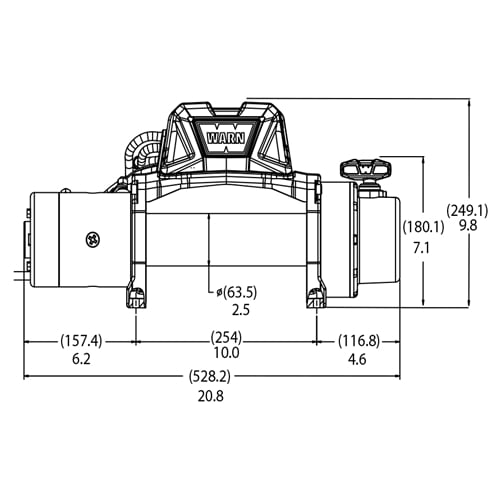

  • Drum diameter/Length: 2.5"/9.0" (6.73cm/23cm)
  • Weight: Shipping: 78.92 lbs. (35.8 kg); Net product: 72.84 lbs. (33 kgs)

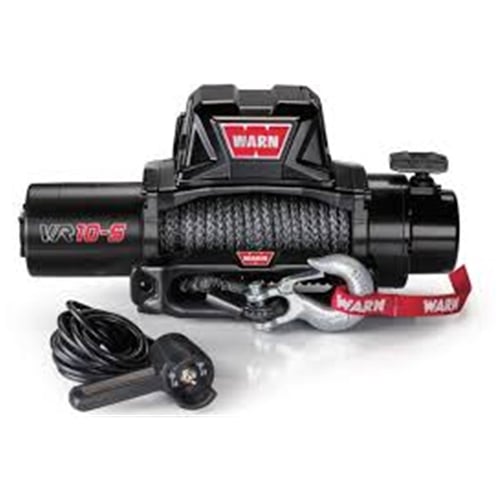

  • Rope: Steel: 80', 3/8" diameter (24.38m, 9.5mm diam.) or Synthetic: 90' x 3/8" (9.5mm x 27.4m)
  • Fairlead: Cast Iron Hawse
  • Recommended Battery: 650 CCA minimum for winching
  • Battery leads: 2 gauge, 72" (1.83m)
  • Finish: Powder coat over primer undercoating
  • Warranty: Limited Lifetime
About Warn
Over the past 60+ years, Warn has become more than a winch and hub manufacturer, they have become the leader in manufacturing for a complete line of off-road equipment and accessories to improve the capabilities of nearly any four-wheel drive vehicle, ATV, and utility vehicle. Warn serves three distinct markets - Consumer Aftermarket, Industrial / Commercial, and Original Equipment. What this means is that not only does Warn produce top grade products for your personal use truck and ATV, but they also design and manufacture electric and hydraulic winches and hoists for commercial use, as well as build replacement components for the OEM market, such as hubs. Warn Industries was founded in 1948 by Arthur and Sadie Warn in order to create a business of converting surplus World War II Jeeps into dependable civilian vehicles. Soon after, Arthur engineered the locking hub, which would become an optional factory upgrade to some of the major domestic automotive manufacturers by 1954. Five years later in 1959, the Warn winch was developed, and it was the first recreational winch ever produced. Today, Warn has a complete arsenal of products ranging from winches and hubs, to fender flares and bumpers, to lights and recovery accessories for applications ranging from ATV's to military spec equipment.
