SKU #: AAC-3001
MPN #: 3001
Trigger Six-Shooter Six Channel Wireless Accessory Controller
Description
Remember that time you installed a set of offroad lights on the front of your truck?
No big deal, you ran a power and ground to your battery, ran the switch inside the cab, drilled a hole, and mounted the switch on your dash. But then, later on you decided to add a set of backup lights. The old protocol comes out, so you run some wires to your battery again....ugh....multiple terminals and fuses now, okay, we can work through that. Then, you run the wires into the cab again...hmmm.....the new switch really doesn't match the other switch, well, good enough. If isn't good enough for you, let us introduce you to Trigger. With Trigger, you simply run a single power and ground, all of the relays are handled in one unit, and switching is controlled with a wireless controller mounted in the cab or from an App on your phone. Pretty cool, huh?
The Trigger System substantially saves installation time! It eliminates the need to run wires under the dash or through the firewall of a vehicle when wiring accessories.
It also adds functionality such as:
A remote control for activating installed accessories from outside the vehicle
Dimming and flashing functions for installed lighting
Fused circuits with LED indicators to notify of blown fuses
And more!
The RF remote utilizes a universal mounting system that will accommodate round surfaces and flat surfaces and is battery powered to simplify wiring further. Its buttons are backlit and it is programmable for security or use with additional remotes. Several Trigger control boxes and remotes can be used together to control up to 24 accessories. When mounted to the roll bar of a UTV, the buttons on the remote are more easily accessible than the dash switches. No straining against the seatbelt to reach the dash, just a quick reach up and the remote is right at hand. The Bluetooth App will control on/off and dimming functions as well as flashing when used with LED or conventional lighting. It is simple to set up and allows for user customization. Use the app to "Trigger" lights on from outside the vehicle when camping, or for whatever you might need to activate on demand. Save time, simplify your installs, and get out on the trail: Pull The Trigger.

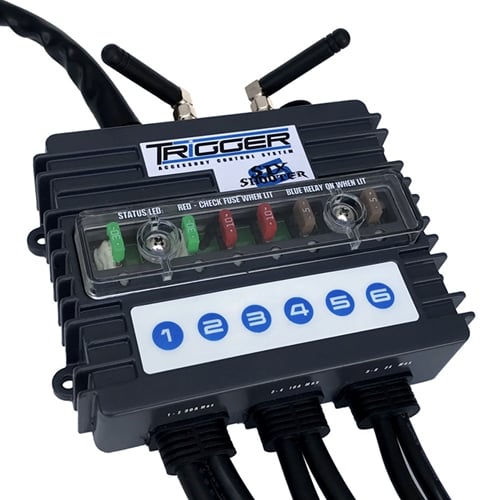

CONTROL BOX FEATURES:
6 channels, 2 x 30 amp circuits, 2 x 10 amp circuits, 2 x 5 amp circuits, All Solid State, 12-24 volt.
RF Remote switch pad usable inside or outside the vehicle.
Bluetooth control from phone/tablet app .
Manual buttons for on/off on top of case.
DIN connector built in for manual control with conventional toggle switches (harness sold separately).
Low voltage cutout to shut down Trigger if battery voltage gets low.
100 amp fuse installed on positive input wire for protection.
12 to 24 volt out with waterproof connectors.
Fuse's built in, waterproof cover (30 amp - 1 and 2, 10 amp - 3 and 4, 5 amp - 5 and 6)
LED's to indicate relay on and if fuse is blown, blue for circuit on, red for blown fuse.
Waterproof case design, withstands temps to 250 deg. F and below freezing.
12 to 24 volt input, 3 wires, ground, switched positive, battery positive.

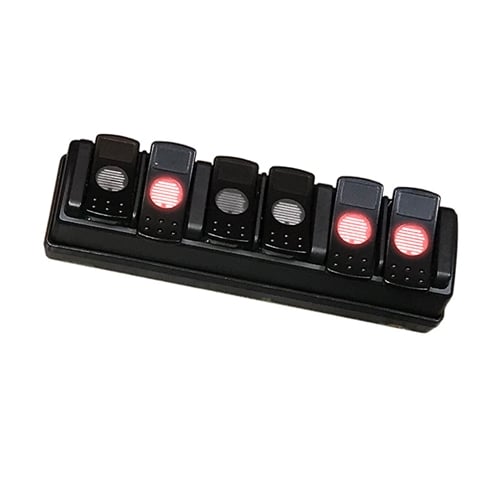

RF REMOTE FEATURES:
2.4 ghz frequency hopping RF connection to control box.
Replaceable battery power and/or 12 volt hardwired option for backlit switches .
Back lit with press of button, delayed off for the back light. If hardwired, provides a color changing option adjustable from App. Back lights stay lit when vehicle lights are on.
Custom switch labels included.
Weatherproof design.
APP CONTROL FEATURES:

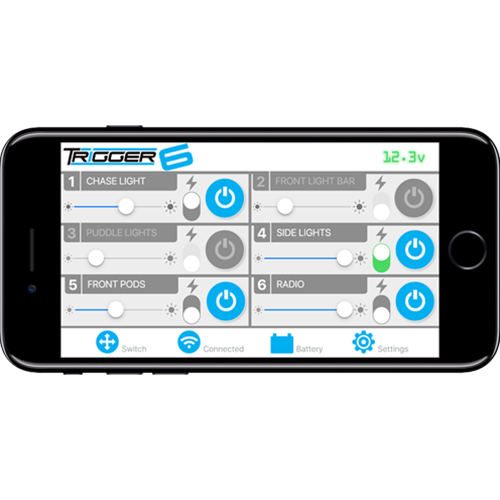

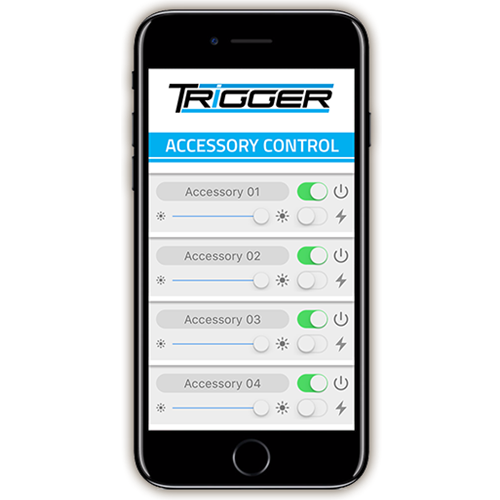

Apps for both Android and iOS with simple interface for turning on and off the 6 channels. Allows customized names for each channel.
Battery voltage shows in App screen.
Controls backlight color in the RF switch pad.
App allows for dimming and strobe functions in addition to ON/OFF.
HARNESS FEATURES:

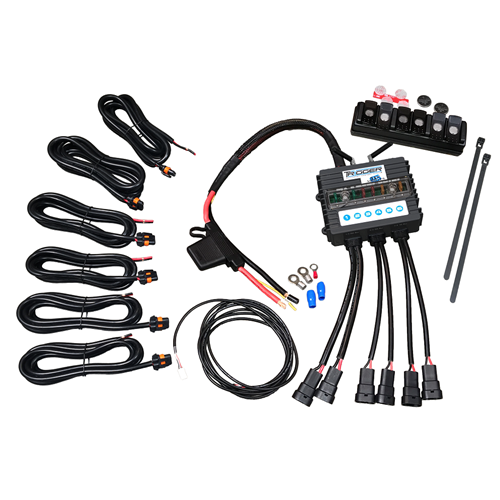

Kit includes six 8' wire harnesses with the mating connector to the control box on one end and blank wires on the other. Two 12 gauge, two 14 gauge, two 18 gauge.
Harnesses include sturdy vinyl shroud.
About Trigger Wireless Accessory Controller
As you're adding lights, air compressor, winch, and whatever else to your truck, don't be "that guy" with a ton of wires and separate relays dangling off of your battery post and a plethora of different switches drilled into the dash. Step up your game with a Trigger Controller!
The Trigger is a simple to use and simple to set up device that literally controls all of your 12 volt accessories from your phone.....wirelessly! Here's how it works in a nutshell: You run all of your wiring to a centralized controller which handles your fuses and relays. From there, you run a single power source, typically to a battery, and then you mount a wireless switch board in the cab to control power on/off to the individual devices. And for complete control of each device, you download the available App where you can run strobe functions and numerous other ways besides a mere on and off. And because much of the system is wireless, the installation is a breeze. When you're ready to step up your wiring game, step up to a Trigger Wireless Accessory Controller.
