What are the specifications of the Synergy Manufacturing Brake Line Relocation Bracket Set 11-25 Ford F-250/F-350 4x4?

Raises brake line bracket 2.5"; Shock extended length up to 24"

Are there any important fitment notes for the Synergy Manufacturing Brake Line Relocation Bracket Set 11-25 Ford F-250/F-350 4x4?

Cannot be used above 2.5” of lift height, only compatible with 4x4 front axle, and shock extended length cannot exceed 24”.

SKU #: SYN-8682-01 MPN #: 8682-01

Synergy Manufacturing Brake Line Relocation Bracket Set 11-25 Ford F-250/F-350 4x4

Name: Synergy Manufacturing Brake Line Relocation Bracket Set 11-25 Ford F-250/F-350 4x4
Brand: Synergy Manufacturing
Price: 60.0 USD
Availability: InStock

$60.00

Get 60 points in loyalty rewards

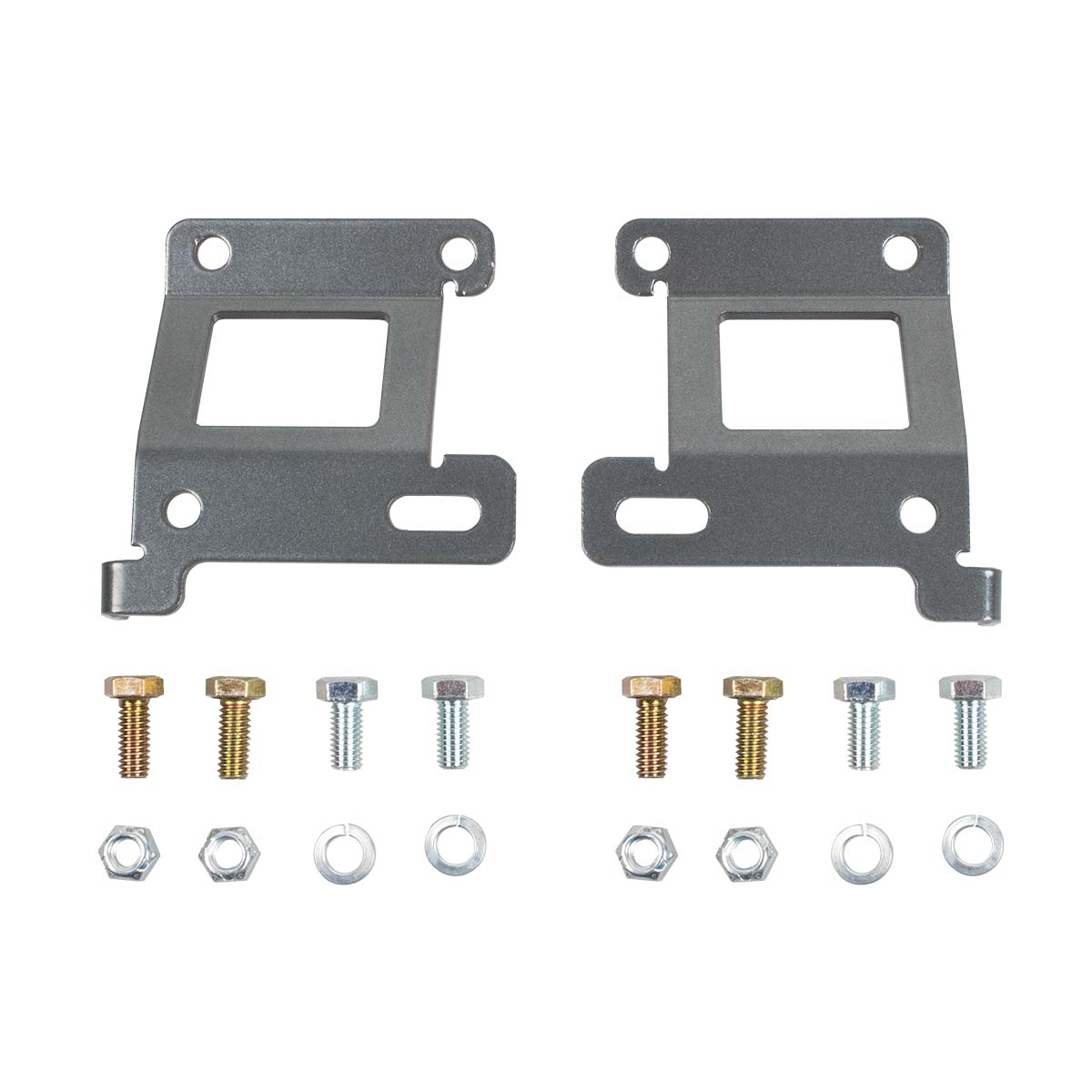

Synergy Manufacturing Brake Line Relocation Bracket Set for 11-25 Ford F-250 and F-350 4x4

Synergy Manufacturing Brake Line Relocation Bracket Set 11-25 Ford F-250/F-350 4x4

Description Overview

The Synergy Manufacturing SuperDuty Brake Line Relocation Brackets help protect your factory brake lines when leveling or lifting your truck. Raising the front suspension increases available suspension droop, which can stretch the factory brake hoses and potentially lead to damage or brake system failure if they become overextended. These brackets raise the factory brake line mounting point by 2.5 inches, providing additional clearance for suspension travel while allowing you to retain the original brake lines and associated ABS clips. They're an important supporting component for a properly installed leveling setup, helping maintain brake line clearance without requiring a complete extended brake line conversion. Designed for heavy-duty truck use, these brackets are laser-cut and CNC-bent for a precise fit, then zinc-plated to provide corrosion protection against moisture, road debris, and harsh driving conditions. Their bolt-on design uses the factory mounting locations and supplied hardware, allowing installation without modifying the chassis or opening the hydraulic brake system. Retaining the factory brake lines also eliminates the need to disconnect brake fittings or bleed the brakes during installation, simplifying the process and reducing the risk of introducing air into the system.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

A bracket set that raises the factory brake line bracket 2.5" to safely accommodate lift or leveling kits without opening the brake system.

Fits: 2011-2025 Ford F-250/F-350 4x4
Brand: Synergy Manufacturing
Best for: Relocating factory brake lines when installing a leveling kit
Key features: Laser cut and CNC bent construction
Zinc plated for corrosion protection
Allows increased suspension droop
Provisions for factory vacuum lines
No modifications required to install
No need to bleed brakes or open brake system
Key specs: Raises brake line bracket 2.5"
Shock extended length up to 24"
Important: Cannot be used above 2.5” of lift height, only compatible with 4x4 front axle, and shock extended length cannot exceed 24”.

Summarized by AI from this product’s description and specs. Confirm fitment for your year, make and engine before ordering.

The Synergy Manufacturing SuperDuty Brake Line Relocation Brackets help protect your factory brake lines when leveling or lifting your truck. Raising the front suspension increases available suspension droop, which can stretch the factory brake hoses and potentially lead to damage or brake system failure if they become overextended. These brackets raise the factory brake line mounting point by 2.5 inches, providing additional clearance for suspension travel while allowing you to retain the original brake lines and associated ABS clips. They're an important supporting component for a properly installed leveling setup, helping maintain brake line clearance without requiring a complete extended brake line conversion.

Designed for heavy-duty truck use, these brackets are laser-cut and CNC-bent for a precise fit, then zinc-plated to provide corrosion protection against moisture, road debris, and harsh driving conditions. Their bolt-on design uses the factory mounting locations and supplied hardware, allowing installation without modifying the chassis or opening the hydraulic brake system. Retaining the factory brake lines also eliminates the need to disconnect brake fittings or bleed the brakes during installation, simplifying the process and reducing the risk of introducing air into the system.

Vehicle Fitment

2011-2025 Ford F-250/F-350 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Allows for increased suspension droop
Raises factory brake line bracket 2.5”
Provisions for factory vacuum lines
No modifications required to install
No need to bleed brakes or open brake system
Laser cut and CNC bent
Zinc plated for corrosion protection
