SKU #: SC-48-2 MPN #: SC-48-2

SunCoast Category 2 500HP 48RE Transmission Rebuild Kit w/ Torque Converter 03-07 Dodge 5.9L Cummins

Name: SunCoast Category 2 500HP 48RE Transmission Rebuild Kit w/ Torque Converter 03-07 Dodge 5.9L Cummins
Brand: SunCoast Performance
Price: 3795.0 USD
Availability: InStock

$3,795.00

Get 3795 points in loyalty rewards

SunCoast Category 2 500HP 48RE Transmission Rebuild Kit w and Torque Converter for 03-07 Dodge 5.9L Cummins

Description

SunCoast's Category 2 48RE rebuild kit includes everything necessary to rebuild the transmission in 2003-2007 Dodge Ram Diesels. While the 48RE was designed to support the power of the 5.9L in the past, this kit is a base rebuild kit for customers seeking improvement over the stock unit along with improvements to the band, band actuation, servos, accumulator piston, torque converter and input shaft. With a power rating of 500HP, the addition of a billet intermediate servo, billet band anchor and billet band strut address the common shortcomings of the 48RE transmission. The kit also comes with a new billet blueprinted 4.4 band lever and the included thrust washer kit also contains selections for setting endplay.SunCoast includes their Category 1 Triple Disc Billet Torque Converter with a 2,000RPM stall speed. The torque converter is lined with carbon graphite clutch material and equipped with a precision CNC machined forged billet apply piston to ensure no deflection occurs. This is an upgrade from the single disc billet converter that comes in their entry level kit. The other great addition is SunCoast's Billet One Piece Input Shaft. The shaft is made from 300 maraging steel and is then heat treated and stress relieved to handle the additional demands of higher torque and stress loads. The shaft is precision ground to make it a true drop-in replacement.

CORE CHARGE

What is a core charge?

Defer core charge

I have read and I accept the terms and conditions. I understand that if I select "Defer Core Charge" I will be charged for the core if I do not return an acceptable core part within 21 days

Accept core charge +$500.00

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

SunCoast's Category 2 48RE rebuild kit includes everything necessary to rebuild the transmission in 2003-2007 Dodge Ram Diesels. While the 48RE was designed to support the power of the 5.9L in the past, this kit is a base rebuild kit for customers seeking improvement over the stock unit along with improvements to the band, band actuation, servos, accumulator piston, torque converter and input shaft. With a power rating of 500HP, the addition of a billet intermediate servo, billet band anchor and billet band strut address the common shortcomings of the 48RE transmission. The kit also comes with a new billet blueprinted 4.4 band lever and the included thrust washer kit also contains selections for setting endplay.

SunCoast includes their Category 1 Triple Disc Billet Torque Converter with a 2,000RPM stall speed. The torque converter is lined with carbon graphite clutch material and equipped with a precision CNC machined forged billet apply piston to ensure no deflection occurs. This is an upgrade from the single disc billet converter that comes in their entry level kit. The other great addition is SunCoast's Billet One Piece Input Shaft. The shaft is made from 300 maraging steel and is then heat treated and stress relieved to handle the additional demands of higher torque and stress loads. The shaft is precision ground to make it a true drop-in replacement.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

2003-2007 Dodge/Ram 5.9L Cummins 48RE

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Fits all 48RE Transmissions, 2WD and 4WD.
Includes SunCoast's Category 1 Triple Disc Torque Converter
Upgraded Billet Components
Rated for 500 Horsepower

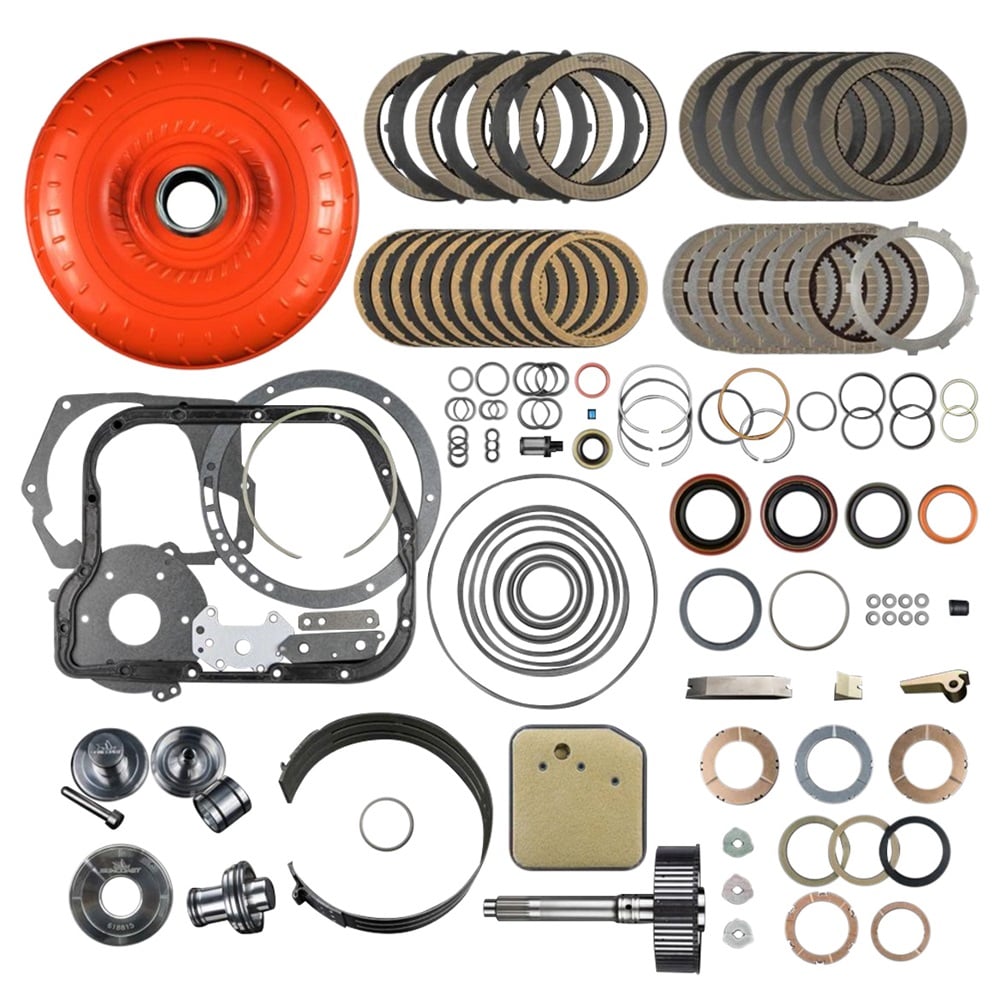

KIT CONTENTS:

4 Raybestos GPZ forward frictions with steels
6 Raybestos GPZ clutches with steels
10 Raybestos overdrive clutches with steels
Custom machined overdrive pressure plate
.073 custom snap ring for forward clutch pack
High flow 48RE transmission filter
48RE front pump bushing
Raybestos Pro Series carbon fiber flex band
SunCoast 48RE paper/rubber/gasket kit
48RE thrust washer kit
SunCoast Billet accumulator piston
SunCoast billet intermediate servo
4.4 billet band lever
Billet band strut
Billet band anchor
SunCoast Category 1 Torque Converter
Billet Input Shaft

About SunCoast Performance

Established in 1989 as a small-scale enterprise in picturesque Fort Walton Beach, FL, SunCoast Performance embarked on its journey with a mission to meet the rising demand for top-tier aftermarket torque converters, transmission assemblies, and components. Over the years, SunCoast has diligently identified, tested, and rectified numerous weak points within OEM transmissions and torque converters. Leveraging extensive real-world test data and cutting-edge design technology, SunCoast has emerged as a leader in quality craftsmanship, consistently surpassing competitors and exceeding customer expectations.

At the core of SunCoast's ethos lies an unwavering commitment to American-made excellence in design, manufacturing, technical support, and customer satisfaction. The company hosts bi-annual research laboratories, fostering knowledge exchange among customers and suppliers, and staying abreast of technological advancements shaping the automotive industry.

Today, SunCoast stands at the pinnacle of automotive performance, boasting a workforce of over 45 employees and occupying more than 75,000 square feet of climate-controlled facilities. In addition to manufacturing, SunCoast leases 20,000 square feet to their in-house metal supplier, National Aluminum & Alloy, ensuring complete control over the production process with access to a vast inventory of raw materials worth upwards of $2,000,000.
