SKU #: SDHQ-31-1501-G5-AEV MPN #: SDHQ-31-1501-G5-AEV

SDHQ Built Skid Plate System for AEV Front Prospector Bumper 19-26 Ram 2500/3500

Name: SDHQ Built Skid Plate System for AEV Front Prospector Bumper 19-26 Ram 2500/3500
Brand: SDHQ Off Road
Price: 829.95 USD
Availability: InStock

$829.95

Get 829 points in loyalty rewards

SDHQ skid plate system for 2019+ Ram 2500 and 3500 with AEV Prospector front bumper

SDHQ aluminum front skid plate for 2019+ Ram 2500 3500 heavy-duty trucks

2019-2026 Ram 2500 3500 SDHQ skid plate for AEV Prospector front bumper protection

SDHQ Built 5052 aluminum skid plate for Ram 2500 and 3500 AEV Prospector bumper

Ram 2500 3500 SDHQ front skid plate system for improved off-road protection and clearance

SDHQ AEV Prospector bumper skid plate for 2019+ Ram 2500 and 3500 diesel or gas trucks

SDHQ front skid plate protecting Ram 2500 3500 intercooler or Power Wagon winch

SDHQ off-road skid plate system for 2019+ Ram HD trucks with AEV Prospector bumper

Description

If you take your Ram 2500 or 3500 off pavement, the area underneath the AEV Prospector front bumper can still take a hit from rocks, ledges, and rough terrain. The SDHQ Built Skid Plate System adds heavy-duty protection underneath the front end while also increasing clearance and improving the truck's approach angle. On diesel models, it helps protect the intercooler, while Power Wagon models gain added protection around the winch. The system is strong enough to support the weight of the vehicle and can even be used as a lifting point. Built for serious use, the system combines a subframe made from 0.188-wall 4130 tubing with 3/16-inch cold-rolled steel gussets and a laser-cut 3/16-inch 5052 aluminum skid plate. Mounting provisions on both sides let you add rock lights, with confirmed fitment for Baja Designs rock lights and Dune Gear standard or micro rock lights. Installation takes approximately 2–3 hours and bolts directly to the front bumper and structure without requiring modifications. This skid plate fits Ram 2500 and 3500 gas or diesel trucks equipped with the AEV Prospector front bumper and is not intended for trucks with the stock front bumper. It will not work with the AEV intercooler shroud, so SDHQ recommends using the factory intercooler shroud (OEM P/N 68322666AC) for the best fitment. Rock lights, the AEV bumper, and the OEM intercooler shroud are sold separately!

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

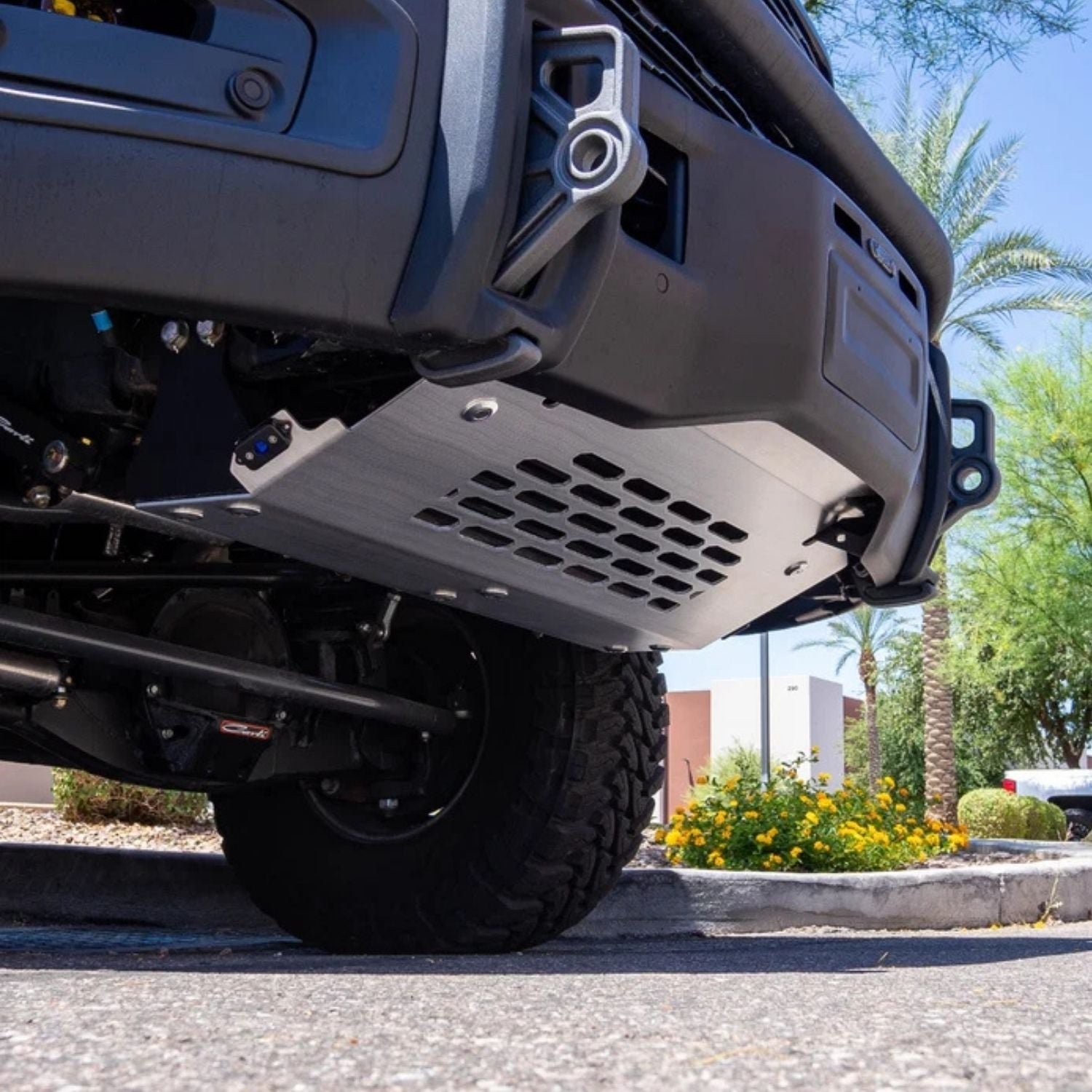

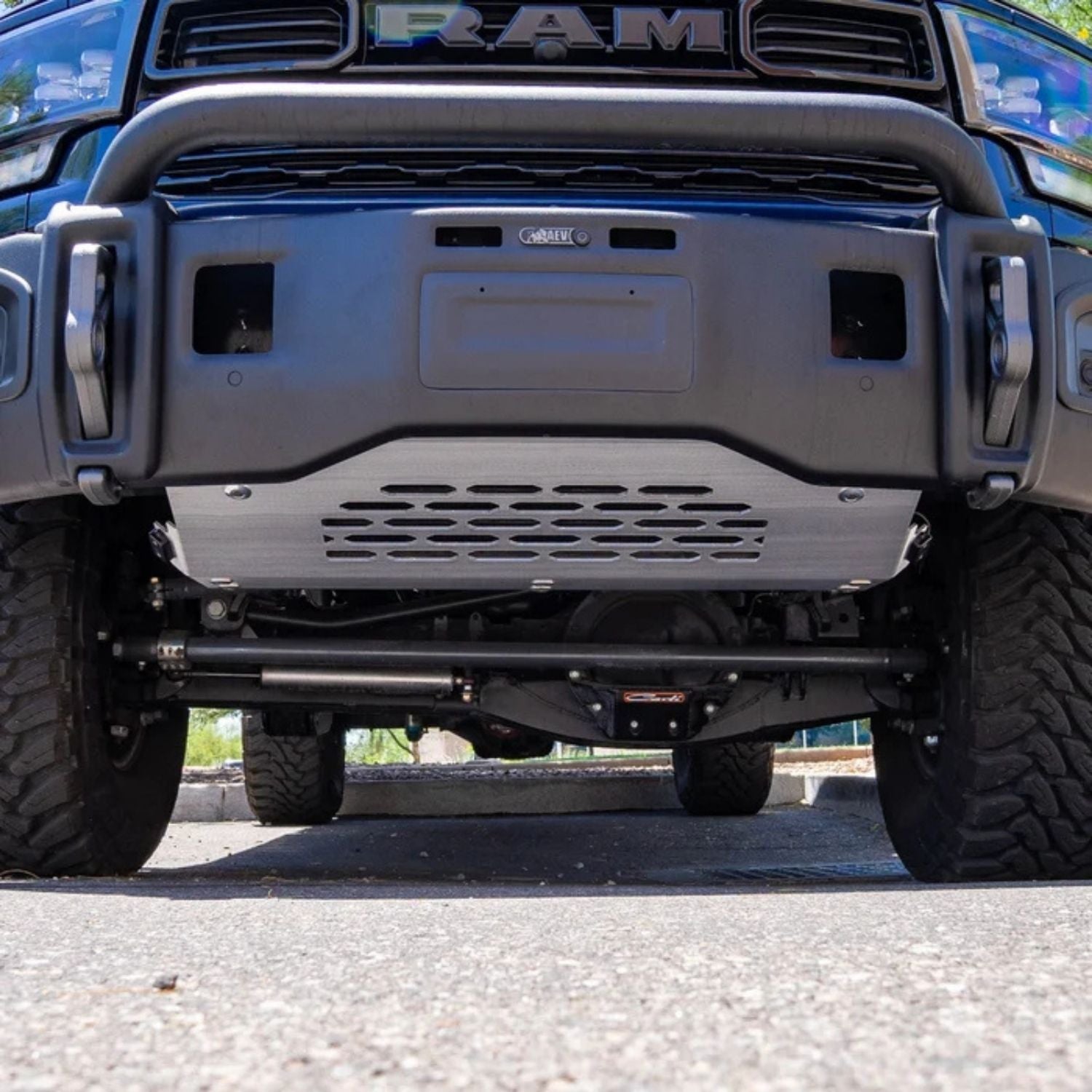

If you take your Ram 2500 or 3500 off pavement, the area underneath the AEV Prospector front bumper can still take a hit from rocks, ledges, and rough terrain. The SDHQ Built Skid Plate System adds heavy-duty protection underneath the front end while also increasing clearance and improving the truck's approach angle. On diesel models, it helps protect the intercooler, while Power Wagon models gain added protection around the winch. The system is strong enough to support the weight of the vehicle and can even be used as a lifting point.

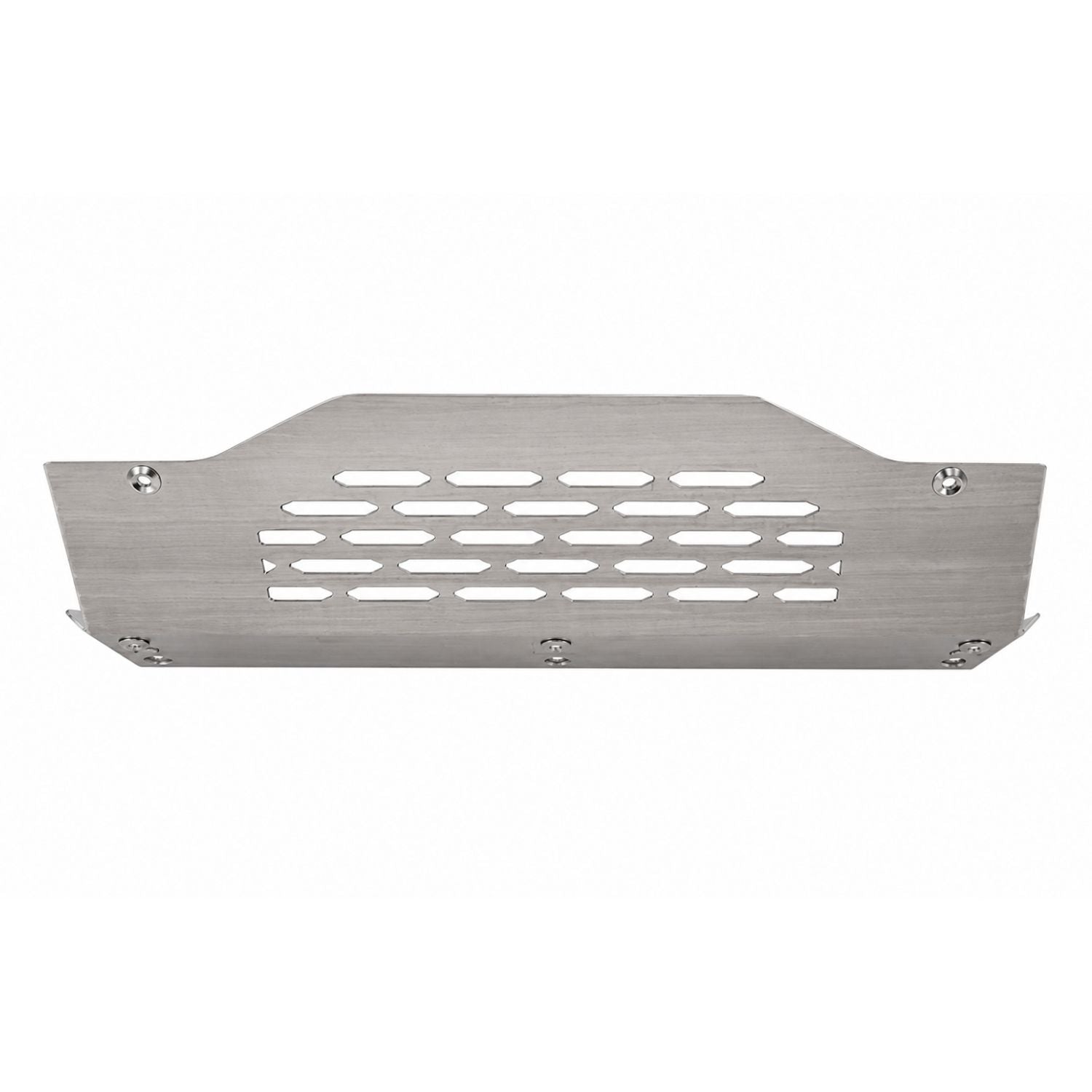

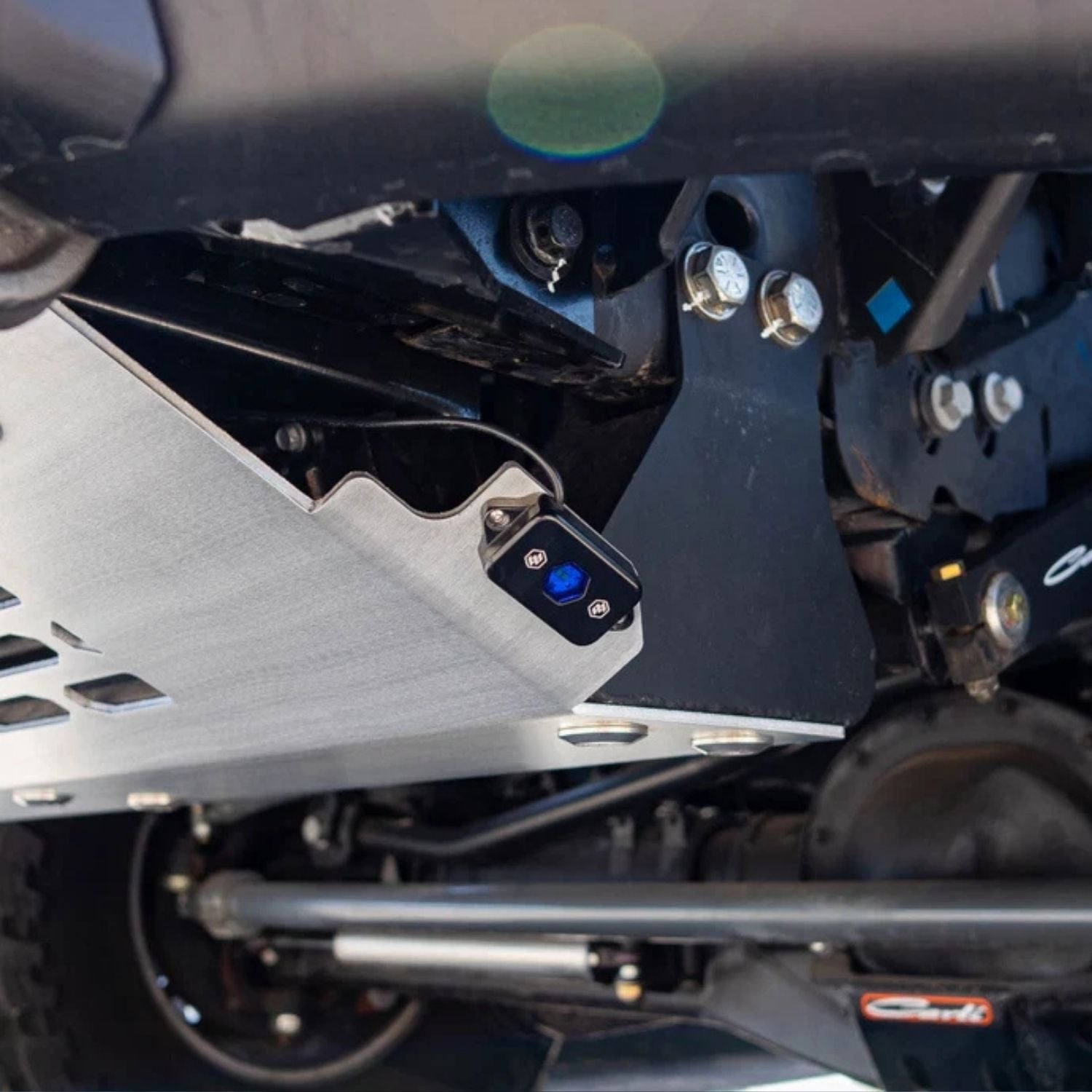

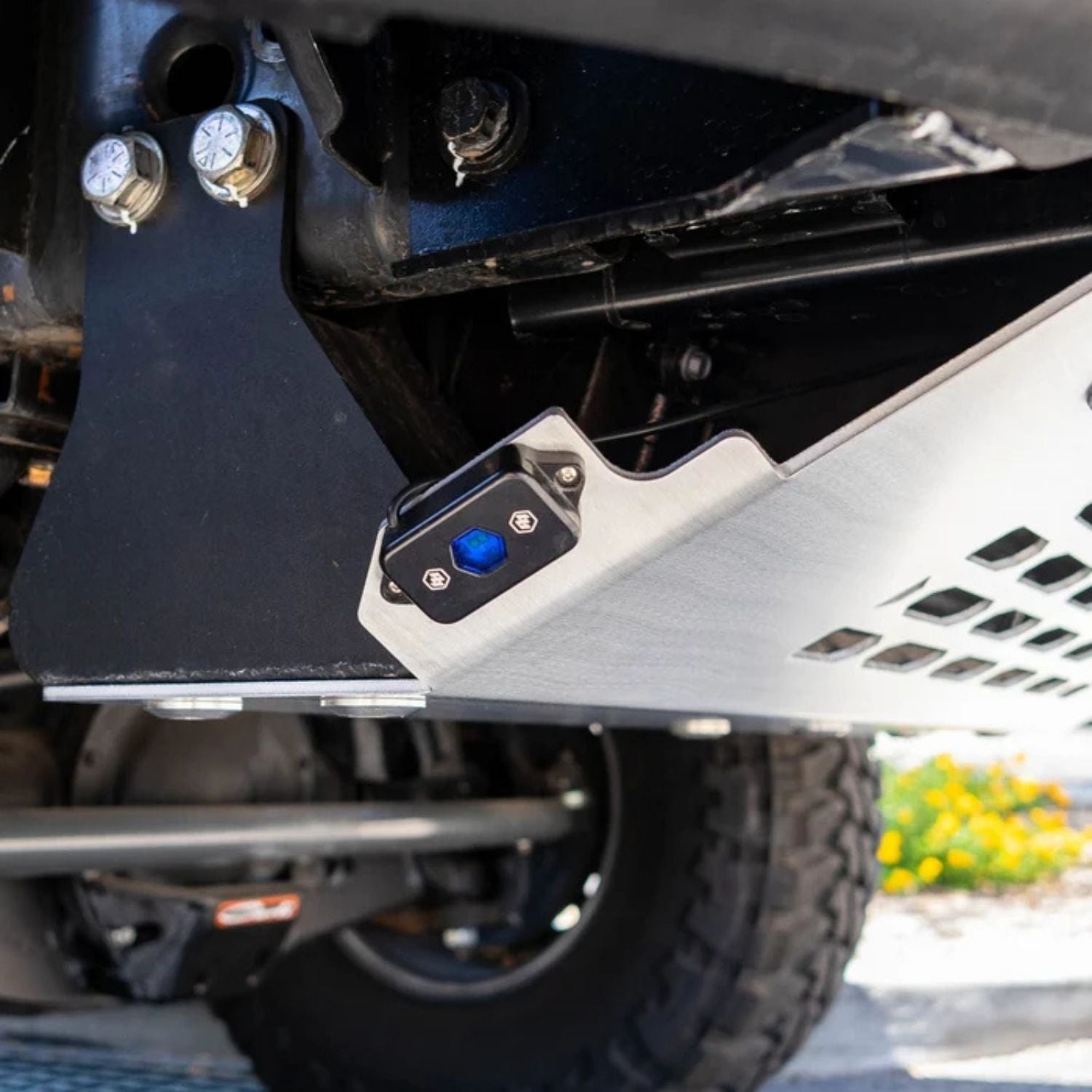

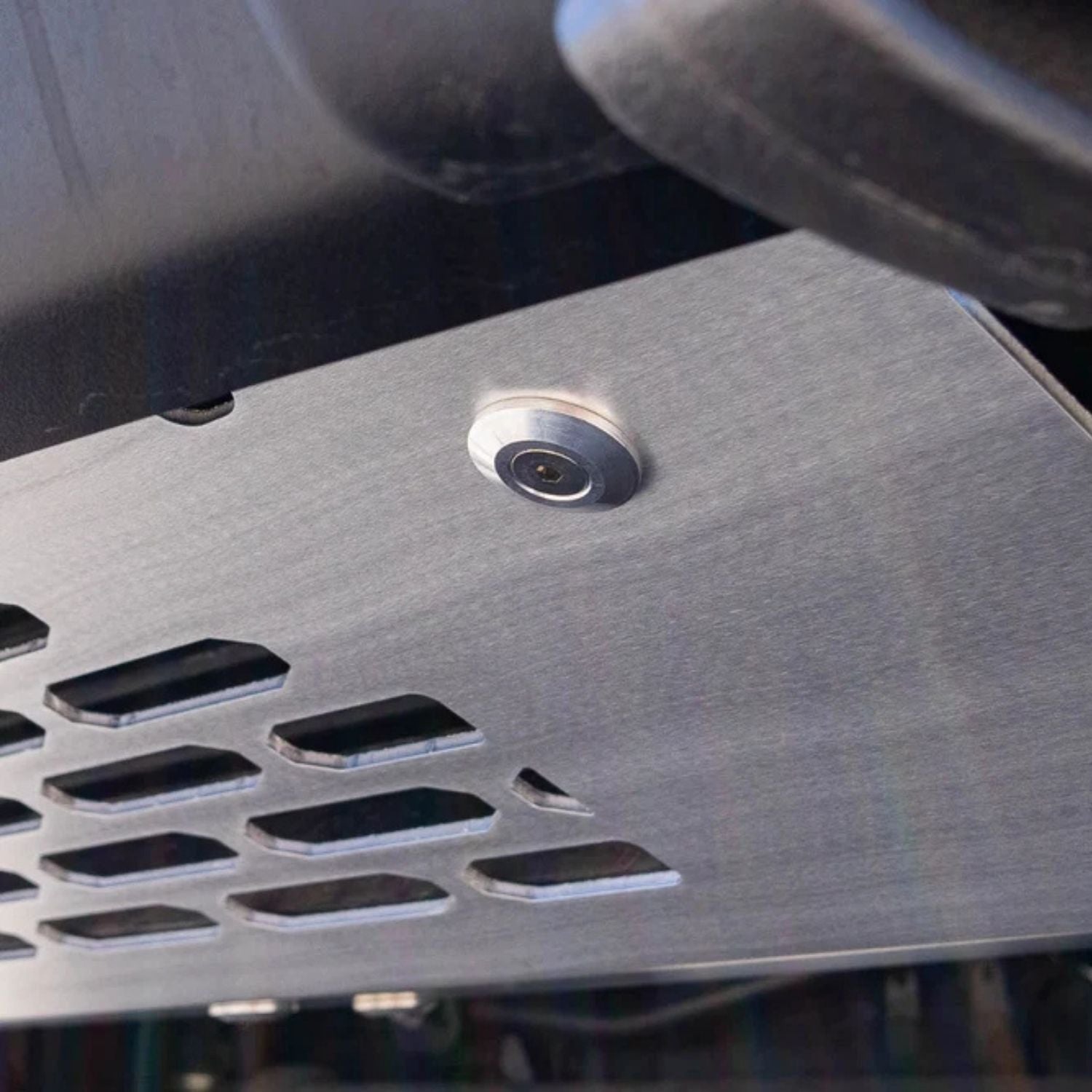

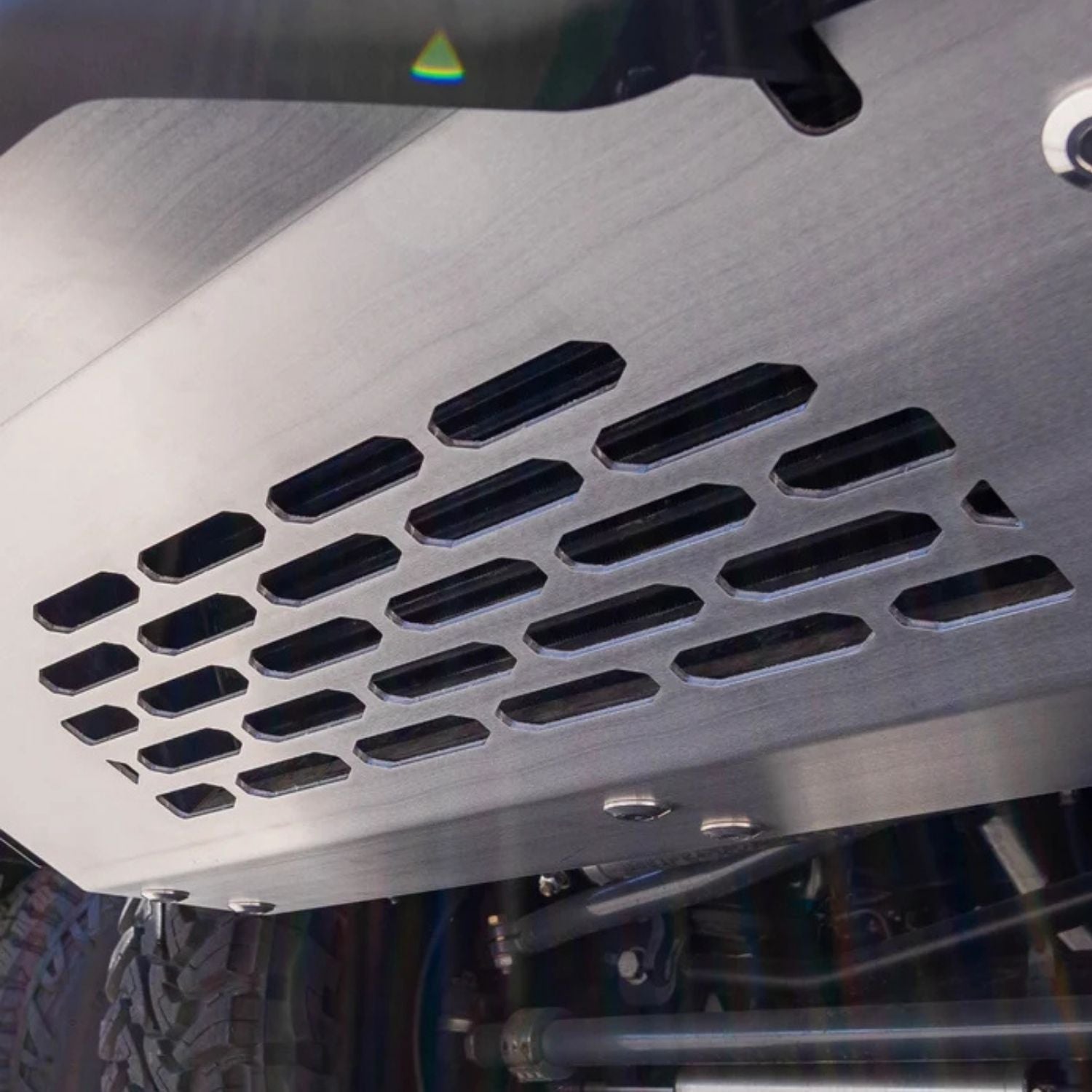

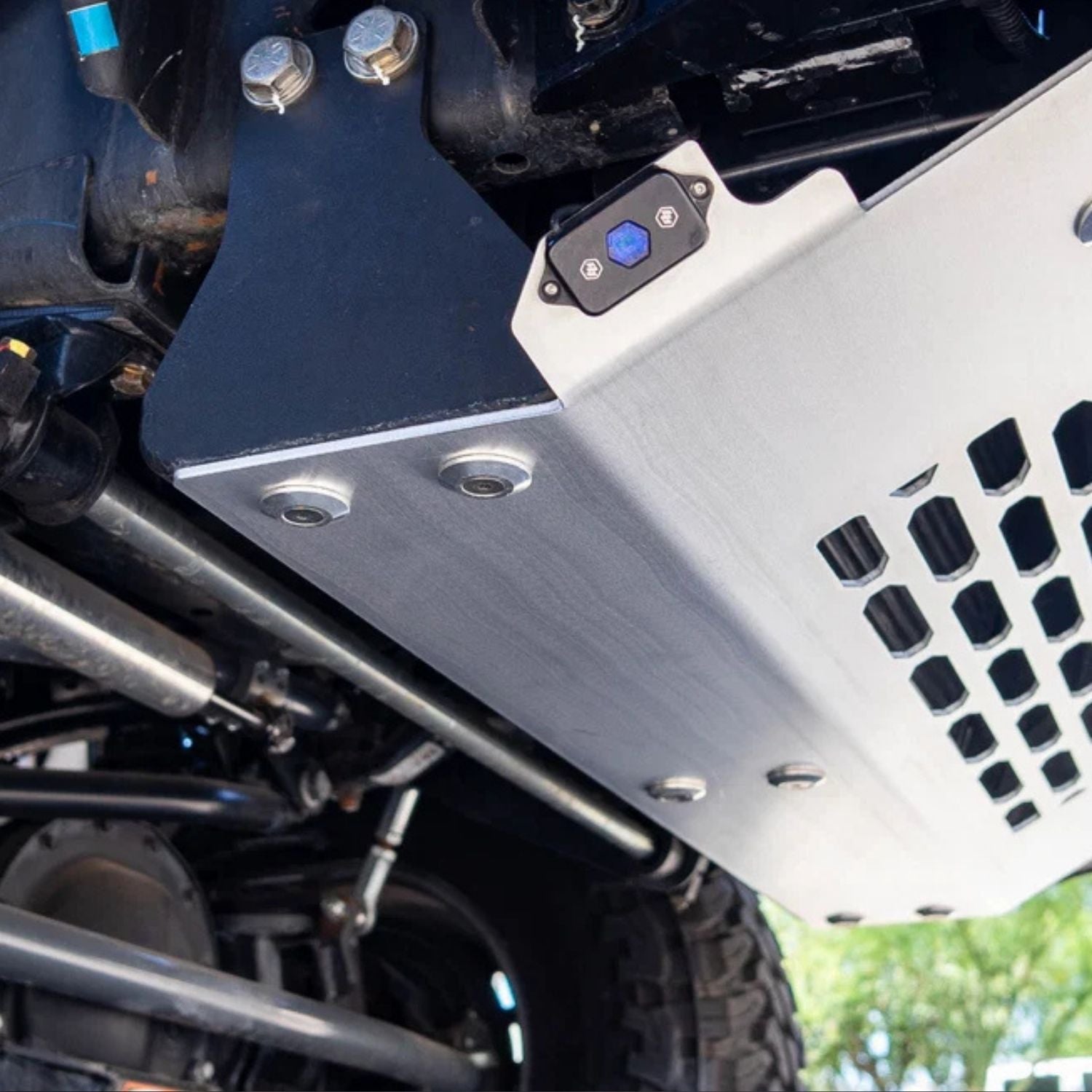

Built for serious use, the system combines a subframe made from 0.188-wall 4130 tubing with 3/16-inch cold-rolled steel gussets and a laser-cut 3/16-inch 5052 aluminum skid plate. Mounting provisions on both sides let you add rock lights, with confirmed fitment for Baja Designs rock lights and Dune Gear standard or micro rock lights. Installation takes approximately 2–3 hours and bolts directly to the front bumper and structure without requiring modifications.

This skid plate fits Ram 2500 and 3500 gas or diesel trucks equipped with the AEV Prospector front bumper and is not intended for trucks with the stock front bumper. It will not work with the AEV intercooler shroud, so SDHQ recommends using the factory intercooler shroud (OEM P/N 68322666AC) for the best fitment. Rock lights, the AEV bumper, and the OEM intercooler shroud are sold separately!

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2019-2026 Ram 2500/3500

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Protects the front underside of the truck from rocks, impacts, and rough terrain
Helps protect the intercooler on diesel models or the winch on Power Wagon models
Improves approach angle and clearance for better capability on uneven terrain
Strong enough to support the weight of the vehicle and can be used as a lifting point
0.188-wall 4130 tubing subframe provides a strong foundation for demanding off-road use
3/16-inch cold rolled steel gussets add strength and durability to the skid plate system
Laser-cut 3/16-inch 5052 aluminum skid plate provides durable protection without an all-steel construction
Built-in mounting provisions accommodate Baja Designs and Dune Gear rock lights
Bolts to the front bumper and vehicle structure without requiring modifications
