SKU #: PPE-338052400
MPN #: 338052400

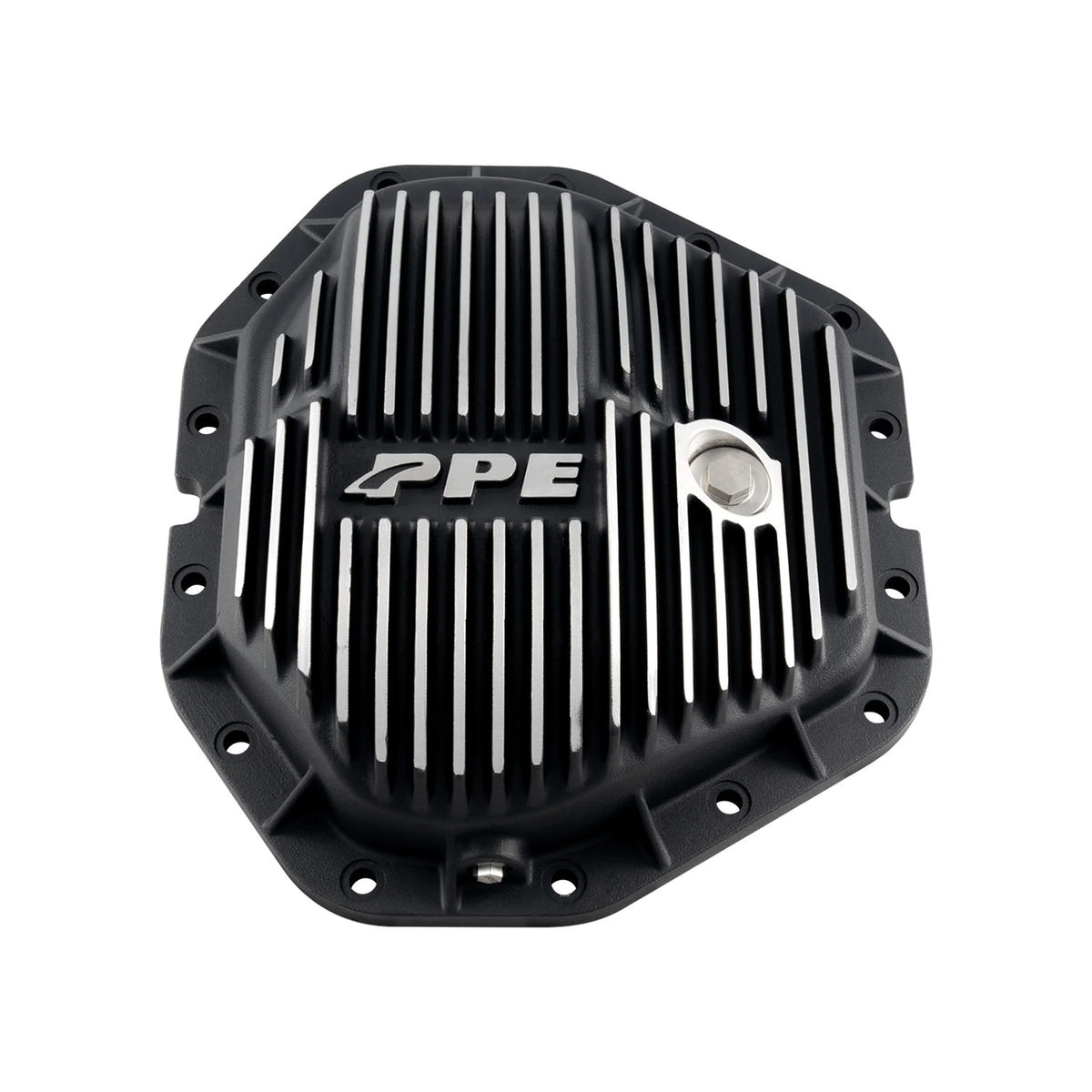

PPE Rear Differential Cover Dana M315 12.4" 23-26 Ford 6.7L Powerstroke F-250/F-350/F-450/F-550
Description

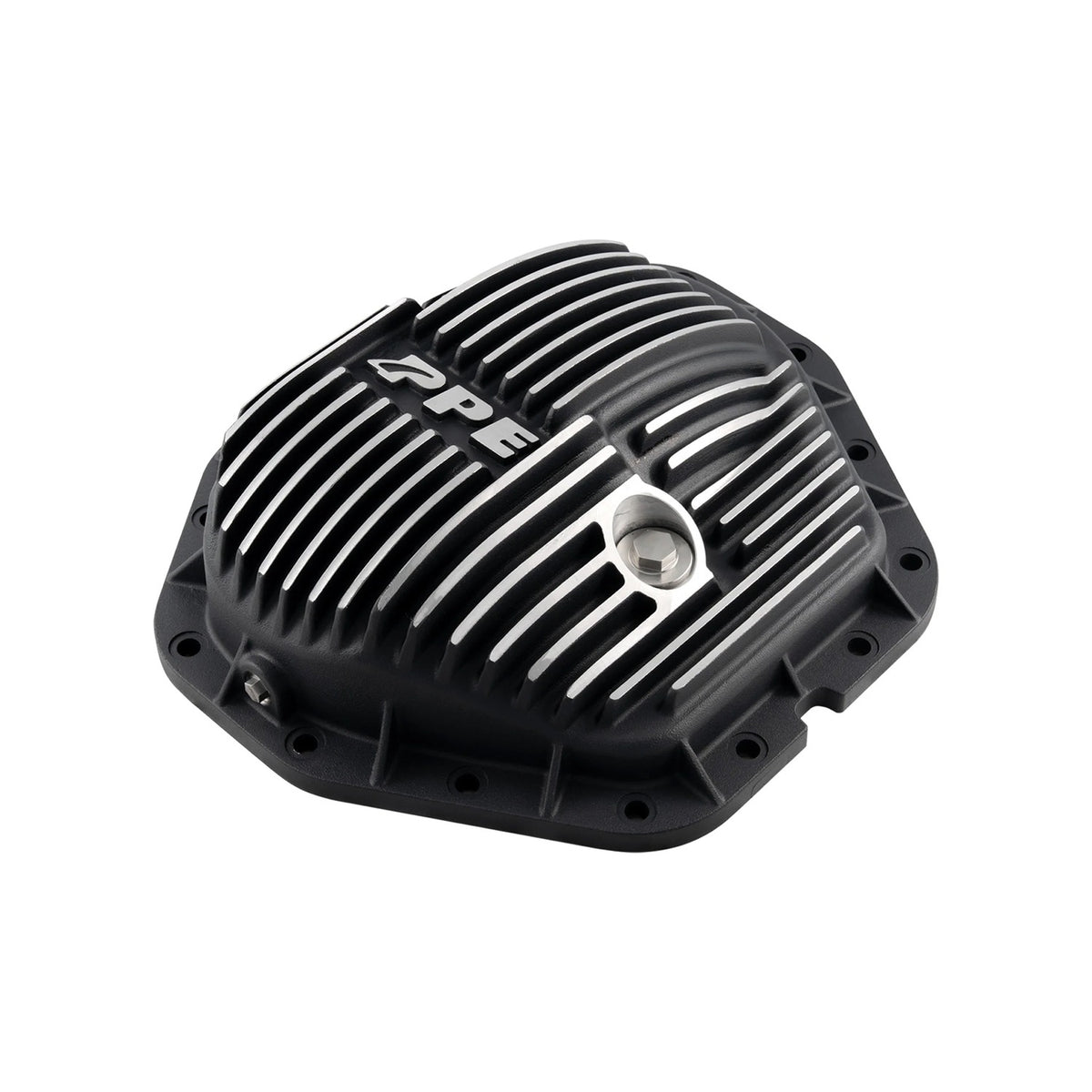

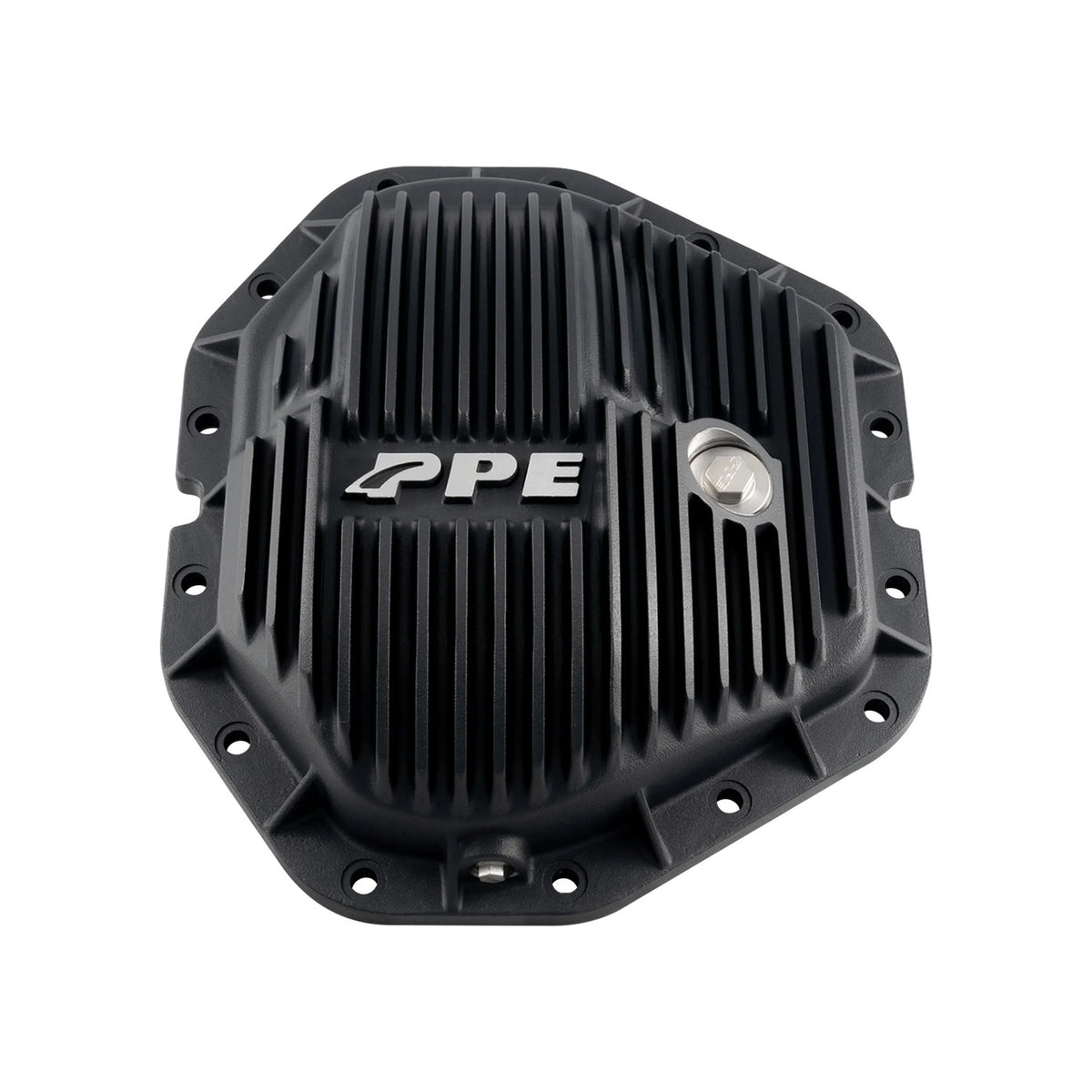

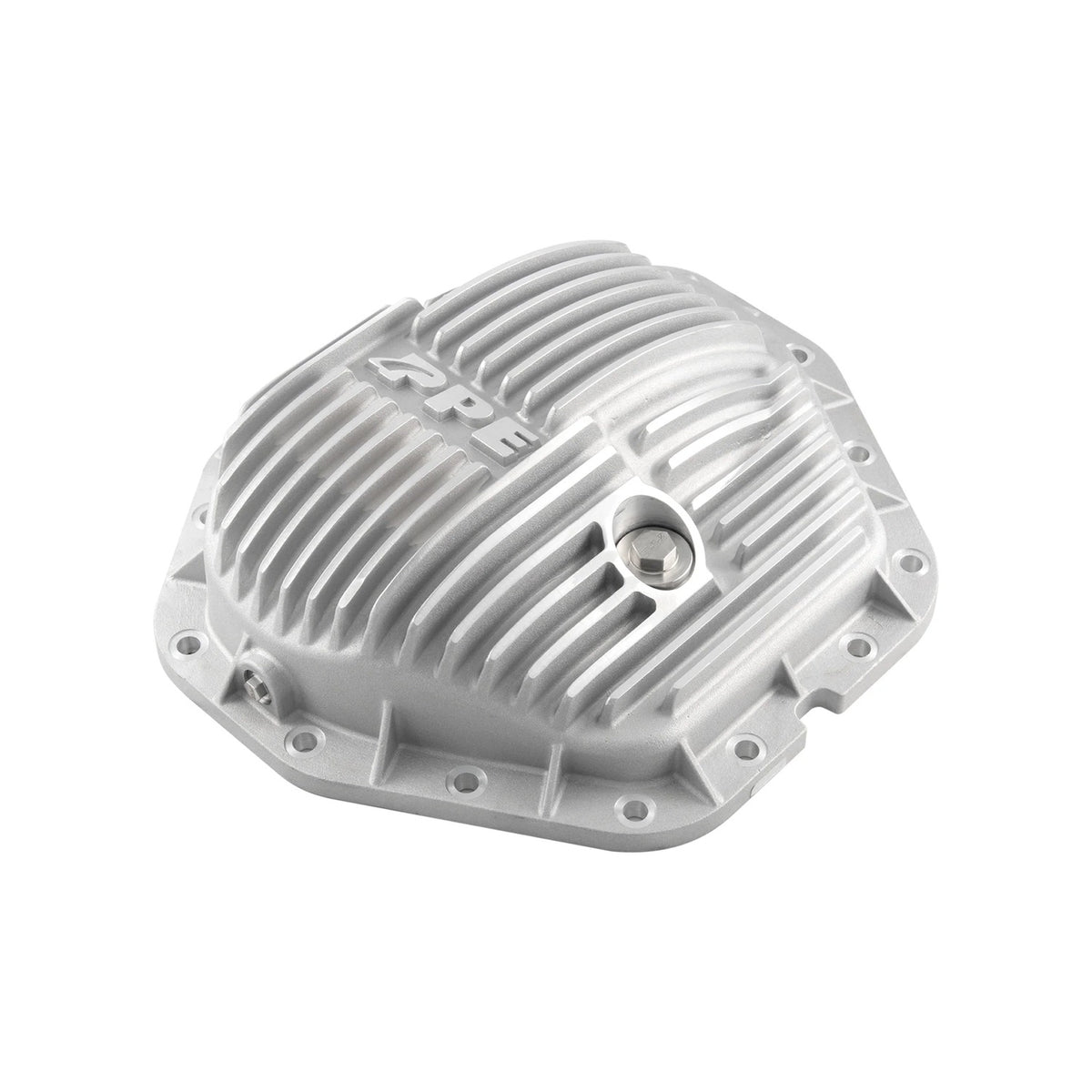

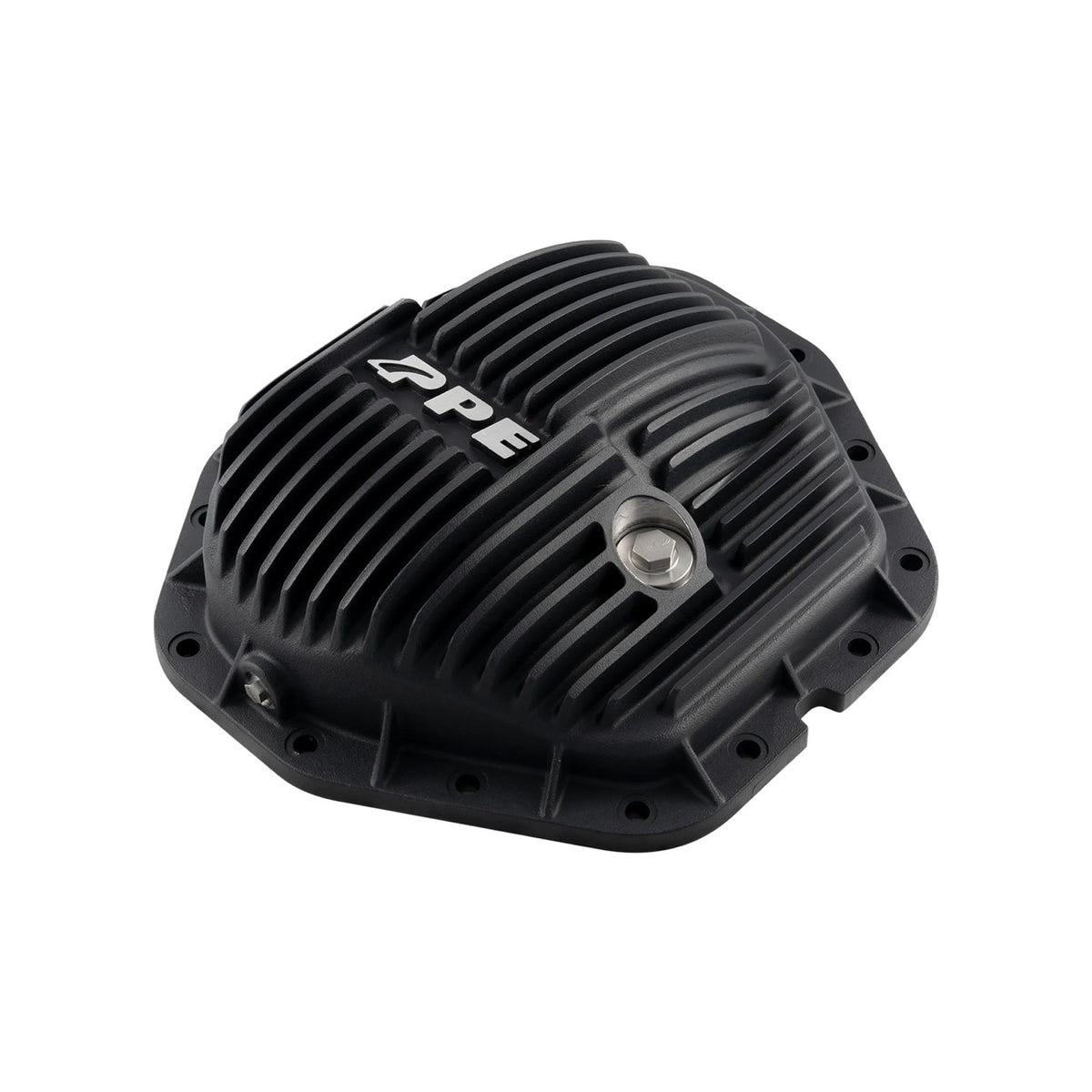

Keep your rear differential cooler and better protected with the PPE Heavy-Duty Cast Aluminum Rear Differential Cover for 2023–2026 Ford Superduty trucks equipped with the Dana M315 rear axle. Constructed from heat-treated A356.0-T6 cast aluminum, this precision-engineered cover delivers excellent strength, improved heat dissipation, and increased fluid capacity for demanding towing, hauling, and heavy-duty applications.
The cover adds 0.8 quart of differential fluid capacity to improve thermal management, while 1/2-inch external cooling fins help dissipate heat and provide additional impact resistance. Internal windage scrapers optimize fluid movement around the gears, reducing excessive churning, fluid aeration, and heat buildup to support efficient power transfer and reliable differential lubrication.
Designed for added durability, the cover features an integrated cross-bracing structure and cast-in gussets that reinforce the housing flange and improve overall rigidity. Magnetic fill and drain plugs constructed from 304 stainless steel capture ferrous metal particles to help protect internal components. Viton O-rings provide a reliable seal, and the fill plug is positioned at the factory fill level for convenient servicing.
Whether you're towing heavy loads or putting your Super Duty to work, the PPE Heavy-Duty Cast Aluminum Rear Differential Cover provides enhanced cooling, added structural strength, and improved fluid management for your Dana M315 rear axle.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Constructed from premium A356.0-T6 heat-treated cast aluminum
- Adds 0.8 quart of differential fluid capacity for improved thermal management
- 1/2-inch external cooling fins help dissipate heat and improve impact resistance

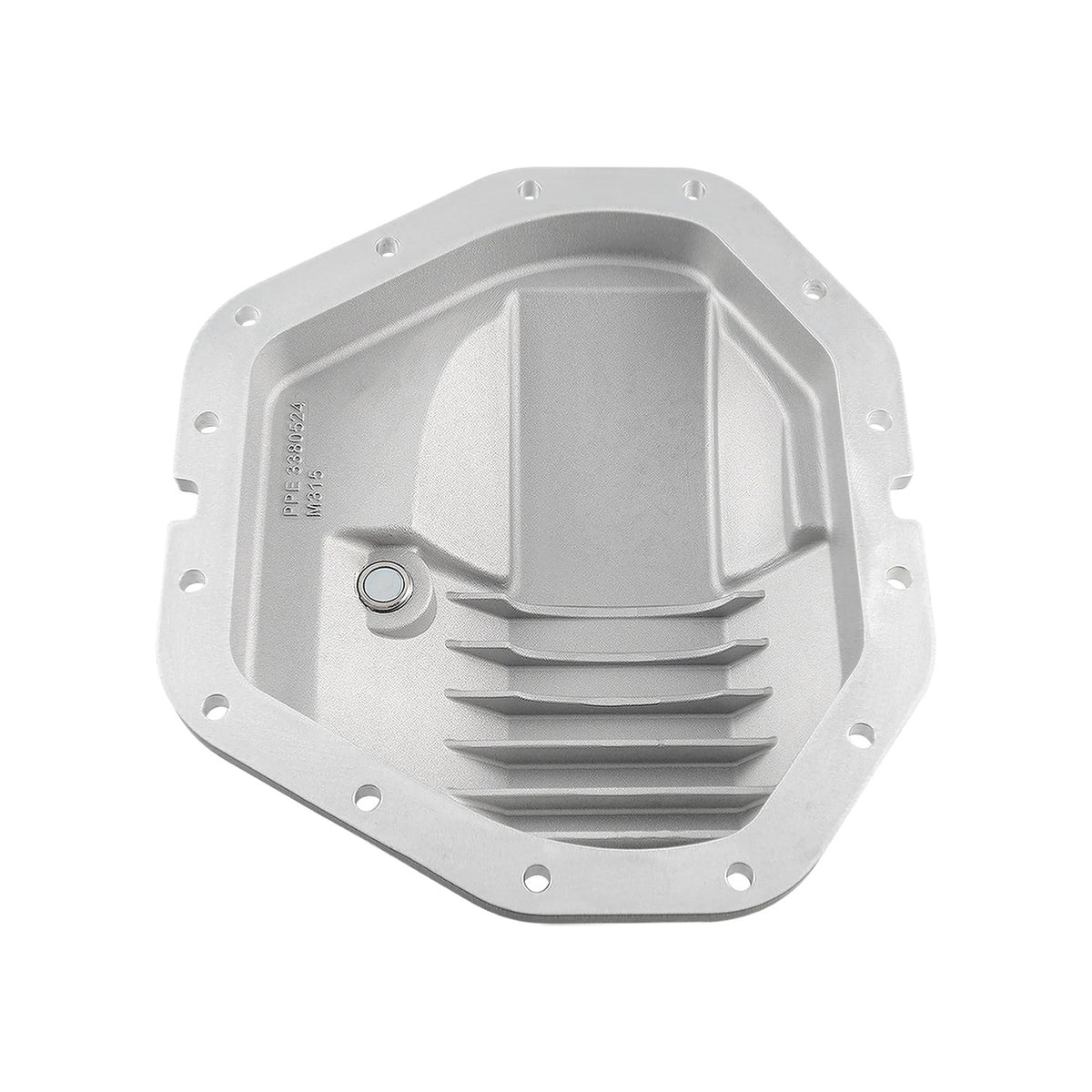

- Internal windage scrapers reduce fluid churning, aeration, and heat buildup
- Cross-braced design and cast-in gussets increase structural rigidity and housing flange support
- 304 stainless steel magnetic fill and drain plugs capture ferrous metal particles
- Viton O-rings provide reliable sealing
- Factory-level fill plug positioning simplifies fluid servicing
- OEM reference numbers: PC3Z4033E and PC3Z4033A
