SKU #: PSL-400
MPN #: PSL400

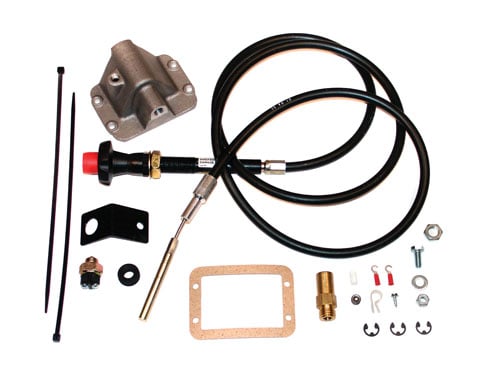

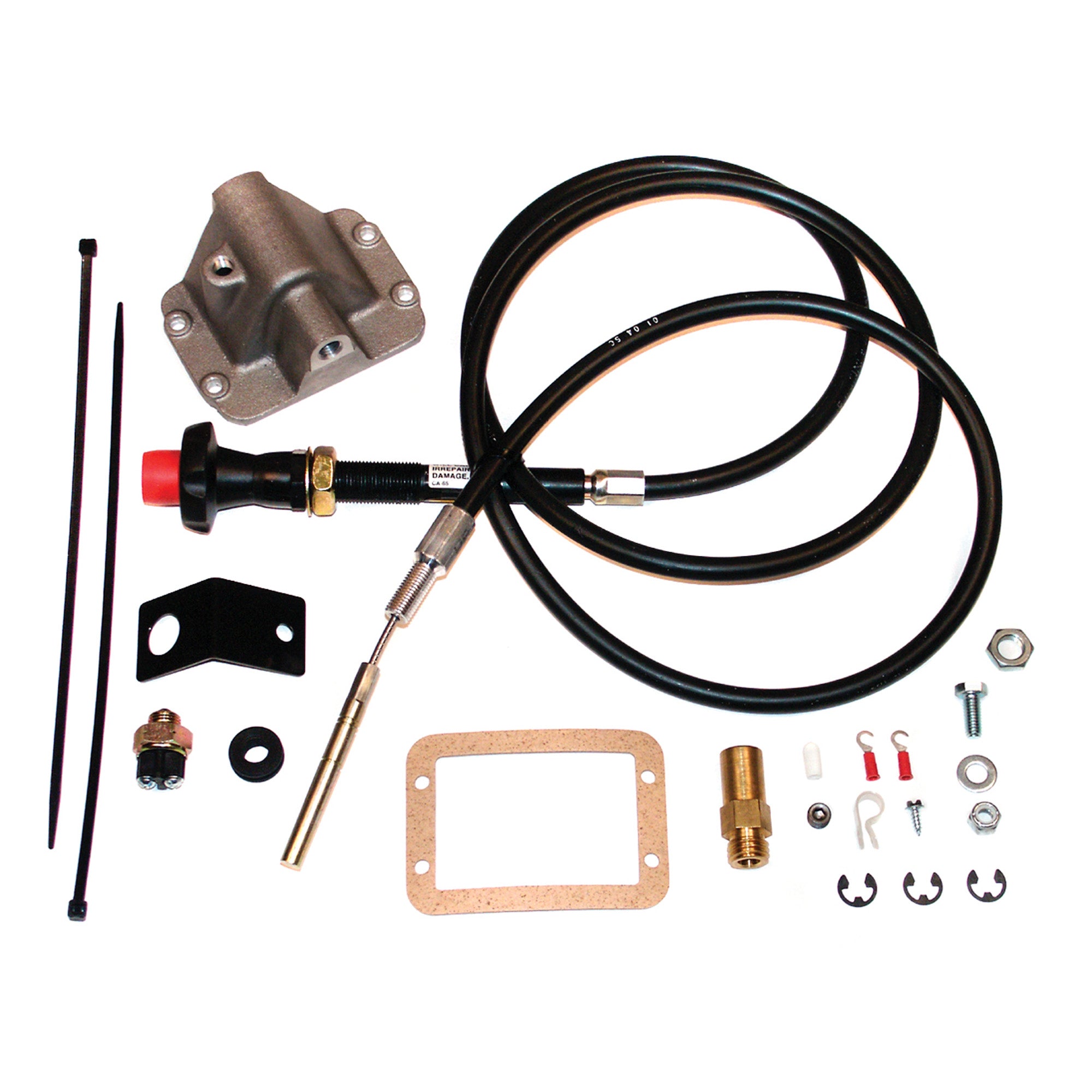

4x4 Posi-Lok Positive Axle Engagement 94-02 Dodge 5.9L Cummins 2500/3500
Description
Replace your faulty factory vacuum actuated 4x4 engagement system with a reliable cable operated system. The 4x4 Posi-Lok system eliminates the vacuum actuator and puts the driver back in control. After engaging the transfer case, a one inch pull of the 4x4 Posi-Lok cable connects the right front axle to the intermediate shaft using the shift collar and fork, and 4-wheel drive is engaged! Simply reverse the procedure to disengage 4-wheel drive. 4x4 Posi-Lok also works great with lockers! When the front axle is locked, you can disengage the passenger side in order to make turns without wheel hop.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- New high-strength aluminum housing for the central axle disconnect system
- Heavy-duty cable
- Complete wiring system to ensure the 4WD dash indicator light functions properly
- 4x4 Posi-Lok reduces front differential wear and right axle breakage
- 4x4 Posi-Lok provides 2-wheel drive low range, giving the vehicle 4-LO torque at the rear axle with bind free steering only available in 2-HI. This feature is not available with factory systems and is beneficial when maneuvering trailers.
- 4x4 Posi-Lok will not disengage when ignition is turned off or the differential is submerged
- 4x4 Posi-Lok is compatible with manual or electric transfer cases and installation can be completed in one to two hours with basic hand tools. No internal differential work is required.
VEHICLE FITMENT:
- 1994-2002 Ram 2500/3500 With Dana 44-60 w/ Center Axle Disconnect (CAD)
About 4x4 Posi-Lok
4x4 Posi-Lok puts the driver in control of the 4-wheel drive engagement. No more pushing a button and hoping your 4-wheel drive engages. 4x4 Posi-Lok provides quaility parts that solve a common issue when it comes to 4wd engagement. Ensure your 4x4 system never leaves you stranded with the 4x4 Posi-Lok.
