SKU #: PB-HP30040-QM MPN #: HP30040-QM

PacBrake Bravo Wireless Control Air Compressor Kit

Name: PacBrake Bravo Wireless Control Air Compressor Kit
Brand: PacBrake
Price: 999.99 USD
Availability: InStock

$999.99

Get 999 points in loyalty rewards

PacBrake Bravo Wireless Control Air Compressor

Description

Are you looking to upgrade your truck's air system? The Pacbrake BRAVO Wireless Air Control Kit featuring the powerful XD 425 Series Compressor. This advanced system lets you adjust air spring pressure directly from your smartphone, with real-time pressure monitoring and customizable presets. With its quick-mount design and pre-assembled wiring connections, installation is streamlined, making it easier than ever to add on-board air management to virtually any air spring-equipped vehicle. Supported by a 425 Series compressor capable of delivering up to 150 PSI, 1.75 CFM, and a 100% duty cycle at 100 PSI, this system is built to perform under demanding conditions. Engineered for durability and convenience, the BRAVO system features a waterproof compressor, premium braided air lines, push-to-connect fittings, and selectable single- or dual-path operation for maximum flexibility. The upgraded Gen III Bluetooth technology provides stronger connectivity and works through the dedicated iOS and Android app, allowing pressure adjustments and monitoring from inside the cab. Compatible with virtually any air spring load support system, this kit delivers reliable air management, faster inflation times, and greater control when towing trailers, hauling heavy loads, or leveling your truck.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Are you looking to upgrade your truck's air system? The Pacbrake BRAVO Wireless Air Control Kit featuring the powerful XD 425 Series Compressor. This advanced system lets you adjust air spring pressure directly from your smartphone, with real-time pressure monitoring and customizable presets. With its quick-mount design and pre-assembled wiring connections, installation is streamlined, making it easier than ever to add on-board air management to virtually any air spring-equipped vehicle. Supported by a 425 Series compressor capable of delivering up to 150 PSI, 1.75 CFM, and a 100% duty cycle at 100 PSI, this system is built to perform under demanding conditions.

Engineered for durability and convenience, the BRAVO system features a waterproof compressor, premium braided air lines, push-to-connect fittings, and selectable single- or dual-path operation for maximum flexibility. The upgraded Gen III Bluetooth technology provides stronger connectivity and works through the dedicated iOS and Android app, allowing pressure adjustments and monitoring from inside the cab. Compatible with virtually any air spring load support system, this kit delivers reliable air management, faster inflation times, and greater control when towing trailers, hauling heavy loads, or leveling your truck.

Vehicle Fitment

Universal

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Waterproof 425 Series Compressor - Up to 150 PSI, 100% duty cycle at 100 PSI, and a 1.75 CFM fill rate. Sealed to IP67 for total weatherproof durability in any conditions.
Billet Aluminum Control Manifold – Premium materials for long-lasting, leak-free performance.
Ultra Easy Install - No drilling or cutting required. Push-to-connect air fittings and pre-assembled wiring harness connectors get you ready in under an hour.
Wireless Smartphone Control - Adjust air spring pressure from the cab. No more stepping out in the rain or snow to hunt down an air pump.
Real-Time Pressure Feedback & Setup Assist - Be confident in your setup with live pressure feedback and monitor the system's health, right from the mobile app.
Single or Dual Path Mode - Switch from simultaneous fill to independent left/right fill, with just a click of a button.
Ignition switched power for zero parasitic battery drain.
Ultra quiet operation for maximum comfort.

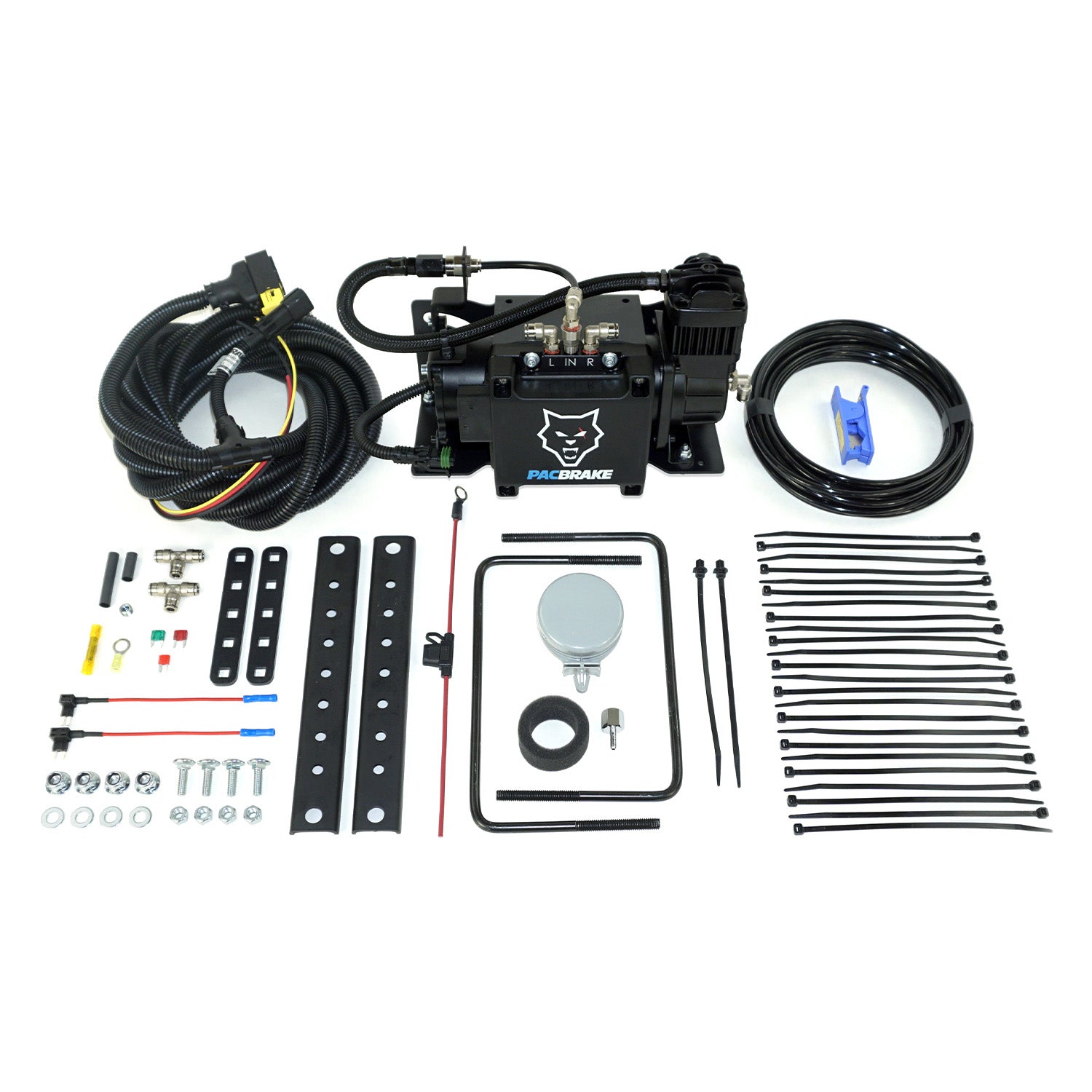

KIT CONTENTS:

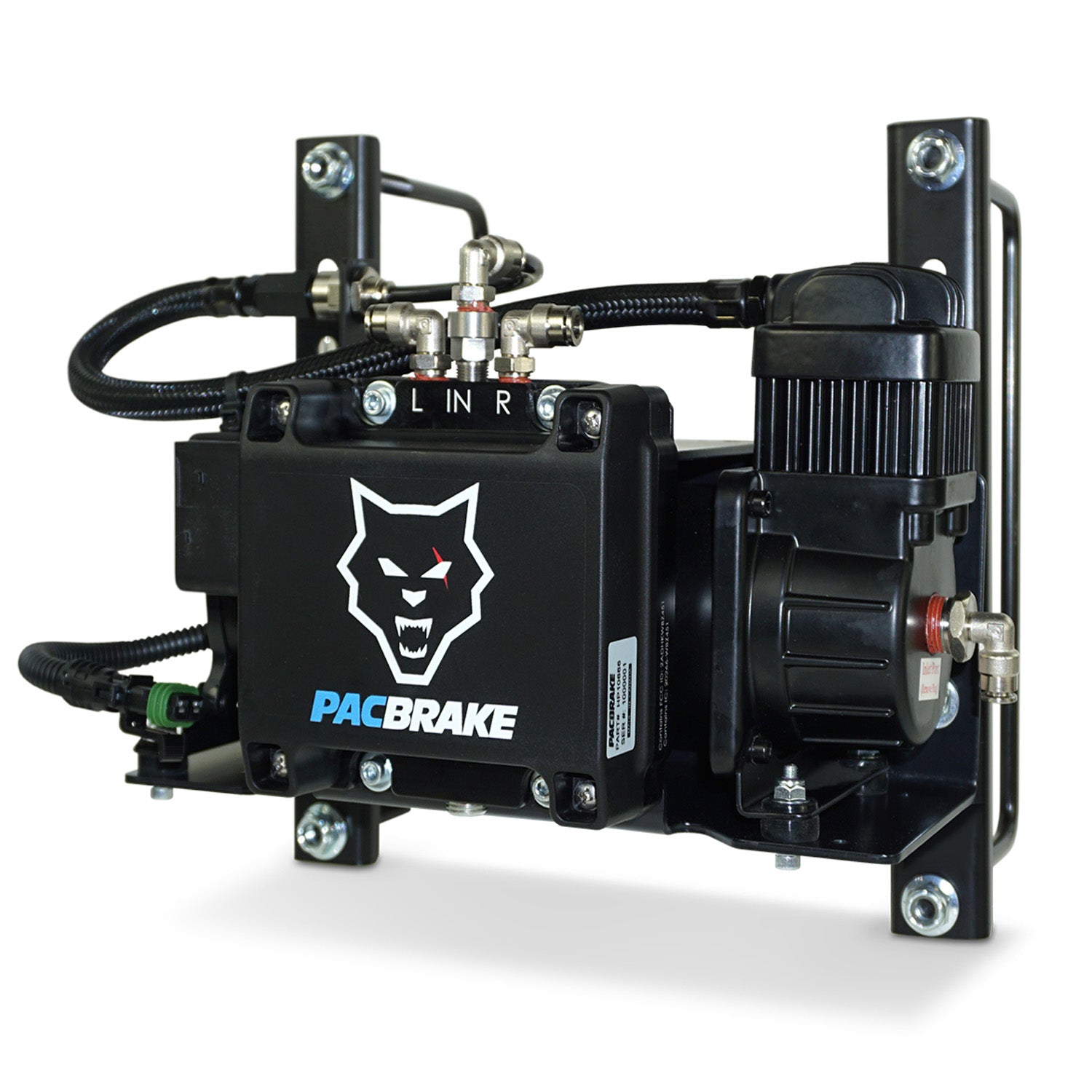

425 Series 12 VDC Compressor/Manifold Assembly
Harness, Wireless Air Controls
Fitting, Tee, 1/4" OD Push-To-Connect
Bracket, Carriage Bolt Plate
Bracket, Mounting Rail
Inlet Air Filter
Sub Group Cutter Tubing
Bolt, 5/16”-18 x 1" Carriage, Grade 5, Zinc Plated
U-Bolt, 3/8”-16 x 5.5" x 9.5" Square, Black Zinc
Nut, 3/8”-16 Nylon Lock Flange, Zinc Plated
Nut, 5/16”-18 Nylon Lock, Zinc Plated
Flat Washer 5/16” 0.065 Thick
Plug, 1/8" NPT, Zinc Plated Steel, Internal Hex Drive
Shrink Tube SCT0001 Black 0.30 x 1”
Shrink Tube 0.30 x 2"
Connector Butt-Panduit 10-12
Ring Terminal, 12-10 Awg, 3/8" Eyelet
Fuse, Micro2, 10 Amps
Fuse, Mini, 10 Amps
Fuse, Mini, 30 Amps
Fuse Tap, Micro2 Fuse (APT/ATR)
Fuse Tap, Mini Fuse (APM/ATM)
Nylon Air Line, 1/4" OD, Black, 30 Feet, Bagged
Fir Tree Cable Mount w/ 8” Zip Tie
Zip Tie

About PacBrake

PACBRAKE EXHAUST BRAKES

Pacbrake is a manufacturing company based out of Langley, British Columbia that began operations in 1961, specializing in exhaust and engine brakes for commercial truckers, loggers, and the military. Today, their expertise still lies on exhaust braking solutions, but it goes well beyond this and into numerous other vehicle upgrades such as air suspension, air compressors, complete air management solutions, and so much more.

PACBRAKE EXHAUST BRAKES

Diesel Power Products is proud to offer the complete line of Pacbrake PRXB Exhaust Brakes for Cummins, Duramax and Powerstroke diesels. At the time of their release, the PRXB line of brakes was unlike any other, and still maintains superiority over many alternatives to this day. So what does PRXB mean and how does it work? PRXB stands for "Pressure Release Exhaust Brake." Basically, all exhaust brakes have to release a certain amount of exhaust, otherwise it would cause excessive backpressure to the engine and cause damage. However, PRXB's are unique in that they have a variable release so that as RPM's slow down, so does the release of exhaust, equating to better retarding power at lower RPM's. If you tow with your diesel and don't have an exhaust brake, you're simply missing out on the peace of mind and safety that it delivers. Pacbrake's kits come complete, even torque converter lockup controllers when applicable, exhaust adapters for aftermarket oversized exhaust, and more.

PACBRAKE AIR BAGS & AIR COMPRESSORS

With a name like Pacbrake you would assume that they ONLY make diesel exhaust brakes. That couldn't be farther from the truth. Pacbrake has jumped into the light duty diesel truck market with an innovative product line including AMP series air bags, air suspension, Dodge short shift kits, on board air kits and accessories and their MaxFlow Elbow for 1994-2002 Ram trucks which is based on the same elbow used in the PRXB MaxFlow Exhaust Brake kit. Pacbrake manufactures exhaust brakes for GM Duramax, Ford Powerstroke and Cummins Diesels. Not sure which Pacbrake part is right for you? Give us a call or send us an email, we'll be glad to help!
