SKU #: SYN-4133-L
MPN #: 4133-L

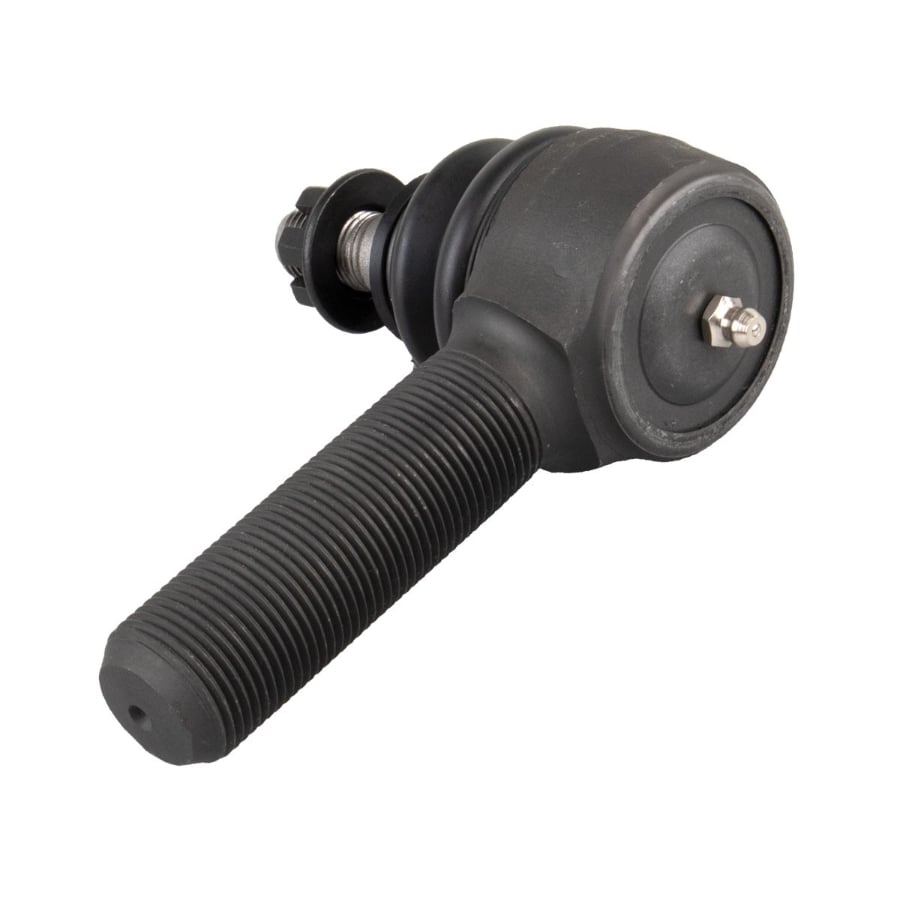

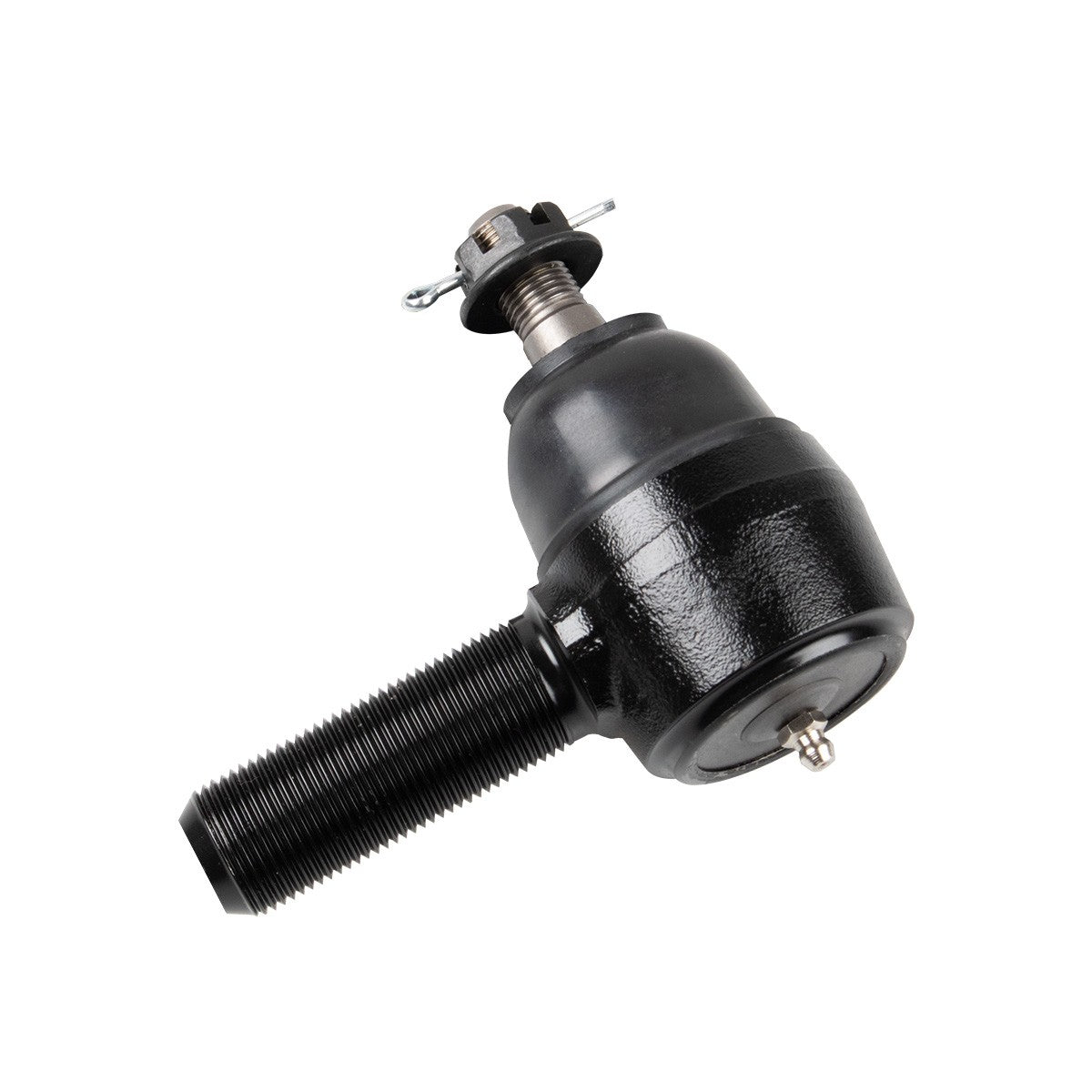

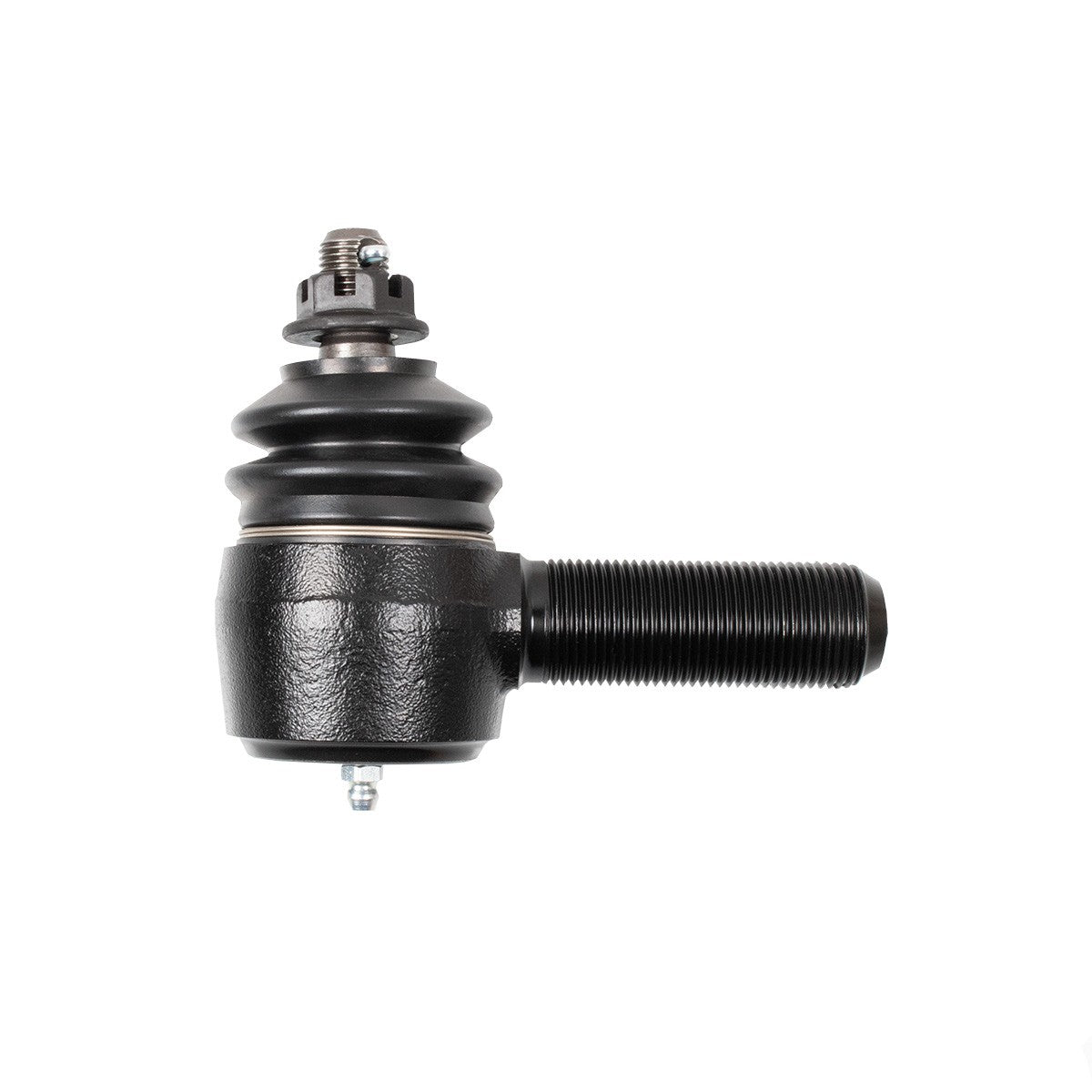

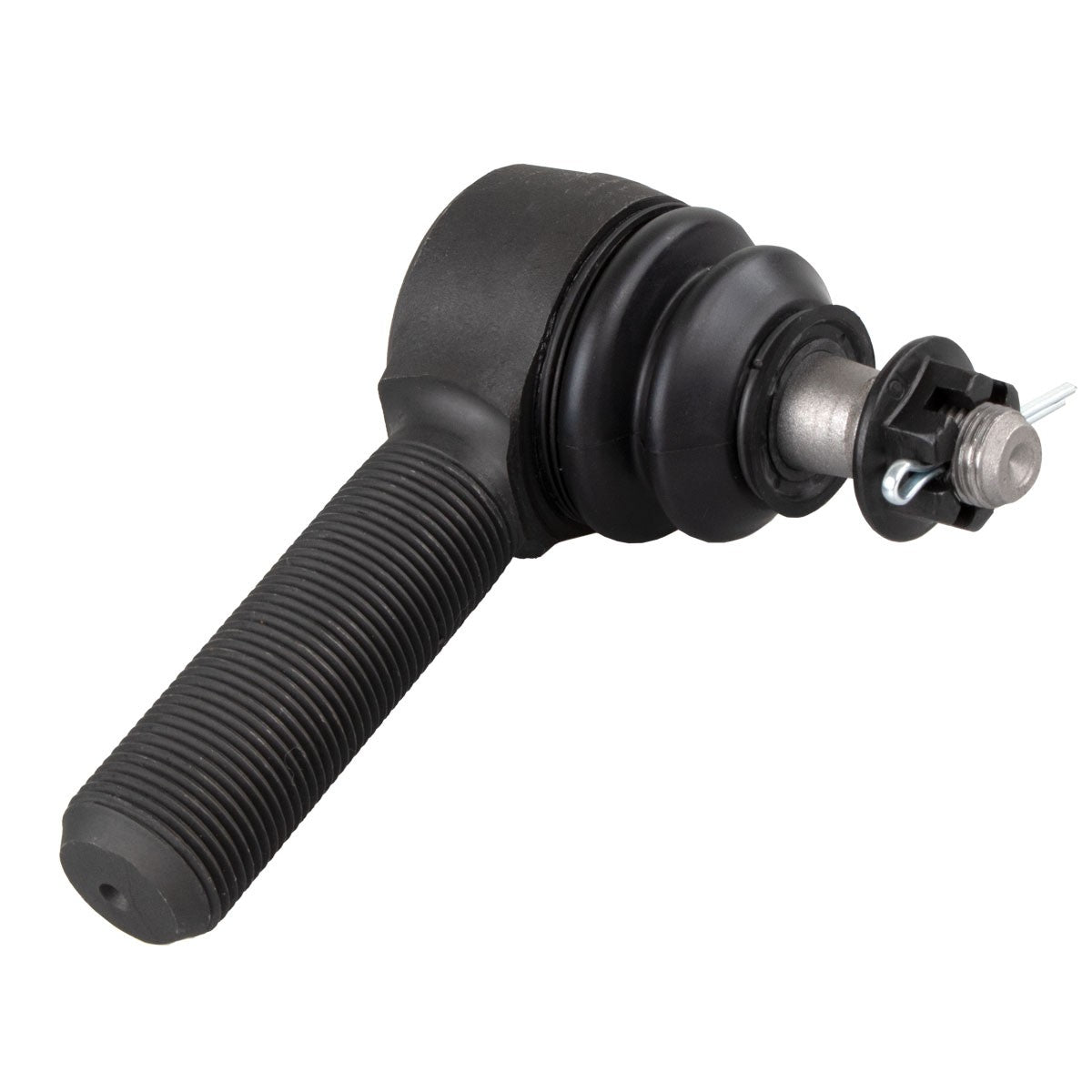

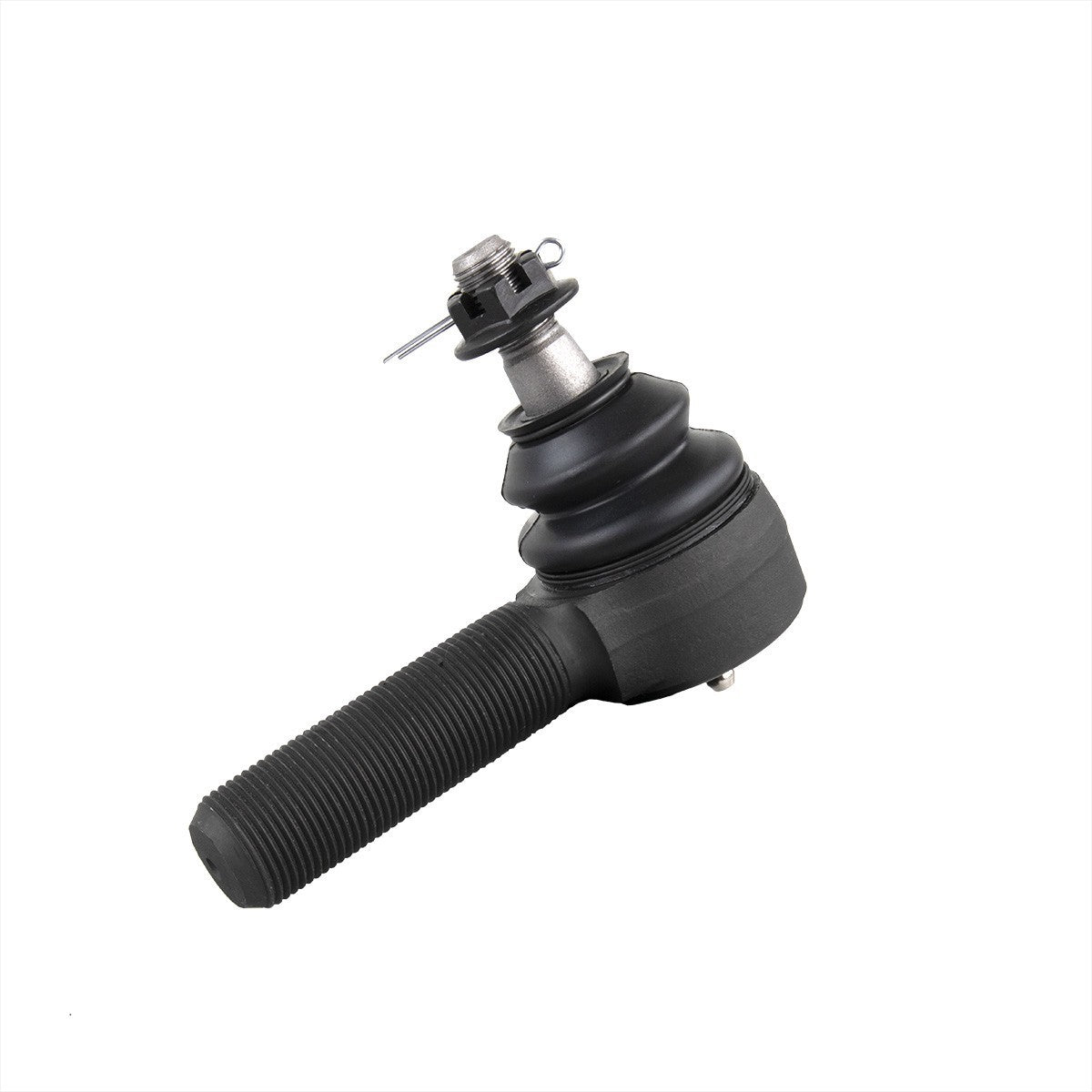

Synergy Drag Link Tie Rod End 94-25 Dodge Ram 2500 / 3500 4x4
Description
Overview
Synergy Heavy Duty replacement tie rod and drag link ends for Synergy Steering Systems (does not fit stock steering system). These tie rod ends are built bigger and stronger than stock. When it comes time to service your Synergy steering system, we've got you covered with a wide selection of replacement parts.
TIE ROD & DRAG LINK END FITMENT TABLE
Dodge Ram
Driver Side
Passenger Side
1994-1999 Drag Link
SYN-4136-L
SYN-4160-L
1994-1999 Tie Rod
SYN-4136-L
SYN-4169-L
2000-2002 Drag Link
SYN-4133-L
SYN-4160-L
2000-2002 Tie rod
SYN-4134-L
SYN-4167-L
2003-2013 Drag Link
SYN-4133-L
SYN-4160-L
2003-2013 Tie Rod
SYN-4134-L
SYN-4167-L
2014-2024 Drag Link
SYN-4160-L
SYN-4134-L
2014-2024 Tie Rod
SYN-4138-L
SYN-4168-L
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
This is a Synergy Heavy Duty replacement tie rod and drag link end built for Synergy Steering Systems, engineered bigger and stronger than stock parts.
- Fits
- 1994-2026 Dodge Ram 2500/3500 4x4
See Fitment Table - Brand
- Synergy Manufacturing
- Best for
- Servicing a Synergy steering system
- Key features
- Grease grooves in ball bearings for maximum lubrication and wear resistance
- Larger ball bearing from eliminating the nylon ball race for increased strength
- Spring loaded bearing design keeps joint tight as it wears, preventing premature play
- Larger shank with no stress riser, preventing premature failure
- Fully greaseable sintered metal on metal bushing design with high wear resistance
- Induction heat treated ball bearing with precision grease grooves in the OD
- Ultra-strong forged bearing housing made from 1018 steel
- Tie rod end stud made from 4140 steel with an extra large shank
- DynaFlo straight steel zinc grease zerk fittings with ball check
- Key specs
- 1018 steel bearing housing
- 4140 steel stud
- 1/4'-28 grease zerk fittings
- Important
- Does not fit stock steering system.
FEATURES & BENEFITS:
- Engineered with grease grooves in the ball bearings, achieving the longest lasting metal on metal rod end on the market with maximum lubrication and wear resistance
- Eliminating the nylon ball race allows for a larger ball bearing and increased strength
- The spring loaded bearing design keeps pressure on the bearings and the joint tight as it wears, preventing premature play
- Outperforms factory and all other aftermarket style tie rod ends by offering a larger shank with no stress riser (doesn't neck down at base), preventing premature failure
- Fully greaseable sintered metal on metal bushing design has high wear resistance
- Precision engineered grease grooves in the OD of the induction heat treated ball bearing
- Ultra-strong forged bearing housing made from 1018 steel
- Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
- Tie Rod End stud made from 4140 steel with an extra large shank
- DynaFlo 1/4'-28 straight steel zinc grease zerk fittings with ball check
About Synergy Manufacturing
SYNERGY SUSPENSION & MORE
Synergy Manufacturing is an automotive aftermarket steering, suspension, and chassis manufacturer based out of San Luis Obispo, California with nearly twenty years of industry experience. Synergy components are predominantly made in the USA and built to withstand offroad abuse, but built in such a way that they complement a daily driver that merely wants bulletproof components under their vehicle, allowing you to truly have your cake and eat it too in terms of strength and comfort. In addition to suspension systems, Synergy also manufactures a complete line of heavy duty steering components, axle upgrades, and other related products that dramatically improve your vehicles on and offroad capability, performance, and appearance.
SYNERGY OFFROAD PARTSSynergy got their beginnings in producing heavy duty off-road parts predominantly for Jeep Wrangler JK's (and continue to do so), but has since substantially grown their portfolio in both the vehicle applications they support, as well as the types of products being produced. From complete lift kits for your Ford SuperDuty to replacement 3 progressive rate coil springs, track bars, and control arms for your Ram, they've got you covered. You can even build your lift kit one piece at a time, or replace another companys failing, inferior suspension parts to upgrade yours to Synergy! Some of our most popular Synergy Offroad Parts are adjustable track bars, 3" coil springs, steering box braces, and adjustable sway bar end links.
Overall, if you are looking for high quality components that will exceed your expectations in terms of performance and durability, you wont be disappointed by choosing Synergy Manufacturing. And to back it up, most Synergy parts come with a Limited-Lifetime Warranty
