SKU #: RL-69-1036
MPN #: 69-1036
ReadyLIFT 69-1036 2.5" SST Lift Kit with Tubular Arms 06-22 Ram 1500 4WD
Description
Overview
Lift your Ram 1500 Classic 4WD 2.5" in front and 1.5" in the rear with our ReadyLIFT SST Lift Kit. This kit includes our new heavy-duty DOM tube steel upper control arms with corrected ball joint cup angles and heavy-duty ball joints. The same ball joints found in HD trucks! Fabricated steel top mount strut extensions provide 2.5" of front lift while steel coil spring rear spacers provide 1.5" of rear lift. This easy-to-install system also includes bump stop extensions and our new one-time grease control arm bushings. Allows for up to a 35x11.50 tire on a 9" wheel with +12 offset for a no-rub situation. Requires no permanent modifications.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
A 2.5" front/1.5" rear lift kit with tubular upper control arms, heavy-duty ball joints, and strut extensions for a larger-tire fitment and aggressive stance.
- Fits
- 2006-2022 Ram 1500 4x4
- Brand
- ReadyLIFT Suspension
- Best for
- Lifting for larger tire clearance and improved ride height
- Key features
- Heavy-duty DOM tube steel upper control arms
- Corrected ball joint cup angles
- Heavy-duty ball joints (same as HD trucks)
- Fabricated steel top mount strut extensions
- Steel coil spring rear spacers
- Bump stop extensions included
- One-time grease control arm bushings
- Solves OEM control arm ball joint issues
- Requires no permanent modifications
- Key specs
- 2.5" front lift
- 1.5" rear lift
- Max tire 35"
- 35x11.50 tire on 9" wheel with +12 offset
- Important
- Not for use on truck with factory air suspension
Summarized by AI from this product’s description and specs. Confirm fitment for your year, make and engine before ordering.
FEATURES & BENEFITS:
- 2.5" Lift Kit including new Tubular Upper Control Arms
- Solves OEM control arm ball joint issues.
- Max Tire: 35"
- Not for use on truck with factory air suspension

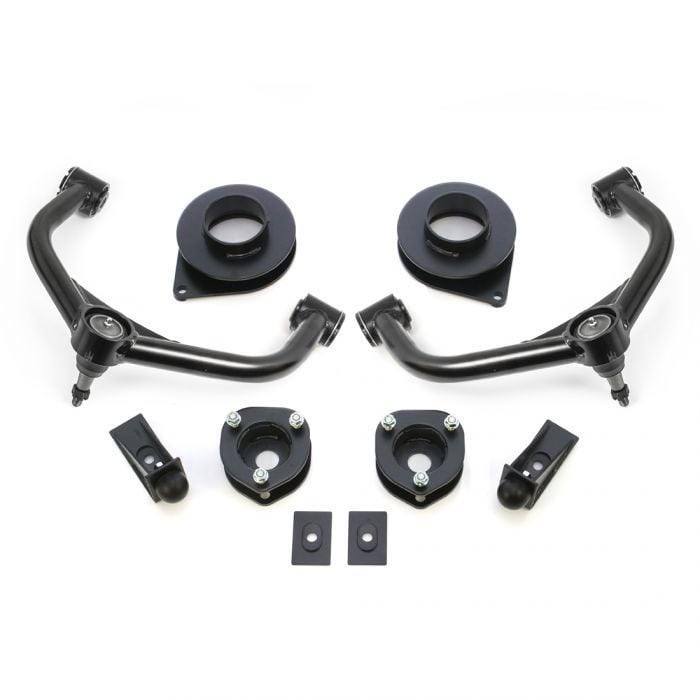

KIT COMPONENTS:
- Two tubular control arms with heavy duty ball joints and corrected ball joint cup angles.
- Two heavy duty steel strut extensions.
- Two steel coil spring rear spacers.
- Two bump stop extensions.
