SKU #: RL-49-19430 MPN #: 49-19430

ReadyLIFT 49-19430 4.5" Big Lift Kit 19-23 Ram 3500 4WD 6.7L Cummins

Name: ReadyLIFT 49-19430 4.5" Big Lift Kit 19-23 Ram 3500 4WD 6.7L Cummins
Brand: ReadyLIFT Suspension
Price: 2399.95 USD
Availability: InStock

$2,399.95

Get 2399 points in loyalty rewards

ReadyLIFT 49-19430 4.5" Big Lift Kit for 19-23 Ram 3500 4WD 6.7L Cummins

Description

The ReadyLift 4.5” coil spring lift kit allows for even more ground clearance while going to a 37” tire. Springing up to the new 4.5” lift yields all the bells and whistles of a big 6” kit but at a slightly lower, garage-able stance. This kit comes with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front and rear shocks. The 4.5” Ram HD kit includes ReadyLift's unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles. The Ram 3500 HD comes with a high-output diesel engine DIS system. IMPORTANT NOTE - Kit will not fit any models with the standard output 6.7L diesel motor, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

The ReadyLift 4.5” coil spring lift kit allows for even more ground clearance while going to a 37” tire. Springing up to the new 4.5” lift yields all the bells and whistles of a big 6” kit but at a slightly lower, garage-able stance. This kit comes with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front and rear shocks. The 4.5” Ram HD kit includes ReadyLift's unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles. The Ram 3500 HD comes with a high-output diesel engine DIS system.

IMPORTANT NOTE - Kit will not fit any models with the standard output 6.7L diesel motor, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2019-2023 Ram 3500 6.7L Cummins 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

4.5-inch front with rear blocks lift kit.
Includes all-new transfer case clocking ring and new heavy-duty transmission crossmember.
Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 3500 HD.
For use on Diesel engine Ram 3500 4WD HD trucks only.
Allows for up to 37x13.50 tires on 20" x 9" wide wheels with -18 offset.

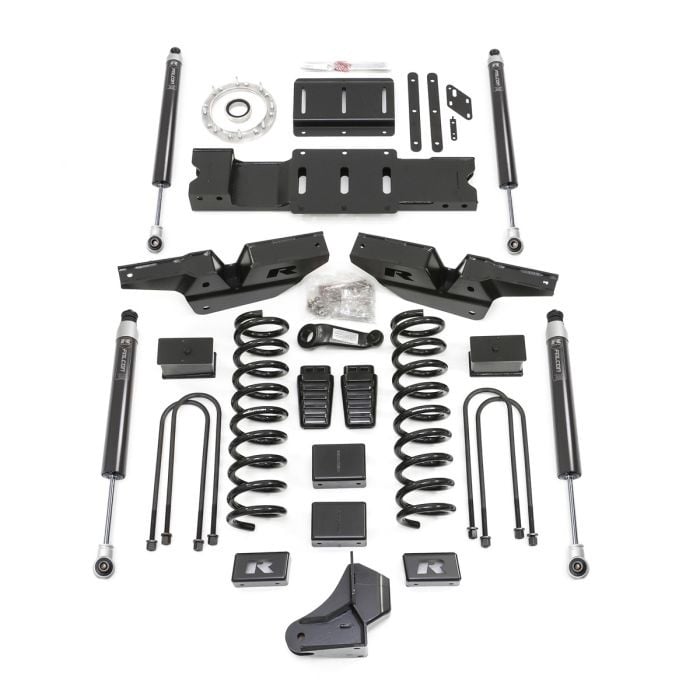

KIT COMPONENTS:

4.5" Front Lift Spring
3-Inch Fabricated Block
19-21 Ram 3500 U-Bolt for 4.5-Inch Kit
Falcon Shock, Front
Falcon Shock, Rear
Radius Arm Drop, Driver
Radius Arm Drop, Passenger
Front Track Bar Bracket
Driver, Sway Bar Drop Bracket
Passenger, Sway Bar Drop Bracket
Replacement Front Bump Stop
Rear Bump Stop Extension
Pitman Arm, Drop, Replacement
Transmission Connector Bracket
Transmission Crossmember
Transmission Harness Bracket
Transmission Mounting Plate
Transmission Mount Spacer
8 Bolt Clocking Ring
Front Brakeline Bracket
Rear Brakeline Bracket
E-Brake Extension
Pinch Clamp
Transfer Case Spacer
Auto Trans Extension Housing Seal (MOPAR)
Hardware Pack
