What are the key features of the ReadyLIFT Extreme Duty Upper Control Arms 20-25 GM 2500HD / 3500HD?

Xtreme-Duty 4130 chromoly fabricated construction with corrected pivot cups; Stronger, longer lasting outer and inner TCT pivot bushings; Self-lubricating pivots with free-float inner sleeve and side-biter washers; 1-ton spring loaded HD series ball joints; CNC machined billet aluminum caps protect ball joints from road debris; Anthracite gray powder coat finish; Stainless steel ReadyLIFT brand arm badge

What are the specifications of the ReadyLIFT Extreme Duty Upper Control Arms 20-25 GM 2500HD / 3500HD?

.125 4130 chromoly plate steel; 0"-4" lift compatibility

SKU #: RL-67-30320 MPN #: 67-30320

ReadyLIFT Extreme Duty Upper Control Arms 20-25 GM 2500HD / 3500HD

Name: ReadyLIFT Extreme Duty Upper Control Arms 20-25 GM 2500HD / 3500HD
Brand: ReadyLIFT Suspension
Price: 649.95 USD
Availability: InStock

$649.95

Get 649 points in loyalty rewards

ReadyLIFT 44-3035 Extreme Duty Upper Control Arms for 20-23 GM 2500HD and 3500HD

Description Overview

Increase the strength and wheel travel of your Duramax without the maintenance that comes from many other alternative UCA's with this set from ReadyLIFT.Laser cut and CNC bent .125 4130 chromoly plate steel precision construction creates an incredibly strong package engineered to be used on trucks with 0"-4" of lift. The critical pivot points are maintenance-free and extremely durable for long-lasting use. The 1-ton spring loaded HD series ball joints maintain the factory driving experience and can take a beating from the excessive weight of heavy aftermarket wheels and tires. To protect the joint from nasty road debris such as salt and sand, ReadyLIFT's arms include CNC machined billet aluminum caps which helps extend the life of the ball joints.Frame side pivots feature proprietary new TCT bushings which are self-lubricating and engineered to last. These new bushings include "side biter" washers to aid in maintaining alignment settings. The free-floating bushing design eliminates friction which is the most common culprit of traditional bushing failure. Each ReadyLIFT Extreme-Duty Upper Control Arm features a rugged Anthracite Gray powder coat finish along with stainless steel ReadyLIFT brand arm badge.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

ReadyLIFT Extreme Duty Upper Control Arms are laser cut, CNC bent 4130 chromoly plate steel upper control arms engineered for strength and increased wheel travel.

Fits: 2020-2025 GM 2500HD / 3500 4x4
Brand: ReadyLIFT Suspension
Best for: Trucks running 0"-4" of lift needing stronger, maintenance-reduced upper control arms
Key features: Xtreme-Duty 4130 chromoly fabricated construction with corrected pivot cups
Stronger, longer lasting outer and inner TCT pivot bushings
Self-lubricating pivots with free-float inner sleeve and side-biter washers
1-ton spring loaded HD series ball joints
CNC machined billet aluminum caps protect ball joints from road debris
Anthracite gray powder coat finish
Stainless steel ReadyLIFT brand arm badge
Key specs: .125 4130 chromoly plate steel
0"-4" lift compatibility

Increase the strength and wheel travel of your Duramax without the maintenance that comes from many other alternative UCA's with this set from ReadyLIFT.

Laser cut and CNC bent .125 4130 chromoly plate steel precision construction creates an incredibly strong package engineered to be used on trucks with 0"-4" of lift. The critical pivot points are maintenance-free and extremely durable for long-lasting use. The 1-ton spring loaded HD series ball joints maintain the factory driving experience and can take a beating from the excessive weight of heavy aftermarket wheels and tires. To protect the joint from nasty road debris such as salt and sand, ReadyLIFT's arms include CNC machined billet aluminum caps which helps extend the life of the ball joints.

Frame side pivots feature proprietary new TCT bushings which are self-lubricating and engineered to last. These new bushings include "side biter" washers to aid in maintaining alignment settings. The free-floating bushing design eliminates friction which is the most common culprit of traditional bushing failure.

Each ReadyLIFT Extreme-Duty Upper Control Arm features a rugged Anthracite Gray powder coat finish along with stainless steel ReadyLIFT brand arm badge.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2020-2025 GM 2500HD / 3500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

KIT COMPONENTS:

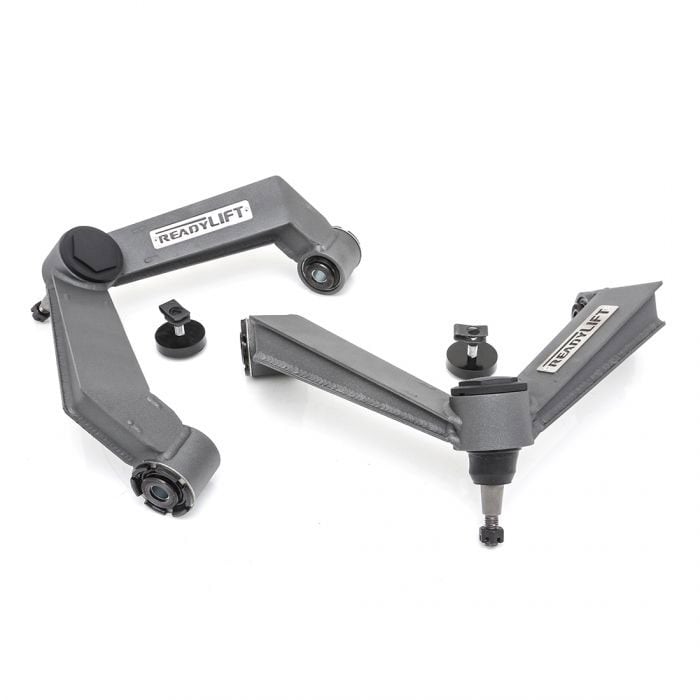

One pair of ReadyLIFT Xtreme-duty fabricated steel upper control arms.
Includes arm bump stops.

FEATURES & BENEFITS:

Xtreme-Duty 4130 chromoly fabricated upper control arms with corrected pivot cups for use with leveled or lifted trucks.
Includes ReadyLIFT stronger, longer lasting outer and inner TCT pivot bushings.
Pivots are self-lubricating with a free-float inner sleeve and side-biter washers.
Anthracite gray powder coat finish.
