SKU #: RL-69-1935 MPN #: 69-1935

ReadyLift 3.5" SST Lift Kit 20-23 Ram 1500 4x4

Name: ReadyLift 3.5" SST Lift Kit 20-23 Ram 1500 4x4
Brand: ReadyLIFT Suspension
Price: 949.95 USD
Availability: InStock

$949.95

Get 949 points in loyalty rewards

ReadyLift 3.5" SST Lift Kit for 20-23 Ram 1500 4x4

Description

The 69-1935 SST lift kit provides 3.5" of front lift and 2" of rear lift. The new body style Ram now comes with a composite upper control arm with a sheet metal cover. ReadyLift engineers determined the the best kit solution would be to include their DOM tube steel upper control arms with corrected ball joint angles. The lift is delivered by way of CNC-machined billet aluminum top mount strut extensions and spring pre-load spacers. This combination generates a true 3.5" of front lift which is perfect for installing up to a 35" tall tire on a 20x9 inch wheel with a 0 offset. This lift works great without exceeding the CV limits which works well within the OEM tolerances. The rear set up requires a fabricated steel rear coil spring spacer. This spacer provides 2 inches of rear lift and also includes rear bump stop extensions to control compression. The 69-1935 3.5" SST Lift Kit will get the job done right and affordably. IMPORTANT NOTES: This kit is not for use on air-suspension equipped trucks. NOT intended for off-road use or abuse. Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

The 69-1935 SST lift kit provides 3.5" of front lift and 2" of rear lift. The new body style Ram now comes with a composite upper control arm with a sheet metal cover. ReadyLift engineers determined the the best kit solution would be to include their DOM tube steel upper control arms with corrected ball joint angles. The lift is delivered by way of CNC-machined billet aluminum top mount strut extensions and spring pre-load spacers. This combination generates a true 3.5" of front lift which is perfect for installing up to a 35" tall tire on a 20x9 inch wheel with a 0 offset. This lift works great without exceeding the CV limits which works well within the OEM tolerances. The rear set up requires a fabricated steel rear coil spring spacer. This spacer provides 2 inches of rear lift and also includes rear bump stop extensions to control compression. The 69-1935 3.5" SST Lift Kit will get the job done right and affordably.

IMPORTANT NOTES:

This kit is not for use on air-suspension equipped trucks.
NOT intended for off-road use or abuse.
Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". Check factory height prior to ordering or installing. Trucks with more than 22" of wheel hub to fender lip height may require less lift.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2020-2023 Ram 1500 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Not for use on air-suspension equipped trucks
CNC machined billet aluminum construction front spacers
Fabricated steel rear spacers
Includes heavy-duty control arms
Solid Mount and even load distribution
OEM Style Cast Blocks
Will not deform or change shape
No Cutting of OEM Parts or Welding
Made in USA.
Tire: 35x12.50 20x9 +0

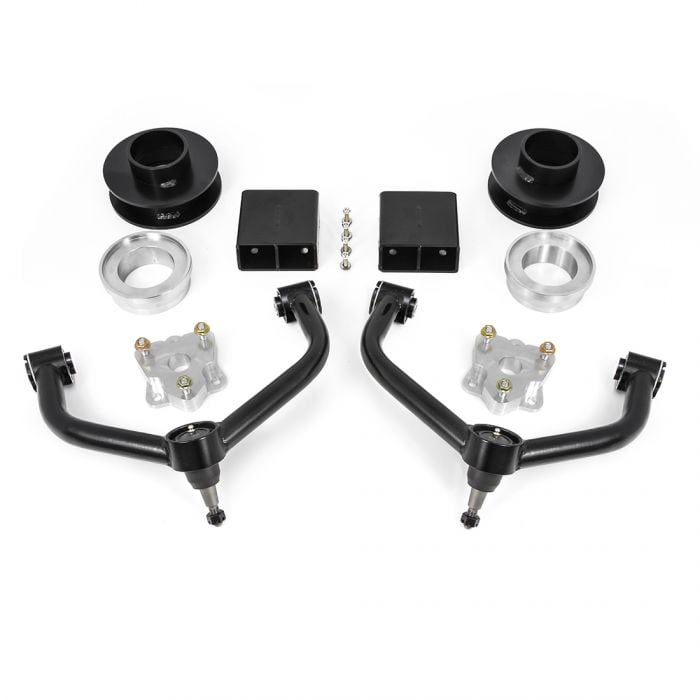

KIT COMPONENTS:

Tubular upper control arms with corrected ball joint cup angles and heavy-duty ball joints
CNC machined billet aluminum top hat spacers and pre-load spring spacers
Heavy-duty fabricated steel rear coil spring spacers
Fabricated steel rear bump stop landing pads
