SKU #: PSC-SP1404
MPN #: SP1404

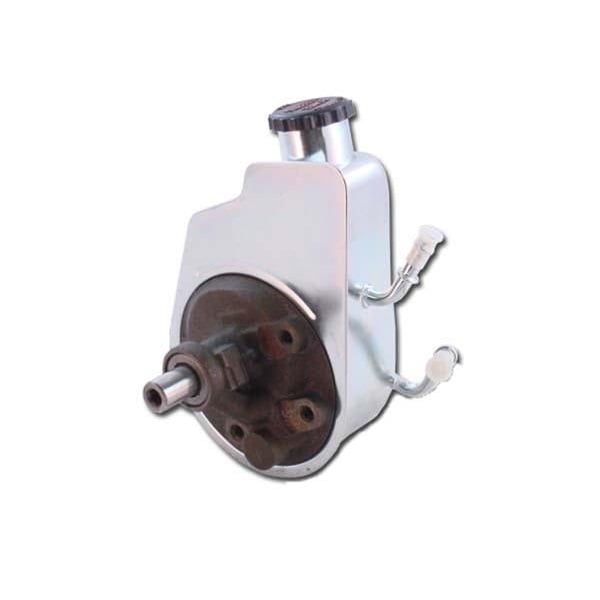

PSC XD Series Series Power Steering Pump Kit 01-10 GM 6.6L Duramax 2500HD/3500
Description
Need some actual power for your power steering? Whether you need a replacement for a worn out pump or the added upgrades on your truck requires you to get some extra push even if your truck is running on low RPMs, PSC's XD Pump Kit is the one for you.
NOTE: This XD Pump Kit is for GM Duramax trucks with Hydroboost Breaking Systems.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
SPECIFICATIONS:
- Power Steering Pump Model: Saginaw 132 Inch Series
- Pump Flow: High Volume
- Pressure Rating: 1600 PSI
- Pump Finish: Satin Aluminum
- Reservoir Included: Yes
- Pulley Included: No
- Pulley Attachment Style: Press Fit
- Fittings Included: No
- Inlet Attachment: Flared Tube
- Inlet Quantity: Two (2)
- Inlet Size: 5/16 Inch
- Outlet Attachment: 16MM Male
- Outlet Quantity: One (1)
- Outlet Size: 16MM-1.50 Female
- Reservoir Style: OEM Attached for Hydroboost with Cap
About PSC Performance Steering Components
When you put the word "performance" in your name, it's a standard you
have to live up to. Luckily PSC has done a fantastic job doing just
that. With an eye towards high-quality steering solutions for all brands
of trucks and Jeeps, PSC brings a DIY attitude to each one of their
pump kits, gearboxes, and steering kits. What does that mean? That means
that PSC developed solutions for problems you didn't know you had. For
instance, their Cylinder Assist Ultimate Steering Stabilizer was
developed to deal with issues in heavy-duty or off-road vehicles by
improving steering power where and when you need it most. Improve your
truck's drivability with PSC products today!
Blog
June 12, 2026
The diesel particulate filter (DPF) on your Cummins engine traps soot before it leaves the tailpipe. Over...
Read MoreCummins DPF Cleaning: Signs, Methods & Tips
June 12, 2026
P2509 flags when your Cummins ECM isn't seeing stable voltage coming from the battery and charging system....
Read MoreP2509 Cummins Code: Causes, Symptoms & Fixes
June 10, 2026
It starts small. Maybe the truck is a little slower to spool than usual. Maybe it sounds...
Read MoreHow to Find a Boost Leak Without Special Tools
June 05, 2026
Your exhaust system moves spent gases out of the engine and away from the cab. The muffler...
Read MoreResonator vs Muffler: Key Differences Explained
Overall rating: 5.0 / 5 from 5 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["issues","pump"].
Review highlights
Reviews
Excellent replacement pump
"I have 2 2005 Duramaxes and they both had cheap Cardone pumps from the local parts store. They both failed within a year. I replaced with PSC and no more issues for a long time now. Thank you for a high quality upgrade."
Power steering pump and replacement lines
"Excellent, mech said those were the best install options he has ever had. Lines fit perfectly, no problems"
Can Feel the difference
"Way better pump than the stock one. I instantly felt the difference when turning the steering wheel. Would highly recommend."
Easy to install and is
"Easy to install and is all more responsive on steering also!"
Q&A
- Hey is the power steering pump listed above fit up and hose attachment OEM or is this pump connections different, the picture is actually different than my pump on the 2007 classic duramax
- This is a replacement for a Hydro-Boost brake setup. All of the attachment and hose connection will work with that setup in a stock configuration. Thanks for asking.
