SKU #: PX-GB538824-1 MPN #: GB538824-1

PROJECT X Ghost Box App Connected Wireless Accessory Control Ecosystem

$139.99

Get 139 points in loyalty rewards

PROJECT X Ghost Box App Connected Wireless Accessory Control Ecosystem

Description

Ghost Box was conceived with a mission to revolutionize the automotive industry's status quo. Identifying a void in the market, especially when juxtaposed with the strides made in smart home ecosystems and switches, Project X set out to bridge the gap by merging Smart Ecosystems technology with 12V electrical systems. Their objective is to inject innovation into the traditionally sluggish automotive sector by introducing a refined and intelligent solution that redefines the conventional switch box paradigm. Ghost Box epitomizes our dedication to pushing limits and embracing the automotive technology of tomorrow. The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience. The fully expandable system includes two-circuit control modules that wirelessly communicate to a control keypad which you can program via the PROJECT X app. Control a single module for an easy accessory install, or create a large ecosystem across your vehicles, trailers, and equipment. Create presets you can incorporate across all of your accessories and set up groups and timers. Add your Ghost Box control module to any accessory power harness to wirelessly integrate it into the PROJECT X ecosystem. Wirelessly connect all your Ghost Box control modules to your control pad via 2.4GHz RF Wireless without having to route wires into your cab – simply tap the control pad to power and go! Utilizing both Bluetooth and RF Wireless, the Ghost Box system gives you a reliable connection to your vehicle accessories ensuring your control is never severed. Each module features a 2-circuit setup with a 20 amp and 40 amp circuit to give you multiple options for accessory control. Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem. Add up to 24 control modules across your vehicle, trailers, and other equipment to link your system together as needed.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Ghost Box was conceived with a mission to revolutionize the automotive industry's status quo. Identifying a void in the market, especially when juxtaposed with the strides made in smart home ecosystems and switches, Project X set out to bridge the gap by merging Smart Ecosystems technology with 12V electrical systems. Their objective is to inject innovation into the traditionally sluggish automotive sector by introducing a refined and intelligent solution that redefines the conventional switch box paradigm. Ghost Box epitomizes our dedication to pushing limits and embracing the automotive technology of tomorrow.

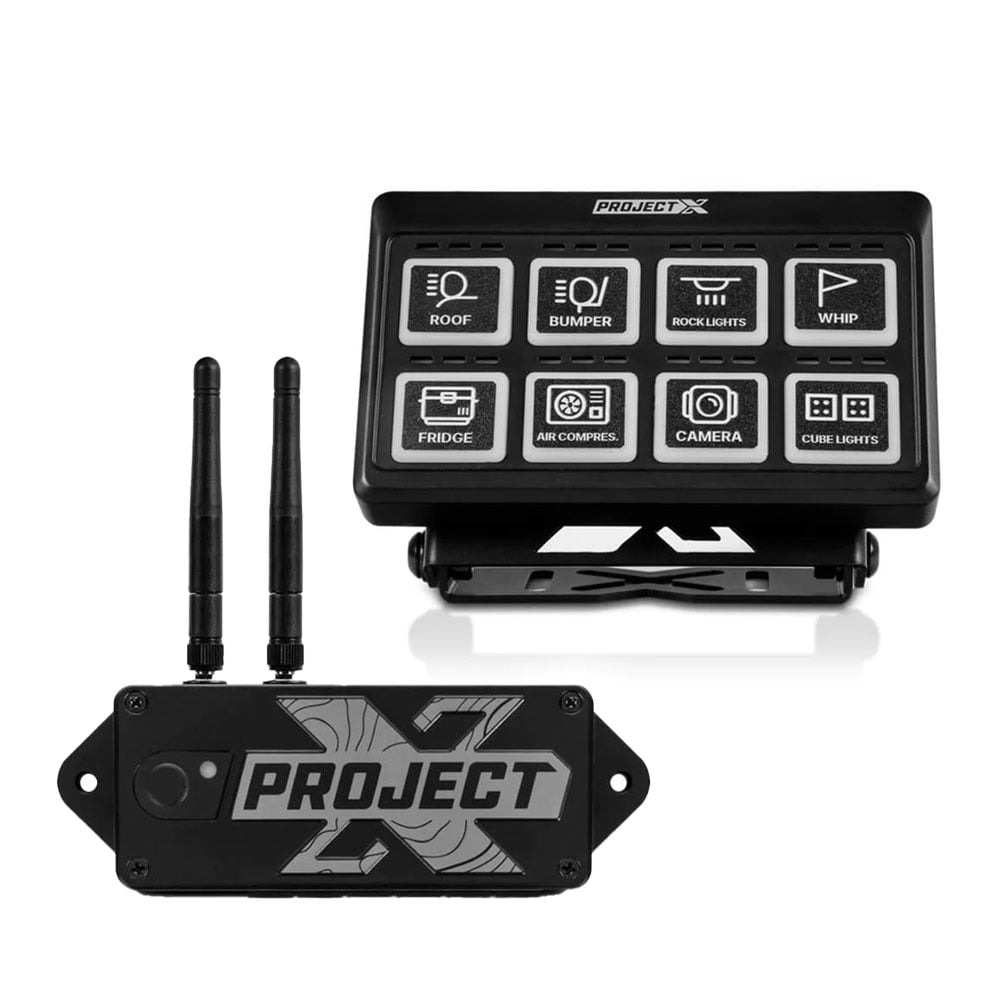

The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience. The fully expandable system includes two-circuit control modules that wirelessly communicate to a control keypad which you can program via the PROJECT X app. Control a single module for an easy accessory install, or create a large ecosystem across your vehicles, trailers, and equipment. Create presets you can incorporate across all of your accessories and set up groups and timers.

Add your Ghost Box control module to any accessory power harness to wirelessly integrate it into the PROJECT X ecosystem. Wirelessly connect all your Ghost Box control modules to your control pad via 2.4GHz RF Wireless without having to route wires into your cab – simply tap the control pad to power and go! Utilizing both Bluetooth and RF Wireless, the Ghost Box system gives you a reliable connection to your vehicle accessories ensuring your control is never severed.

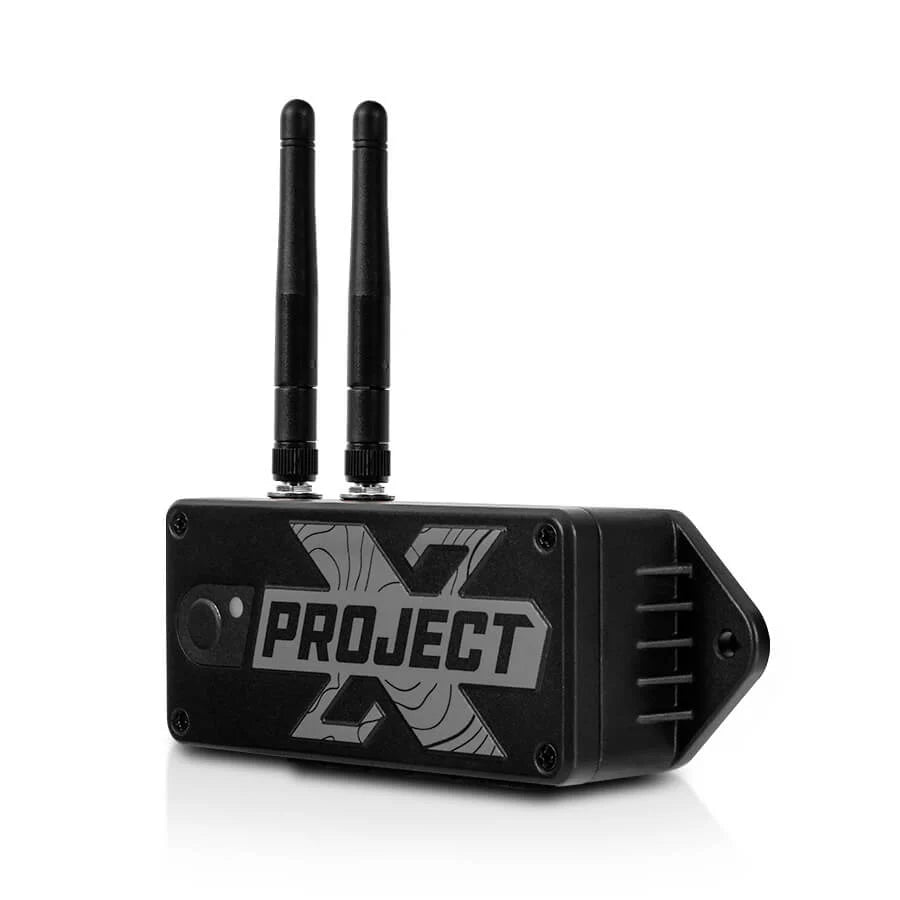

Each module features a 2-circuit setup with a 20 amp and 40 amp circuit to give you multiple options for accessory control. Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem. Add up to 24 control modules across your vehicle, trailers, and other equipment to link your system together as needed.

Vehicle Fitment

Universal Fitment

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

CONTROL MODULE SPECIFICATIONS:

Input Voltage: 9-16V DC
Output Voltage: 9-16V DC
Output Maximum Current: 40A @12V DC
Output Maximum Power: 480W @12V DC
Waterproof Rating: IP64
Wireless Frequency: 2.4GHz RF Wifi & Bluetooth 5.0
Wireless Range (RF Wifi): 98.4 Feet (without interference or obstruction)
Wireless Range (Bluetooth): 33 Feet (without interference or obstruction)

FEATURES & BENEFITS:

Each Ghost Box Control Module has two circuits: Control both circuits individually or pair both circuits for simultaneous control.
Each Circuit has 4 functions: ON, Strobe, Dim, Off. Each button press cycles through the functions in the listed order.
Don't need a function? Turn off via the app, enable only the function(s) you need.
Adjustable Strobe and Dim functions: Adjust the Strobe speed and brightness via the app.
Every Ghost Box comes with adjustable Low-Voltage-Protection. It's important to note that the Low-Voltage Protection applies to the entire Ghost Box and not individual circuits.
Utilizing the Ghost Box's Low Voltage-protection-Settings, circuits can be setup to be triggered by Ignition.
Built-in Memory stores the circuit's setting when low-voltage protection is triggered, when voltages increases circuits will resume as they were.
Each Circuit is equipped with an adjustable self-resetting Over-Voltage Protection feature.
Each Ghost Box communicates via its own self-generated Wi-Fi, employing two or more Ghost Boxes creates a Wi-Fi Mesh Network. Wi-Fi is prefered for a secure and dependable connection to your accessories, given that Bluetooth is often constrained by limited range, potential interference, and a capped number of connectable devices.
Please note that the Ghost Box Wi-Fi network functions independently of the internet and seamlessly operates regardless of location. It moves with the vehicle and remains operational regardless of speed.

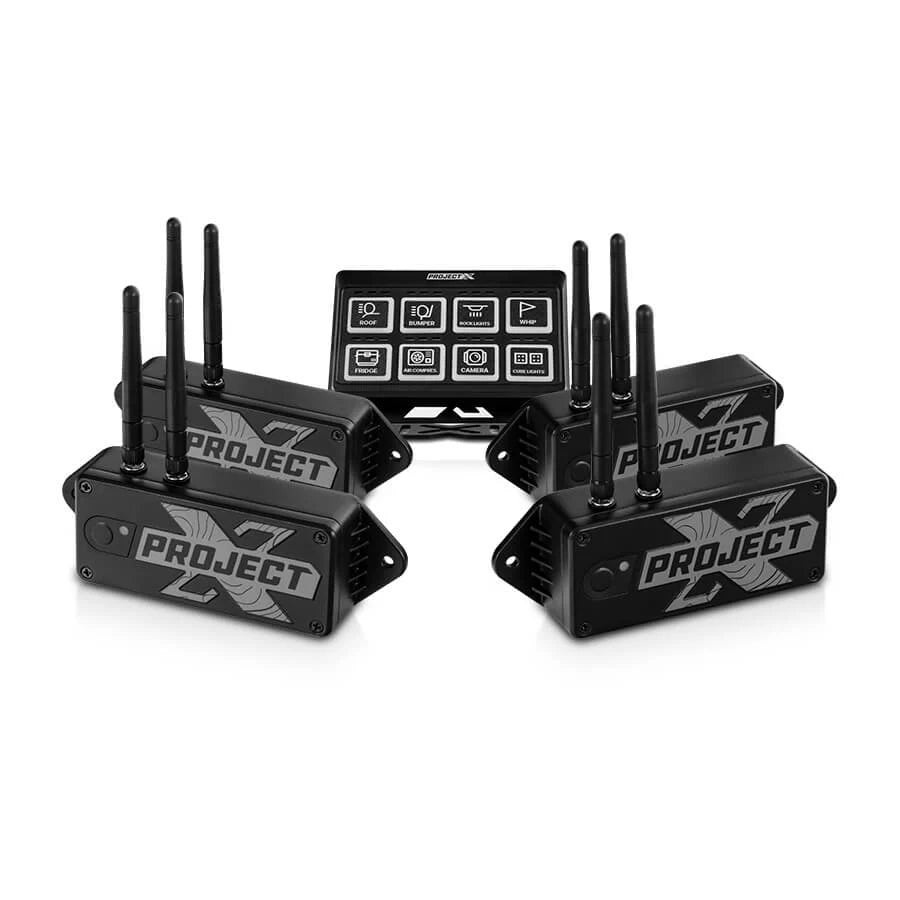

Add up to 12 Ghost Boxes (24 circuits) across your vehicle, trailer, or other equipment.
Each Ghost Box can be mounted via the provided screws or double sided tape.
The included Keypad is an optional component, control the Ghost Boxes exclusively through the phone app if you desire. If a keypad is utilized, the app interface remains functional. It's essential to decide on the preferred control method during the initial setup.
Installing the keypad is a breeze – just tap into the interior fuse block in the vehicle's cabin, and you're all set. No need to drill through the firewall to run a cable. The keypad will communicate with the Ghost Boxes via Wi-Fi.

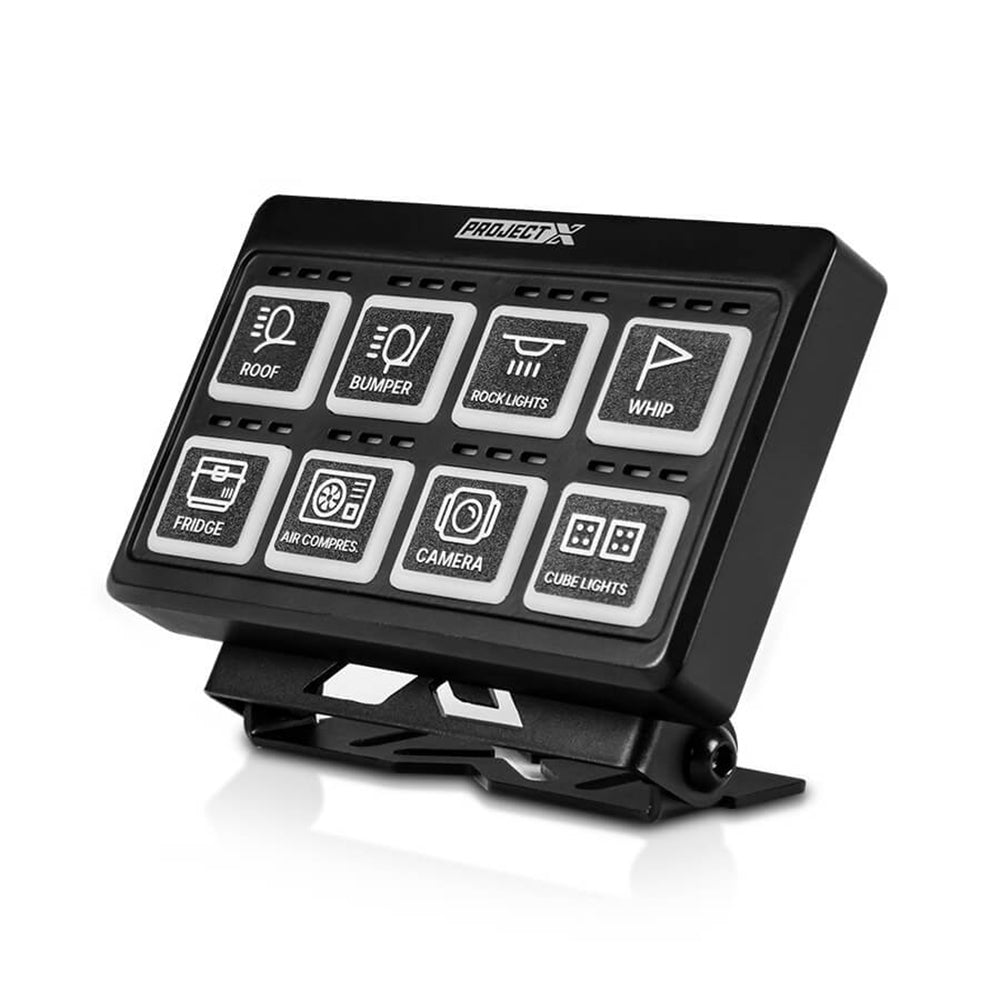

The buttons on the keypad each have their own RGBW color customization. Color-code your Buttons as needed.
Includes 60 stickers for the keypad. Select the one that best suits your need.
The Keypad can be mounted using screws or the provided double-sided tape. Moreover, the Keypad Mount is compatible with RAM Mounts.
The Keypad features its own independently adjustable low-voltage protection setting, distinct from the settings on the Ghost Boxes.
Adjustable Keypad Backlight brightness.

KEYPAD SPECIFICATIONS:

Input Voltage: 9-16V DC
Maximum Current: 0.075A @12V DC
Maximum Power: 0.9W @12V DC
Waterproof Rating: IP64
Wireless Frequency: 2.4GHz RF Wifi & Bluetooth 5.0
Wireless Range (RF Wifi): 98.4 Feet (without interference or obstruction)
Wireless Range (Bluetooth): 33 Feet (without interference or obstruction)
