SKU #: PPE-125070000
MPN #: 125070000

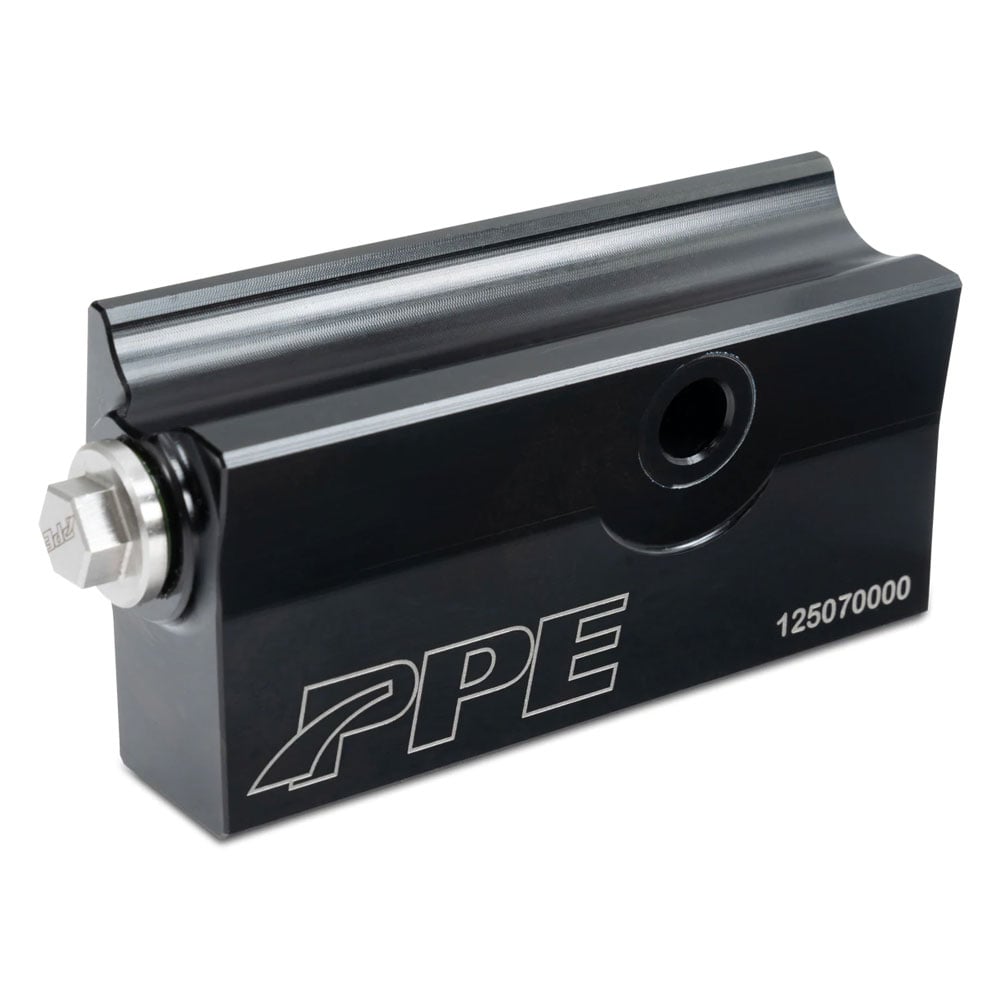

PPE Transmission Fluid Thermal Bypass Valve 8L90 20-25 GM 3.0L Duramax LM2/LZ0
Description
Add another measure of protection and increase fluid flow to transmission cooler. Increase cooling capacity with this easy-to-install billet aluminum PPE Transmission Fluid Thermal Bypass Valve for the GM 8L90 8-Speed transmission.
The OEM part has restrictive internal passages. When the OEM valve fails in the open position, transmission fluid doesn’t reach your cooler. This can be caused by mechanical failure or debris. The result of stock valve failure can cause the transmission to dangerously overheat. Without properly cooled transmission fluid, the demands of towing and rigorous stop-and-go driving conditions shorten the life of transmission components. The PPE Bypass Valve eliminates the extremely restrictive mechanical factory valve, maximizing fluid flow to and from the transmission cooler.
For further protection, a Neodymium magnet equipped service plug with O-ring seal has been added. The removable plug traps ferrous debris and can be accessed to remove particles from the system. The factory bypass valve does not have this feature.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Maximizes fluid flow to and from the transmission cooler
- Billet aluminum construction
- Direct fit with OEM 8L90 8-speed transmission and fluid lines
- Service plug with Neodymium magnet and O-ring seal
About PPE (Pacific Performance Eng.)
Browse PPE Diesel Parts Online by Make, Model, and Year.
Originally founded in 1985, Pacific Performance Engineering (PPE) is leading the way in the progression of diesel performance. Their roots started them in the diesel performance industry installing other manufacturers kits and components, which led to the release of their original product, the Duramaximizer, in 2001 to improve upon the power and efficiency of the LB7 Duramax, and is still in use today. Today, they are known for manufacturing dual CP3 kits, their line of Xcelerator programmers for numerous applications, upgraded oil pans, and nearly anything you can think of to improve the power and extend the life of your Duramax, Cummins or Powerstroke.
Blog
June 12, 2026
The diesel particulate filter (DPF) on your Cummins engine traps soot before it leaves the tailpipe. Over...
Read MoreCummins DPF Cleaning: Signs, Methods & Tips
June 12, 2026
P2509 flags when your Cummins ECM isn't seeing stable voltage coming from the battery and charging system....
Read MoreP2509 Cummins Code: Causes, Symptoms & Fixes
June 10, 2026
It starts small. Maybe the truck is a little slower to spool than usual. Maybe it sounds...
Read MoreHow to Find a Boost Leak Without Special Tools
June 05, 2026
Your exhaust system moves spent gases out of the engine and away from the cab. The muffler...
Read MoreResonator vs Muffler: Key Differences Explained
Overall rating: 4.6666665 / 5 from 9 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["cooler","install"].
Review highlights
Reviews
PPE TRANSMISSION BYPASS
"Exactly as described & shipped fast!"
Amazing
"Best thing I ever did for my 2023 Duramax 3. 0. Transmission averages around 125 degrees constantly. Pulling boat (6000pds) got to 135 degrees. Massive drop from 194 degrees which it ran from the factory."
Work's great keeps transmission cooler
"Work's great keeps transmission cooler when towing and not towing"
Happy with purchase
"Keeps temps about 10-15 degrees cooler looks good fit perfectly even has a magnet to catch debris very happy"
Easy install. Be sure drain
"Easy install. Be sure drain plug is tight"
You need it!
"Great product! Dropped my temps and paired this with the bigger trans cooler!"
Peice of mind
"Easy instal, quality part. and with the PPE transcooler and PPE transpan and a fill up of over 2. 5 gallons of AMSOIL trans fluid I should have a solid trans for a long time. "Hopefully""
Quality part
"Quality part compared to stock. Piece of mind knowing its not going to fail like the stock Thermal bypass will in time."
Q&A
- Can I install this without upgrading my trans cooler? Do you have instructions to install this? Will it void my warranty?
- This can be installed with an oem trans cooler and will not void your warranty. https://cdn.shopify.com/s/files/1/0611/8539/2883/files/125069000_Install_Guide_v5.pdf?v=1679940629
