SKU #: PPE-114002100
MPN #: 114002100

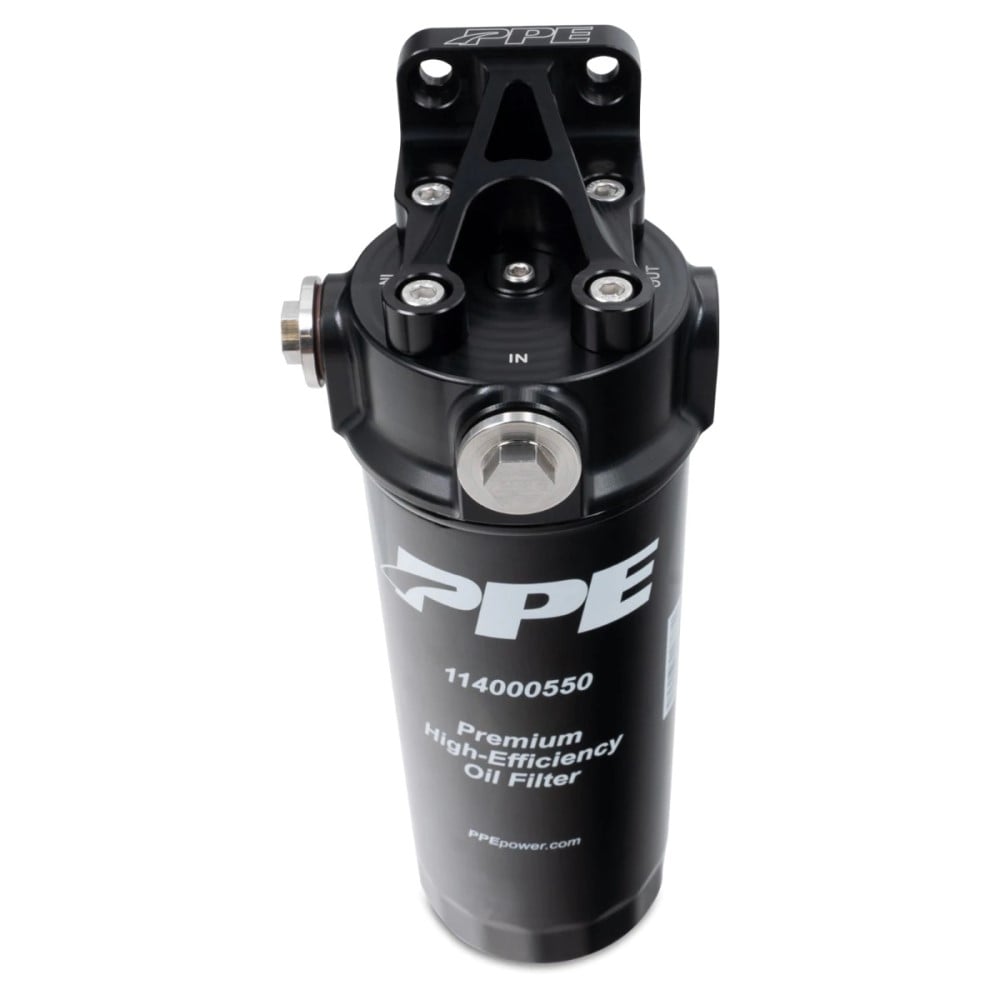

PPE Billet Remote Oil Filter Mount
Description
This universal remote filter mount has a higher flowrate than stock and is compatible with a variety of filters, including HP4 and HP6A Racing Filters. It features one outlet and three inlet ports, all -12 ORB for an easy leak-free installation and non-restrictive flow. Two out of the three inlet ports will be plugged by PPE Neodymium-magnet-equipped drain plugs, which pull harmful ferrous particles out of your oil. These plugs can be serviced by simply unplugging them and wiping out the metal particles trapped. It also features a 1/8” NPT port for an oil pressure/temperature sending unit. The mounting bracket can be mounted in four different positions to suit your application. Two threaded oil filter adapters are also included: 13/16”-16 (fits PPE Filters and GM filters) and 1.5”-12.
Relocate your oil filter with this Remote Oil Filter Mount. Whether you are relocating your stock oil filter (PF2232) for easier access or wanting to use a larger filter such as our PPE High Performance Engine Oil Filters (114000550/555/560), complete your project with this remote filter mount.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- High-flow, leak-free -12 ORB Inlet/Outlet ports
- 1/8” NPT sensor port
- Two Neodymium-magnet-equipped plugs included
- 13/16”-16 and 1-1/2”-12 threaded oil filter adapters included (more adapters available)
- Compatible with HP4 and HP6A racing filters
- 360 degree adjustable inlet/outlet orientation
- CNC-machined and black anodized 6061 Aluminum Construction
About PPE (Pacific Performance Eng.)
Browse PPE Diesel Parts Online by Make, Model, and Year.
Originally founded in 1985, Pacific Performance Engineering (PPE) is leading the way in the progression of diesel performance. Their roots started them in the diesel performance industry installing other manufacturers kits and components, which led to the release of their original product, the Duramaximizer, in 2001 to improve upon the power and efficiency of the LB7 Duramax, and is still in use today. Today, they are known for manufacturing dual CP3 kits, their line of Xcelerator programmers for numerous applications, upgraded oil pans, and nearly anything you can think of to improve the power and extend the life of your Duramax, Cummins or Powerstroke.
Blog
June 12, 2026
The diesel particulate filter (DPF) on your Cummins engine traps soot before it leaves the tailpipe. Over...
Read MoreCummins DPF Cleaning: Signs, Methods & Tips
June 12, 2026
P2509 flags when your Cummins ECM isn't seeing stable voltage coming from the battery and charging system....
Read MoreP2509 Cummins Code: Causes, Symptoms & Fixes
June 10, 2026
It starts small. Maybe the truck is a little slower to spool than usual. Maybe it sounds...
Read MoreHow to Find a Boost Leak Without Special Tools
June 05, 2026
Your exhaust system moves spent gases out of the engine and away from the cab. The muffler...
Read MoreResonator vs Muffler: Key Differences Explained
Overall rating: 0.0 / 5 from 0 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Q&A
- How does this connect to the stock location, is there an adapter?
- The adapter would have to be sourced for your particular vehicle, this universal kit only comes with the filter and filter head housing and some basic mounting hardware.
- Will this bolt up in place of OEM location?
- This is intended to be a remote mount, so it is not designed to mount in the factory location.
- Will the LF9028 oil filter fit?
- No, the Fleetguard uses a different thread pitch and diameter than the PPE filter does. It can work if you find a thread adapter.
