SKU #: PSP-PP-STG-1-6_0CAM
MPN #: PP-STG-1-6.0cam

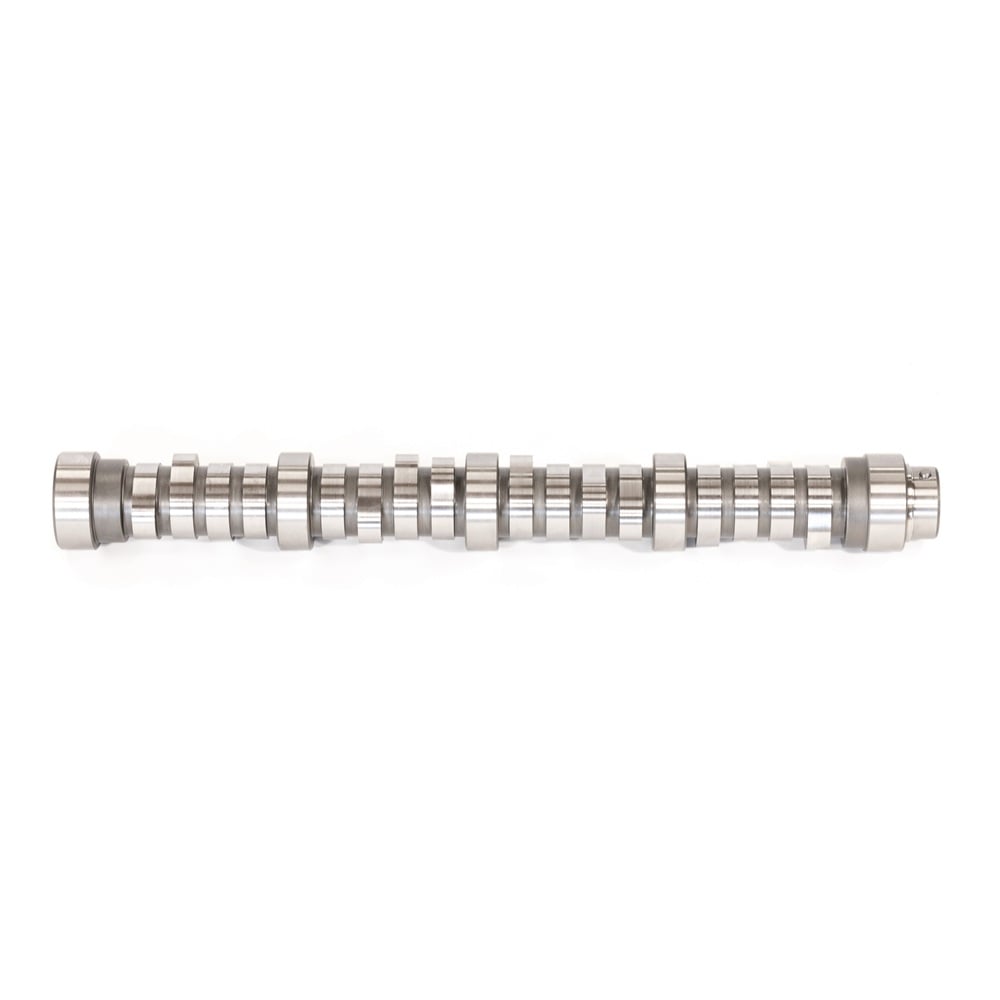

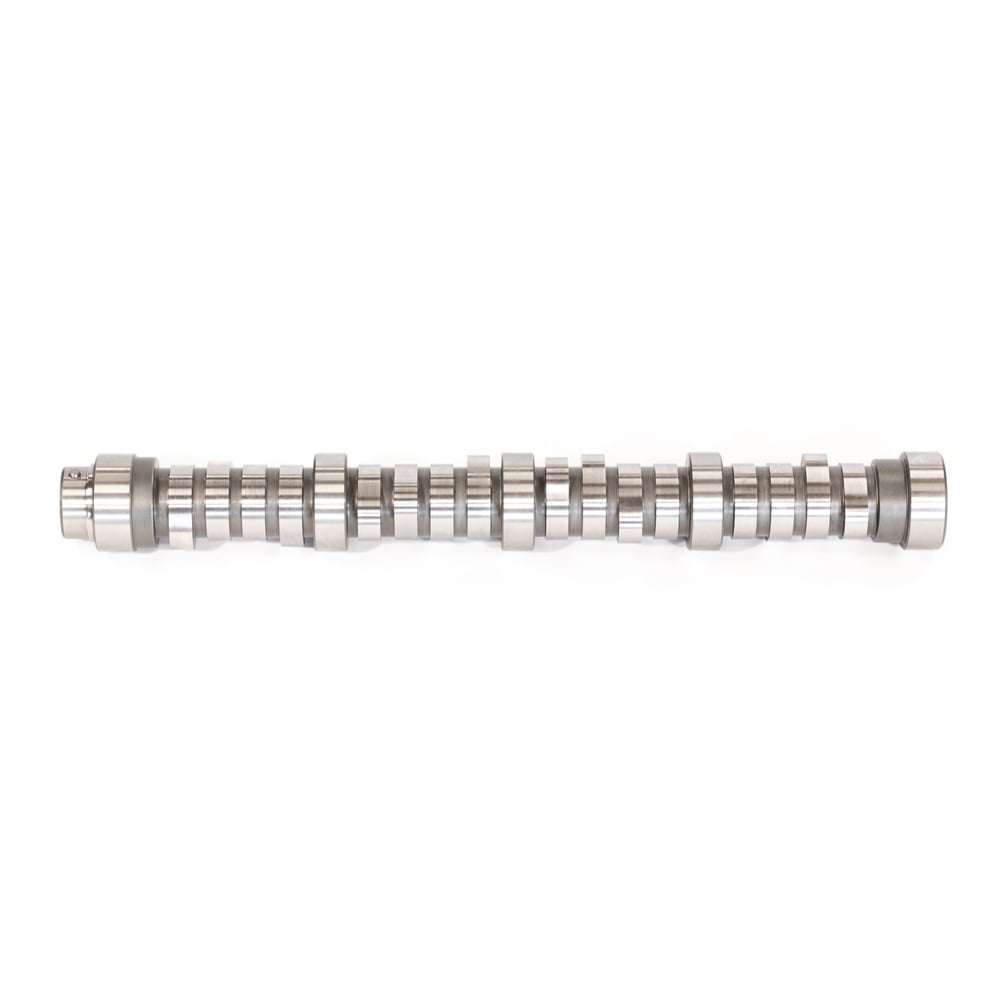

Power Stroke Products Performance Camshaft 03-10 Ford 6.0L / 6.4L Powerstroke
Description
Overview
Unleash the full potential of your 2003-2010 Ford 6.0L/6.4L Powerstroke with the Power Stroke Products Performance Camshaft, available in Stage 1 or Stage 2 to match your performance needs.These camshafts are designed to deliver increased power, lower EGTs, and faster turbo spool-up, ensuring your truck runs stronger and more efficiently.The Stage 1 Camshaft is a drop-in replacement that enhances low-end power and response while reducing exhaust gas temperatures. It's perfect for trucks looking to improve daily drivability, towing performance, and overall efficiency without extensive modifications. With 176/196 duration, 0.355” valve lift intake, and a 107 LSA, this camshaft provides smoother operation and improved throttle response while maintaining reliability.For those demanding higher performance, the Stage 2 Camshaft is built for aggressive applications, delivering maximum power at higher RPM while still keeping EGTs in check. It features a 180/202 duration, 0.378” valve lift intake, and a 107 LSA, making it ideal for modified setups running aftermarket turbos and tuning. This camshaft does require 0.020"-0.025" valve face depth and no more than 0.028" piston protrusion for proper installation.Both camshafts come ready to install and are backed by Power Stroke Products, ensuring reliability and durability for your Powerstroke engine. Whether you're looking for a drop-in performance boost or need a high performance cam for serious horsepower, there's a camshaft to match your build.
CAM SPECS
DURATION @0.050"
CAM LIFT
VALVE LIFT
LSA
STAGE 1 INTAKE
176°
0.254"
0.355"
107
STAGE 1 EXHAUST
196°
0.255"
0.362"
107
STAGE 2 INTAKE
180°
0.270"
0.378"
107
STAGE 2 EXHAUST
202°
0.270"
0.383"
107
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
A performance camshaft for Powerstroke engines, offered in Stage 1 or Stage 2 configurations to match different performance needs.
- Fits
- 2003-2010 Ford 6.0L/6.4L Powerstroke
- Brand
- Power Stroke Products
- Best for
- improving power and turbo response while managing exhaust gas temperatures
- Key features
- Delivers increased power, lower EGTs, and faster turbo spool-up
- Stage 1 is a drop-in replacement enhancing low-end power and response
- Stage 1 reduces exhaust gas temperatures for improved drivability and towing
- Stage 2 delivers maximum power at higher RPM while keeping EGTs in check
- Both stages come ready to install
- Key specs
- Stage 1: 176/196 duration, 0.355" valve lift intake, 107 LSA
- Stage 2: 180/202 duration, 0.378" valve lift intake, 107 LSA
- Important
- Zinc additive required. Clearances should always be checked while performing a cam replacement. Stage 2 requires 0.020"-0.025" valve face depth and no more than 0.028" piston protrusion for proper installation.
IMPORTANT NOTE:
- Zinc additive required.
- While performing a cam replacement, clearances should always be checked!
About Power Stroke Products
When its time to take your Powerstroke to the next level, its time to upgrade with Power Stroke Products' line of engine upgrades. Well known in the industry as the premier source for upgraded cams, springs, and nearly anything you'll find once you pop off your valve covers, you're sure to not be disappointed.
Based out of Bertram, Texas, Power Stroke Products is a Made in the USA company that has a thorough understanding on how to properly build power with reliability in mind. Whether you've got a 7.3 that you're tearing apart and looking for a mild upgrade, or building a high horsepower 6.7, PSP has your back.
