SKU #: PB-HP10677-X
MPN #: HP10677-X

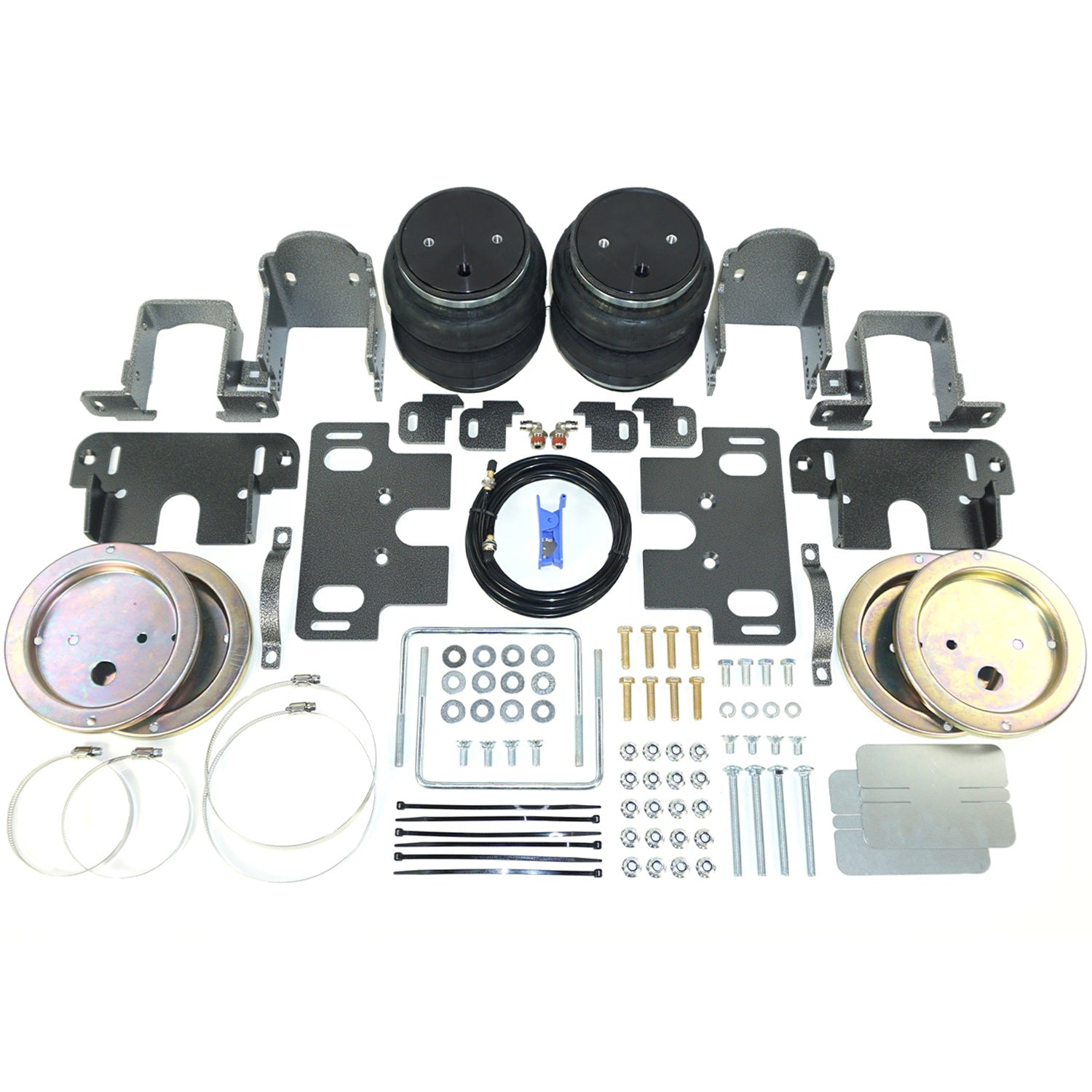

PacBrake Alpha XD 7500 Air Spring Kit 17-26 Ford F250/F350/F450 Superduty
Description
Overview
Did you buy your Ford truck so it can sit pretty in the driveway? You got it to work and haul all the stuff you need for both work and play. Take control of those heavy loads with the Pacbrake HP10677-X ALPHA XD Air Spring Kit. Engineered specifically for 2017-2025 Ford Super Duty trucks, this premium rear air suspension system delivers exceptional load support, improved stability, and a smoother ride whether you're towing a fifth-wheel, hauling a heavy trailer, or carrying a full bed of cargo.
Unlike conventional helper springs, the ALPHA XD system features massive 7-inch double-convoluted air springs with one-piece aluminum end caps and 20 internal support wires for maximum strength and long-term durability. By leveling your truck under load, the system helps reduce rear-end sag, minimize body roll, prevent bottoming out, and improve overall handling while maintaining ride comfort.
Built for Heavy-Duty Towing & Hauling
Factory leaf springs are designed as a compromise between ride comfort and payload capacity. When towing or hauling near your truck's limits, excessive squat and suspension movement can negatively impact steering response, braking performance, and tire wear.
The Pacbrake ALPHA XD Air Spring Kit provides up to 7,500 pounds of load-leveling capacity* to help evenly distribute weight across your suspension while maintaining proper ride height. Whether you're hauling construction equipment, a slide-in camper, horse trailer, toy hauler, or fifth-wheel RV, this system helps keep your Super Duty level and under control.
*Air springs are designed to level loads and do not increase your vehicle's Gross Vehicle Weight Rating (GVWR).
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
The Pacbrake ALPHA XD Air Spring Kit is a rear air suspension system using 7-inch double-convoluted air springs to level loads and improve towing stability.
- Fits
- 2017-2024 Ford F250/F350/F450 Superduty
- Brand
- PacBrake
- Best for
- Heavy-duty towing and hauling
- Key features
- 7" Double Convoluted Bellow Type Air Springs
- CNC Machined Anodized One Piece Aluminum End Caps eliminate potential leakage points
- Air Adjustable from 5 to 100 PSI
- 20 internal support wires for maximum strength and durability
- Key specs
- Up to 7,500 lbs load-leveling capacity
- Max Air Pressure: 180 PSI, working load
- Max Load Pressure at 100 PSI: 2585 lbs (large double convoluted)
- Important
- Will not fit Cab & Chassis models.
FEATURES & BENEFITS:
- 7" Double Convoluted Bellow Type Air Springs
- CNC Machined Anodized One Piece Aluminum End Caps - no installed bushings or fittings, eliminating potential leakage points
- Air Adjustable from 5 to 100 PSI
- Max Air Pressure: 180 PSI, working load
- Max Load Pressure at 100 PSI: 2585 lbs (large double convoluted)
IMPORTANT NOTE:
- Will not fit Cab & Chassis models.
About PacBrake
PACBRAKE EXHAUST BRAKES
Pacbrake is a manufacturing company based out of Langley, British Columbia that began operations in 1961, specializing in exhaust and engine brakes for commercial truckers, loggers, and the military. Today, their expertise still lies on exhaust braking solutions, but it goes well beyond this and into numerous other vehicle upgrades such as air suspension, air compressors, complete air management solutions, and so much more.
PACBRAKE EXHAUST BRAKESDiesel Power Products is proud to offer the complete line of Pacbrake PRXB Exhaust Brakes for Cummins, Duramax and Powerstroke diesels. At the time of their release, the PRXB line of brakes was unlike any other, and still maintains superiority over many alternatives to this day. So what does PRXB mean and how does it work? PRXB stands for "Pressure Release Exhaust Brake." Basically, all exhaust brakes have to release a certain amount of exhaust, otherwise it would cause excessive backpressure to the engine and cause damage. However, PRXB's are unique in that they have a variable release so that as RPM's slow down, so does the release of exhaust, equating to better retarding power at lower RPM's. If you tow with your diesel and don't have an exhaust brake, you're simply missing out on the peace of mind and safety that it delivers. Pacbrake's kits come complete, even torque converter lockup controllers when applicable, exhaust adapters for aftermarket oversized exhaust, and more.
PACBRAKE AIR BAGS & AIR COMPRESSORSWith a name like Pacbrake you would assume that they ONLY make diesel exhaust brakes. That couldn't be farther from the truth. Pacbrake has jumped into the light duty diesel truck market with an innovative product line including AMP series air bags, air suspension, Dodge short shift kits, on board air kits and accessories and their MaxFlow Elbow for 1994-2002 Ram trucks which is based on the same elbow used in the PRXB MaxFlow Exhaust Brake kit. Pacbrake manufactures exhaust brakes for GM Duramax, Ford Powerstroke and Cummins Diesels. Not sure which Pacbrake part is right for you? Give us a call or send us an email, we'll be glad to help!
