What are the key features of the MaxTrac 4" Lift Kit with Fox Shocks 19-23 Ram 6.7L Cummins 4WD?

4" front lift coils with matching MaxTrac shocks; 1.5" rear coil spacers; Rear track and sway bar brackets; Rear radius arm brackets; Fox 2.0 Performance Series rear shocks; Optional 4-Link System with 6082 T-6 aircraft-grade, hot-forged-aluminum arms; Caster adjustment without removal; Chromoly sleeves at the axle end; Spherical rod ends on the bracket end; Brackets from 1/6" plate steel for installation without modifications

What are the specifications of the MaxTrac 4" Lift Kit with Fox Shocks 19-23 Ram 6.7L Cummins 4WD?

4" lift; 1.5" rear coil spacers; 6082 T-6 aluminum arms; 1/6" plate steel brackets

SKU #: MT-K947541F MPN #: K947541F

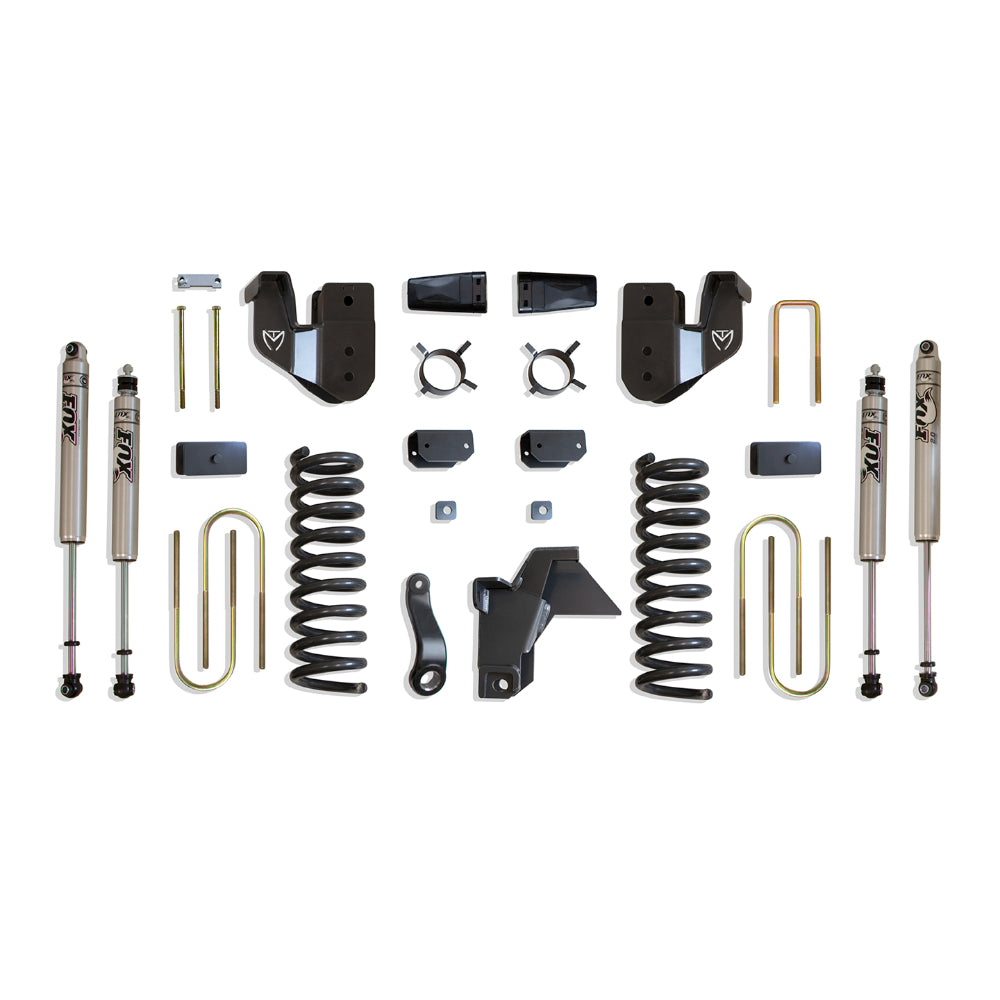

MaxTrac 4" Lift Kit with Fox Shocks 19-23 Ram 6.7L Cummins 4WD

$1,943.99

Get 1943 points in loyalty rewards

MaxTrac 4" Lift Kit with Fox Shocks for 19-23 Ram 6.7L Cummins 4WD

Description Overview

MaxTrac Suspension lift kit, delivers a commanding 4" lift alongside Fox shocks designed for your 4wd Ram truck. Enhance the front of your truck with 4" front lift coils and matching MaxTrac shocks, while the rear benefits from 1.5" coil spacers, track and sway bar brackets, radius arm brackets, and Fox 2.0 Performance Series shocks for comprehensive support. 4-LINK OPTION The MaxTrac 4" Suspension Lift Kit also has the option for their innovative 4-Link System. This cutting-edge Four-Link Arm Kit boasts state-of-the-art 6082 T-6 aircraft-grade, hot-forged-aluminum arms, facilitating caster adjustment without the need for removal. Crafted with precision, the arms feature chromoly sleeves at the axle end and spherical rod ends on the bracket end for unparalleled durability and performance. Engineered from robust 1/6" plate steel, the brackets ensure a seamless installation without requiring any modifications.

4-LINK OPTION

The MaxTrac 4" Suspension Lift Kit also has the option for their innovative 4-Link System. This cutting-edge Four-Link Arm Kit boasts state-of-the-art 6082 T-6 aircraft-grade, hot-forged-aluminum arms, facilitating caster adjustment without the need for removal. Crafted with precision, the arms feature chromoly sleeves at the axle end and spherical rod ends on the bracket end for unparalleled durability and performance. Engineered from robust 1/6" plate steel, the brackets ensure a seamless installation without requiring any modifications.

Vehicle Fitment

2019-2023 Ram 6.7L Cummins 4WD

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

SPECIFICATIONS:

4" Front Lift
1" Rear Lift

TIRE AND WHEELS FITMENT:

Clears up to 35" tires with correct wheel and tire combination
Factory stock wheels and tires bolt back on

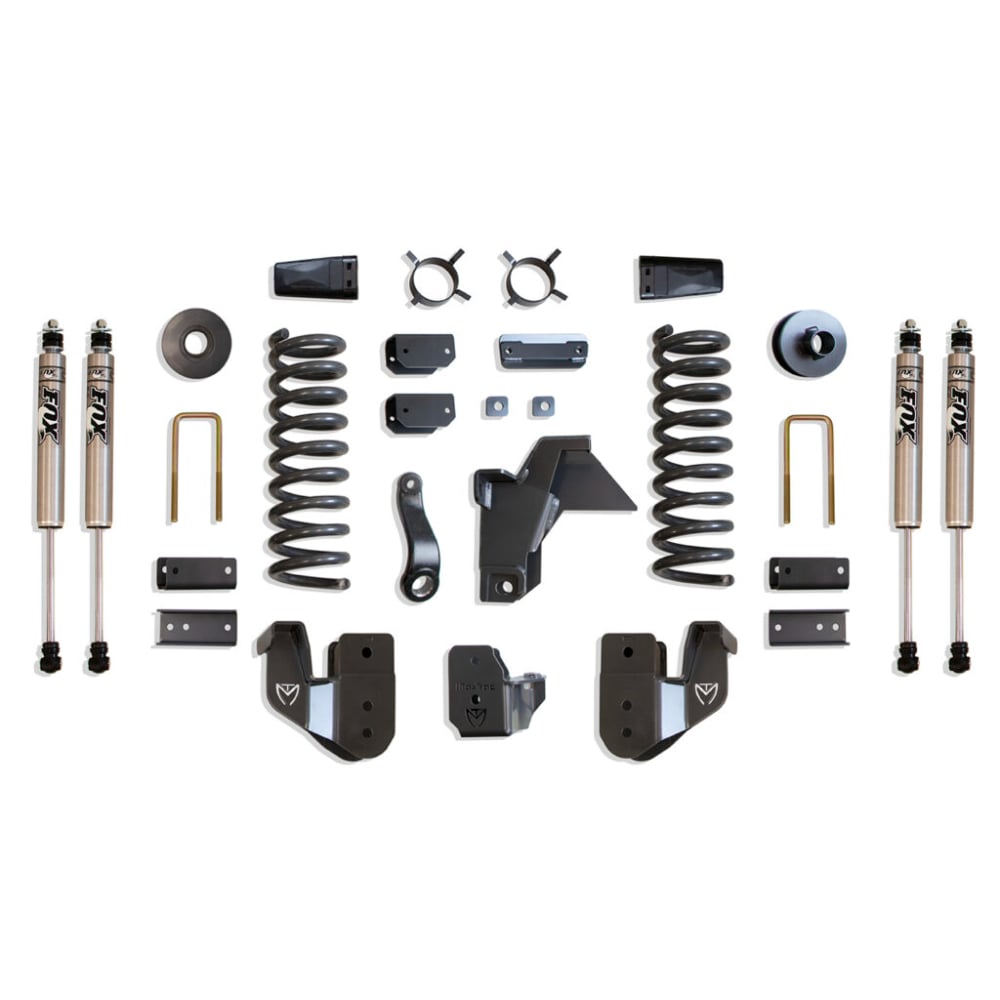

4" KIT WITHOUT 4-LINKS SPECIFICATIONS:

Diesel Coils
Radius Arm Brackets
Trac Bar Bracket
Pitman Arm
Sway Bar Brackets
Bump Stops
Bump Stop Extension
Rear Coil Spacers
Front / Rear Fox 2.0 Performance Series Shocks

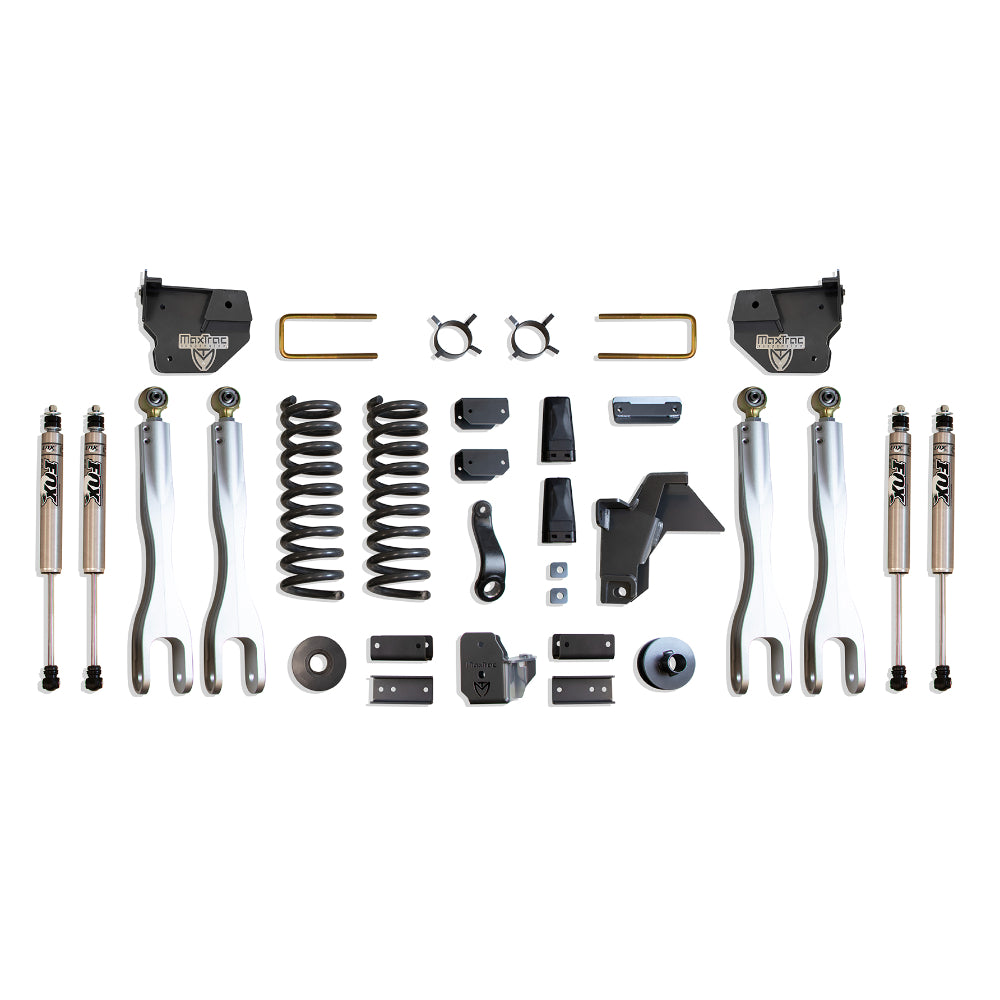

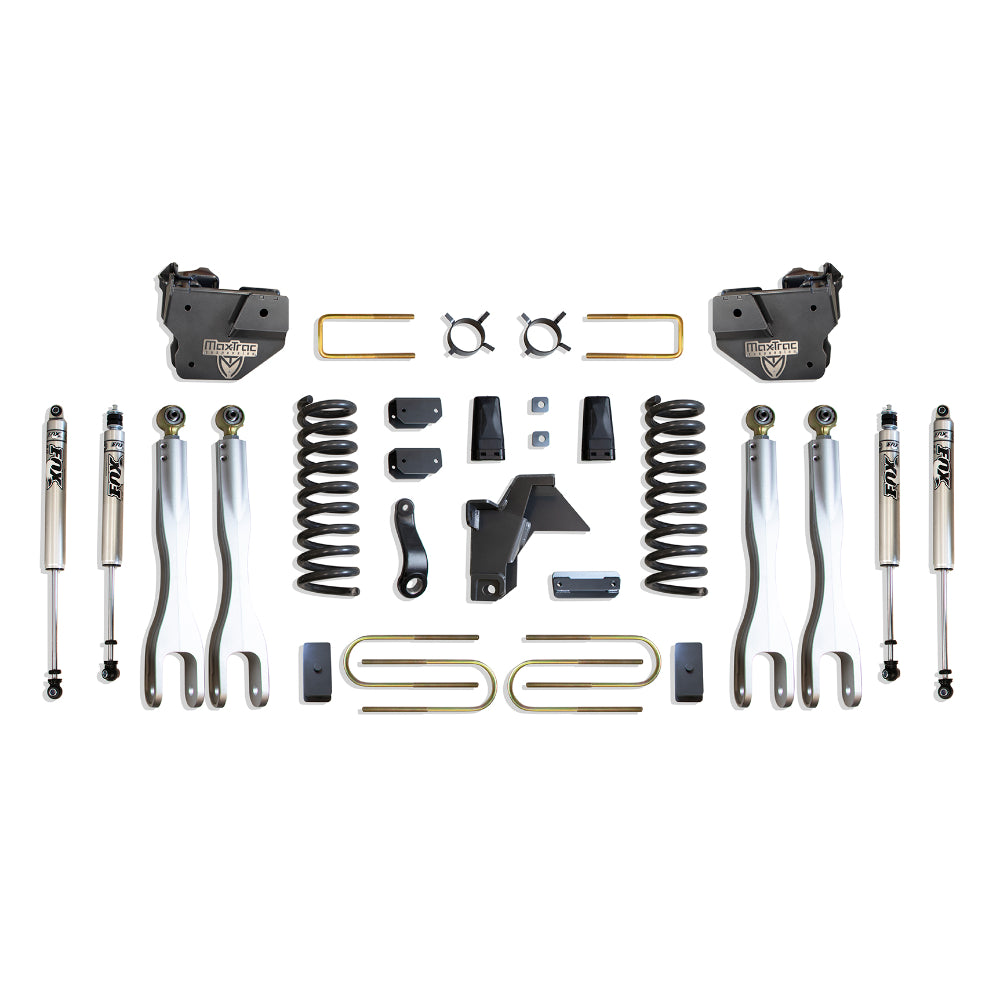

4" KIT WITH 4-LINKS SPECIFICATIONS:

Diesel Coils
Radius Arm Brackets
Trac Bar Bracket
Pitman Arm
Sway Bar Brackets
Bump Stops
Bump Stop Extension
Rear Coil Spacers
Front / Rear Fox 2.0 Performance Series Shocks
Forged Aluminum 4-Links

About MaxTrac Suspension

When you're ready to upgrade the suspension on your truck, Maxtrac should definitely be on your list. Originally founded in 2010 by a team with years of experience, they sought out to offer suspension components and kits unlike anything currently available on the market at a price range that is affordable. Whether you're looking to level or lift, MaxTrac has a kit for you.
