SKU #: KRY-KRFD05STAGE3FOX MPN #: KRFD05STAGE3FOX

Kryptonite Stage 3 Leveling Kit with Fox 2.0 Shocks 05-16 Ford SuperDuty

Name: Kryptonite Stage 3 Leveling Kit with Fox 2.0 Shocks 05-16 Ford SuperDuty
Brand: Kryptonite
Price: 3134.99 USD
Availability: InStock

$3,134.99

Get 3134 points in loyalty rewards

Kryptonite Stage 3 Leveling Kit with Fox 2.0 Shocks for 05-16 Ford SuperDuty

Description

Getting better ride quality isn't a mystery. The key is to have more suspension movement but have it be in a controlled fashion that it doesn't transfer nearly as much shock load into the cab. Better springs, better shocks and proper geometry/alignment are key. Luckily, Kryptonite has put together a solid, no frills, kit that does just that! The 2.5" Stage 3 kit from Kryptonite comes with front coils with a smoother spring rate to help make your front end more compliant. Paired with Fox 2.0 Performance shocks on all 4 corners, your truck now has more room to breathe which will equate into a more planted but plusher ride. With the additional lift height, front bump stop drops are used to make sure that your shocks don't become your final stop. Metal on metal = bad. Metal on rubber = far more comfortable. When trucks are lifted, their alignment and geometry are thrown out. The Ford front end design is actually not all that complicated so getting things back in check is fairly straight forward. The two key areas to correct are the left to right position of the front axle under the truck and the caster angle. Left to right positioning is easily adjusted and fixed with the included adjustable track bar. As for the caster, traditionally, it was corrected with caster cams on the upper ball joint but thanks to Kryptonite’s heavy duty radius arms, caster adjustment can be made with the hexagonal eccentric washers on the lower bolt of the radius arm! This makes alignments a breeze as you don’t have to disassemble the rotating assembly on the truck to make adjustments. Your alignment guy will thank you as it’ll be one of the easiest Ford solid axle alignments he’s ever done. Another plus to the radius arms (aside from being extremely stout!) is that there are accommodations for larger wheels and tires to keep rubbing down to a minimum. The combination of the track bar and radius arm gets your truck back into alignment and gives the front suspension a massive strength upgrade! All of these parts put together give you a 2.5" lift and a better riding truck with more room for larger wheels and tires. You can fit 35x12.5 tires with little to no trimming and possibly 37" with some trimming.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Getting better ride quality isn't a mystery. The key is to have more suspension movement but have it be in a controlled fashion that it doesn't transfer nearly as much shock load into the cab. Better springs, better shocks and proper geometry/alignment are key. Luckily, Kryptonite has put together a solid, no frills, kit that does just that! The 2.5" Stage 3 kit from Kryptonite comes with front coils with a smoother spring rate to help make your front end more compliant. Paired with Fox 2.0 Performance shocks on all 4 corners, your truck now has more room to breathe which will equate into a more planted but plusher ride.

With the additional lift height, front bump stop drops are used to make sure that your shocks don't become your final stop. Metal on metal = bad. Metal on rubber = far more comfortable. When trucks are lifted, their alignment and geometry are thrown out. The Ford front end design is actually not all that complicated so getting things back in check is fairly straight forward. The two key areas to correct are the left to right position of the front axle under the truck and the caster angle. Left to right positioning is easily adjusted and fixed with the included adjustable track bar. As for the caster, traditionally, it was corrected with caster cams on the upper ball joint but thanks to Kryptonite’s heavy duty radius arms, caster adjustment can be made with the hexagonal eccentric washers on the lower bolt of the radius arm! This makes alignments a breeze as you don’t have to disassemble the rotating assembly on the truck to make adjustments. Your alignment guy will thank you as it’ll be one of the easiest Ford solid axle alignments he’s ever done. Another plus to the radius arms (aside from being extremely stout!) is that there are accommodations for larger wheels and tires to keep rubbing down to a minimum. The combination of the track bar and radius arm gets your truck back into alignment and gives the front suspension a massive strength upgrade!

All of these parts put together give you a 2.5" lift and a better riding truck with more room for larger wheels and tires. You can fit 35x12.5 tires with little to no trimming and possibly 37" with some trimming.

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

2005-2016 Ford F-250 / F-350 4x4

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Provides 2.5" of front lift
Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing
Compatible with Larger wheels/tire with minor trimming
Durable Black Finish
Grade 10.9 Hardware
Precision CAD Engineering
Billet Aluminum Spacer
Direct bolt on Install
Made in the USA

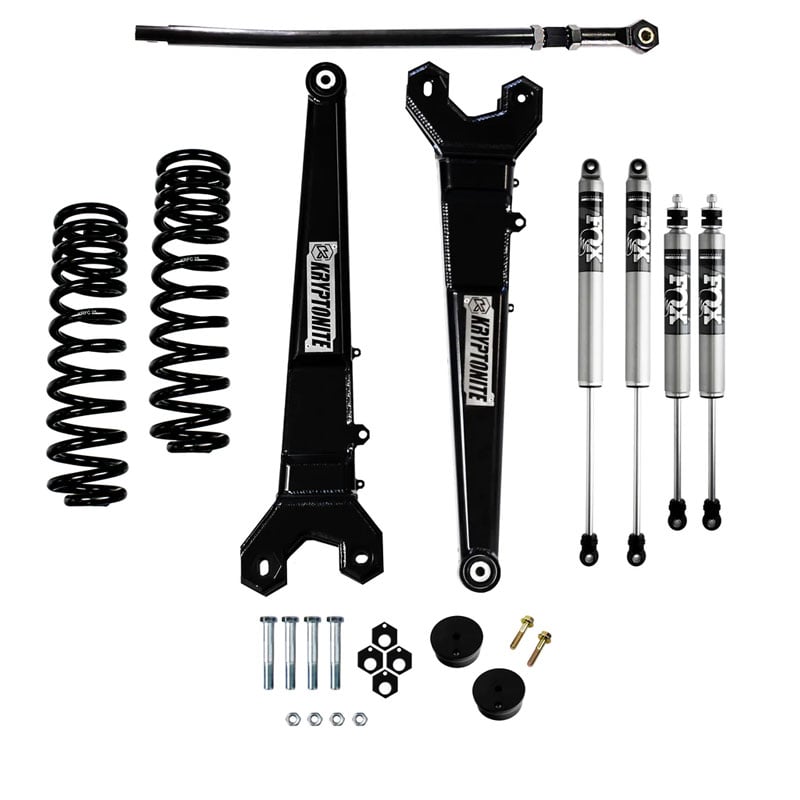

KIT COMPONENTS:

Fox 2.0 Performance Extended Length shocks (4)
Kryptonite Radius arm kit
Bump Stop Spacer Kit
2.5" Leveling Coils
Kryptonite Adjustable Track Bar - KRFTB11

About Kryptonite Products

Are you interested in replacing and upgrading your steering and suspension for the absolute last time with a product that will not only last as long as the rest of your truck, but also improve the suspension and steering feel? Kryptonite products are over-engineered, made in the USA products and most are even backed by a lifetime warranty. The Kryptonite No Fine Print Lifetime Warranty specifically states "Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, lower it, sled pull it, I think you get it? We dont care. If you can break it we will replace it." That's a pretty bold statement and would require a company that builds a solid product to offer it and still be in business.

KRYPTONITE PRODUCTS AND PARTS

Maybe youve heard of Kryptonite, maybe not. For those that have not heard of Kryptonite, they are a steering and suspension manufacturer on a mission to offer the absolute best in steering and suspension options for trucks and even side by sides. Theyve spent years developing and perfecting these components, and all of them are proudly Made in the USA.

KRYPTONITE STEERING

Many would argue that Kryptonite got its foot in the door with their massive steering tie rods for Chevy 2500HD and 3500s, or maybe it was their upper control arms for this application. Maybe so, and wed have to agree they did a fantastic job in creating a bulletproof solution. From these initial proving grounds, Kryptonite has vastly expanded their portfolio in providing steering linkages for Ram and Fords, Lifetime Warranty Wheel Bearings, ball joints, centerlinks, pitman and idler arms, and even complete suspension systems!

Overall, if youre interested in upgrading your steering or suspension, dont think twice about upgrading with Kryptonite. As always, if you have any questions about what kit or component may be right for you and your truck, dont hesitate to contact us.
