What are the key features of the KC Turbos Jetfire Stage 2 Drop-In 64mm Turbo 03-07 Ford 6.0L Powerstroke?

Redesigned lighter single plane point milled billet compressor wheel with extended tips; Upgraded .70ar race compressor cover with drilled hole surge ring for max air flow; Redesigned quick spool turbine wheel with new high flowing vanes; Upgraded 360 degree thrust bearing; 100% drop in ready, no modifications required; Includes new VGT solenoid; Brand new, no core required

What are the specifications of the KC Turbos Jetfire Stage 2 Drop-In 64mm Turbo 03-07 Ford 6.0L Powerstroke?

500 to 615 HP; 64x88mm billet compressor wheel with tips extended to 94mm; 72.5x66mm 10 blade turbine wheel; .70ar race compressor cover; 360 degree thrust bearing

SKU #: KCT-300129 MPN #: 300129

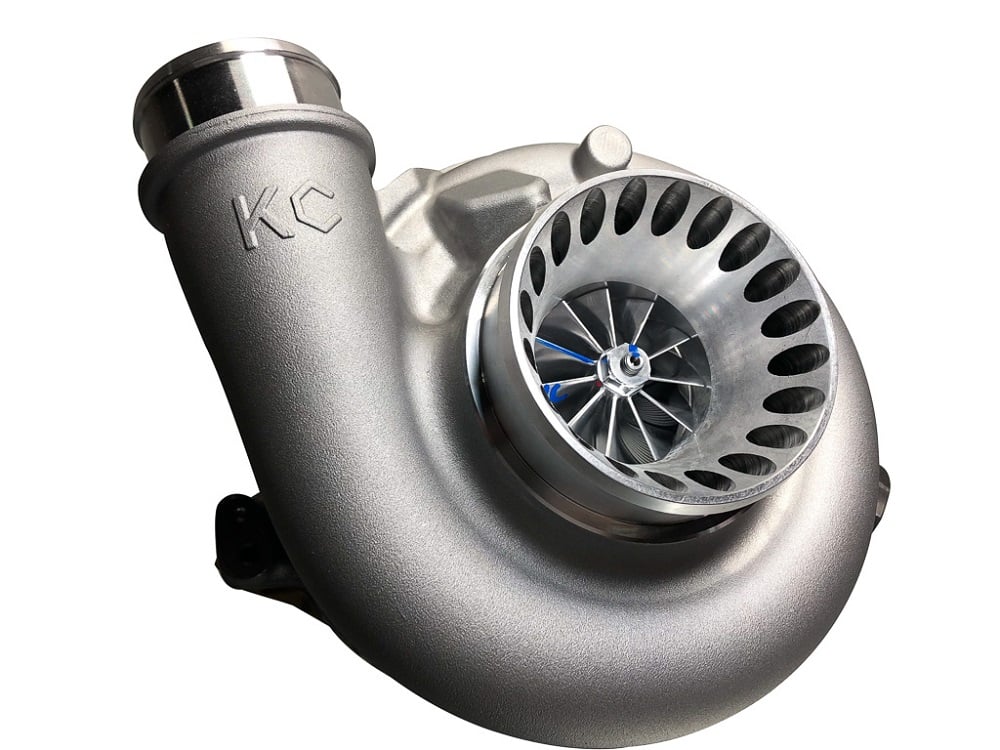

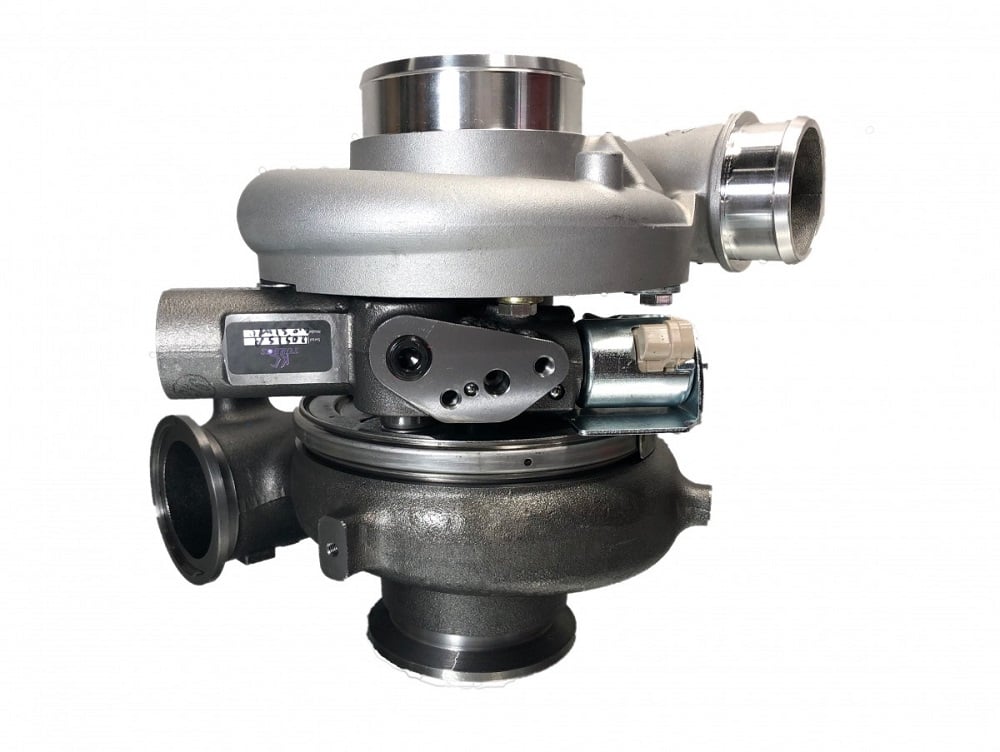

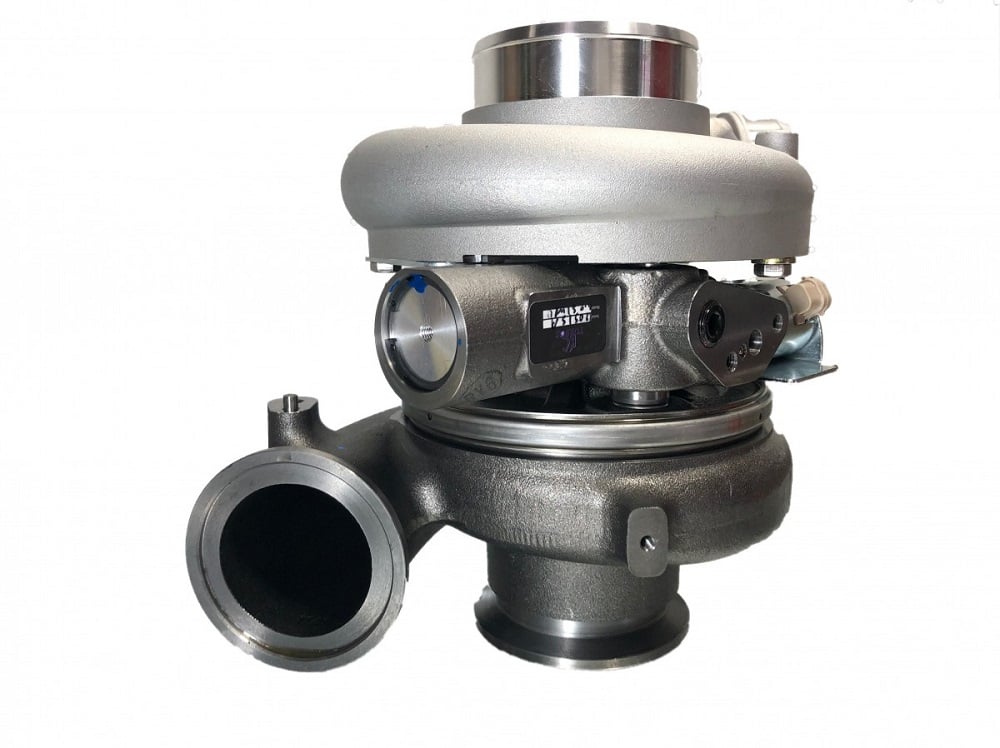

KC Turbos Jetfire Stage 2 Drop-In 64mm Turbo 03-07 Ford 6.0L Powerstroke

$1,790.00

Get 1790 points in loyalty rewards

KC Turbos Jetfire Stage 2 Drop-In 64mm Turbo for 03-07 Ford 6.0L Powerstroke

Description Overview

Whether your existing stock turbo is on its way out or you're just looking for an upgrade to support the larger injectors you've added, the Stage 2 Jetfire from KC Turbos is a great choice! Featuring a larger 64mm billet compressor wheel, 72.5x66mm 10 blade turbine wheel, and upgraded 360 degree thrust bearing, this turbo spools lightning fast and can support 500 to 615 rear wheel horsepower. This KC Jetfire turbo works great on stock injectors, but to fully take advantage of all the extra air flow, KC recommends a 175/30 or 190/30 injector. This is a great turbo for those looking to push the limits of their truck. This turbo is made for those who are looking for more top end power but still want to have the ability to tow max weight. This turbo will tow max weight with ease as long as you watch your temps and keep your rpms up. This turbo has a very loud whistle.

Select Model Year Range

Cover Selection

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

The KC Turbos Jetfire Stage 2 is a drop-in 64mm billet turbo upgrade designed to support 500 to 615 rear wheel horsepower for larger injector setups.

Fits: 2003-2007 Ford 6.0L Powerstroke
Brand: KC Turbos
Best for: Pushing top-end power while still towing max weight
Key features: Redesigned lighter single plane point milled billet compressor wheel with extended tips
Upgraded .70ar race compressor cover with drilled hole surge ring for max air flow
Redesigned quick spool turbine wheel with new high flowing vanes
Upgraded 360 degree thrust bearing
100% drop in ready, no modifications required
Includes new VGT solenoid
Brand new, no core required
Key specs: 500 to 615 HP
64x88mm billet compressor wheel with tips extended to 94mm
72.5x66mm 10 blade turbine wheel
.70ar race compressor cover
360 degree thrust bearing
Important: Brand new! NO CORE Required.

Whether your existing stock turbo is on its way out or you're just looking for an upgrade to support the larger injectors you've added, the Stage 2 Jetfire from KC Turbos is a great choice! Featuring a larger 64mm billet compressor wheel, 72.5x66mm 10 blade turbine wheel, and upgraded 360 degree thrust bearing, this turbo spools lightning fast and can support 500 to 615 rear wheel horsepower.

This KC Jetfire turbo works great on stock injectors, but to fully take advantage of all the extra air flow, KC recommends a 175/30 or 190/30 injector. This is a great turbo for those looking to push the limits of their truck. This turbo is made for those who are looking for more top end power but still want to have the ability to tow max weight. This turbo will tow max weight with ease as long as you watch your temps and keep your rpms up. This turbo has a very loud whistle.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

2003-2007 Ford 6.0L Powerstroke

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

COMPATIBLE INJECTOR SIZES:

Recommended Injector Size: 175cc / 30% Nozzle
Maximum Injector Size: 190cc / 30% Over Nozzle
Minimum Injector Size: 155cc / 30% Over Nozzle

FEATURES & BENEFITS:

500 to 615 HP
Our redesigned lighter 64x88mm single plane point milled billet wheel with extended tips to 94mm
Upgraded .70ar race compressor cover with our signature drilled hole surge ring for maximum air flow
Our redesigned 72.5x66 10 blade quick spool turbine wheel
New high flowing vanes
Upgraded 360 thrust bearing
100% drop in ready (no modifications required)
New VGT solenoid
Brand new! NO CORE Required

About KC Turbos

KC Turbos, located in Apache Junction, Arizona, is a family owned and operated company well known for their premium performance turbo upgrades for Ford Powerstrokes. Their determination to build nothiing but the best product that delivers optimum performance for nearly any power range of Ford Diesel has helped them to earn a great reputation with their customers.

Whether you have a 7.3L with a worn out turbo and you wouldn't mind a little bump in power, a hot rod 6.0 and want to upgrade with a KC Jetfire drop-in charger, or just looking for some components to upgrade your existing turbo, KC Turbo has you covered.

As always, if you have any questions about what upgrade is right for you and your truck, don't hesitate to give us a call or send an e-mail to cs@dieselpowerproducts.com and we would be happy to help.
