SKU #: FSD-CU-0309-ACRLC-KT MPN #: FSD-CU-0309-ACRLC-KT

Full Send Diesel A/C Receiver Dryer Relocation Kit 03-09 Dodge Ram 5.9/6.7L Cummins

$384.99
Get 384 points in loyalty rewards
Description

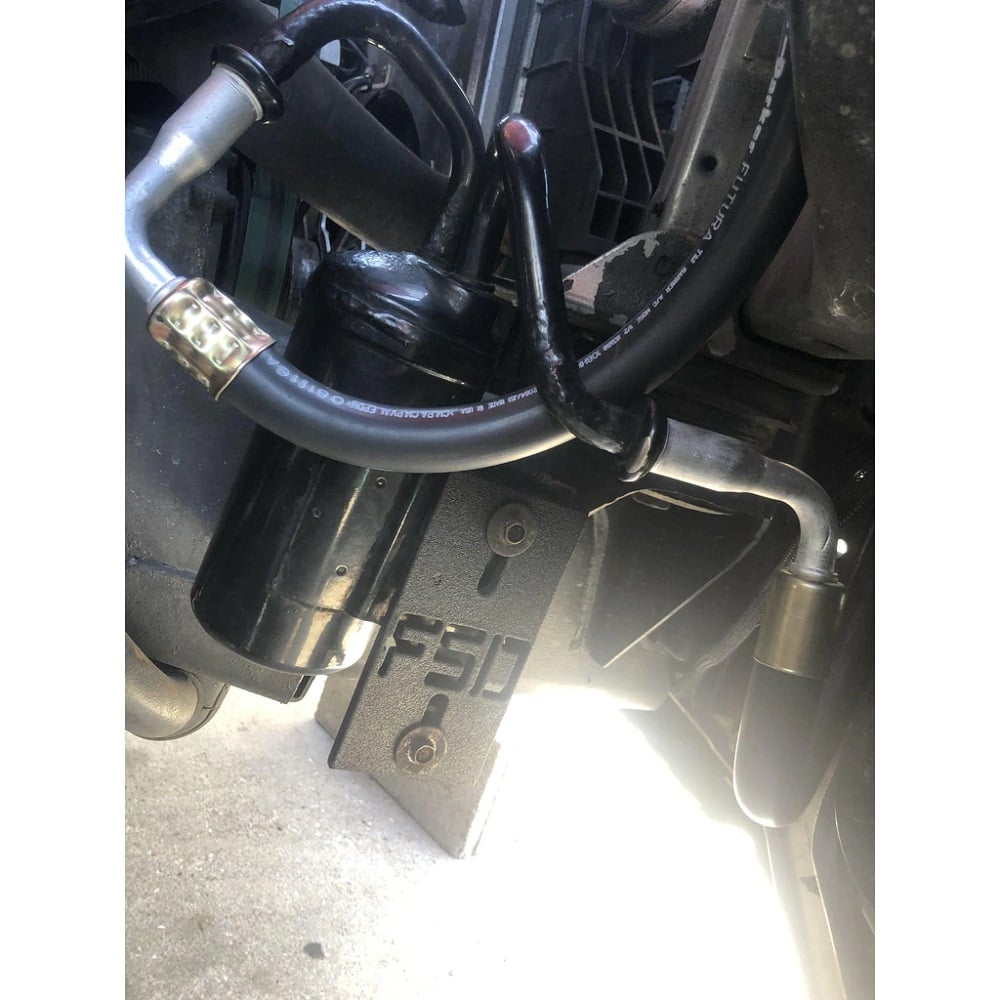

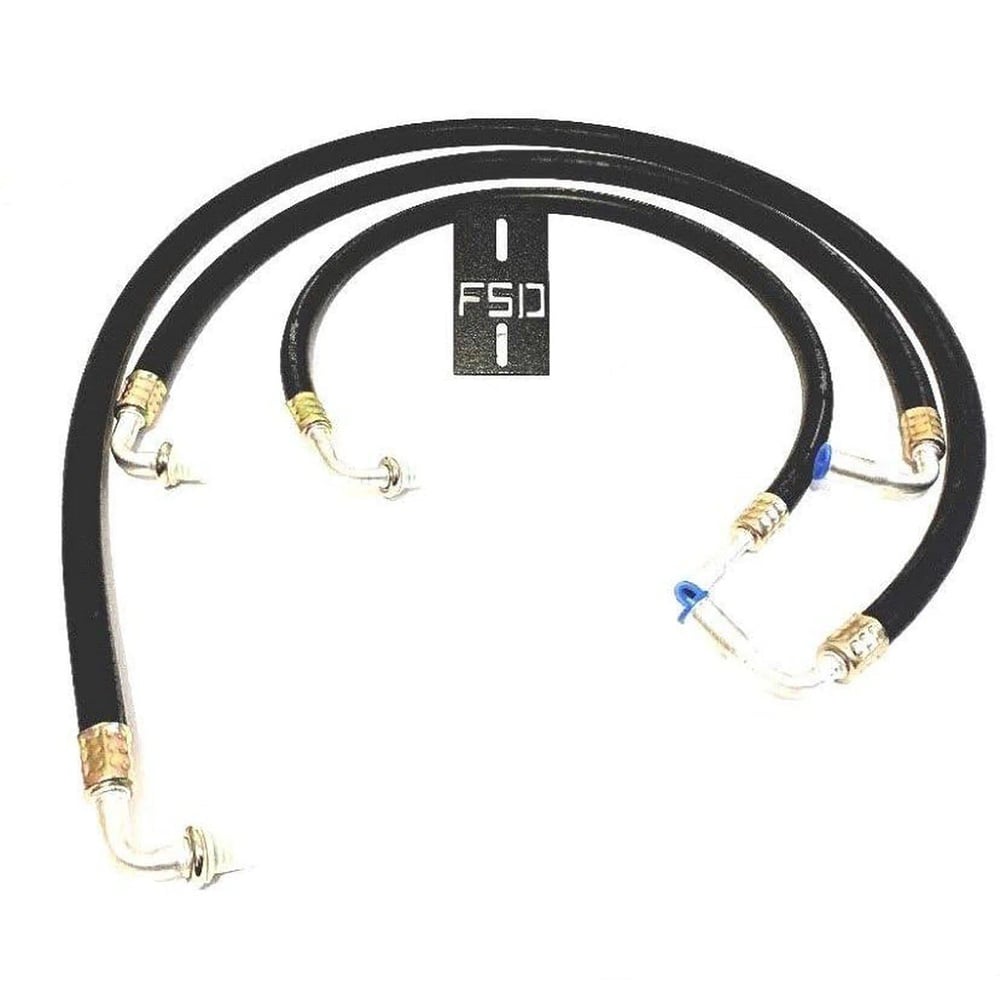

Clean up your engine bay and add additional space for larger or compound turbo setups with this A/C Dryer Relocation Kit from Full Send Diesel. This kit comes with all of the hoses and the bracket needed to move your AC receiver dryer from under the hood to the front passenger side frame rail. Not only will this give your truck a much nicer appearance under the hood, but makes additional room so you do not have to delete your AC when running an aftermarket turbo setup. This kit is plug and play and uses all of the factory hoses except the smaller hose that connects to the fire wall that has the office tube inside. Another perk of this kit is the serviceable office tube. If your A/C system gets contaminated and the office tube gets clogged, your A/C will not function properly or at all. Normally you would need to replace your factory A/C line that has the non removable office tube inside, this kit comes apart so if you ever needed to, you could change the office tube which is a $12 part instead of spending much more on a whole new line. To install this kit you will need to drill 2 small holes into the support bracket that comes off your frame to mount the dryer bracket to. Mounting hardware is NOT supplied.

Enter your zip and we'll see if installation is available.

  • Request quotes from local installers at checkout
  • Compare options and choose the best fit for your install

Clean up your engine bay and add additional space for larger or compound turbo setups with this A/C Dryer Relocation Kit from Full Send Diesel. This kit comes with all of the hoses and the bracket needed to move your AC receiver dryer from under the hood to the front passenger side frame rail. Not only will this give your truck a much nicer appearance under the hood, but makes additional room so you do not have to delete your AC when running an aftermarket turbo setup. This kit is plug and play and uses all of the factory hoses except the smaller hose that connects to the fire wall that has the office tube inside. Another perk of this kit is the serviceable office tube. If your A/C system gets contaminated and the office tube gets clogged, your A/C will not function properly or at all. Normally you would need to replace your factory A/C line that has the non removable office tube inside, this kit comes apart so if you ever needed to, you could change the office tube which is a $12 part instead of spending much more on a whole new line. To install this kit you will need to drill 2 small holes into the support bracket that comes off your frame to mount the dryer bracket to. Mounting hardware is NOT supplied.

Vehicle Fitment
2003-2009 Dodge Ram 5.9L / 6.7L Cummins
WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov
FEATURES & BENEFITS:
  • Made In the USA
  • Lifetime Warranty
  • CNC Cut & Powdercoated Mounting Bracket Made From American Steel
  • Extra durable double barrier AC hose
About Full Send Diesel

Full Send Diesel strives to provide the highest quality performance parts to you, with the best prices and fast shipping. They know that when a customer wants something, they want it fast and they can provide just that.

Full Send Diesel LLC was founded by Hailey and Kevin Kubinak in late 2018. Originally started by making a dual cp3 splitter for his dual cp3 kit. Everything took off after that and the idea of making prebuilt AN Line kits for the diesel performance industry would be a great place to start. Since then Full Send Diesel has created several innovative AN Line kits and other hardware that many diesel performance owners asked for.

Overall rating: 3.0 / 5 from 1 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

FULL SEND DIESEL A/C RECEIVER DRYER RELOCATION KIT 03-09 DODGE RAM 5. 9/6. 7L CUMMINS

"The lines are entirely too long. The purpose of opening up space to relocate the dryer is cancelled out by how much hose is coiled around the engine bay. FSD needs to go back to the drawing board to take time and provide a proper length"

Joel (3/5)
