"I like the solid metal top to it. My return line port snapped off my old stock sending unit. Way better than the plastic junk that came on my truck."
Cummins
Shop All
Quick Ship
SKU #: FPE-SF-CUMM-9802
MPN #: FPE-SF-CUMM-9802

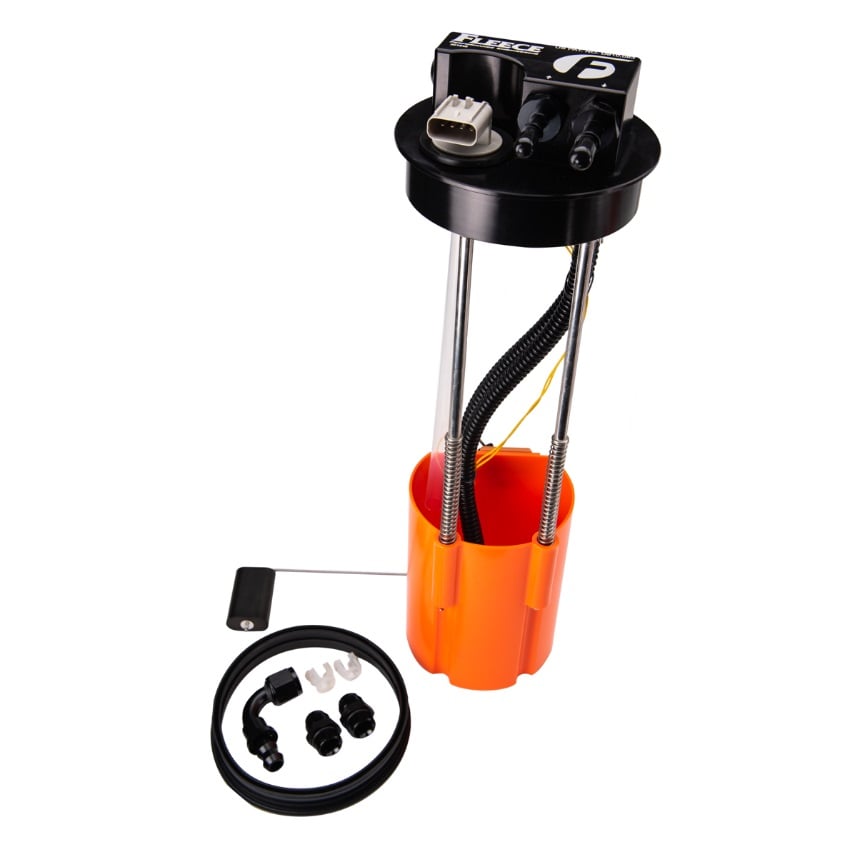

Fleece Performance SureFlo Performance Fuel Tank Sending Unit 98-02 Dodge 5.9L Cummins 12/24 Valve
Description
The 2nd Gen Cummins originally came equipped with a fuel lift pump mounted in the engine bay. Later Dodge or Cummins, whomever you want to blame, realized this was a bad idea and began retrofitting trucks once their lift pump failed to an in-tank pump in which the lift pump was built into the basket assembly. Okay, so this was better, but for anyone that either wanted even better than this, or their engine demanded anything more than factory fueling levels, this in-tank conversion made upgrading to an aftermarket lift pump quite the chore. Once retrofitted, you had a couple of options to retrieve fuel from the tank. First, you could install what is commonly referred to as a "draw-straw" in which you drill a hole in the top of your tank and install a bulkhead fitting with a tube that goes into your tank. Unfortunately, for many, this resulted in what's known as "1/4 tank issues" where the straw is unable to pull fuel from the tank once fuel levels dipped below 1/4 of a tank. Secondly, you could install a sump where you're required to remove all fuel from your tank and install basically a bowl on the bottom of your tank and fuel is drawn from the lowest point on the tank. While this is great in order to simplify the process and eliminate these 1/4 tank issues, they're troublesome to install, prone to leaking if not sealed properly, and require a hose to run along the bottom of your tank.Fleece Performance sought to rectify all of these issues created by having an in-tank pump, and they have, with their SureFlo Performance Sending Units! SureFlo performance sending units are designed to work with aftermarket lift pumps and fits directly into your stock sending unit location. It features factory style quick disconnects to adapt your stock fuel lines at the tank, giving you the cleanest installation available, and requiring no cutting or drilling of the tank. SureFlo works by drawing fuel from, and returning fuel to, the bucket assembly at the base of the unit. This ensures you are always drawing fuel into your pump and not drawing air into the fuel system as well as eliminates the dreaded 1/4 tank problems. The SureFlo bucket also incorporates one way check valves to allow fuel to easily flow in at lower levels.Fleece SureFlo performance sending units are also a great alternative for trucks originally equipped without an in tank pump needing to repair a malfunctioning level sender or if you are simply looking to run your own custom fuel lines directly to the tank.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- OEM style fitment that requires no tank cutting or drilling
- New fuel level electronics and fuel float
- Heavy duty billet aluminum cap
- Universal -8 AN ports for professionally plumbing a custom fuel setup
- New O-ring or flange seal
IMPORTANT NOTE:
- This is not a fuel pump, it is only the sending unit that installs into your fuel tank.
About Fleece Performance Engineering
Browse Fleece Performance Engineering Parts Online by Make, Model, and Year.
Fleece Performance Engineering is a customer-centric diesel performance company that specializes in the development and manufacturing of innovative and extremely forward-thinking products to improve upon the performance and reliability of your Cummins, Duramax, or Powerstroke. Originally operating from a shop on their family farm, they have now grown to a full-scale operation that excels in air and fuel-related components for light-duty diesel. A continuous focus on product quality and the creation of new design principles before the competition is what keeps Fleece Performance growing by leaps and bounds year after year and at the forefront of the winners circle. Many know Fleece for its line of Cheetah Turbos, PowerFlo Lift Pumps, and 10mm Stroker Pumps, but it goes far beyond! From the simple, yet widely popular exhaust manifold stud kits that eliminate the troublesome factory manifold hardware to full-blown race engines via their Freedom Racing Engines division, they are truly a "one-stop shop!" And no, Fleece isn't "just" for the hot rod diesel market, they've got kits and components for every level of diesel truck owner.
TIMELINE OF FLEECE PERFORMANCE ENGINEERING:- 2008: Fleece Performance Engineering was established in North Salem, IN by Brayden and Chase Fleece. Both had a passion for continuously innovating and improving upon products already on the market. Brayden's 2004.5 LLY Duramax became the test bed to develop the TurboBrake and Duramax Cheetah, while Chase's 2002 Cummins was one of the first Cummins pickups to integrate an Allison Transmission.
- 2012: Fleece Performance upgrades both facility and location by relocating to Nitro Alley in Brownsburg, IN situated among some of the top racing leaders in the world.
- 2014: Fleece Performance acquires the area's premier engine machine shop, Freedom Racing Engines. The acquisition enables Fleece Performance to expand the engine development program and product offerings. Today, Fleece Performance and Freedom Racing Engines build some of the most competitive engines in the industry.
- 2018: Fleece Performance breaks ground on a new 75,000 sq. ft. facililty in Pittsboro, IN.
- 2019: Fleece Performance and Freedom Racing Engines relocates to its new facility in Pittsboro, IN. The all new headquarters provides additional space for product development, production and work areas, assembly and testing, a larger warehouse, as well as four engine dynamometers, and two-story office space.
- 2020: Fleece Performance receives ISO9001:2015 Certification.
- 2021: Fleece Performance Engineering was voted as one of the Best Places to Work in Indiana by the Indiana Chamber of Commerce.
- 2022: Fleece Performance Engineering was voted again as one of the Best Places to Work in Indiana by the Indiana Chamber of Commerce.
As always, if you have any questions about which Fleece turbo, fuel, engine, or other product is right for you, do not hesitate to give us a call and we would be happy to assist.
Video
Diesel Talk | Fleece Sureflo In-Tank Sending Unit
Many people are still modifying and keeping older diesel trucks on the road. Lots of these trucks have aftermarket frame-mounted lift pumps but the in-tank sending units have bitten the dust. Replace an aging part with the SureFlo from Fleece Performance Engineering and keep your truck on the road and performing for years to come.
Video
This Is How We Do It | Fleece Sureflo Fuel Tank Sending Unit
The Fleece Performance SureFlo is a comprehensive kit which makes for an easy install on your truck. Your aging sending unit can cause an incorrect fuel level reading and may not be able to physically flow as much fuel as your stock or aftermarket lift pump demands. Check out this install overview and let us know if you have any questions!
Blog
June 02, 2026
Your 5.9 Cummins will tell you the lift pump is starting to go before it stops working...
Read More5.9L Cummins Lift Pump Failure Symptoms Guide
February 24, 2026
A CP4 pump is a high-pressure fuel injection pump used in many common rail diesel engines. Its...
Read MoreWhat is a CP4 Pump? Diesel Fuel Pump Explained
February 02, 2026
If you own a diesel truck long enough, you learn this the hard way: fuel quality matters....
Read MoreBest Diesel Fuel Additive for Performance & Protection
January 28, 2026
Diesel trucks are built for durability, torque, and long service life, but when one refuses to start,...
Read MoreWhat to Do If Your Truck Won’t Start: Step-by-Step for First-Time Diesel Owners
Overall rating: 5.0 / 5 from 4 reviews.
AI Generated Review Summary
Summary topics
Review topics: [].
Review highlights
Reviews
Fixed my fuel pressure and
"Fixed my fuel pressure and 1/4 tank issues completely. Amazing build quality, easy to install. Great instructions"
WOW!!!!
"I chose to go this way after SOOO many problems with the sump. After time with the sump, the area that is drilled out starts to sag and fuel slowly leaks. I saw this in tank sending unit and thought it'd be the cure. Surely it is 100%! I have ran a tank of fuel damn near to fumes just to make sure that there were zero issues with pulling fuel and it performed flawlessly. I have NEVER had any issues with my FASS pulling fuel with this sending unit. ALWAYS remember to change the gasket when doing this job, so you don't need to drop the tank twice. Made of quality parts/engineering and WELL worth the money spent! Highly recommend!!!"
Excellent
"I am finally really happy with it. . . . works perfectly. Thanks"
Q&A
- Will this kit bypass the pump on the block or do you still need to have an aftermarket fass pump?
- This functions as a direct drop in replacement to the factory sending unit, and should require no other changes.
- Can you adapt this to a air dog aftermarket water and fuel seperator
- Yes this kit is designed to be used either with the stock fuel lines or aftermarket 1/2" pushlok fittings for a Fass/Airdog.
