SKU #: FPE-PF-CUMM-9197 MPN #: FPE-PF-CUMM-9197

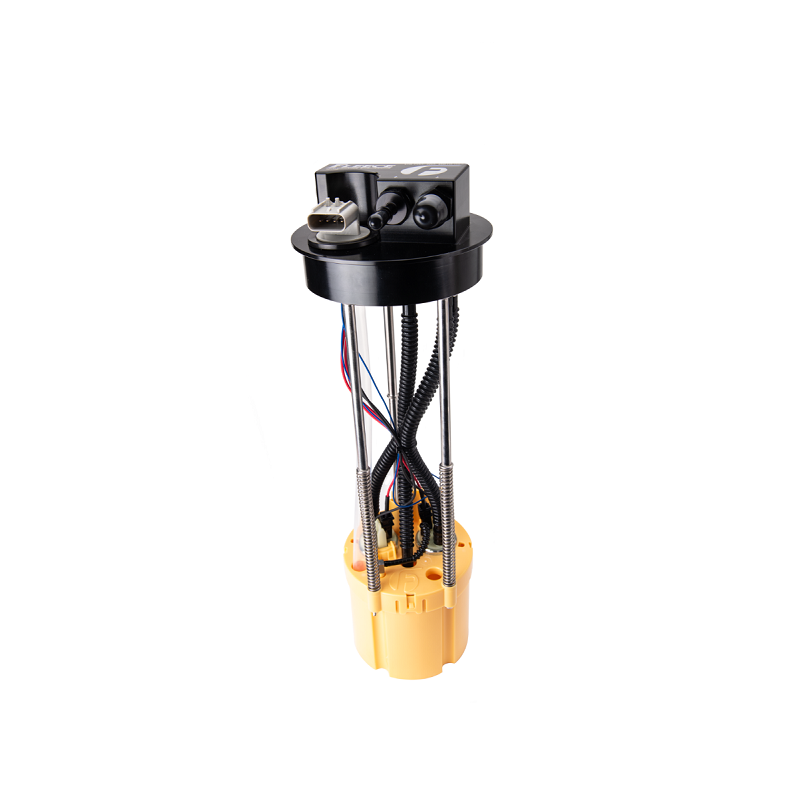

Fleece Performance PowerFlo Lift Pump In-Tank Pump Assembly 91-97 Dodge Ram 5.9L Cummins 12 Valve

Name: Fleece Performance PowerFlo Lift Pump In-Tank Pump Assembly 91-97 Dodge Ram 5.9L Cummins 12 Valve
Brand: Fleece Performance Engineering
Price: 889.0 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$889.00

Get 889 points in loyalty rewards

Fleece Performance PowerFlo Lift Pump In-Tank Pump Assembly for 91-97 Dodge Ram 5.9L Cummins 12 Valve

Description

Sure, there are a lot of fuel pump options out there for your 12 Valve Cummins. But, have you ever wondered, can't there be a better option than a frame mounted pump and a pickup tube that can lead to quarter tank issues? Why can't someone just build a better lift pump that just mounts in the stock tank? Well, that time has come, introducing the PowerFlo Lift Pump from Fleece Performance Engineering.No more noisy lift pumps, cutting holes in your fuel tank, or quarter tank issues. Fleece's drop-in lift pump allows for silent operation, utilizes the factory connections for an easy installation and its active fill bucket technology eliminates the need for a draw straw or tank sump. The PowerFlo Lift Pump operates with two OEM quality gerotor pumps that have surpassed 12,000 hours of durability testing and are capable of supporting 800+ RWHP.The PowerFLo Lift Pump comes with everything you need to properly route, plump, pump and filter your fuel on your 12 valve engine. It is also backed by a limited LIFETIME WARRANTY!DIRECT OEM IN-TANK REPLACEMENT:The PowerFlo Lift Pump requires no drilling, cutting, or sumps to cut into your fuel tank and installs in less than half the time of other high flow lift pumps.DUAL GEROTOR:Two is always better than one, and the PowerFlo delivers with two OEM quality gerotor pumps, increasing flow capacity and reliability over the factory pump. Capable of supporting up to 800 hp.SEAMLESS INTEGRATION:The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the 1/4 tank issues typically encountered when seeking a higher flow lift pump to meet your engine's need.IMPORTANT NOTE:Verify your existing MOPAR sending unit part number is listed in the table below. If your part number is not shown, then it is not verified to fit. Many trucks have been retrofitted over time to gasoline model tanks and the SureFlo will not fit into a retrofitted tank configuration. MODEL YEAR REPLACES MOPAR P/N PREVIOUSLY SUPERSEDED P/N'S FUEL TANK SIZE 1991 52018309 52004838, 52004937 30 GALLON 1992 52018309 52004838, 52004937 30 GALLON 1993 52018309 52004838, 52004937 30 GALLON 1994 4864735 R4864735, 4864735 35 GALLON 1995 4864209 04798293, 52102024, 52127802, R4864209, 4864209 35 GALLON 1996 4798671 04798293, 52102024, 52127802, R4864209, 4864209 35 GALLON 1997 4798671 04798293, 52102024, 52127802, R4864209, 4864209 35 GALLON 1998 4897668AD 0489766AD, 489766AE 26, 34, 35 GALLON

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Sure, there are a lot of fuel pump options out there for your 12 Valve Cummins. But, have you ever wondered, can't there be a better option than a frame mounted pump and a pickup tube that can lead to quarter tank issues? Why can't someone just build a better lift pump that just mounts in the stock tank? Well, that time has come, introducing the PowerFlo Lift Pump from Fleece Performance Engineering.

No more noisy lift pumps, cutting holes in your fuel tank, or quarter tank issues. Fleece's drop-in lift pump allows for silent operation, utilizes the factory connections for an easy installation and its active fill bucket technology eliminates the need for a draw straw or tank sump. The PowerFlo Lift Pump operates with two OEM quality gerotor pumps that have surpassed 12,000 hours of durability testing and are capable of supporting 800+ RWHP.

The PowerFLo Lift Pump comes with everything you need to properly route, plump, pump and filter your fuel on your 12 valve engine. It is also backed by a limited LIFETIME WARRANTY!

DIRECT OEM IN-TANK REPLACEMENT:
The PowerFlo Lift Pump requires no drilling, cutting, or sumps to cut into your fuel tank and installs in less than half the time of other high flow lift pumps.

DUAL GEROTOR:
Two is always better than one, and the PowerFlo delivers with two OEM quality gerotor pumps, increasing flow capacity and reliability over the factory pump. Capable of supporting up to 800 hp.

SEAMLESS INTEGRATION:
The active fill bucket eliminates the need for tank sumps, draw straws, additional air filtration, and the 1/4 tank issues typically encountered when seeking a higher flow lift pump to meet your engine's need.

IMPORTANT NOTE:

Verify your existing MOPAR sending unit part number is listed in the table below. If your part number is not shown, then it is not verified to fit. Many trucks have been retrofitted over time to gasoline model tanks and the SureFlo will not fit into a retrofitted tank configuration.

MODEL YEAR	REPLACES MOPAR P/N	PREVIOUSLY SUPERSEDED P/N'S	FUEL TANK SIZE
1991	52018309	52004838, 52004937	30 GALLON
1992	52018309	52004838, 52004937	30 GALLON
1993	52018309	52004838, 52004937	30 GALLON
1994	4864735	R4864735, 4864735	35 GALLON
1995	4864209	04798293, 52102024, 52127802, R4864209, 4864209	35 GALLON
1996	4798671	04798293, 52102024, 52127802, R4864209, 4864209	35 GALLON
1997	4798671	04798293, 52102024, 52127802, R4864209, 4864209	35 GALLON
1998	4897668AD	0489766AD, 489766AE	26, 34, 35 GALLON

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Manuals and Guides

INSTALL INSTRUCTIONS

Vehicle Fitment

1991-1997 Dodge 5.9L Cummins 12 Valve

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Regulated Return Flow Eliminates Over Pressure Situations

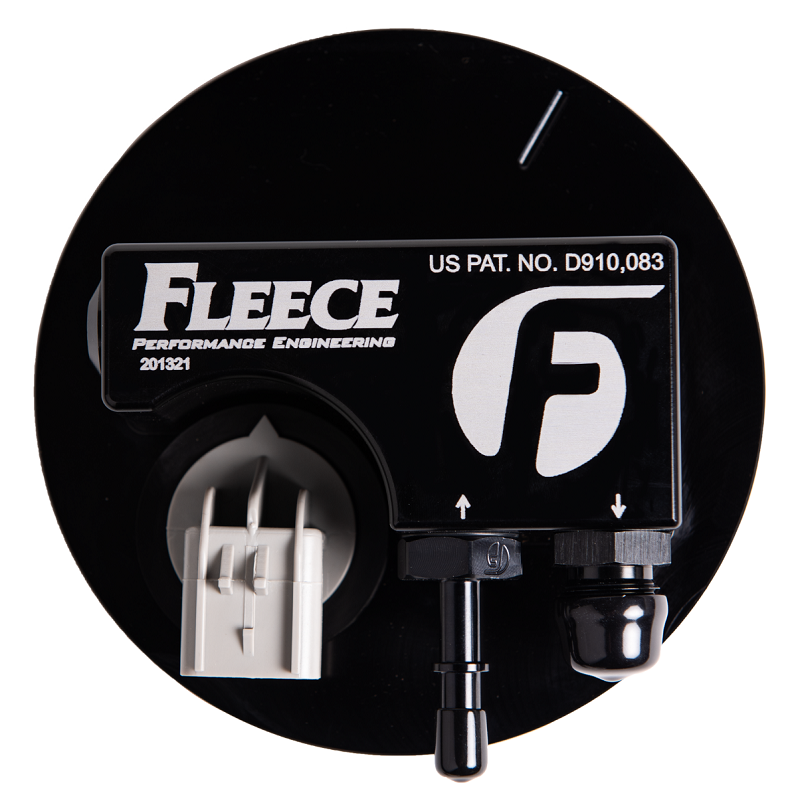

Utilizes AN and Barb Fittings For Quick and Reliable Installation

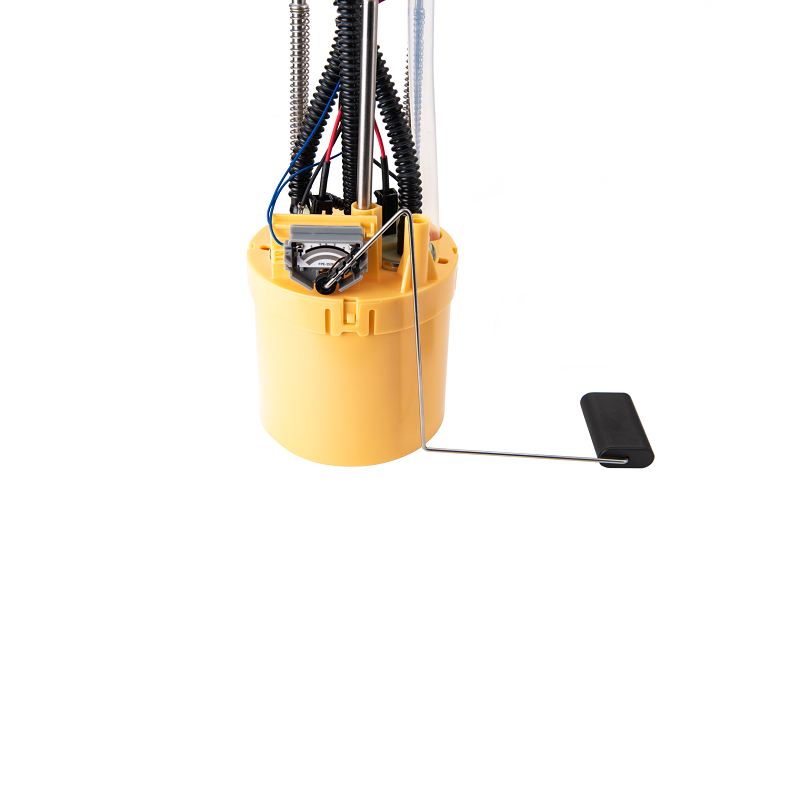

Float and Level Sending Unit Properly Scaled For Accurate Fuel Level Readings

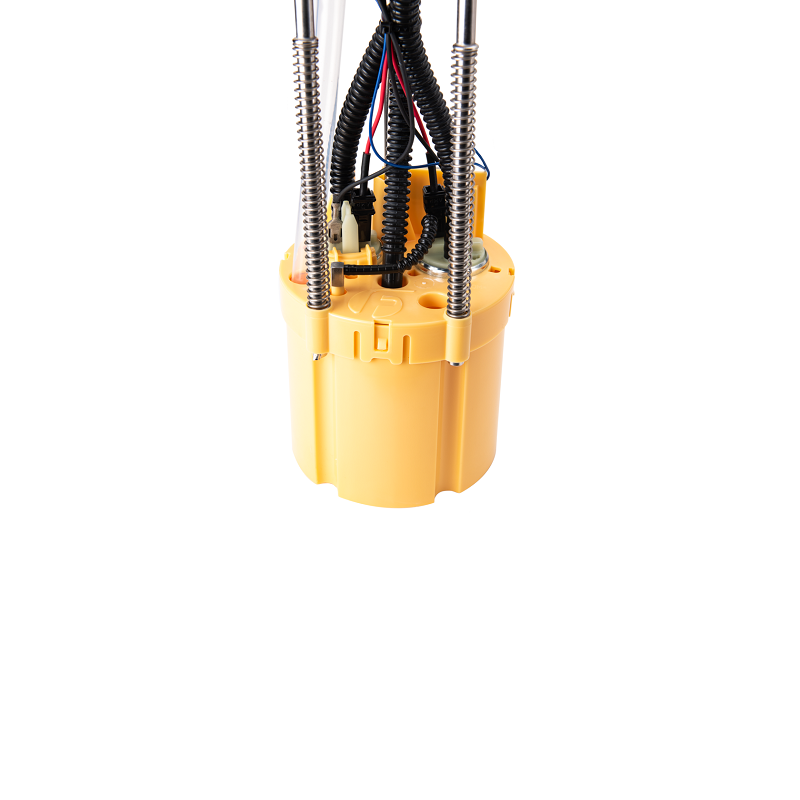

Active Fill Bucket Eliminates The Need For Tank Sumps or Draw Straws
In-Tank Installation Provides for, Silent Operation

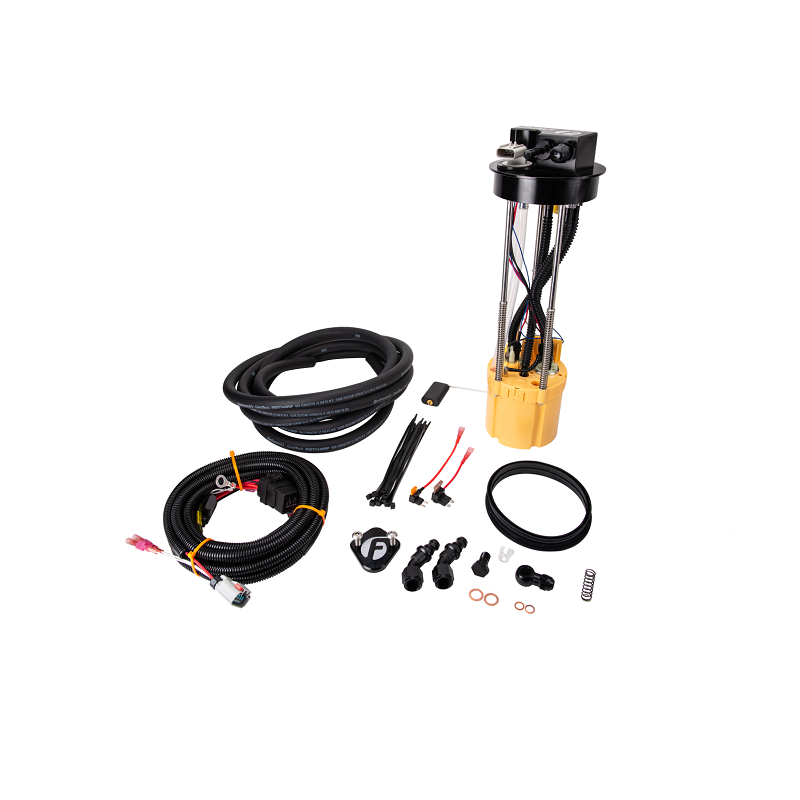

KIT CONTENTS

PowerFlo Lift Pump with integral fuel sender
16' of push lock hose and all necessary AN fittings
Mechanical fuel pump block off plate (FPE-CUMM-FBOP)
Wiring harness and fuse taps
Flange tank seal
