SKU #: EMF-6821-7460A-KIT
MPN #: 6821-7460A-KIT
EMF Ball Joints Kit 14-24 Ram 2500 / 13-24 Ram 3500
Description
As the years go by and miles are put on the truck and normal wear and tear happen, the Internal parts of the Ball Joints will also begin to wear. If, at any time, you start to feel Up and Down Play in the Lower Ball Joint, you simply take the set screw out of the side of the housing and tighten the Ring, then put the set screw back in, grease and you’re good to go!
EMF Ball Joints are TRULY REBUILDABLE – Which means inside the Ball Joint housing there is a removable race and pin. This removable race acts as the wear point inside the housing, protecting it from any damage. When the time comes to rebuild the Ball Joint, there is no need to press the housing out of the knuckle. You simply rebuild the Ball Joint right on the truck by removing the set screw on the side of the body, then removing the Threaded Ring or Cap using a Spanner Wrench. Finally, you pop the internal race(s) and pin out and put the new ones in, tighten up the Ring/Cap, put the set screw back in and grease! Saving you Time and Money.
EMF is a Canadian Company, which means we need parts that last in all sorts of extreme temperatures. EMF Ball Joints are manufactured in their humble shop in Alberta, Canada. EMF Ball Joints are made from 4140 HTSR Chromoly Steel and then they go through a process called QPQ Salt Bath Nitriding and this is what gives the material added strength and the smooth, long lasting, anti-galling black finish.
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.

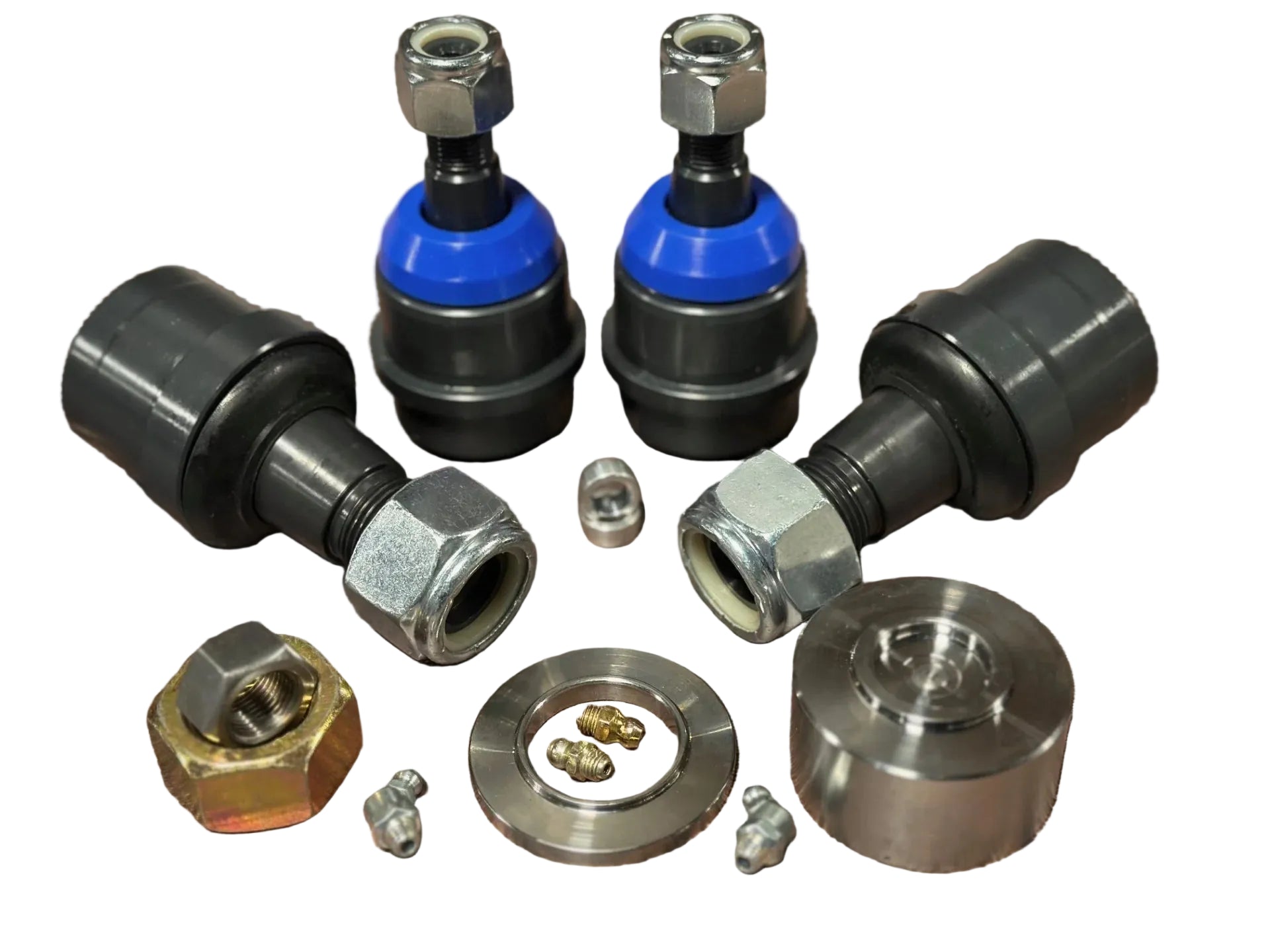

KIT COMPONENTS:
- 1 Pair of Upper Ball Joints
- 1 Pair of Lower Ball Joints
- Install Nuts
- Install Washer & Cup (To avoid damaging the cap and the ring when pressing the ball joint into the knuckle)
- Allen Key (To Tighten the Ball Joints or Rebuild them in the future)
- Instructions & an EMF Sticker
FEATURES & BENEFITS:
- 3 Canadian/US Patents covering the design
- Rebuildable so you will never have to purchase an entire unit again, you simply replace the inner race and pin and off you go. You can do this right on the truck without removing the housing from the knuckle
- Serviceable so if you ever start to feel movement in the joint, you simply back out the set screw on the side of the cap and tighten the cap then replace the set screw. This can be done right on the truck without having to remove anything from the knuckle.
- Greaseable so you can just pump a couple squirts of grease into it around every oil change and go
- The entire unit is 100% Canadian Made by an Alberta Small Business. We have a strict Quality Assurance policy and each piece we make is numbered and logged with tolerances and measurements documented so if there is ever a problem we can look back on when it was manufactured and what the material specs were.
- EMF is the only Ball Joint with the removable race and pin (part of our patents). Competitor products have a removable pin that can be rebuilt, however the inside of the housing will wear as the pin wears resulting in the inevitable replacement of the entire unit in the future, as the pin will no longer possess a tight fit. By having the internal race and pin set on the EMF ball joint, the race will act as the wear point instead of the housing body creating a long lasting unit.
- Each EMF Ball Joint unit is made from 4140 HTSR material and then sent to a metal treating facility to be Nitride Coated. Liquid Salt Bath Nitriding is a second heat treating process on the material resulting in up to a 30% strength increase as well as a beautiful black oxide corrosion resistant coating that also resists galling and does not reduce the tolerances of the pieces.
About EMF Ball Joints
Starting with the Dodge Trucks, EMF started developing the Ball Joints and are continuously working on R&D to produce more makes and models. Their design is simple yet they still offer the same rebuildable high-quality product as the have for 15 years.
Video
DIESEL TALK | EMF BALL JOINTS!
If you’re tired of replacing worn-out factory ball joints, EMF Ball Joints are built to be one of the toughest and most serviceable upgrades available for heavy-duty trucks. Designed with durability in mind, EMF ball joints feature rebuildable components and greaseable fittings to help extend service life and keep your front suspension performing at its best.
In this video, we take a closer look at EMF Ball Joints, their design, and why they’ve become a popular upgrade for diesel truck owners looking for long-term reliability.
Key Features:
• Heavy-duty construction for increased durability
• Rebuildable design for long-term serviceability
• Greaseable fittings for easier maintenance
• Designed to handle heavy loads and demanding conditions
• Ideal upgrade for lifted or hard-working trucks
Whether your truck sees heavy towing, off-road use, or daily driving, EMF Ball Joints are designed to provide strength and reliability where factory components often fall short.
