SKU #: CP-CPS200275 MPN #: CPS200275

Calibrated Power Stealth Mach 1 64 Drop-In Turbo 17-23 GM 6.6L Duramax L5P

Name: Calibrated Power Stealth Mach 1 64 Drop-In Turbo 17-23 GM 6.6L Duramax L5P
Brand: DuramaxTuner.com
Price: 3149.0 USD
Availability: InStock

$3,149.00

Get 3149 points in loyalty rewards

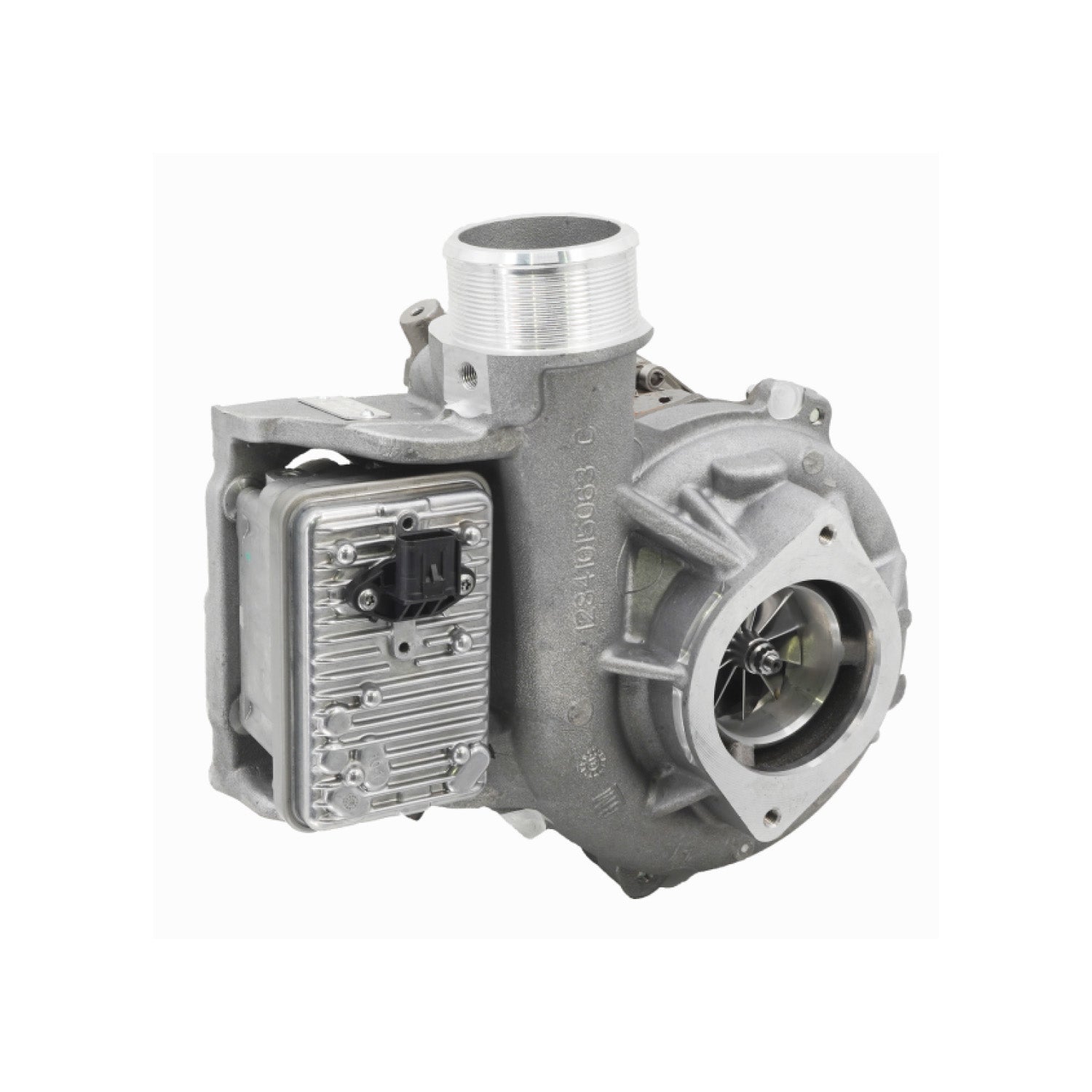

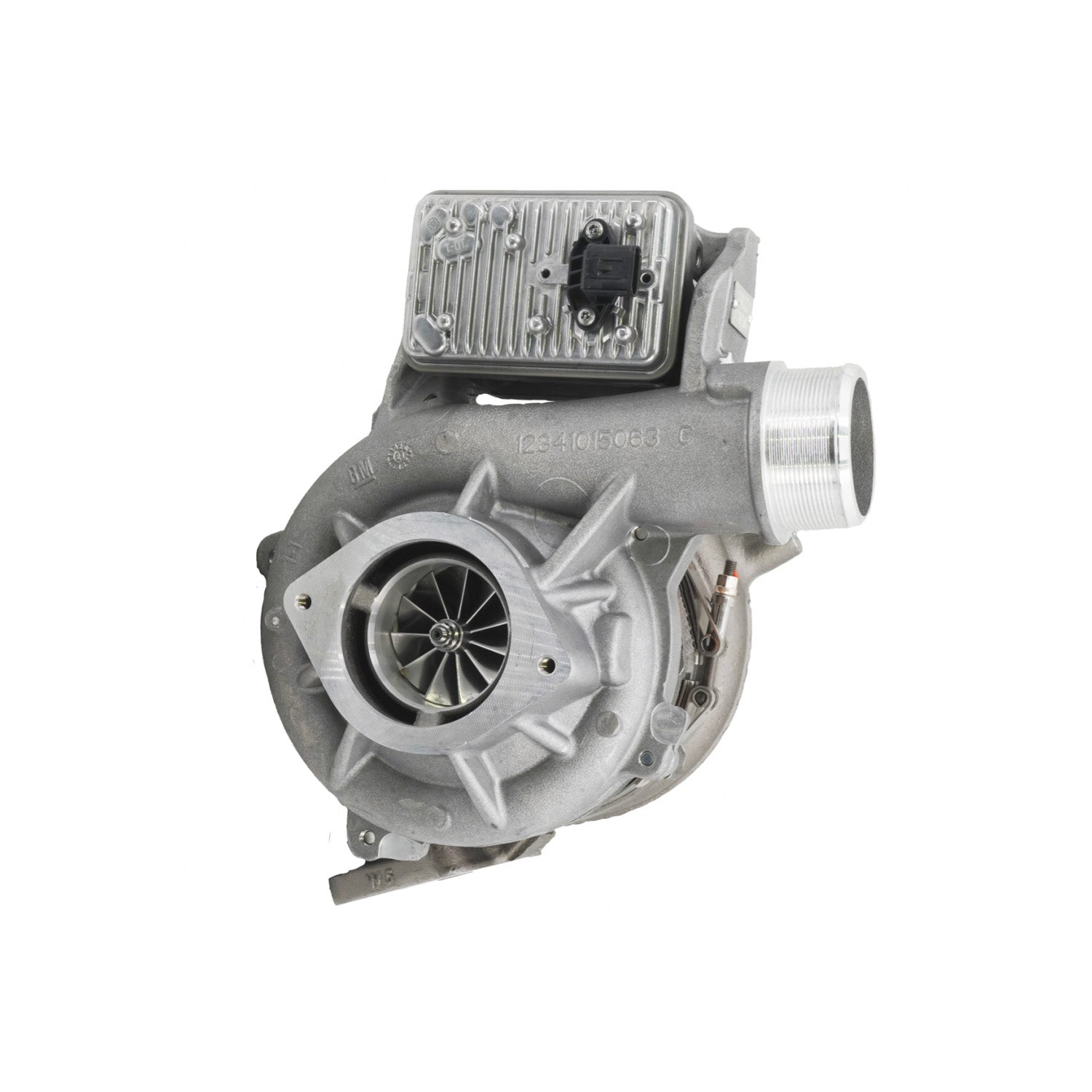

Calibrated Power Stealth Mach 1 64 Drop-In Turbo for 17-23 GM 6.6L Duramax L5P

Description

When looking to upgrade the performance of your L5P Duramax, wouldn't you prefer something that installs easily AND delivers the power you're after? You can with the Stealth Mach 1 64mm turbo! This turbo outflows the factory charger and can support up to 650 rear-wheel horsepower with all factory emissions intact. The crown jewel of this turbo is a custom 11-blade compressor wheel that delivers a wide efficiency range and can flow 74 pounds per minute of mass airflow, compared to the stock unit, which only flows 60 pounds per minute. It is built from lightweight yet strong billet aluminum and will help reduce or even eliminate turbo surge when towing. On the opposite end of the turbo, the turbine wheel has been upgraded to a 9-blade to deliver a distinctive sound and provide better efficiency to reduce exhaust gas temperatures (EGT's) and reduce drive pressure when under load. To properly match the entire turbo, a custom vane/nozzle ring assembly was built in-house at Calibrated Power. This upgraded design features taller, wider vanes to match the larger turbine, providing superior high-load efficiency while retaining the factory exhaust brake and exclusive throttle response. Finally, this is built from a brand-new turbo, meaning no core charge Important: This turbocharger does not include an actuator. The actuator is sold separately.

Choose add-ons

Add L5P Turbo Gasket Kit +$150.00

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

When looking to upgrade the performance of your L5P Duramax, wouldn't you prefer something that installs easily AND delivers the power you're after? You can with the Stealth Mach 1 64mm turbo! This turbo outflows the factory charger and can support up to 650 rear-wheel horsepower with all factory emissions intact.

The crown jewel of this turbo is a custom 11-blade compressor wheel that delivers a wide efficiency range and can flow 74 pounds per minute of mass airflow, compared to the stock unit, which only flows 60 pounds per minute. It is built from lightweight yet strong billet aluminum and will help reduce or even eliminate turbo surge when towing. On the opposite end of the turbo, the turbine wheel has been upgraded to a 9-blade to deliver a distinctive sound and provide better efficiency to reduce exhaust gas temperatures (EGT's) and reduce drive pressure when under load.

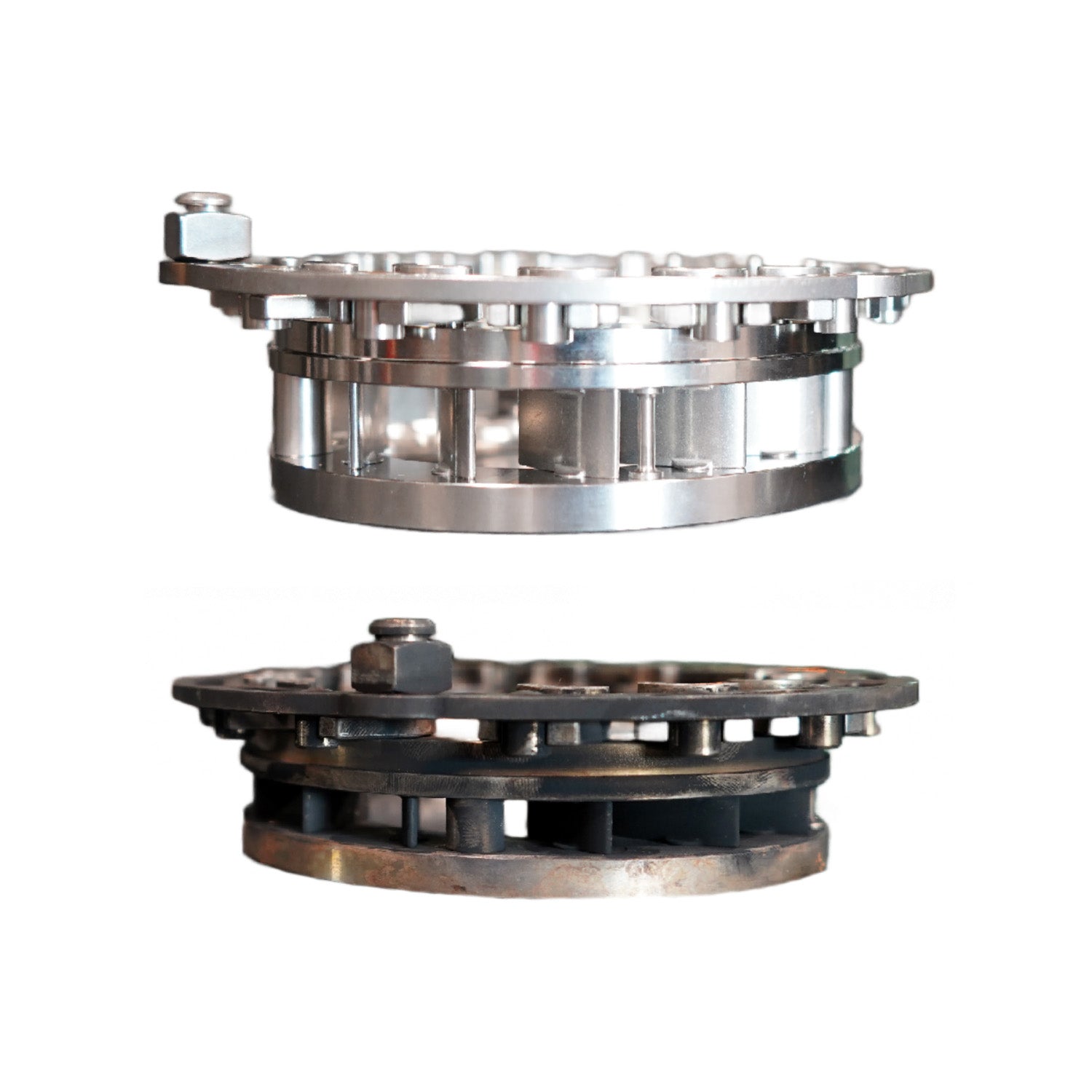

To properly match the entire turbo, a custom vane/nozzle ring assembly was built in-house at Calibrated Power. This upgraded design features taller, wider vanes to match the larger turbine, providing superior high-load efficiency while retaining the factory exhaust brake and exclusive throttle response. Finally, this is built from a brand-new turbo, meaning no core charge

Important: This turbocharger does not include an actuator. The actuator is sold separately.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

2017-2023 GM 6.6L GM Duramax L5P

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

SPECIFICATIONS:

Turbo Size: 64mm
Airflow: 74 lb/min (vs. 60 lb/min stock)
Horsepower Capability: Supports up to 700 HP*
Real World Power: Up to 650 RWHP with emissions-compliant tuning and supporting mods
Boost Pressure: 41 PSI @ sea level
Compressor Wheel: 64mm 11-blade billet (2618 aluminum)
Turbine Wheel: 70.4mm 9-blade (713C nickel alloy)
Turbo Type: Variable Geometry Turbo (VGT)
Vane System: High Flow Vane (HFV) technology
Installation: Direct bolt-on, stock-appearing drop-in design
Condition: Brand new (no core charge required)
Actuator: Not included (sold separately)
Replaces Part Numbers: 12709701044, 11547786, 12683985, 12689094

EMISSIONS STATEMENT:

The L5P Stealth 64 turbo has been designed to meet the stated requirements for the federal emissions standards. The turbo is currently not for sale in the state of California although approval is being actively pursued.

WARRANTY:

All Stealth Series turbos offer an Unlimited Mile, 1 year manufacturer warranty for quality and craftsmanship. For warranty inquiries please contact sales@duramaxtuner.com

About Calibrated Power

Calibrated Power, often referred to as Cummins Tuner, is at the pinnacle of the custom tuning business. From trucks, to agriculture equipment, and even some gas engine applications, this team knows how to massage and finesse an ECM to maximize the true potential of your power plant. Truly, whether your truck spends its time towing a fifth wheel and you are looking to maximize the fuel economy and gain some extra pulling power, they can deliver exactly what you're after. Or on the other end of the spectrum, if you've got a fire breathing, compound turbo, dual CP3 equipped dedicated race machine, they can ensure you get the most out of all of your ancillary equipment to get you to the end of the track before the competition.

Utilizing such equipment as EFILive and the Smarty MM3, you can rest assured that their breadth of knowledge will deliver major results that the factory tuning simply cannot deliver. If you want the best, go with tuning from Calibrated Power.

Video

Diesel Talk | Calibrated Power Stealth Mach 1 Turbo

If you are in need of a drop in upgraded turbo for your 2017-2023 Duramax or 2007.5-2023 Cummins, Calibrated Power has you covered with their Stealth Series Mach 1 Turbos. These turbos are going to be 100% drop in and stock appearing, but come packed with upgrades including a billet 11 blade compressor wheel and Calibrated Powers High Flow Vane Technology which is proven to lower EGTs and drive pressures. These are going to provide enough airflow to support up to 700HP with supporting mods but is still capable of running on a totally stock truck. To top it off, these are built from a 100% new turbo and come with new VGT electronics, so no core charge!
