What are the key features of the Driven Diesel Intake Air Heater Plug 99.5-03 Ford 7.3L Powerstroke?

Custom machined from billet aluminum; Black anodized finish for protection and appearance; Recessed 1/8" female NPT tapped port for boost gauge fitting or water/methanol nozzle; Black 1/8" NPT plug included; 1-1/8" hex size for easy installation; Optional quick disconnect fitting for standard 1/8" boost line; Available as part of a complete IAH Boost Gauge Install Kit

What are the specifications of the Driven Diesel Intake Air Heater Plug 99.5-03 Ford 7.3L Powerstroke?

1/8" Female NPT port; 1-1/8" hex size

Are there any important fitment notes for the Driven Diesel Intake Air Heater Plug 99.5-03 Ford 7.3L Powerstroke?

The port has a tapered 1/8" female pipe thread; standard water/methanol nozzles have a straight thread and will NOT turn far enough in without modification. If used for a nozzle, the port must be tapped with a 1/8-27 NPT tap until the nozzle face is at least flush with the inside face of the plug, or spray pattern can be compromised and potentially damage the engine.

Quick Ship

SKU #: DD-73L-IAH-BOOST MPN #: DD-73L-IAH-BOOST

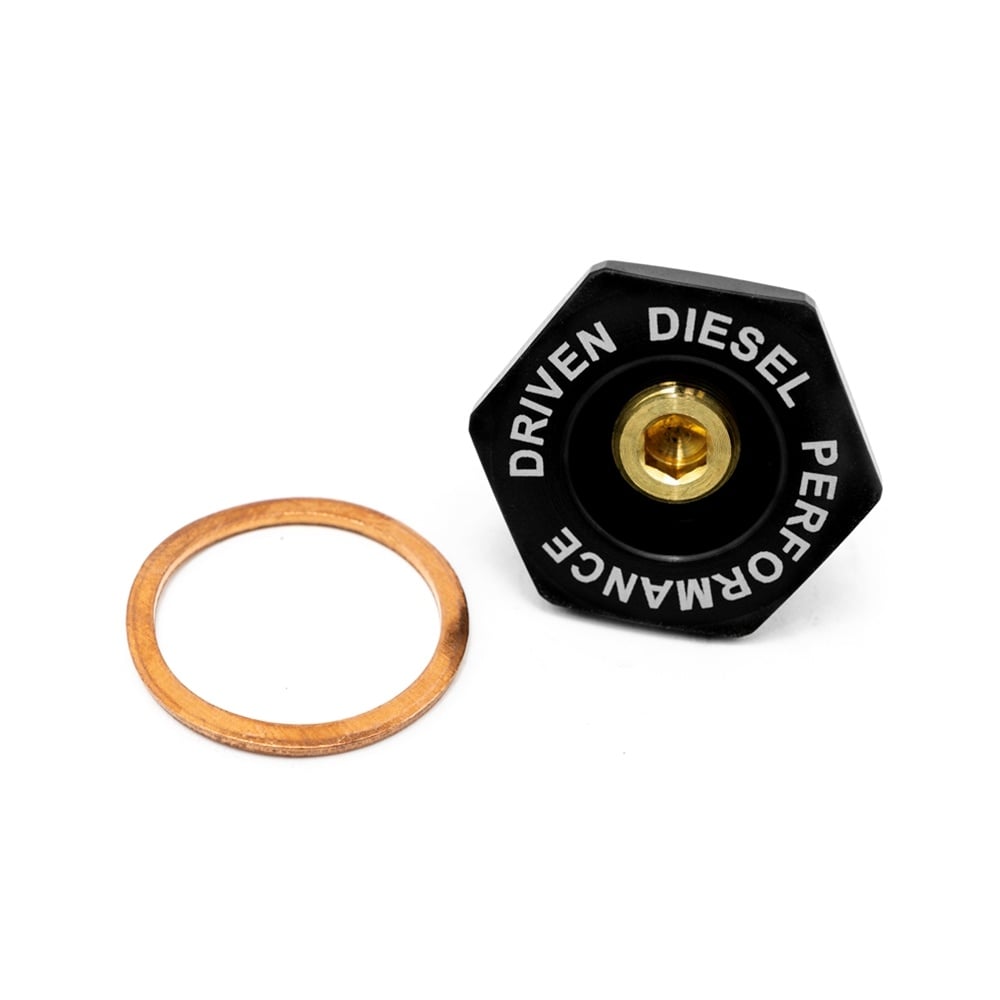

Driven Diesel Intake Air Heater Plug 99.5-03 Ford 7.3L Powerstroke

$39.95

Get 39 points in loyalty rewards

Driven Diesel Intake Air Heater Plug 99.5-03 Ford 7.3L Powerstroke

Description Overview

Eliminate the factory Intake Air Heater or IAH with this Driven Diesel Intake Air Heater Plug. This plug will also give you a convenient area to pull boost readings from and or add water methonal injection. The factory Air Intake Heater is located in the Cold Side Inlet of the intake manifold on the engine and blocks approximately 20% of the intake path. Since the heater is RARELY active due to the very specific circumstances under which the PCM enables it, many customers have removed it in and replaced it with a plug like this to improve air flow.

Boost Fitting Selection

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

A billet aluminum plug that eliminates the factory Intake Air Heater and provides a port for boost readings or water/methanol injection.

Fits: 1999.5-2003 7.3L Ford Powerstroke
Brand: Driven Diesel
Best for: Removing the factory Intake Air Heater and adding a boost or water/methanol port
Key features: Custom machined from billet aluminum
Black anodized finish for protection and appearance
Recessed 1/8" female NPT tapped port for boost gauge fitting or water/methanol nozzle
Black 1/8" NPT plug included
1-1/8" hex size for easy installation
Optional quick disconnect fitting for standard 1/8" boost line
Available as part of a complete IAH Boost Gauge Install Kit
Key specs: 1/8" Female NPT port
1-1/8" hex size
Important: The port has a tapered 1/8" female pipe thread; standard water/methanol nozzles have a straight thread and will NOT turn far enough in without modification. If used for a nozzle, the port must be tapped with a 1/8-27 NPT tap until the nozzle face is at least flush with the inside face of the plug, or spray pattern can be compromised and potentially damage the engine.

Eliminate the factory Intake Air Heater or IAH with this Driven Diesel Intake Air Heater Plug. This plug will also give you a convenient area to pull boost readings from and or add water methonal injection. The factory Air Intake Heater is located in the Cold Side Inlet of the intake manifold on the engine and blocks approximately 20% of the intake path. Since the heater is RARELY active due to the very specific circumstances under which the PCM enables it, many customers have removed it in and replaced it with a plug like this to improve air flow.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

1999.5-2003 7.3L Ford Powerstroke

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Custom Machined from Billet Aluminum
Black Anodized Finish for Protection and Appearance
Recessed 1/8" Female NPT Tapped Port(for use with either a boost gauge fitting or a water/methanol nozzle*)
Black 1/8" NPT Plug Included
1-1/8" Hex Size for Easy Installation
Optional Quick Disconnect Fitting for Standard 1/8" Boost Line
Available as part of a complete "IAH Boost Gauge Install Kit"

IMPORTANT NOTE:

IMPORTANT WATER/METHANOL NOZZLE NOTE: This fitting has been tapped with a TAPERED 1/8" female pipe thread. Standard 1/8" NPT fittings (like those used for boost gauges) will fit perfectly. The Water/Methanol nozzles that we have tested have a straight thread and will NOT turn far enough into the IAH fitting without modification. If you wish to use the IAH Plug for a Water/Methanol nozzle location, you will need to carefully tap the port with a 1/8-27 NPT tap UNTIL THE NOZZLE FACE IS AT LEAST FLUSH WITH THE INSIDE FACE OF THE IAH PLUG. If the nozzle face is left recessed into the threaded port, the spray from the nozzle can hit the inside of the port and significantly compromise the spray pattern of the water system (potentially causing a "flooding" scenario that could damage the engine).
