Shopping for
2005 Chevrolet 6.6L Duramax LLY
SKU #: CU-291285 MPN #: 291285

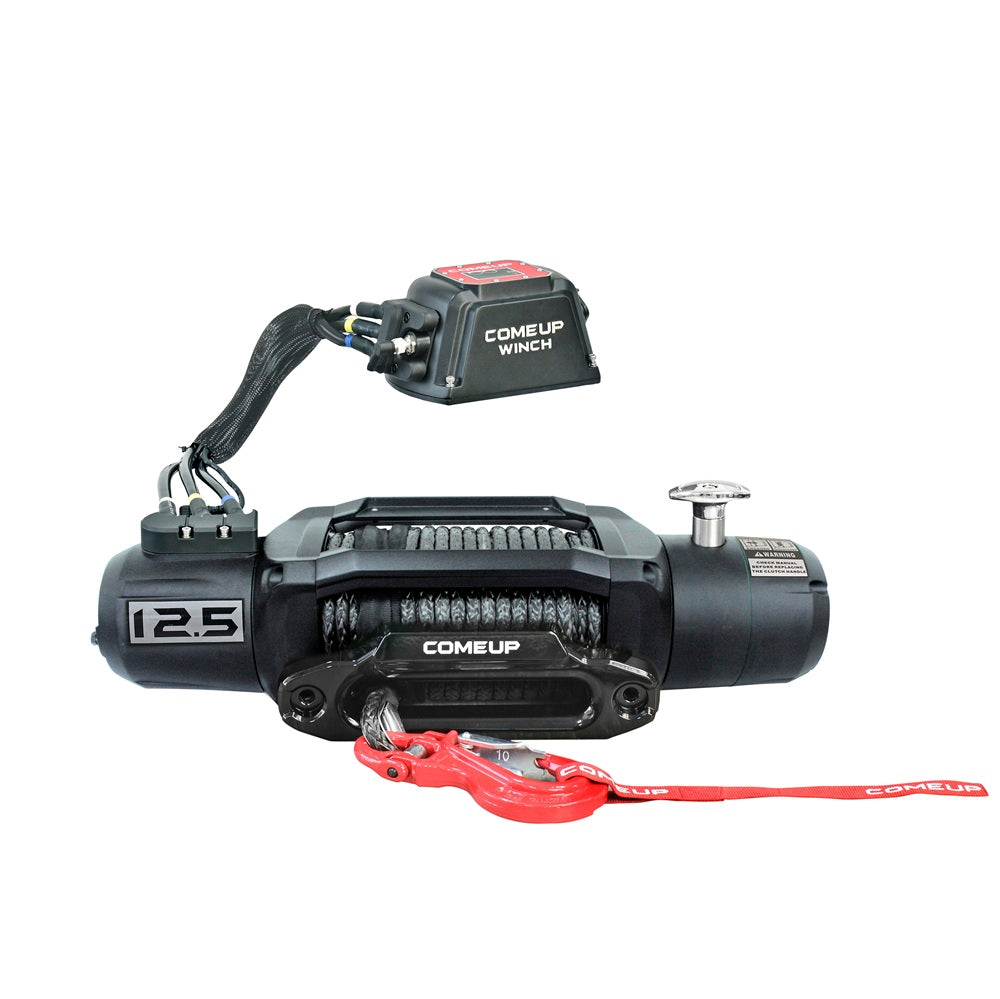

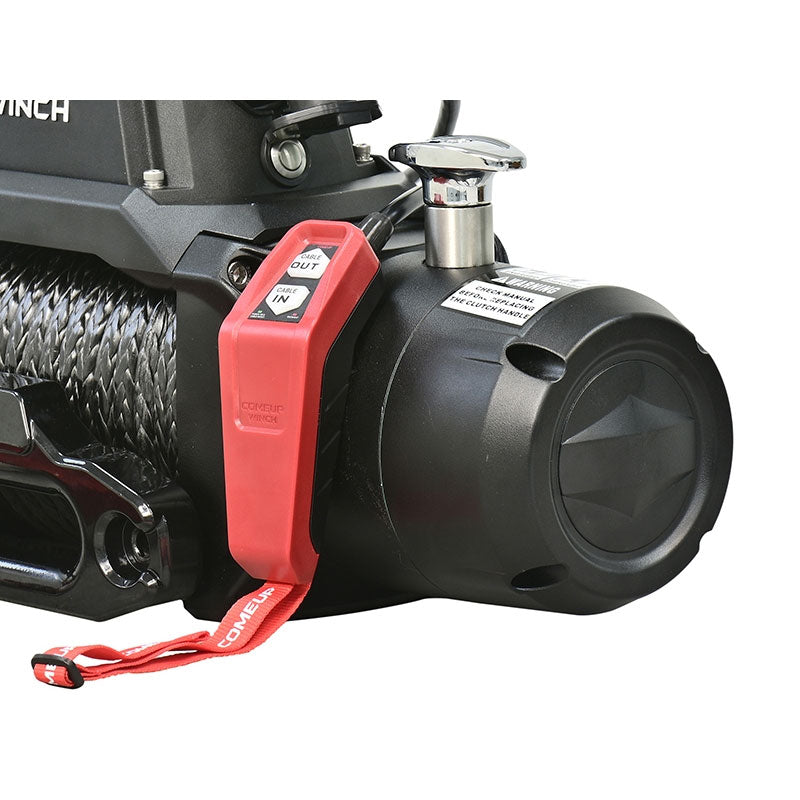

ComeUp 291285 SOLO 12.5rs 12,500 Lbs. Winch - Synthetic Rope

$1,625.95
Get 1625 points in loyalty rewards
Description
Adding a winch to your truck adds a whole other level of recovery along with the tools and confidence to venture further out into the bush. ComeUp Winch has put together a winch with the individual wheeler in mind. The SOLO 12.5rs is an easy to operate winch made to be heavy duty, reliable with a plethora of mounting and operating solutions. A wired remote for those times you're operating from the driver seat and a wireless remote for when you're out front spotting your rigging. The control pack can also be remotely mounted to give better environmental protection. Paired with the synthetic winch line, this winch is a stout option to put on your wheeler to get you out of the hairiest of situations!
Adding a winch to your truck adds a whole other level of recovery along with the tools and confidence to venture further out into the bush. ComeUp Winch has put together a winch with the individual wheeler in mind. The SOLO 12.5rs is an easy to operate winch made to be heavy duty, reliable with a plethora of mounting and operating solutions. A wired remote for those times you're operating from the driver seat and a wireless remote for when you're out front spotting your rigging. The control pack can also be remotely mounted to give better environmental protection. Paired with the synthetic winch line, this winch is a stout option to put on your wheeler to get you out of the hairiest of situations!

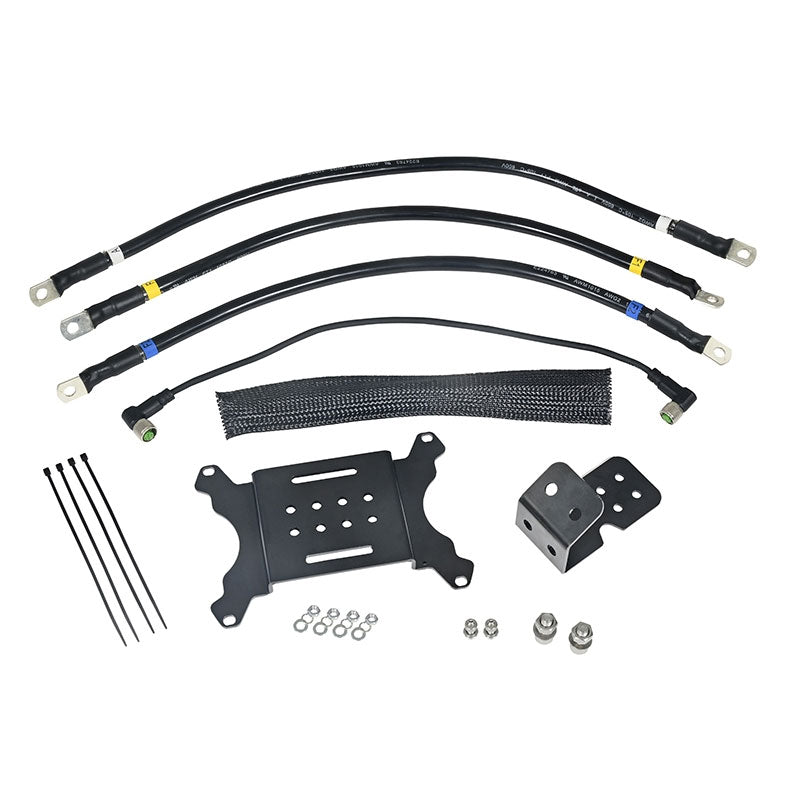

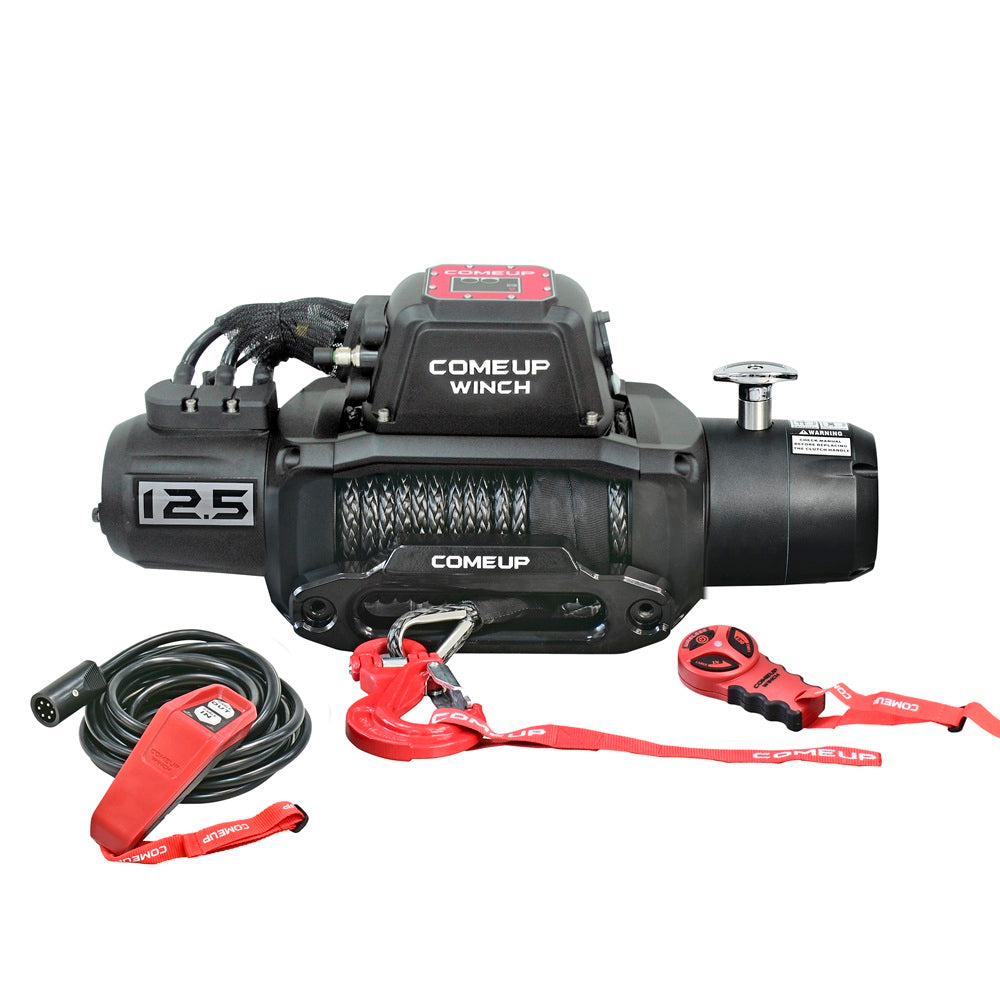

KIT COMPONENTS:
  • SOLO 12.5rs winch
  • Hawse fairlead
  • Built-in wireless remote control modules
  • Remote control w/5 m (17’) cord
  • Bridge control box
  • Synthetic rope w/sling hook
  • 1.8 m (6’) 2 gauge battery lead
  • Handsaver strap
DESCRIPTION:
  • 12V DC severe duty winch rated at 12,500 lb pulling meets and exceeds your expectations.
  • Heavy duty series wound motor equipped with thermal protection switch alters.
  • Trendy design on winch body with new stylish control pack dedicated to provide excellent winching experience.

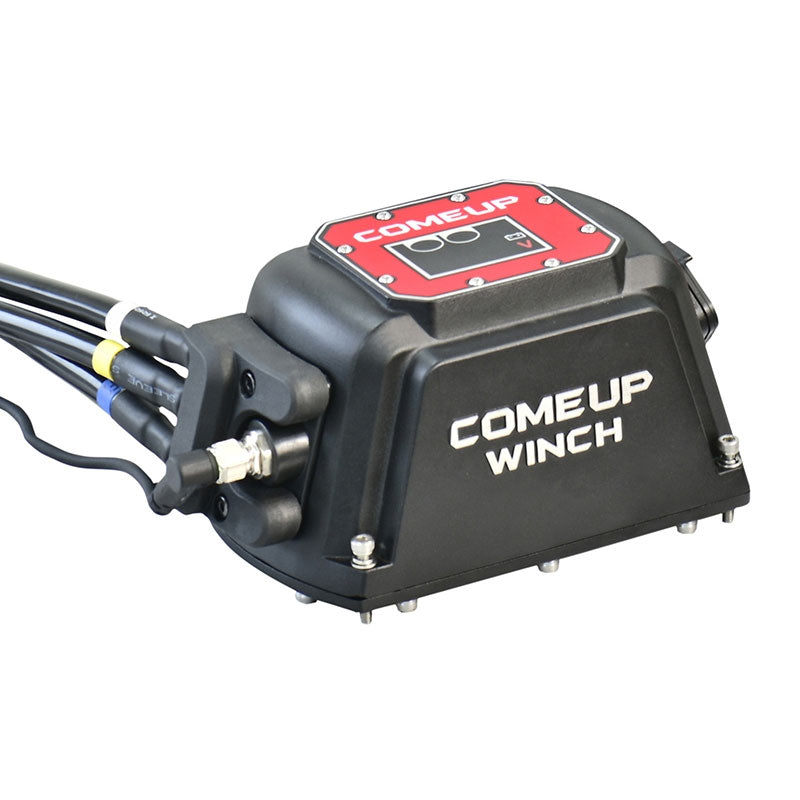

  • Convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.
  • Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
  • Newly designed wireless and wired controllers offer better holding and reliable operation.
  • Wired controller has magnet design, allowing it to put on idle vehicle body.
  • Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
  • 12-strand construction synthetic rope is coated to improve abrasion and has no water absorption.
  • The U.S., Germany, U.K., France, etc., patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
  • Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
  • Built-in radio control module includes functions:
    • Cutout switch prevents the vehicle battery from draining when no use
    • Motor over-heating warning by LED indicators and beeper
SPECIFICATIONS:
  • Part number: PN 291285(12V)
  • Rated line pull: 5,670 kg / 12,500 lb single line
  • Line speed (1st layer):
    • 7.7 mpm / 25.3 fpm 45 A at 12V no load
    • 0.9 mpm / 3.0 fpm 470 A at 12V full load
  • Motor: 3,730 w / 5.0 hp 12V series wound
  • Gear ratio: 3-stage planetary 159:1
  • Clutch (freespooling): Rotating ring gear
  • Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
  • Winch construction: Aluminum die cast housings with steel drum

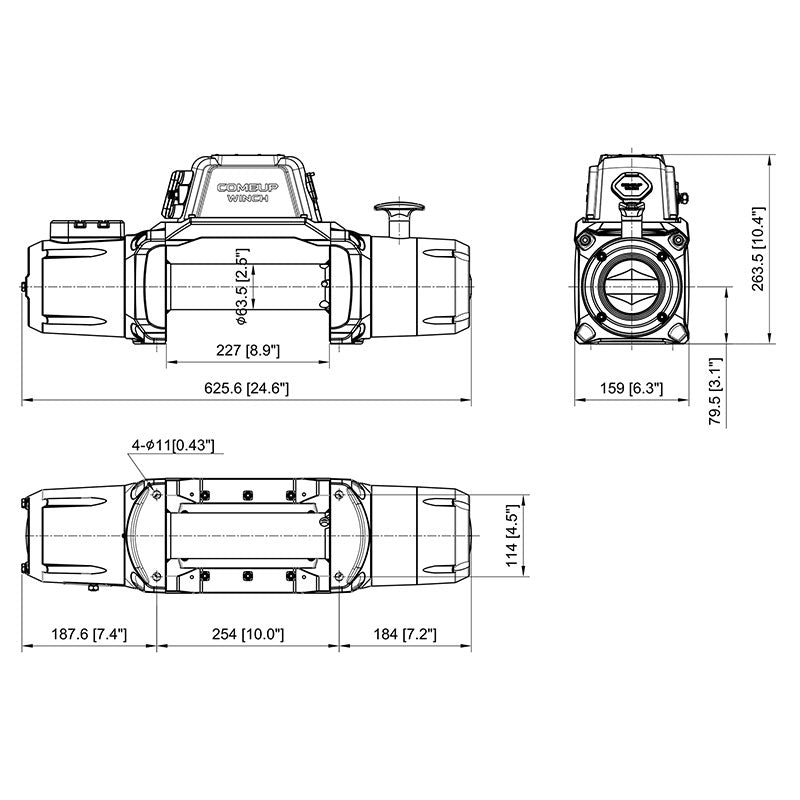

  • Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
  • Control: Digital two-way wireless remote control and water-proof wired remote control with thermometric LED indicator
  • Rope type: Synthetic rope
  • Rope size: 11 mm x 25 m (7/16” x 82’)
  • Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
  • Mounting: Foot forward or foot down mounting workable
  • Finish: Matte black powder-coated
