SKU #: CM-110-90253
MPN #: 110-90253

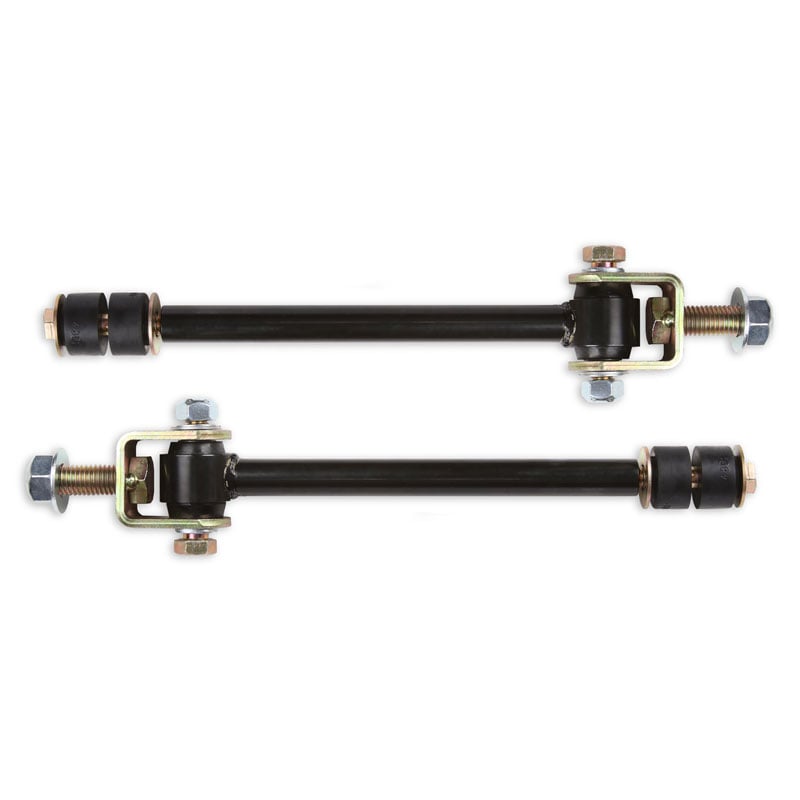

Cognito Front Sway Bar End Link Kit 01-19 GM 2500/3500
Description
The Cognito sway bar link kits utilize a lower clevis system which takes some of the angle off of the link when the suspension is cycling, minimizing stress that can cause breakage. We recommend you check your current length and match it up to the specs to help order the correct size if you do not have a Cognito Motorsports lift.These end links are also a little longer than recommended lengths to
allow clearance for a larger diameter tie-rod upgrade. Used as a
Heavy-Duty replacement of the OE style end links which are notorious for
breaking.Sold in pairs. Made in the USA.
IMPORTANT NOTES:
Mounting surface to mounting surface measurement for these kits are as follows (Measured from top of lower control arm up to the bottom of sway bar):
CM-110-90252 - 0-2" Lift Height - 7" Length
CM-110-90253 - 4-6" Lift Height - 11" Length
CM-110-90255 - 7-9" Lift Height - 14" Length
CM-110-90256 - 10-12" Lift Height - 17" Length
Enter your zip and we'll see if installation is available.
- Request quotes from local installers at checkout
- Compare options and choose the best fit for your install
About WrenchConnected
WrenchConnected is an independent installation marketplace operating in partnership with Diesel Power Products.
How it works
After checkout, we route your vehicle info and part SKU to verified installation shops near you. Local installers review the job and submit competitive bids; you pick the shop you want based on price, reviews, and availability. Your name and email stay private until you select an installer.
Pricing
You pay for the bid from your preferred shop. The full amount is shown before you confirm — installers cannot add charges without your written consent. Payments are processed securely by Stripe.
Your privacy
During bidding, shops see only your service ZIP code, vehicle year/make/model, and the part SKU — not your name, email, or address. Only the shop you select receives your contact details after payment. We never sell your personal information.
More detail at wrenchconnected.com.
FEATURES & BENEFITS:
- Lower clevis system which takes some of the angle off of the link when the suspension is cycling minimizing stress that can cause breakage
- Polyurethane bushings
- Made in the USA
- Lift Height: 0-12 inches
About Cognito Motorsports Suspension
In the aftermarket suspension industry, Cognito is a household name, and for good reason. Originally started in 2001 literally out of a converted chicken coup, Cognito has grown exponentially, now one of the first names that roll off the tongues of industry professionals when asked what the best suspension is. While many know Cognito specifically for their high end upgrades and systems for Duramax powered Chevy HD's, they also build some of the best suspension component systems for Powerstroke, Duramax, and even Side-By-Sides. So whether you're looking to merely beef up your steering or suspension without any additional lift (i.e. heavy duty tie rods) or you want a lift kit that will deliver a substantially better ride and offroad performance than your stock truck can handle, you need look no further than Cognito.
