SKU #: CM-210-P1006 MPN #: 210-P1006

Cognito 3" Elite Leveling Kit with Fox Elite 2.5 Shocks 20-25 GM 1500 3.0L Duramax LM2/LZ0

Name: Cognito 3" Elite Leveling Kit with Fox Elite 2.5 Shocks 20-25 GM 1500 3.0L Duramax LM2/LZ0
Brand: Cognito Motorsports Suspension
Price: 4765.88 USD
Availability: InStock

$4,765.88

Get 4765 points in loyalty rewards

Cognito 3" Elite Leveling Kit with Fox Elite 2.5 Shocks for 20-25 GM 1500 3.0L Duramax LM2 and LZ0

Description

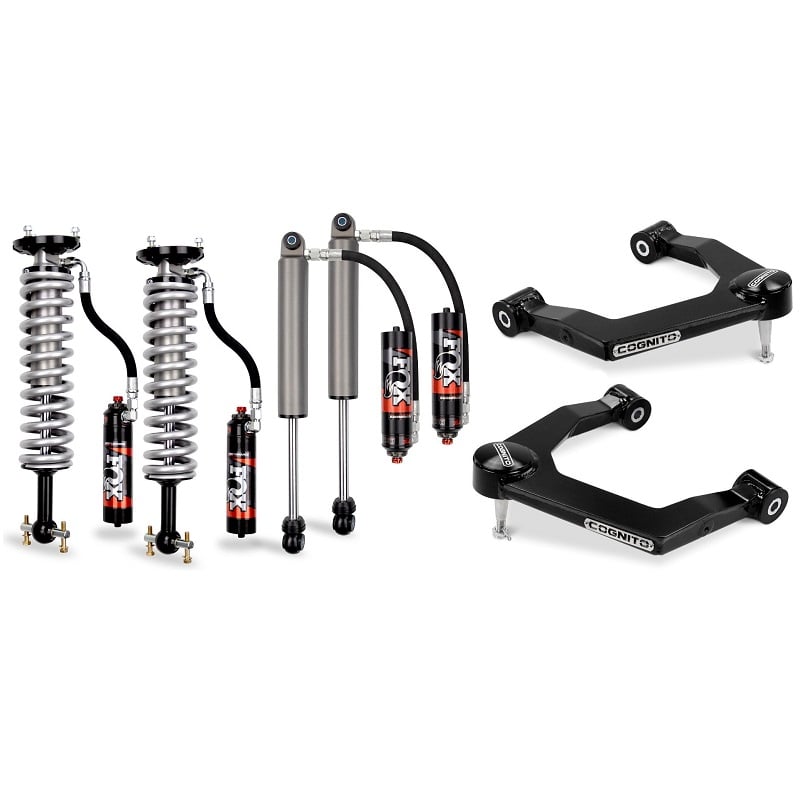

Cognito has bundled everything you need in a leveling kit for your Silverado/Sierra 1500 2WD/4WD with their high quality components. There is no guesswork. Cognito components are engineered, manufactured and assembled in the USA. The Cognito 3 Inch Performance Ball Joint Leveling Lift Kit includes the Cognito Ball Joint SM Series Upper Control Arm Kit, Fox Elite 2.5 Series Coilover remote reservoir front shocks, Fox Elite 2.5 remote reservoir rear shocks and 2 Inch Block and U Bolt kit- all with hardware included.The Cognito Ball Joint SM Series Upper Control Arms add style, function and performance to your vehicle by improving the allowable droop travel for a better ride quality. The control arm kit features boxed sheet metal arms that are CNC robot welded and powder coated semi-gloss black.Press in ball joints are pre-installed and retained with black anodized, Cognito branded laser etched caps. New crush sleeves and polyurethane bushings are included. The Cognito Ball Joint SM Series Upper Control Arms provide ample droop travel that is required for good ride quality and all suspension components to last and work properly.Performance Elite Series 2.5-Inch Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from Fox's Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see.The Cognito 2 Inch Block and U Bolt Kit includes 2 Inch tall powder coated semi-gloss black cast steel blocks and heavy-duty zinc plated U Bolts and the 1.5 Inch Rear Bump Stop Spacers are constructed out of aluminum.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

Cognito has bundled everything you need in a leveling kit for your Silverado/Sierra 1500 2WD/4WD with their high quality components. There is no guesswork. Cognito components are engineered, manufactured and assembled in the USA. The Cognito 3 Inch Performance Ball Joint Leveling Lift Kit includes the Cognito Ball Joint SM Series Upper Control Arm Kit, Fox Elite 2.5 Series Coilover remote reservoir front shocks, Fox Elite 2.5 remote reservoir rear shocks and 2 Inch Block and U Bolt kit- all with hardware included.

The Cognito Ball Joint SM Series Upper Control Arms add style, function and performance to your vehicle by improving the allowable droop travel for a better ride quality. The control arm kit features boxed sheet metal arms that are CNC robot welded and powder coated semi-gloss black.Press in ball joints are pre-installed and retained with black anodized, Cognito branded laser etched caps. New crush sleeves and polyurethane bushings are included. The Cognito Ball Joint SM Series Upper Control Arms provide ample droop travel that is required for good ride quality and all suspension components to last and work properly.

Performance Elite Series 2.5-Inch Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from Fox's Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see.

The Cognito 2 Inch Block and U Bolt Kit includes 2 Inch tall powder coated semi-gloss black cast steel blocks and heavy-duty zinc plated U Bolts and the 1.5 Inch Rear Bump Stop Spacers are constructed out of aluminum.

Vehicle Fitment

2020-2025 GM 1500 3.0L Duramax LM2 LM2/LZ0

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

FEATURES & BENEFITS:

Yields 3 Inches of Front Lift
Cognito SM Series Upper Control Arm Kit
Fox 2.5 Performance Elite Series Remote Reservoir Coilover Front Shocks
Fox 2.5 Performance Elite Series Remote Reservoir Rear Shocks
Enhances the Trucks Appearance and Reduces the Factory Nose Down Rake
Improved Ball Joint Angle
Maintains Adequate Droop Travel for Superior Ride Quality
Allows for up to a 34 x 12-Inch Tire on a 9-inch Wide Wheel with 5.75-Inch Backspacing
4-hour DIY Install Time
Made in the USA

FITMENT NOTE:

This product requires bypassing ARC Adaptive Ride Control system (1500 Denali models).

About Cognito Motorsports Suspension

In the aftermarket suspension industry, Cognito is a household name, and for good reason. Originally started in 2001 literally out of a converted chicken coup, Cognito has grown exponentially, now one of the first names that roll off the tongues of industry professionals when asked what the best suspension is. While many know Cognito specifically for their high end upgrades and systems for Duramax powered Chevy HD's, they also build some of the best suspension component systems for Powerstroke, Duramax, and even Side-By-Sides. So whether you're looking to merely beef up your steering or suspension without any additional lift (i.e. heavy duty tie rods) or you want a lift kit that will deliver a substantially better ride and offroad performance than your stock truck can handle, you need look no further than Cognito.
INGENUITY | QUALITY | PERFORMANCE
