What are the key features of the CNC Fabrication Stage 2 Valve Spring Set 94-03 Ford 7.3L Powerstroke?

Designed for trucks over 500 horsepower; 370lb spring rate; Performance upgrade over stage 1 valve springs; Includes new spring retainers and keepers

What are the specifications of the CNC Fabrication Stage 2 Valve Spring Set 94-03 Ford 7.3L Powerstroke?

370lb spring rate; 500 horsepower

Are there any important fitment notes for the CNC Fabrication Stage 2 Valve Spring Set 94-03 Ford 7.3L Powerstroke?

For proper installation, Valve Spring Shims and Height Mic are highly recommended.

SKU #: CNC-421011 MPN #: 421011

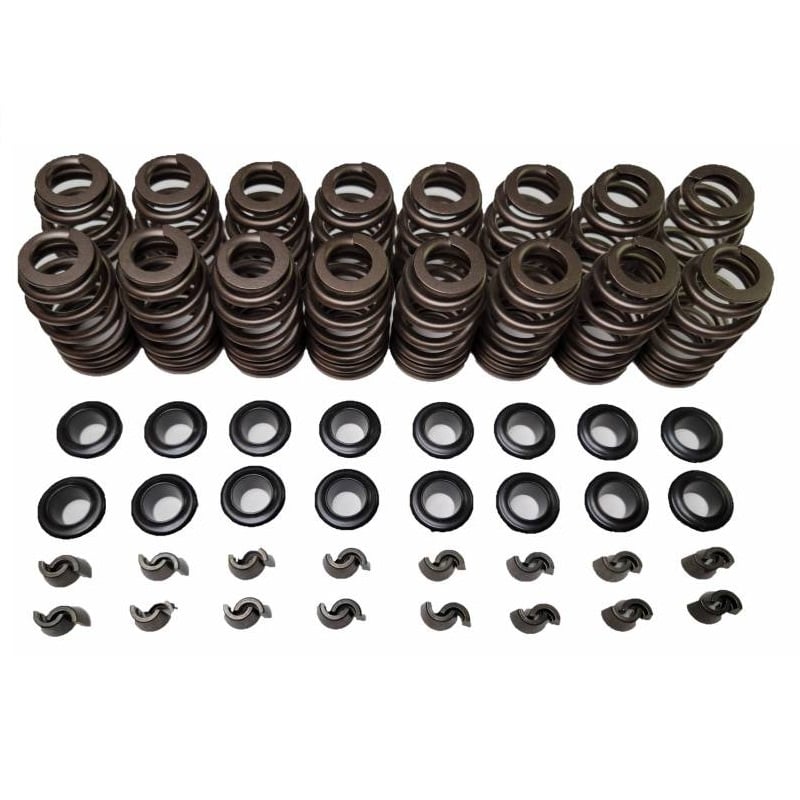

CNC Fabrication Stage 2 Valve Spring Set 94-03 Ford 7.3L Powerstroke

$449.95

Get 449 points in loyalty rewards

CNC Fabrication Stage 2 Valve Spring Set for 94-03 Ford 7.3L Powerstroke

Description Overview

One of the most overlooked engine parts when upgrading a turbo in your 7.3L Powerstroke is the valve springs. The added cylinder pressure from upgraded turbos can cause valve float under higher RPM conditions. This can cause a loss of power and overall efficiency issues. The CNC Fabrication Stage 2 Valve Springs are designed for trucks over 500 horsepower and feature a 370lb spring rate and are a great performance upgrade over the stage 1 valve springs. This kit includes new spring retainers and keepers.

Product photos may not match the selected option. Please confirm your choice before adding to cart.

Enter your zip and we'll see if installation is available.

Request quotes from local installers at checkout
Compare options and choose the best fit for your install

Free Customer Loyalty Program

No Salesmen, Just Enthusiasts

The CNC Fabrication Stage 2 Valve Spring Set upgrades valvetrain components to prevent valve float under higher RPM conditions caused by increased cylinder pressure from upgraded turbos.

Fits: 1994-2003 7.3L Ford Powerstroke
Brand: CNC Fabrication
Best for: Trucks over 500 horsepower needing stronger valve springs
Key features: Designed for trucks over 500 horsepower
370lb spring rate
Performance upgrade over stage 1 valve springs
Includes new spring retainers and keepers
Key specs: 370lb spring rate
500 horsepower
Important: For proper installation, Valve Spring Shims and Height Mic are highly recommended.

One of the most overlooked engine parts when upgrading a turbo in your 7.3L Powerstroke is the valve springs. The added cylinder pressure from upgraded turbos can cause valve float under higher RPM conditions. This can cause a loss of power and overall efficiency issues. The CNC Fabrication Stage 2 Valve Springs are designed for trucks over 500 horsepower and feature a 370lb spring rate and are a great performance upgrade over the stage 1 valve springs. This kit includes new spring retainers and keepers.

NOT LEGAL FOR SALE OR USE IN CALIFORNIA

Vehicle Fitment

1994-2003 7.3L Ford Powerstroke

WARNING: Cancer & Reproductive Harm - P65Warnings.ca.gov

VALVE SPRING SPECIFICATIONS:

Install Height: 1.880
Seat Load: 155@1.880
Spring Open Height: 1.280
Spring Open Load: 377
Recommended Valve Lift: 0.600”
Spring Rate: 370LBS
Coil Bind: 1.210

IMPORTANT NOTES:

For proper installation Valve Spring Shims and Height Mic are highly recommended.
